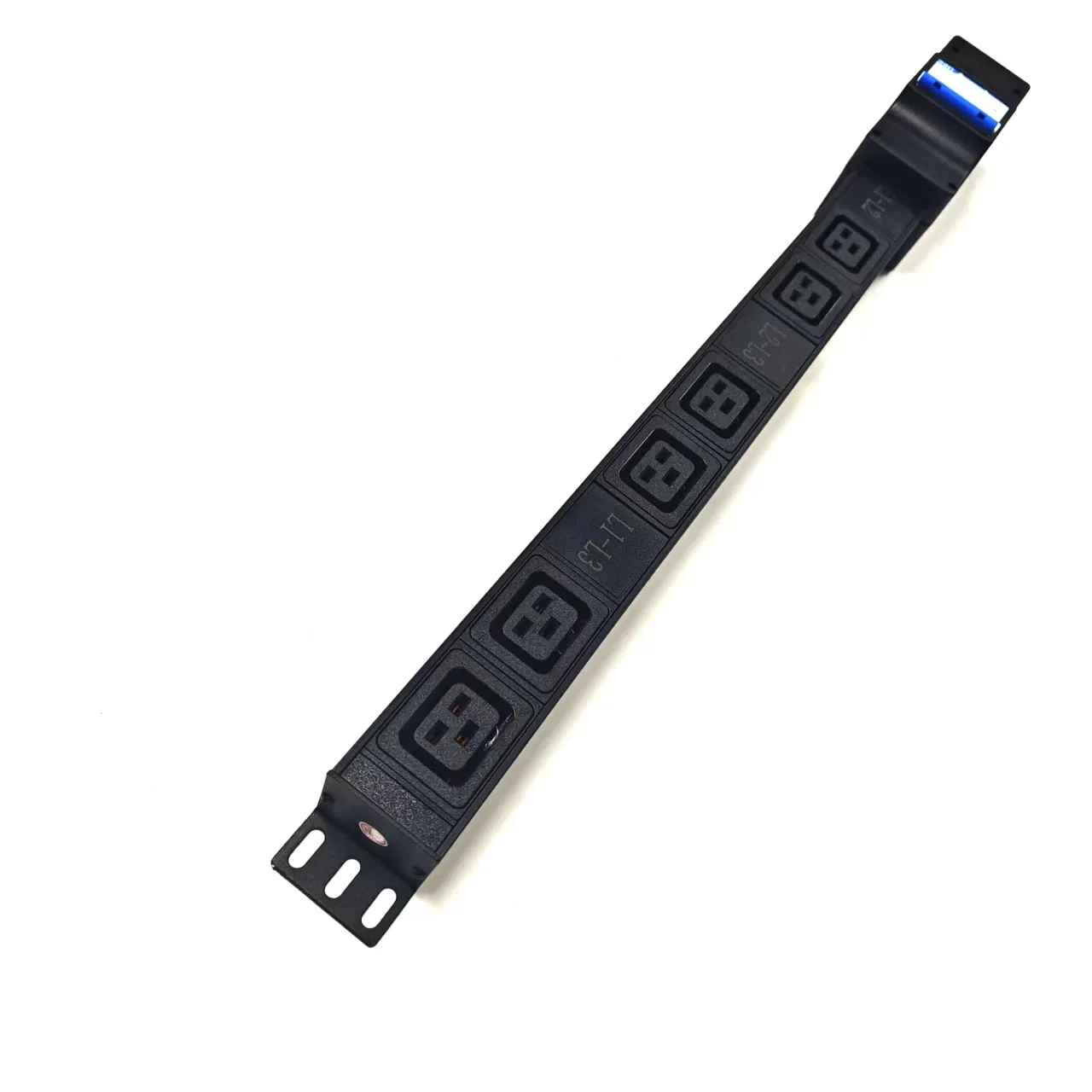

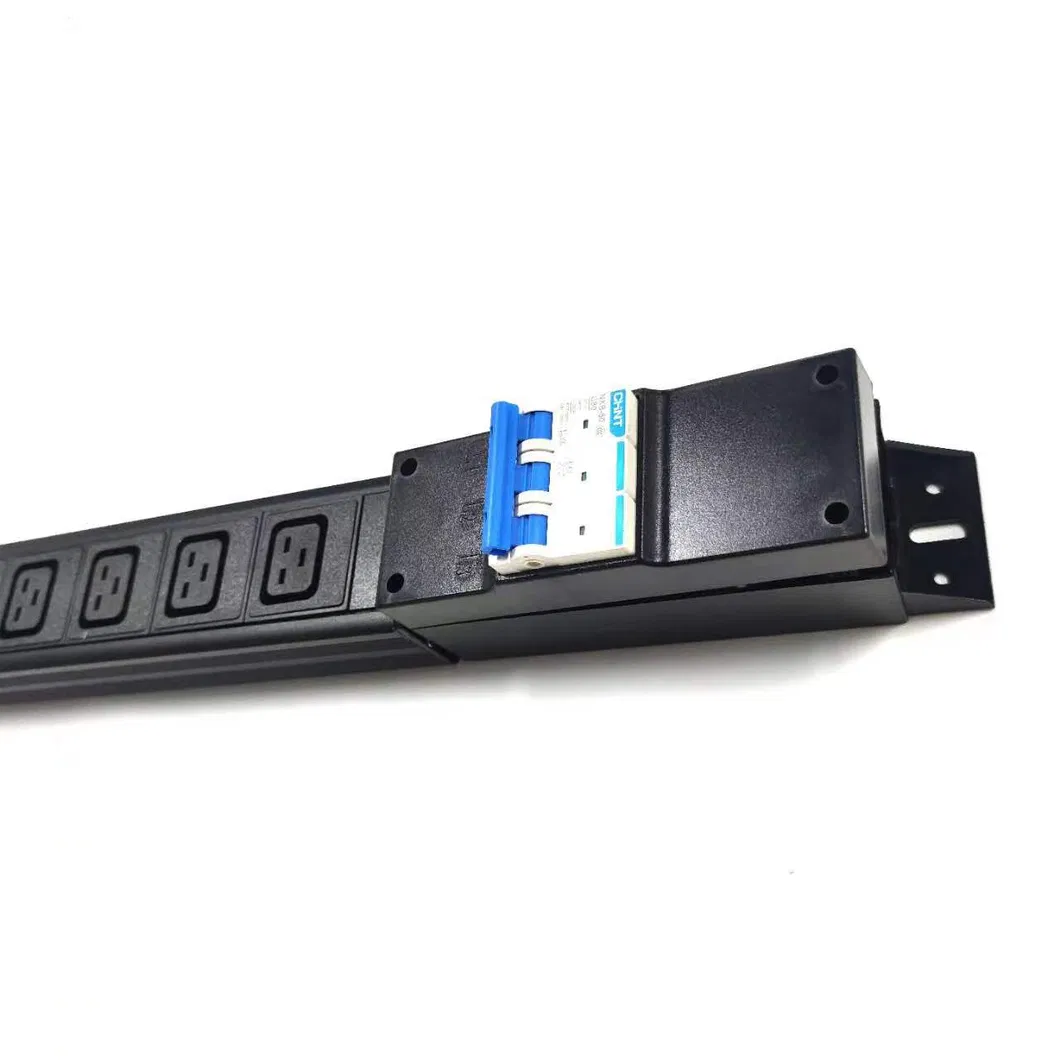

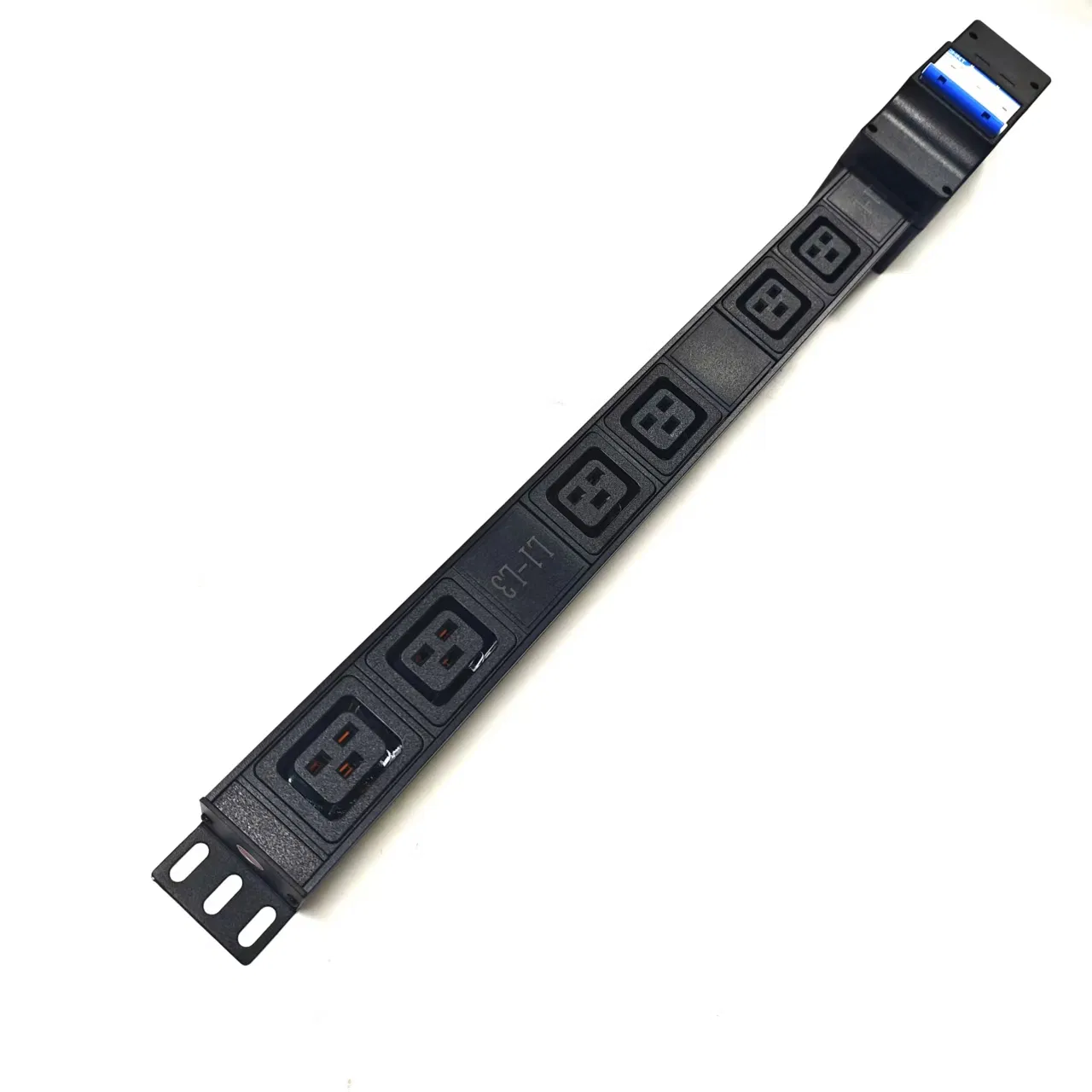

Deliver robust and reliable power to your high-density IT infrastructure with this industrial-grade 63A 3-Phase PDU. Engineered for modern data centers, server rooms, and network racks, this Power Distribution Unit efficiently converts a high-amperage 3-phase input into six individual IEC C19 outlets. Built to the 3P+N+E (3 Pole + Neutral + Earth) configuration, it ensures balanced power distribution across phases, maximizing efficiency and uptime for your critical equipment.
| Specification | Details |
|---|---|
| Model / Type | 3-Phase Basic / Metered / Monitored PDU (Select variant) |
| Input Current | 63 Amps (63A) |
| Input Voltage | 230V Phase-to-Neutral / 400V Phase-to-Phase |
| Input Phase | 3-Phase Wye (Star) |
| Input Connection | 3P+N+E (5-Wire) - IEC 60309 5-Pin Industrial Plug or Hardwired Terminal |
| Output Connectors | 6x IEC C19 (C20 Inlet compatible) |
| Output Rating | 16A - 20A per Outlet (Typical) |
| Mounting Orientation | Vertical (Zero U) / Horizontal (1U / 2U) |
| Chassis Material | Heavy-Gauge Aluminum / Cold-Rolled Steel |
| Dimensions (HxWxD) | (Insert specific dimensions e.g., 43mm x 485mm x 110mm for 1U) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Compliance / Safety | RoHS, CE, UL (Standards vary by region - please verify) |

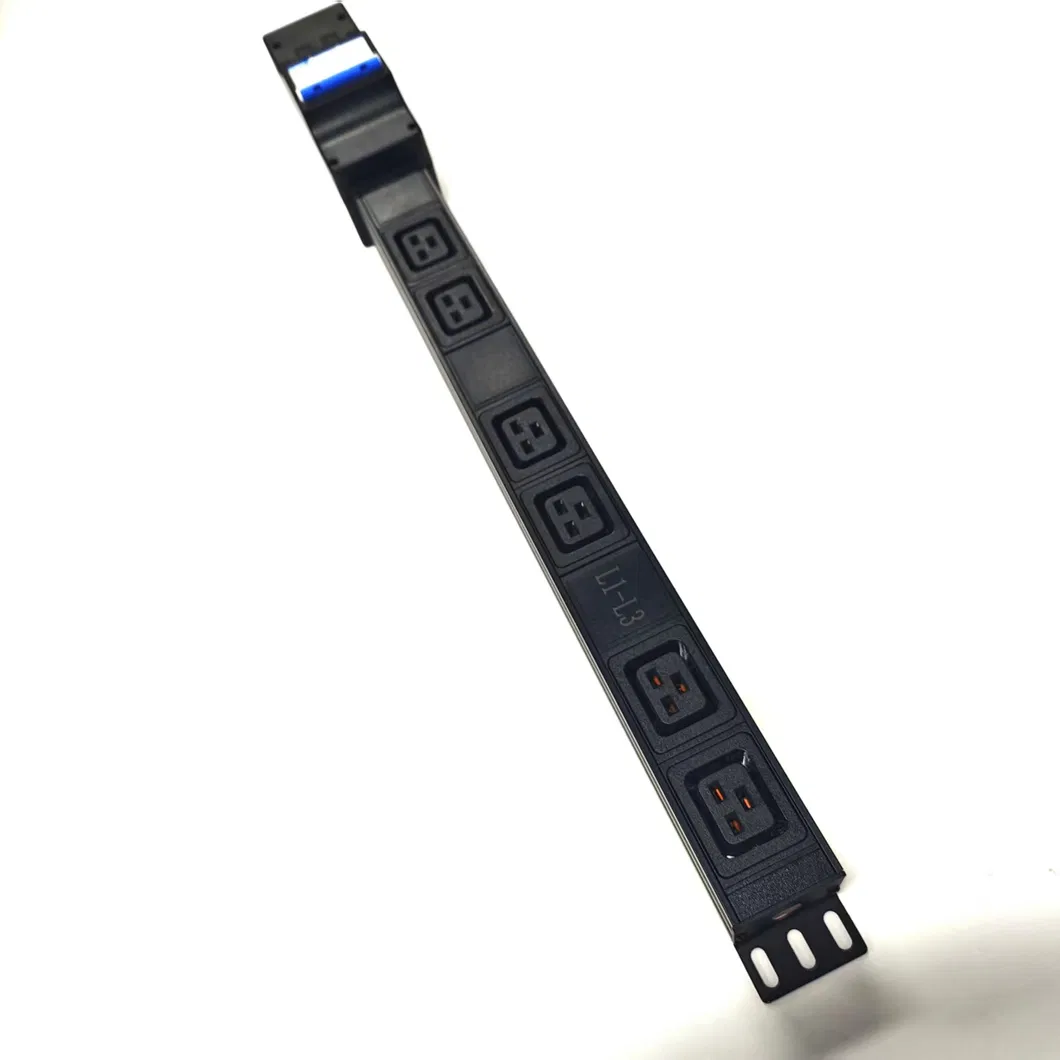

With a massive 63A 240V input capacity, this PDU is designed to power high-wattage server equipment, network switches, and blade enclosures. The 3-phase architecture allows for higher total power delivery than single-phase units, reducing the number of circuits needed in your rack.

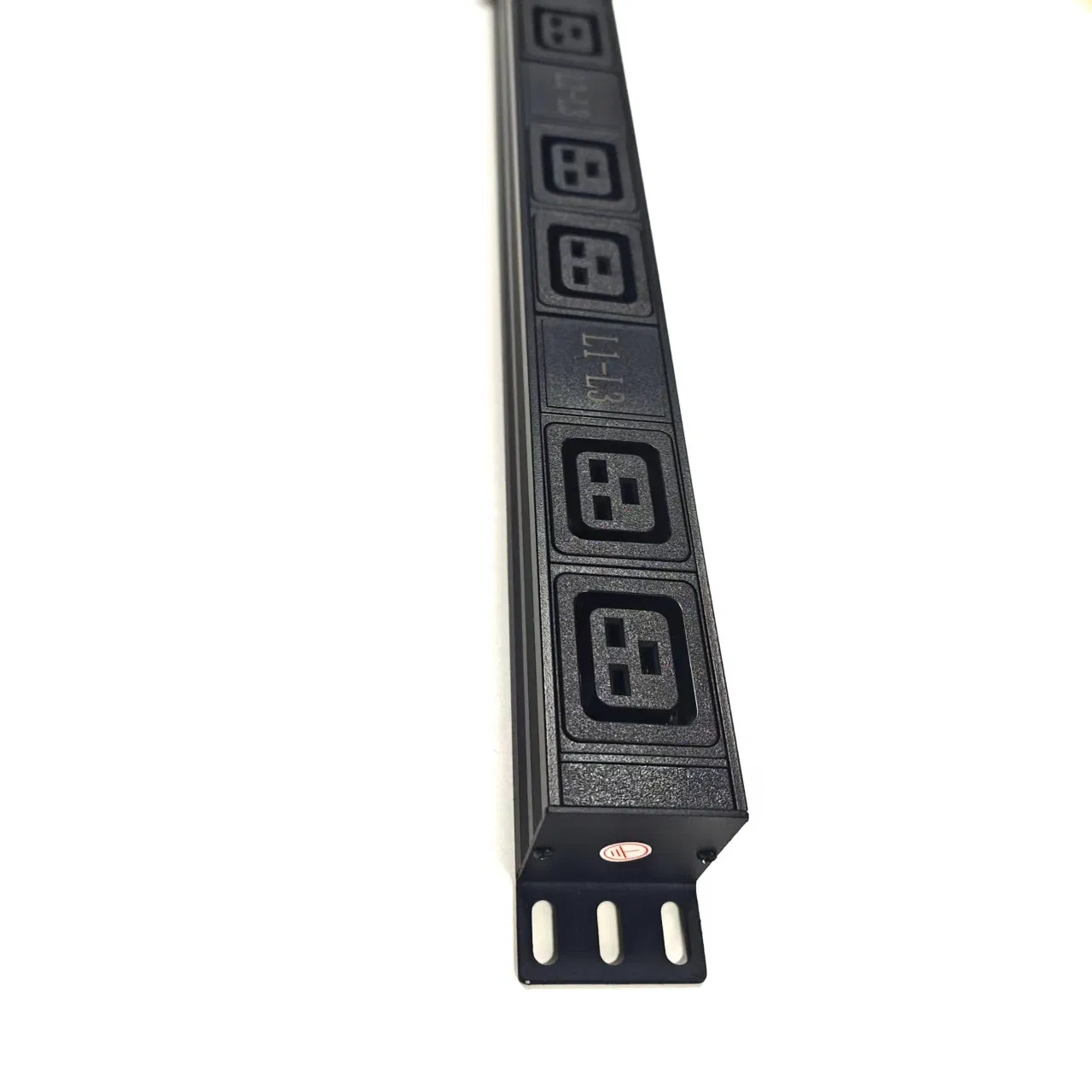

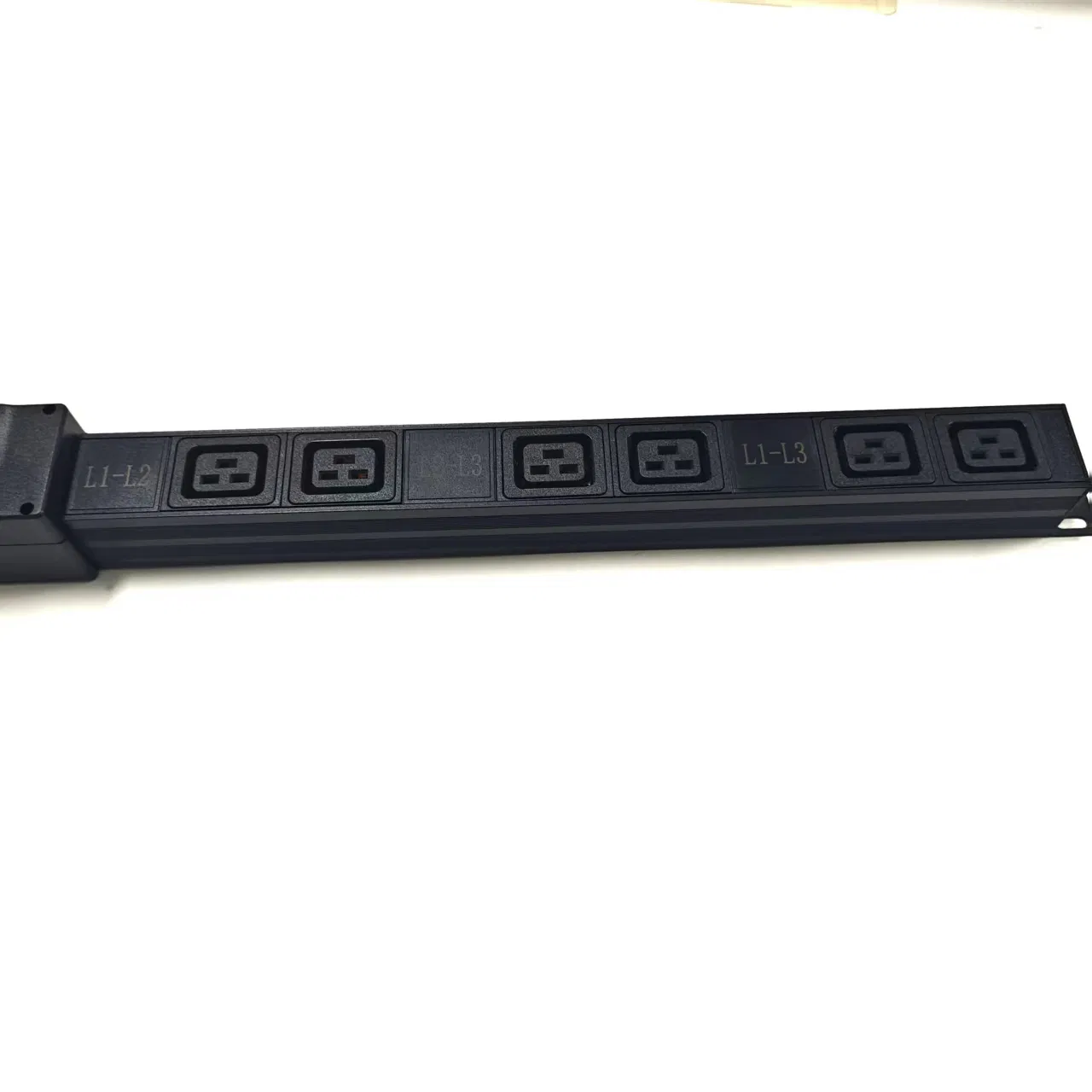

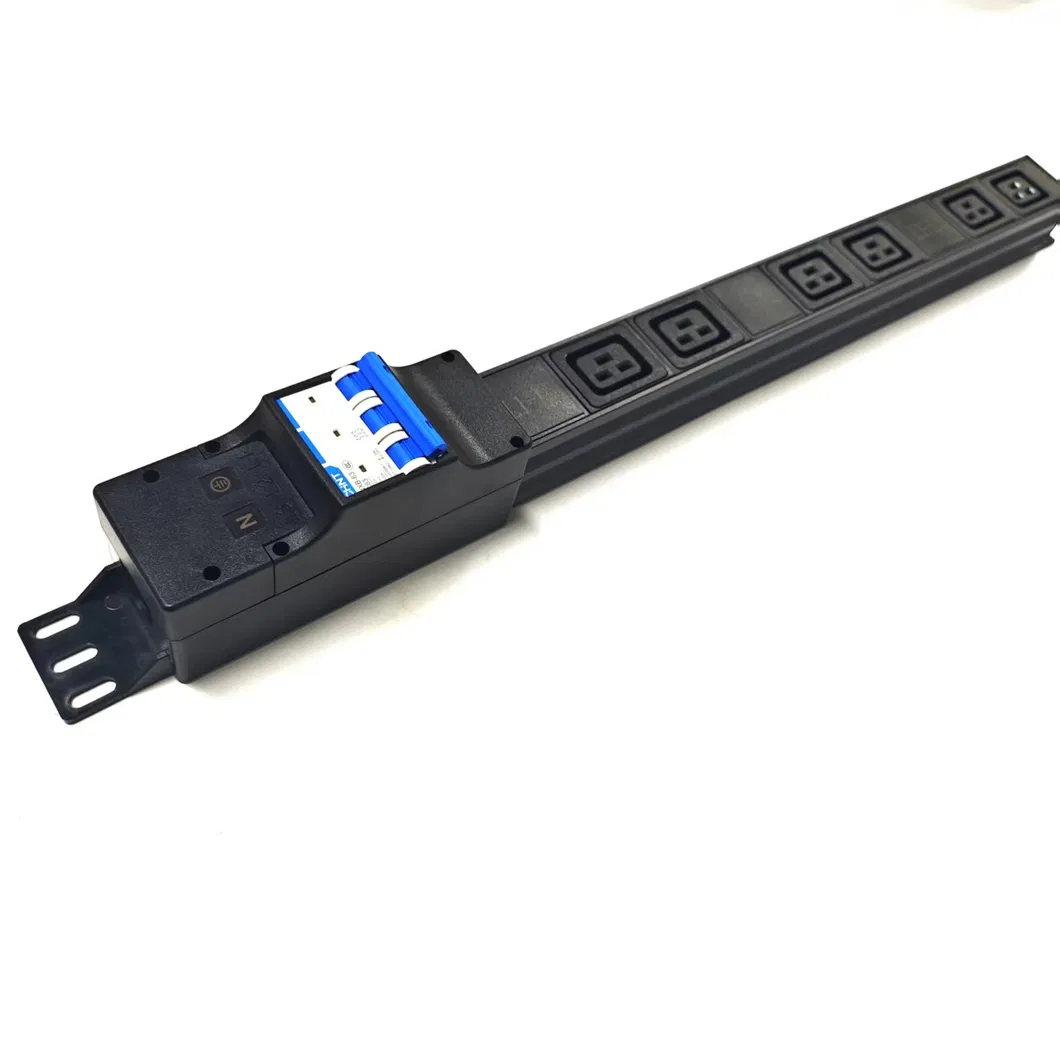

Equipped with 6x IEC C19 outlets, this unit is specifically tailored for equipment requiring a higher current connection (up to 16-20A per outlet), such as large servers, UPS units, and network core switches. The high-retention sockets ensure a secure connection, preventing accidental disconnection in high-vibration environments.

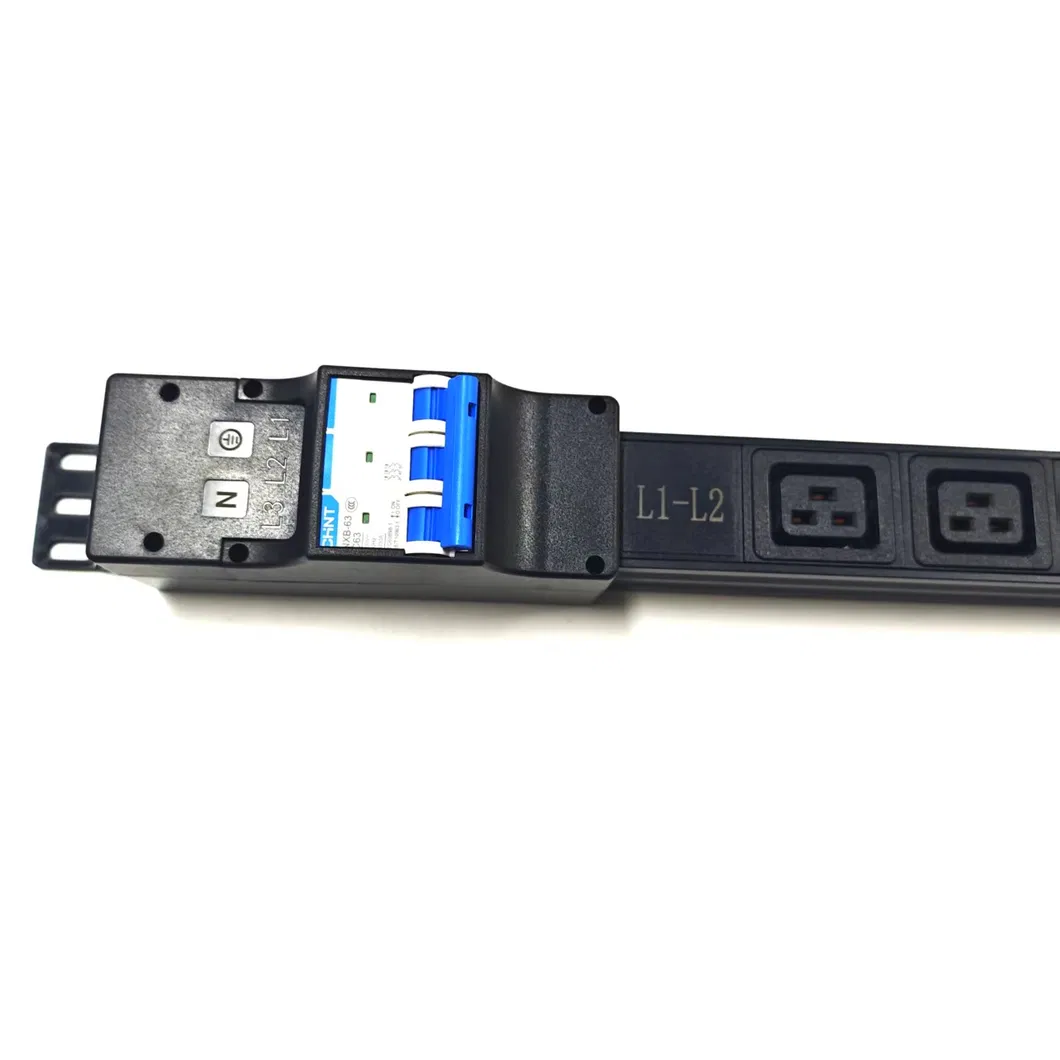

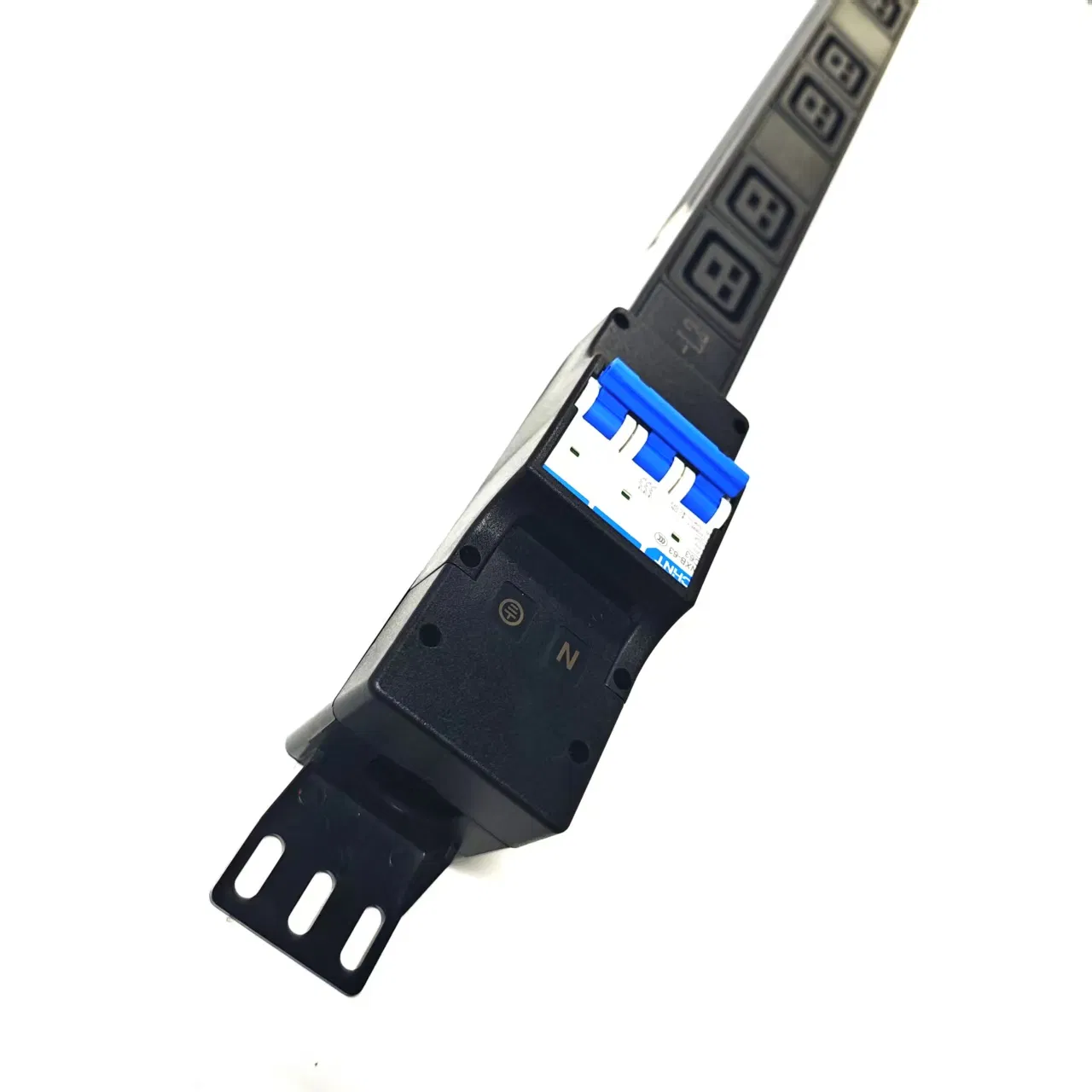

The 3-Pole + Neutral + Earth wiring ensures your equipment receives a stable and safe power supply. It supports both Wye (Star) configurations, allowing you to balance loads across all three phases to prevent overloaded circuits and improve overall data center efficiency (PUE).
The term "C19 PDU" typically refers to a Power Distribution Unit (PDU) that uses a C19 connector for power input or output. PDUs are devices used in data centers, server rooms, and other environments to distribute electrical power to multiple devices, such as servers, networking equipment, and storage systems.
Key Features of a C19 PDU:
1. C19 Connector:
- The C19 connector is a high-power IEC connector commonly used for devices that require higher power input, such as servers and UPS systems.
- It is typically paired with a C20 inlet on the device side.
2. Power Distribution:
- PDUs distribute power from a single source (e.g., a UPS or main power supply) to multiple devices.
- They come in various configurations, including basic, metered, switched, and intelligent PDUs.
3. Types of PDUs:
- Basic PDU: Provides simple power distribution without monitoring or control features.
- Metered PDU: Includes power metering to monitor power consumption.
- Switched PDU: Allows remote control of individual outlets, enabling power cycling and remote management.
- Intelligent PDU: Combines metering, switching, and advanced monitoring features, often with network connectivity for remote management.

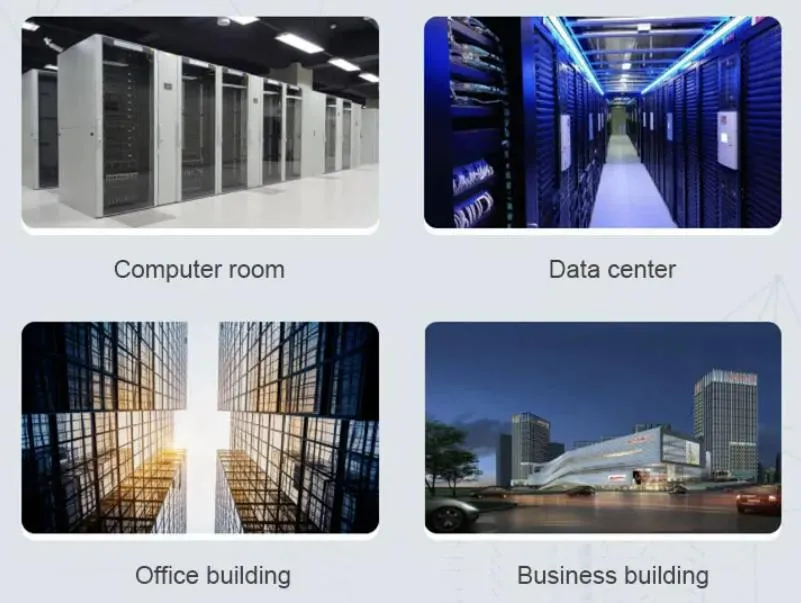

This PDU is the ideal power distribution solution for:
Answer: Dear Friends, ecatalog will emailed to you asap when you contact us. Also, we supply customization service. So, contact us!
Answer: Normally, 300pcs
Answer: usually within one day. Validity is 30 days
Answer: By T/T 30% in advance ; Balance 70% before shipment.
Answer: It depends on whether we just have the stock for your type. Or, it takes about 10 - 30 days for normal orders.
Answer: Usually, it's cartons.
