Engineered for absolute reliability, safety, and continuous load balancing in harsh industrial environments.
In an era driven by global electrification, mega data centers, and advanced manufacturing automation, the stability of electrical grids depends heavily on reliable switchgear assemblies. Switchgear operates as the central control and protective mechanism of a power distribution network, directing current flow under standard conditions and immediately isolating faults during overload, short-circuit, or grounding failures. As grid architectures incorporate complex variables like localized renewable integration, rapid transient recovery voltages, and micro-grid controls, a generalized approach to electrical distribution is no longer sufficient.
Industrial, commercial, and utility substations demand switchgear assemblies built in strict alignment with international standards, such as IEC 62271 for high-voltage, and IEC 61439 for low-voltage setups. These assemblies do more than shelter disconnectors, fuses, circuit breakers, and busbars; they integrate automated PLC systems, intelligent protective relays, and thermal feedback loops that form a reactive barrier against catastrophic equipment failure. For global procurers, ensuring high-fidelity engineering in these cabinets is not just a cost calculation; it is a critical strategy to safeguard human life, protect multi-million dollar machinery, and secure uninterrupted uptime.
Information Gain Insight: The reliability of switchgear assemblies is defined by their "Type Tested" certification. Authentic manufacturers must prove their panels can withstand short-circuit peak withstand currents (Ipk) and short-time withstand currents (Icw) through third-party laboratories. Choosing unverified assemblies introduces high risks of arc flash hazards and complete grid failure under thermal stresses.
Understanding the engineering, raw material, and supply chain efficiencies that position China at the center of power equipment manufacturing.
China's electrical clusters, especially in Zhejiang, consolidate all required tiers of production. Within a narrow radius, factories source high-purity copper, cold-rolled steel plates, sophisticated vacuum circuit breakers, and custom smart relays. This integration slashes lead times and transportation costs.
Using state-of-the-art CNC punching presses, high-speed fiber laser cutters, and automated dispensing machines, Chinese switchgear factories maintain high precision tolerances in sheet metal fabrication. Consistent dimensioning guarantees IP54 or IP65 ingress protection seals.
Unlike highly rigid European assembly lines, manufacturers in China offer flexible engineering. They easily adapt interior structures to fit either global brands like Schneider, ABB, or Siemens components, or localized Chinese variants (such as KYN28 or XGN66 standards), based on client specifications.
Customized switchgear configurations engineered for specialized sector requirements.

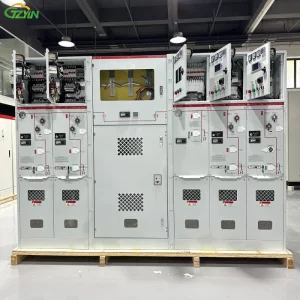

Demands high-reliability 10kV to 35kV Gas-Insulated (GIS) or Metal-Clad Switchgear (such as KYN28-12). These assemblies are equipped with heavy-duty vacuum circuit breakers to isolate high fault currents, preventing cascading blackouts in residential and commercial grids.

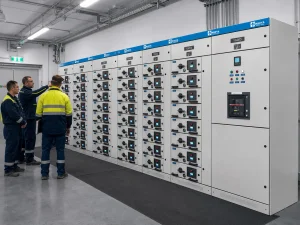

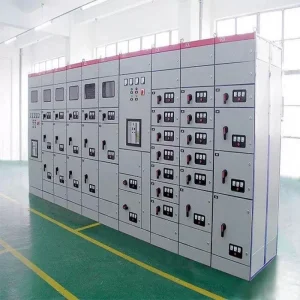

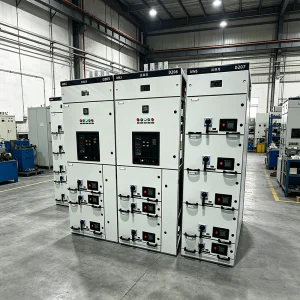

Harsh settings loaded with corrosive gases, dust, and humidity require IP54 or IP65 enclosures. Utilizing withdrawable switchgear like GCS or GCK designs permits swift maintenance of individual starter drawers without turning off the entire system, maximizing facility uptime.
Zero power disruption is the benchmark. Dual-power UPS distribution panels (e.g. 152kW capacity) integrated with smart PLC racking cabinets and Automatic Transfer Switches (ATS) ensure seamless switching between main utility and auxiliary generators without critical server dropouts.
Solar PV stations and wind farm substations operate under high thermal stress and fluctuating power inputs. Specialized modular Ring Main Units (RMU) and 35kV switchgear handle erratic feed-ins and protect high-frequency stepping transformers from transient grid disturbances.
Purchasing switchgear assemblies is a capital-intensive decision that impacts an enterprise’s operations for decades. To establish a reliable procurement strategy, buyers must focus on strict compliance criteria rather than unit cost alone. When evaluating a potential switchgear factory, consider the following checkpoints:
Ensure that the manufacturer holds updated certifications that align with your region. The core international standard for Low-Voltage Switchgear and Controlgear Assemblies is IEC 61439-1/-2. For Medium-Voltage switchgear, verify compliance with IEC 62271-200. If purchasing for the North American market, components and assemblies must comply with ANSI/IEEE standards and bear the UL (Underwriters Laboratories) mark.
The structural integrity of the enclosure relies heavily on the sheet metal thickness. Look for cabinet designs utilizing at least 2.0mm thickness of Aluzink-coated steel or cold-rolled steel plates. The busbars must consist of high-purity (99.9%) electrolytic copper with tin or silver plating to prevent oxidation at connection points. Ask for detailed supplier documentation for core components like vacuum circuit breakers (VCB), air circuit breakers (ACB), and protective relays.
A reputable supplier must offer comprehensive Factory Acceptance Testing. Before shipping, the switchgear assembly should undergo:
Powering Reliability, Driving Innovation. A global leader in integrated power supply and electrical distribution solutions.
Zhejiang Sowest Electric Co., Ltd. is a modern and innovative enterprise specializing in the research, development, manufacturing, and sales of power supply and electrical distribution equipment. With a strong commitment to technological innovation, product quality, and customer satisfaction, the company has established itself as a reliable partner for power generation, transmission, distribution, industrial automation, transportation, petrochemical, telecommunications, and infrastructure projects worldwide.
Our core product portfolio includes AC/DC Power Supply Panels, DC Power Systems, UPS (Uninterruptible Power Supply) Systems, Battery Chargers, DC Distribution Panels, AC Distribution Panels, Central Signal Panels, Power Monitoring Systems, Circuit Breakers, Power Feeding Panels, and other integrated power supply solutions. These products are widely applied in substations, power plants, industrial facilities, data centers, rail transit systems, and renewable energy projects.
The company is supported by a highly qualified team of engineers, technicians, and industry experts with extensive experience in power electronics and electrical engineering. Equipped with advanced manufacturing facilities, modern production lines, and comprehensive testing equipment, Sowest Electric ensures that every product meets stringent quality standards and international performance requirements. Guided by the principles of integrity, professionalism, innovation, and mutual growth, Zhejiang Sowest Electric continuously invests in research and development to deliver efficient, intelligent, and reliable power solutions. The company has established a complete quality management system and adheres to strict production and inspection processes to guarantee product safety, stability, and long-term reliability.
The landscape of power distribution is evolving from passive containment to intelligent interactive networks. As power demands increase, modern switchgear assemblies are integrating advanced technology to enhance control, efficiency, and ecological sustainability:
Modern assemblies feature non-invasive thermal sensors positioned directly on critical busbar joints and breaker terminals. By monitoring temperature rises in real-time, these sensors warn operator systems of increased resistance before an arc fault occurs. Wireless communication modules feed data to SCADA systems, enabling predictive maintenance that saves plants from sudden shutdowns.
Sulfur Hexafluoride (SF6) gas has long been the industry benchmark for gas-insulated switchgear (GIS) due to its excellent dielectric properties. However, its high global warming potential has driven modern factories to invest in green alternatives. Innovative RMU models utilize clean air or fluoronitril-based gas mixtures, lowering environmental impacts without sacrificing cabinet safety.
High cost of land in urban and industrial zones has forced designers to demand smaller footprints. Modern assemblies utilize high-dielectric insulation barriers and gas-insulated compartments to group electrical components into compact enclosures, saving up to 50% physical floor space compared to historical air-insulated layouts.
Expert answers to common engineering and procurement questions about switchgear assemblies.
Complementary switchgear configurations, control panels, and automation enclosures built to international specifications.
