Explore our top-tier Active Power Filters, harmonic mitigation systems, and specialized purification media designed to restore optimal power factor and clean sinusoidal current.
In modern industrial environments, the exponential growth of switch-mode power supplies, variable frequency drives (VFDs), rectifiers, and high-frequency inverters has significantly shifted grid profiles. Unlike traditional linear inductive or resistive loads, these non-linear loads draw current in discrete pulses rather than a clean sinusoidal curve. This continuous distortion injects harmonic currents back into the upstream transformer and distribution systems, causing Total Harmonic Distortion (THD) to exceed safe limits.
Excessive THD induces high-frequency eddy currents in transformer windings, leading to severe thermal stress, insulation breakdown, and premature capital asset failure. In addition, harmonic currents in neutral conductors (especially triplen harmonics such as the 3rd, 9th, and 15th order) do not cancel out but rather accumulate, causing dangerous neutral-to-ground voltage drops and thermal hazards in standard three-phase four-wire distribution layouts.
Active Power Filters (APFs) represent the peak of modern mitigation technologies. By utilizing real-time computational algorithms, they actively measure line currents, identify harmonic deviations, and instantly generate an opposite-phase cancellation current. This reduces THDi to under 3%–5%, protecting sensitive downstream automation equipment and ensuring compliance with international IEEE 519 compliance standards.
How Sowest Active Power Filters dynamically eliminate grid distortion:
How Active Power Filters compare to older passive filtration methods and standard Static Var Generators (SVG).
| Performance Parameters | Passive LC Filters | Static Var Generator (SVG) | Active Power Filter (APF) |
|---|---|---|---|
| Mitigation Capabilities | Only tuned to single/fixed frequencies (e.g., 5th or 7th) | Focuses primarily on reactive power (cos φ); limited harmonics | Simultaneously targets 2nd to 50th harmonic orders |
| Response Time | Slow, static physical resonance limits | Dynamic, typically 5ms to 10ms response range | Ultra-fast dynamic response <5ms (fully corrective) |
| Resonance Risk | High risk of parallel resonance with system impedance | None; operates as an active current source | None; operates dynamically without impedance loops |
| Target Application | Constant loads, predictable grid configurations | Pure power factor correction, voltage flicker | Dynamic variable loads, high-density IT, automation grids |
| Efficiency Benchmarks | Moderate; subject to passive heat dissipation | 97.5% average active thermal rating | Up to 98% (with advanced SiC Switching Technology) |
Different operational environments face distinct harmonic challenges. We configure our APF units for optimal compatibility in key industries.
High-density server farms rely on switched-mode power supplies (SMPS) that generate large volumes of 3rd-order harmonics. This can cause high currents on neutral lines, causing cable heating and ground potential fluctuations. Our 3-phase 4-wire active power filters mitigate neutral current risks and maintain strict voltage stability.
Large-scale photovoltaic inverters and wind turbine generators introduce high-frequency switching noise and grid voltage variations. Implementing modular APFs with integrated Static Var Generation (SVG) helps solar and wind assets meet tough utility grid code standards (such as IEEE 1547).
Arc furnaces, rolling mills, and large-scale induction motors introduce rapid reactive power fluctuations and high-amplitude harmonics. Our industrial cabinet APFs, rated for continuous operation at 380V/400V/690V, stabilize voltage grids and prevent current overload issues.
Zhejiang Sowest Electric Co., Ltd. is a modern, innovative enterprise specializing in the research, development, engineering, manufacturing, and global export of advanced power supply and electrical distribution equipment. Committed to technological innovation, reliable product quality, and long-term customer satisfaction, the company is a trusted partner for global power generation, transmission, industrial automation, petrochemical, and telecommunications projects.
Our comprehensive portfolio includes AC/DC Power Supply Panels, DC Power Systems, UPS (Uninterruptible Power Supply) Systems, Battery Chargers, DC Distribution Panels, AC Distribution Panels, Central Signal Panels, Power Monitoring Systems, Circuit Breakers, Power Feeding Panels, and dynamic APF/AHF solutions. Supported by a skilled team of power electronics engineers, Sowest utilizes advanced manufacturing facilities and rigorous testing processes to ensure every unit complies with international standards.
By leveraging local supply chains and in-house manufacturing processes, we deliver cost-competitive, reliable equipment designed to help our customers achieve high operational efficiency and energy reliability.
Our manufacturing capabilities run from raw material acquisition to precision machining, welding, and quality testing. Look inside our facilities.
The active power quality industry is transitioning toward high-frequency, high-density semiconductor designs. Traditional Silicon IGBT switches face operational frequency limits (often capped below 20 kHz) due to thermal losses. Our research focuses on integrating Silicon Carbide (SiC) MOSFETs into active filter designs.
By switching to SiC components, system efficiency can exceed 98%, switching losses are reduced by up to 50%, and smaller passive components can be used. This leads to a smaller overall footprint, allowing modular APF models to deliver higher power density in standard cabinet sizes.
Sowest also incorporates industrial communications protocols like Modbus RTU/TCP and optional Ethernet interfaces. This enables engineers to monitor grid harmonics, reactive currents, and system temperatures in real time, supporting predictive maintenance and remote troubleshooting.
Answers to common engineering and sourcing questions regarding active power filtration systems.
Passive filters are tuned to a single harmonic frequency (e.g., 5th order) using static inductors and capacitors, and they are susceptible to resonance with the grid's impedance. Active Power Filters (APFs) are dynamic current sources that monitor the network's harmonics in real time and inject equal, opposite-phase currents. They can target multiple harmonic orders (from 2nd to 50th) simultaneously and will not overload or create resonance loops under changing load conditions.

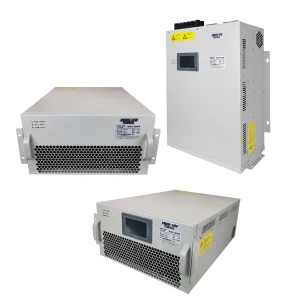

A 3-phase 3-wire system is used in environments without a neutral wire, focusing on mitigating phase harmonics. A 3-phase 4-wire system is designed to handle unbalanced loads and triplen harmonics (such as 3rd, 9th, and 15th orders) that accumulate on the neutral line. The 4-wire configuration actively compensates for neutral currents to reduce fire hazards and voltage fluctuations in office buildings, server farms, and commercial complexes.
Yes, our APF modules support parallel operation in single cabinets or multi-cabinet configurations. The units communicate over a high-speed system bus, sharing the corrective load current demands dynamically. This allows you to expand capacity as facility loads grow without needing to replace the existing filtration hardware.
All Sowest active power filters are engineered to comply with major international directives, including CE (LVD/EMC) standards. The performance characteristics of our systems are built around the strict limits defined by IEEE 519, IEC 61000-4-30, and EN 50160 power quality standards.
Industrial cabinet installations and dynamic SVG integrated packages designed for large-scale engineering applications.
