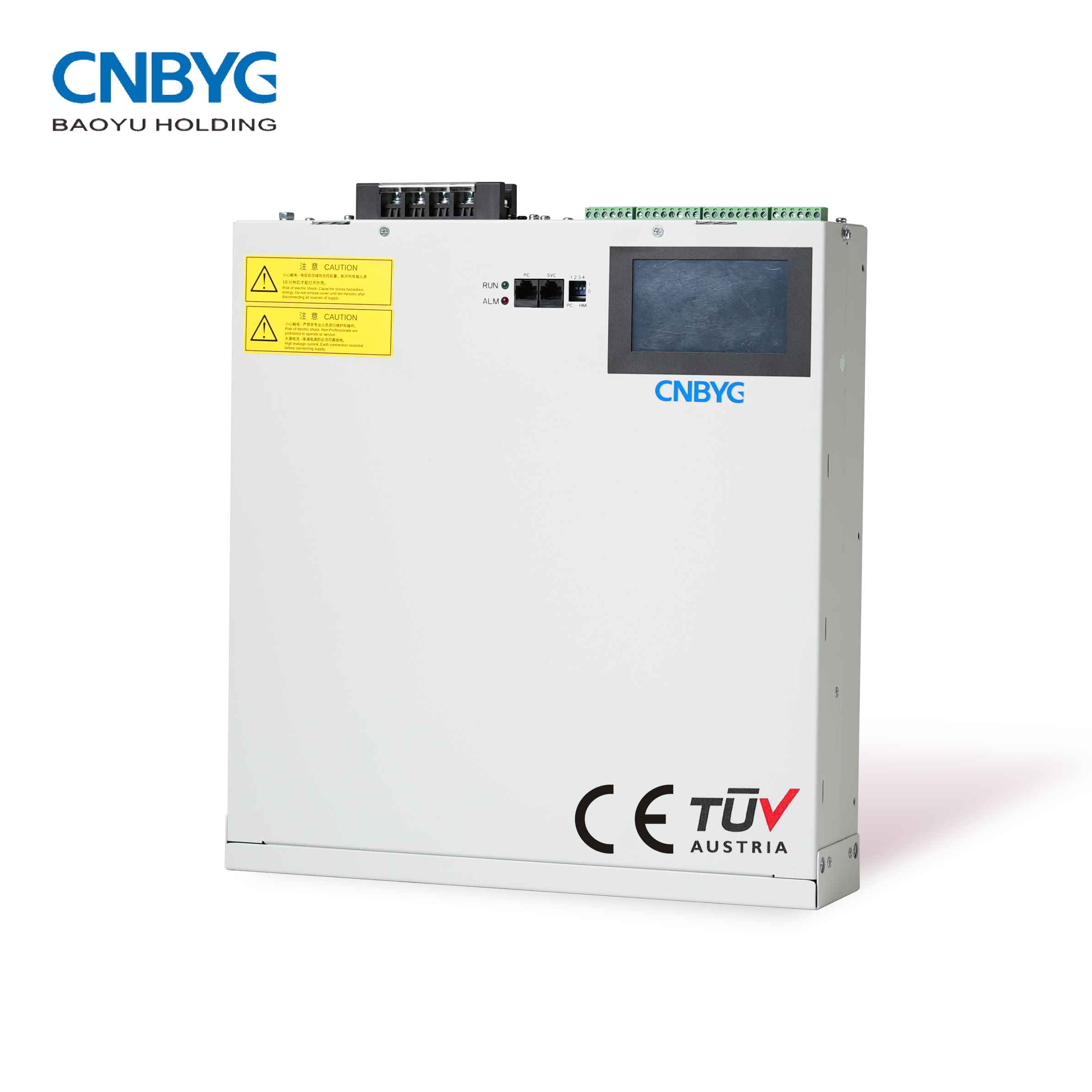

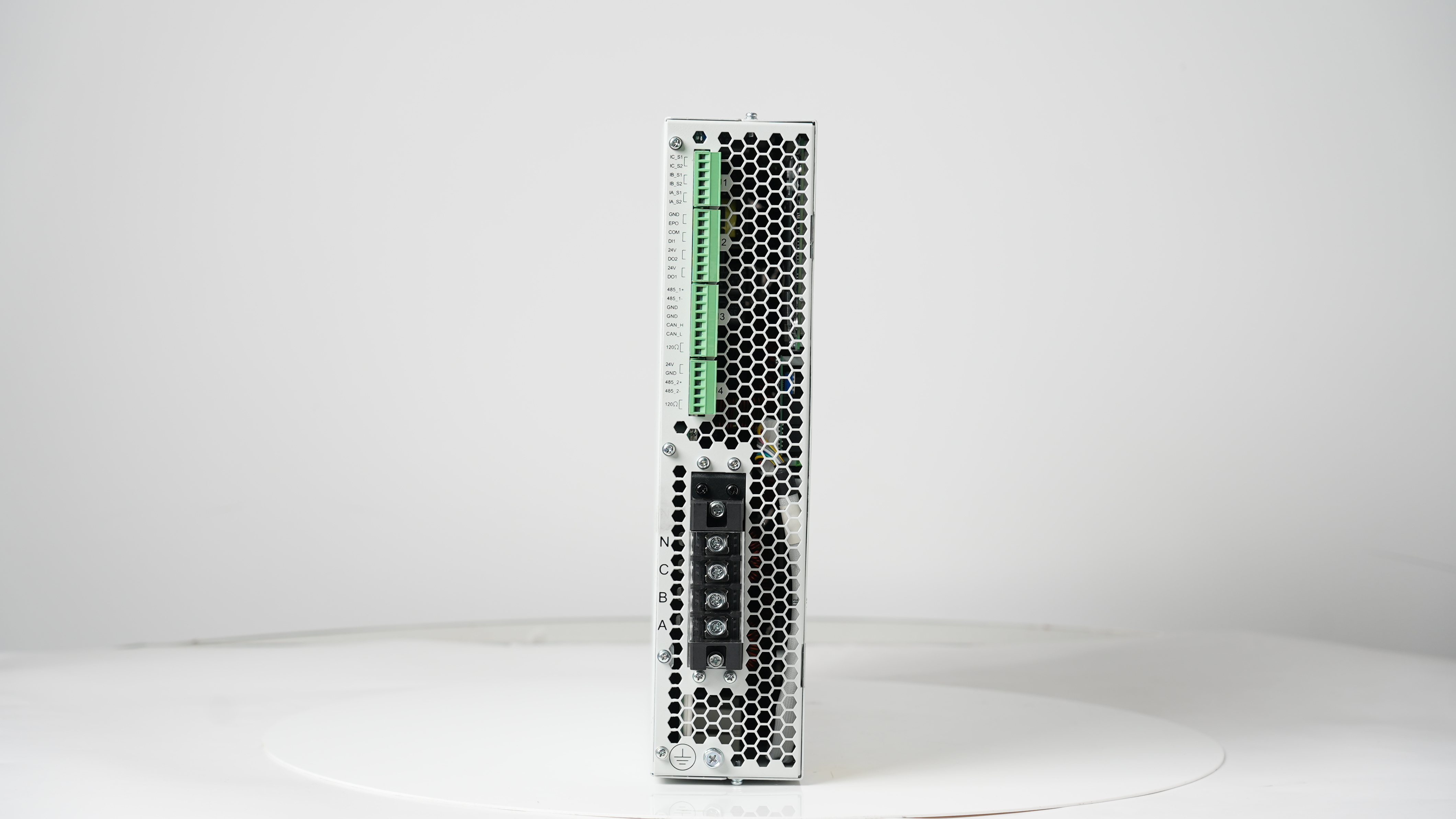

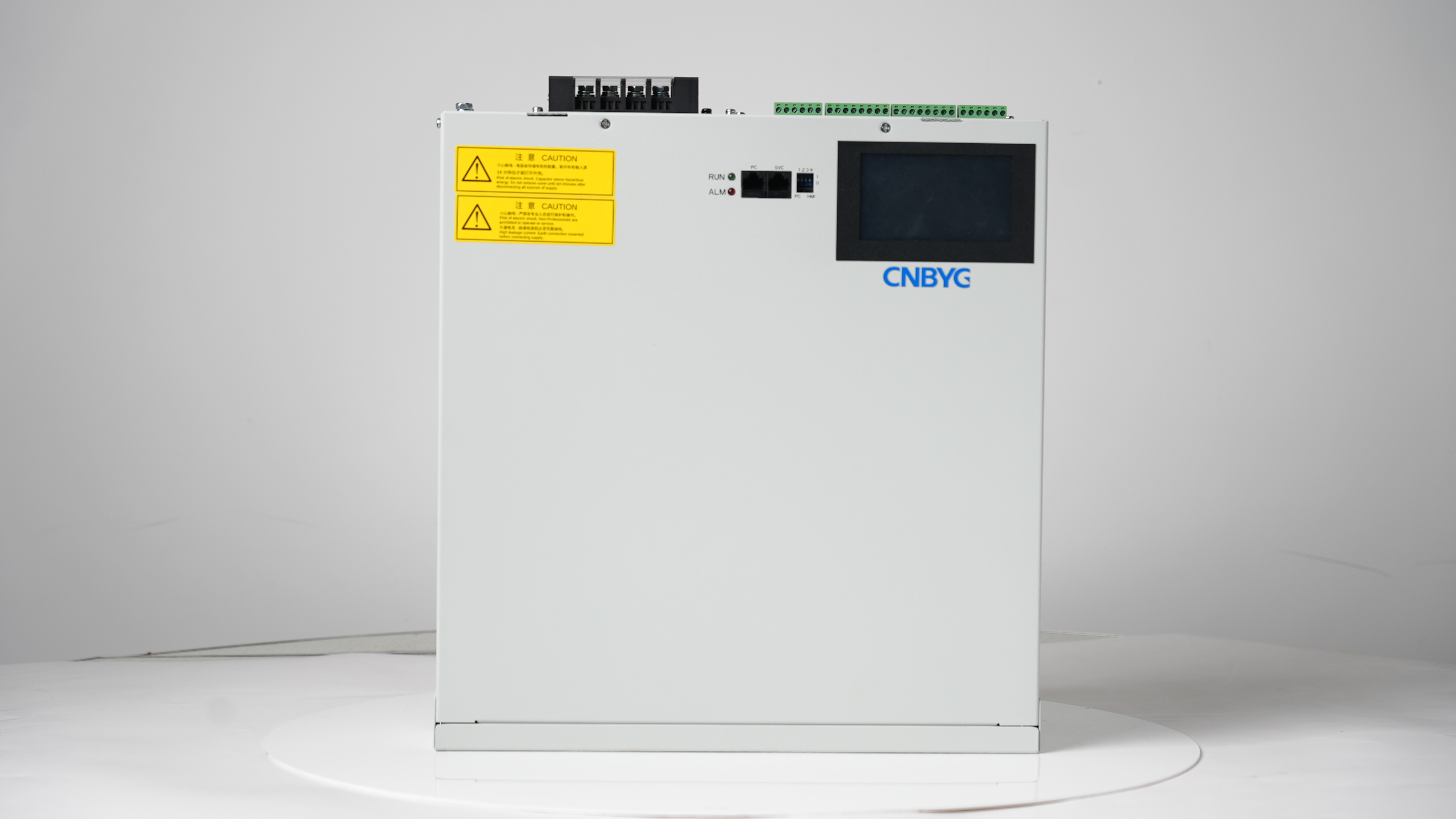

CNBYG EV Charging Station SVG-75Kvar Modular Static Var Generator Model BY92-SVG/75kvar-0.4/4L-N for Electric Power Transmission
CNBYG EV Charging Station SVG-75Kvar Modular Static Var Generator Model BY92-SVG/75kvar-0.4/4L-N for Electric Power Transmission
CNBYG EV Charging Station SVG-75Kvar Modular Static Var Generator Model BY92-SVG/75kvar-0.4/4L-N for Electric Power Transmission
CNBYG EV Charging Station SVG-75Kvar Modular Static Var Generator Model BY92-SVG/75kvar-0.4/4L-N for Electric Power Transmission
CNBYG EV Charging Station SVG-75Kvar Modular Static Var Generator Model BY92-SVG/75kvar-0.4/4L-N for Electric Power Transmission
1 / 5
CNBYG EV Charging Station SVG-75Kvar Modular Static Var Generator Model BY92-SVG/75kvar-0.4/4L-N for Electric Power Transmission
CNBYG EV Charging Station SVG-75Kvar Modular Static Var Generator Model BY92-SVG/75kvar-0.4/4L-N for Electric Power Transmission
CNBYG EV Charging Station SVG-75Kvar Modular Static Var Generator Model BY92-SVG/75kvar-0.4/4L-N for Electric Power Transmission
CNBYG EV Charging Station SVG-75Kvar Modular Static Var Generator Model BY92-SVG/75kvar-0.4/4L-N for Electric Power Transmission
CNBYG EV Charging Station SVG-75Kvar Modular Static Var Generator Model BY92-SVG/75kvar-0.4/4L-N for Electric Power Transmission

CNBYG EV Charging Station SVG-75Kvar Modular Static Var Generator Model BY92-SVG/75kvar-0.4/4L-N for Electric Power Transmission

Send Inquiry

Product Description

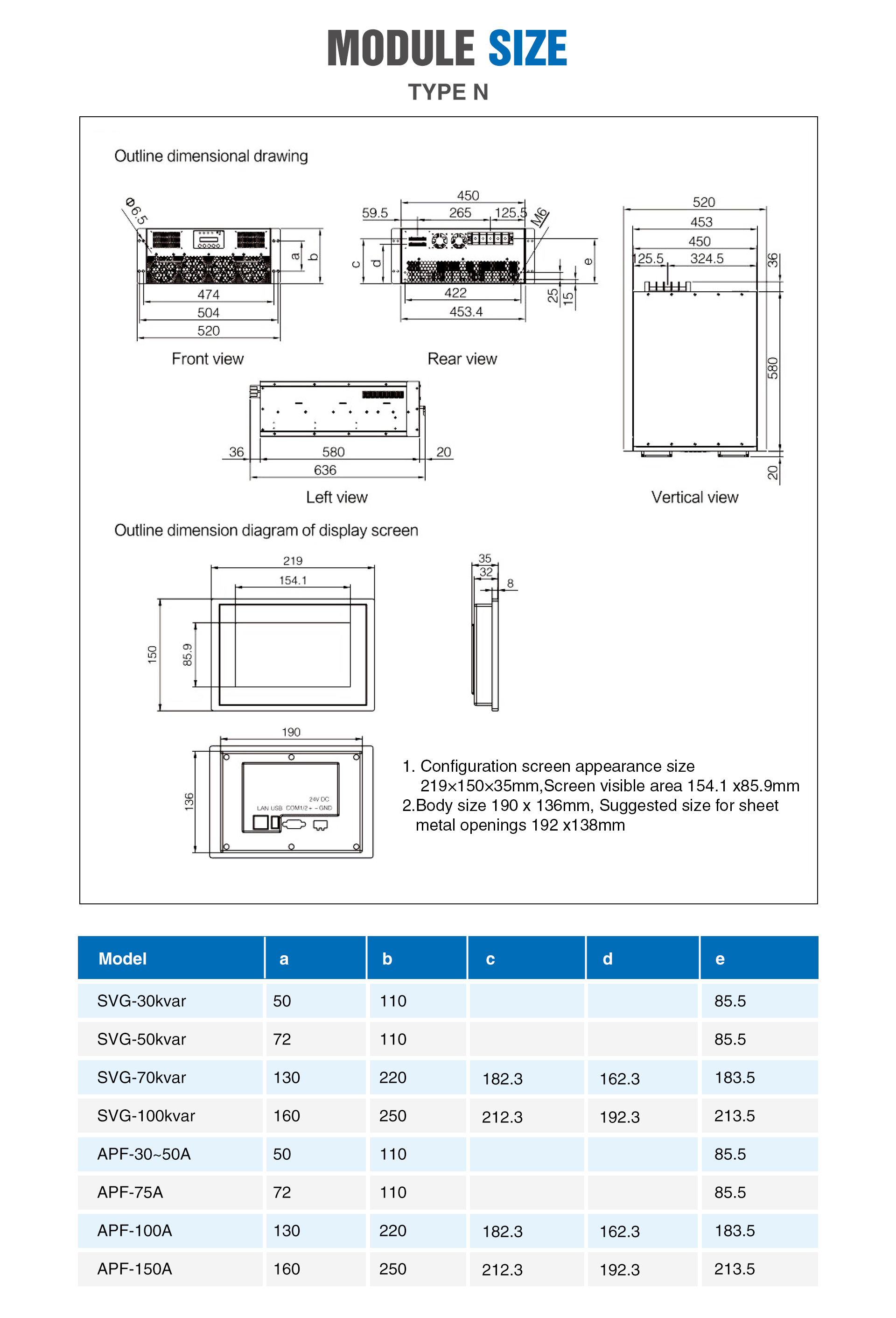

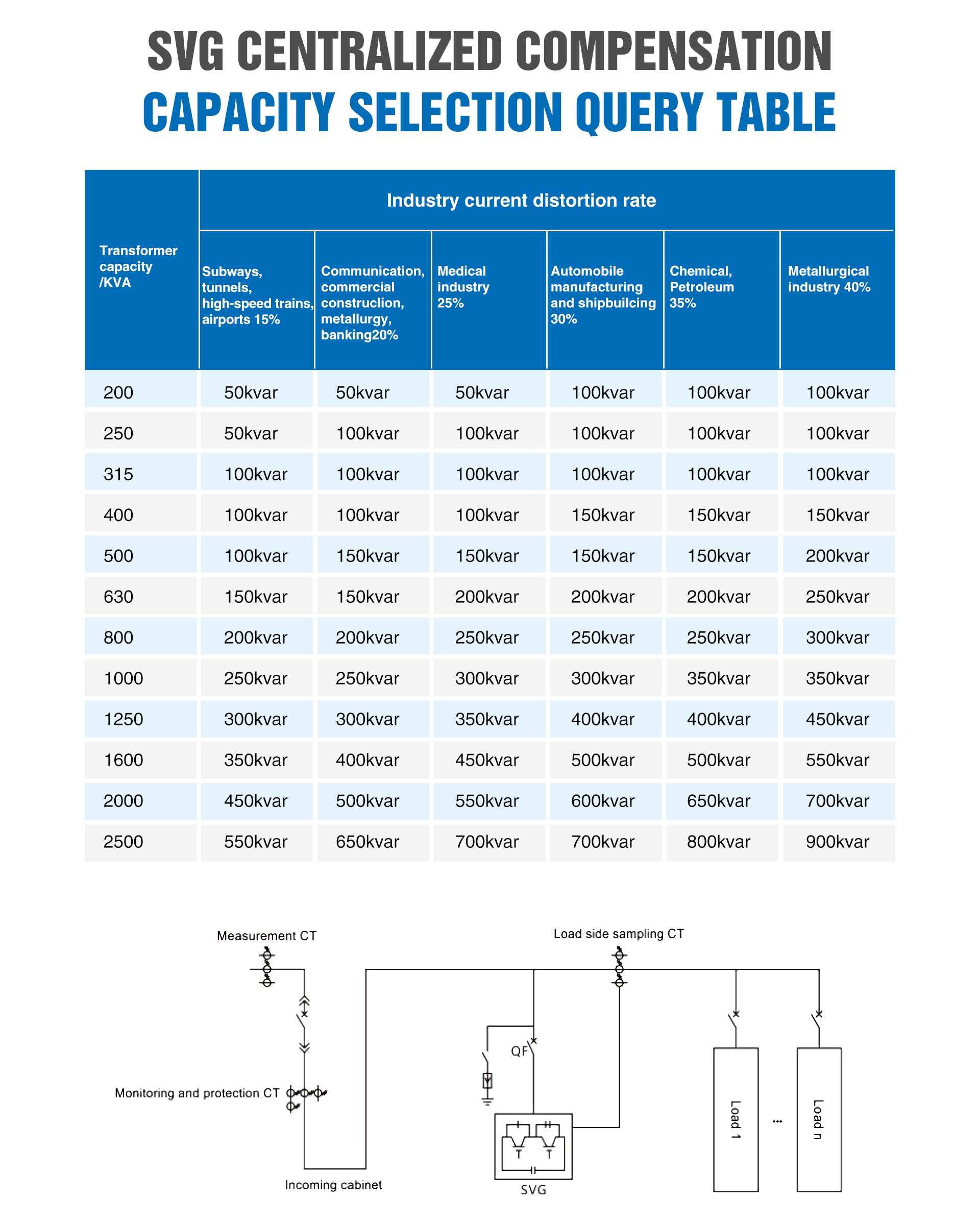

Product Image Product Image Product Image Product Image Product Image Product Image Product Image Product Image Product Image Product Image
Detail View 1
Detail View 2
Detail View 3

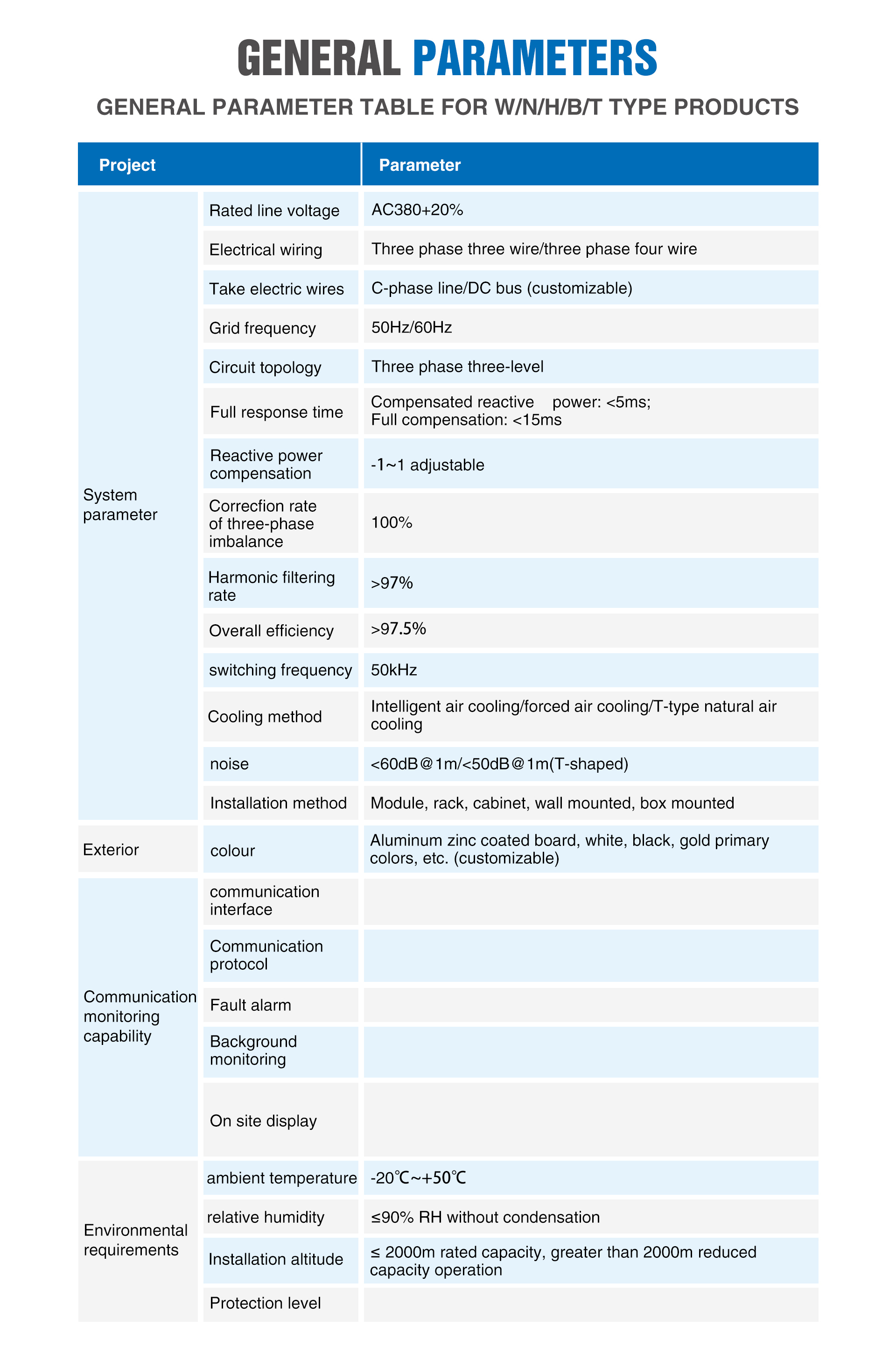

Technical Specifications
Category Parameter Details
System Parameter Rated line voltage AC380+20%
System Parameter Electrical wiring Three phase three wire/three phase four wire
System Parameter Grid frequency 50Hz/60Hz
System Parameter Circuit topology Three phase three-level
System Parameter Full response time Compensated reactive power: <5ms; Full compensation: <15ms
System Parameter Reactive power compensation -1~1 adjustable
System Parameter Harmonic filtering rate >97%
System Parameter Overall efficiency >97.5%
System Parameter Switching frequency 50kHz
Environmental requirements Ambient temperature -20°C~+50°C
Environmental requirements Relative humidity ≤90% RH without condensation
Environmental requirements Installation altitude ≤ 2000m rated capacity, >2000m reduced capacity
Frequently Asked Questions
What is the response time for reactive power compensation?
The device features a rapid response time, with compensated reactive power occurring in under 5ms and full compensation within 15ms.
Is the system compatible with different grid frequencies?
Yes, the system is designed to operate seamlessly with standard grid frequencies of both 50Hz and 60Hz.
What is the harmonic filtering efficiency?
The system provides high-performance filtering, achieving a harmonic filtering rate greater than 97%.
Can the device be used at high altitudes?
Yes, the device supports installation at altitudes up to 2000m at rated capacity. For altitudes exceeding 2000m, it requires reduced capacity operation.
What are the cooling methods available for this equipment?
The equipment supports intelligent air cooling, forced air cooling, and T-type natural air cooling methods to ensure optimal performance.
