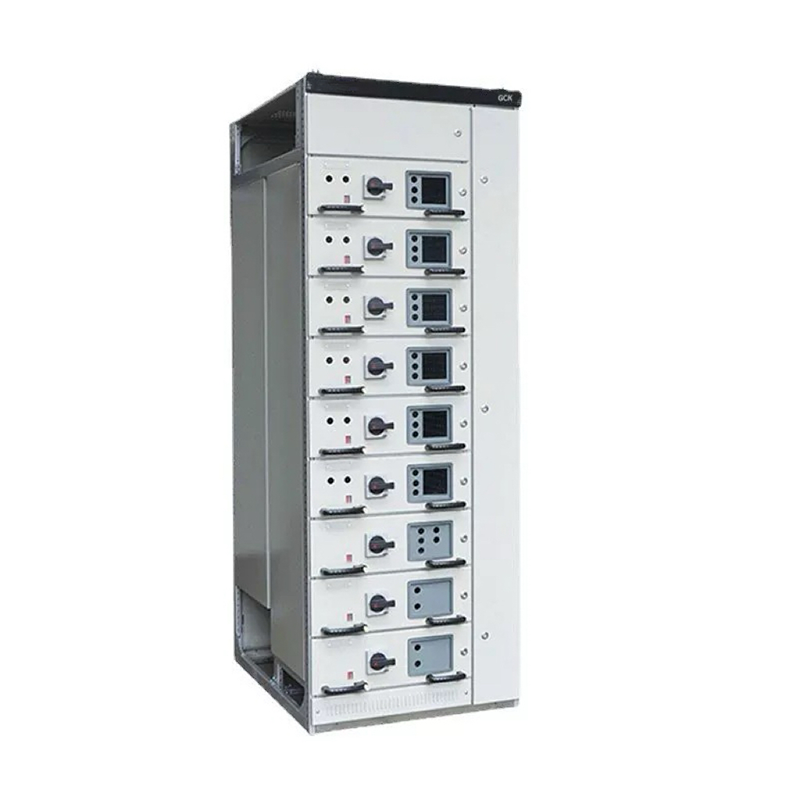

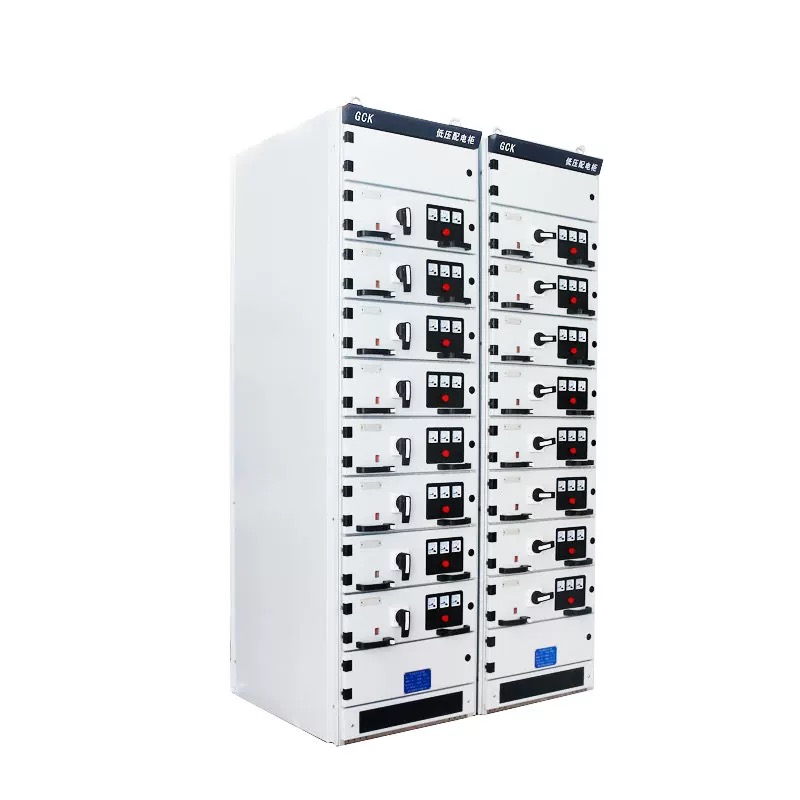

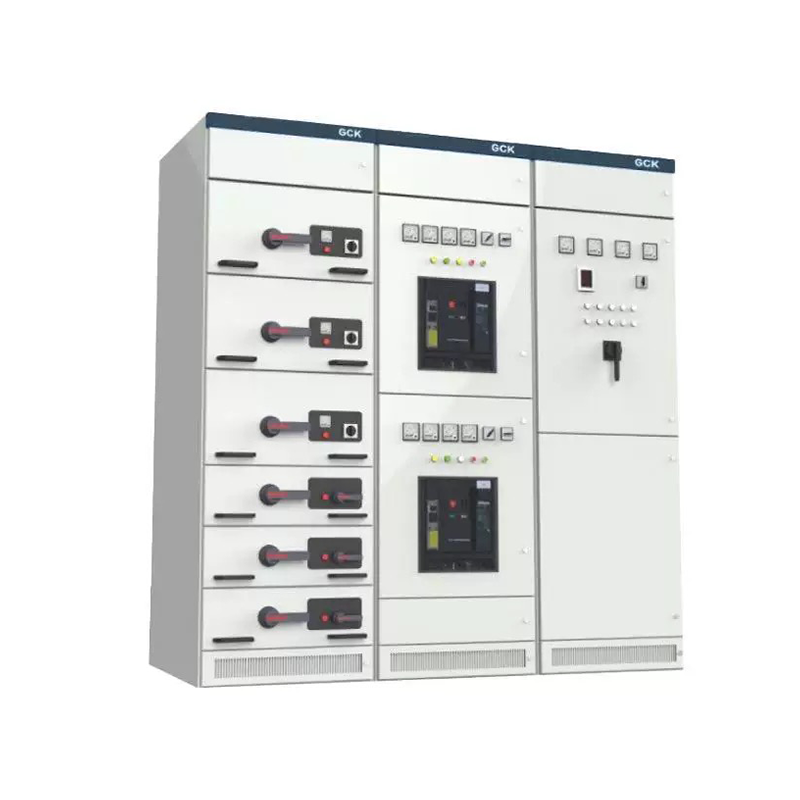

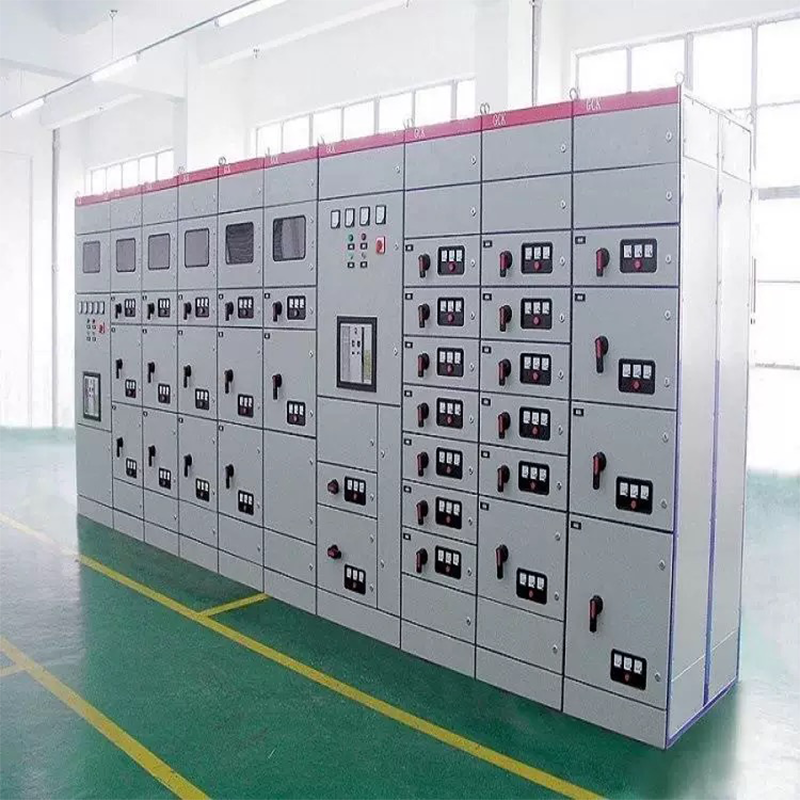

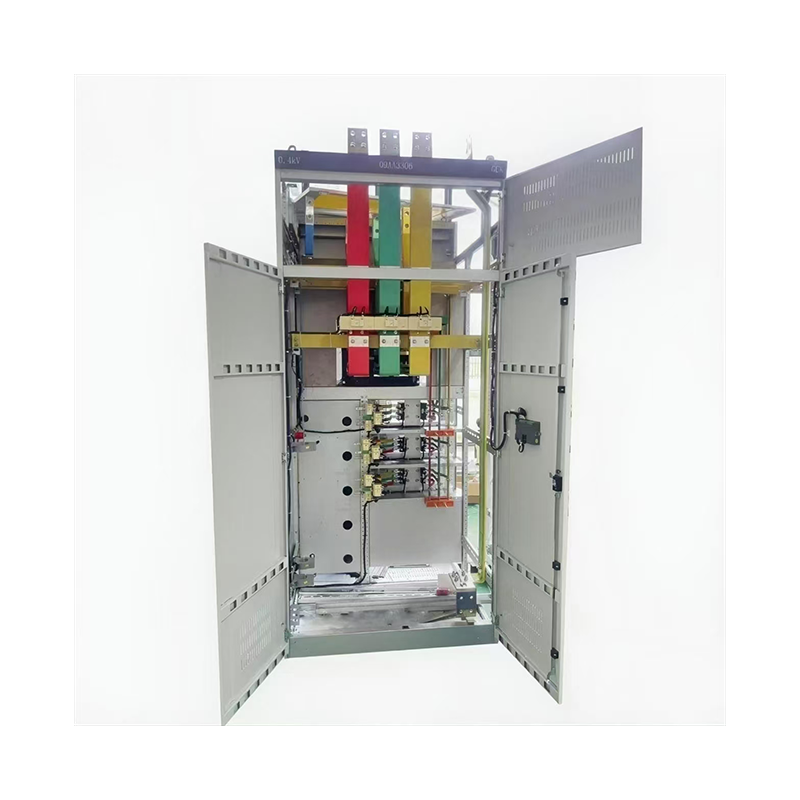

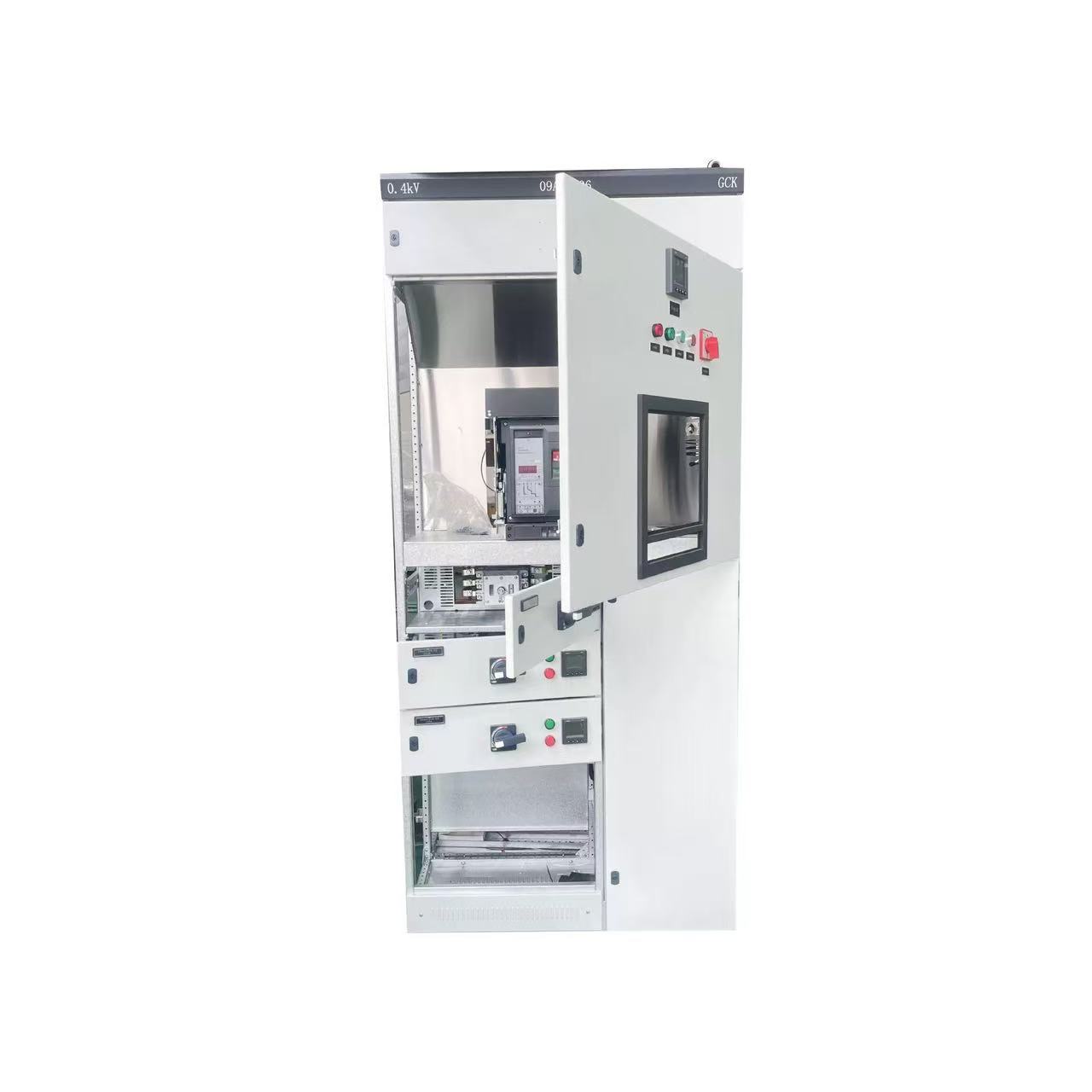

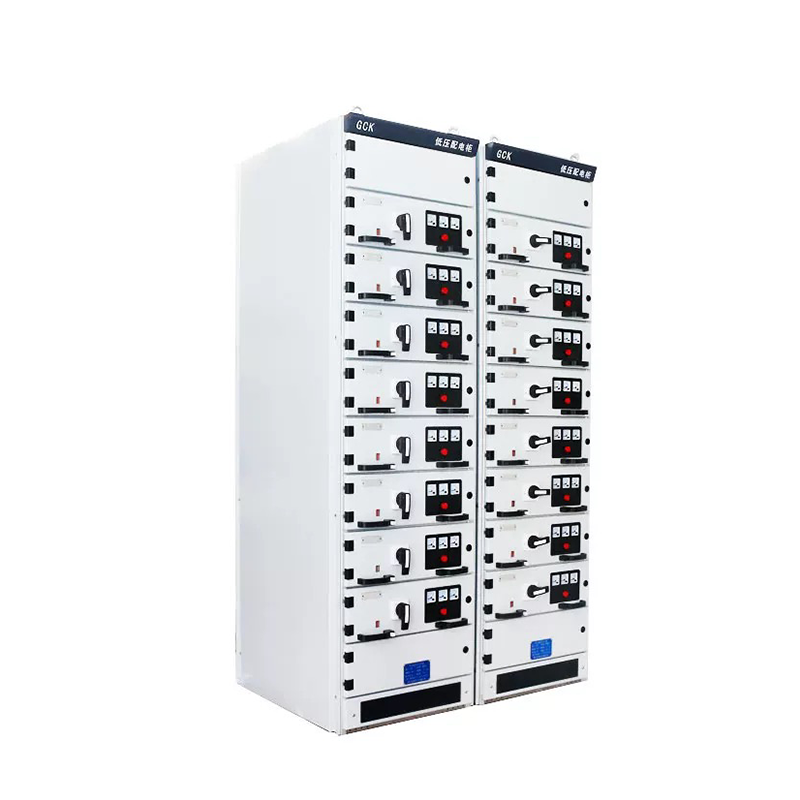

Customized GCK 3150A Low Voltage Switchgear Assembly for Commercial Power Distribution and Industrial Control

Send Inquiry

Product Description

Parameter Category	Specific Parameters	Unit	Value / Specification
Basic Electrical Parameters	Rated Operating Voltage	V	380/400/415 (3P4W)
	Rated Insulation Voltage	V	690
	Rated Frequency	Hz	50/60
	Rated Current of Horizontal Busbar	A	≤4000
	Rated Current of Vertical Busbar	A	≤1600
	Rated Short-time Withstand Current (1s)	kA	50/63 (Optional)
	Rated Peak Withstand Current	kA	105/130
Cabinet Structure	Cabinet Module	mm	20
	Drawer Unit Specification	-	1/4, 1/2, 1, 1.5, 2, 3, 4 Units
	Cabinet Dimensions (L×W×H)	mm	800×600×2200 (Customizable)
	Protection Class	-	IP30 (IP40/IP54 Optional)
	Installation Type	-	Indoor Floor-mounted
	Cabinet Color	-	RAL 7035 (Light Gray)
Environmental	Operating Temp Range	°C	-10 ~ +45
	Storage Temp Range	°C	-40 ~ +70
	Relative Humidity	%	≤90 (at 25℃)
	Altitude	m	≤2000

When can I get a quotation and detailed information after sending an inquiry?

All enquiries will be replied to within 24 hours.

What is the difference between your products and other suppliers?

Our prices are based on high quality. We recommend comparing the quality first, as it is the best way to evaluate the value.

What if my market prefers a different quality level?

We provide a range of product qualities. You can choose the options that best meet your specific market requirements.

Can I get a sample before placing a regular order?

Yes! We offer free sample services to build trust and allow you to verify our product quality firsthand.

What is the delivery time for orders?

Samples are sent within 3-7 days. Regular orders typically take around 30 days.

What are your terms of payment?

For payments ≤1000USD, 100% in advance. For payments >1000USD, 30% T/T in advance is required.
