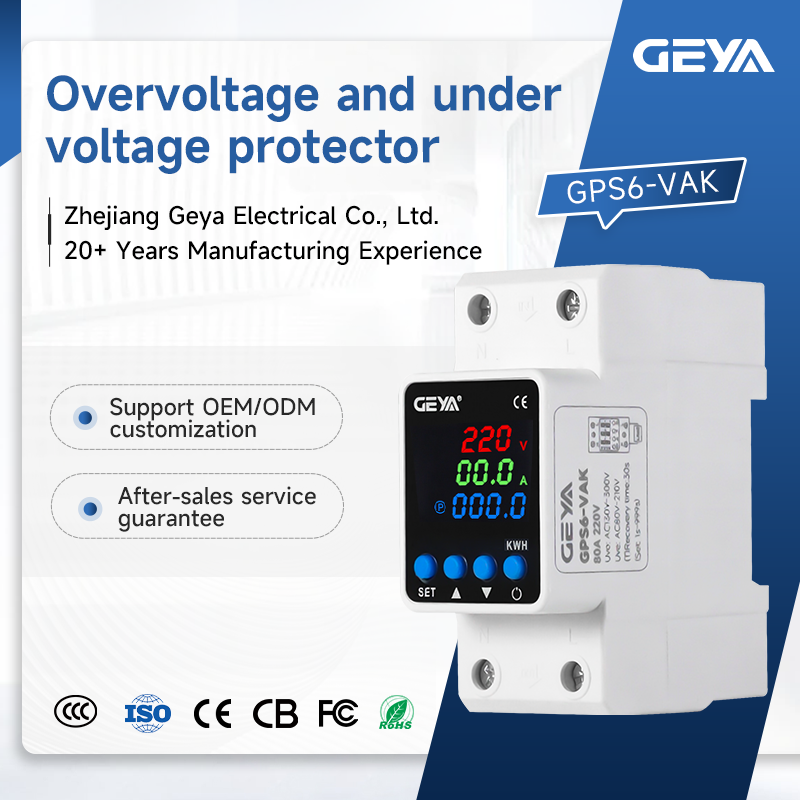

GEYA GPS6-VAK 2P 80A AC220V/DC 85-300V 40Hz-70Hz Custom Overvoltage and Undervoltage Protector for Industrial
GEYA GPS6-VAK 2P 80A AC220V/DC 85-300V 40Hz-70Hz Custom Overvoltage and Undervoltage Protector for Industrial
GEYA GPS6-VAK 2P 80A AC220V/DC 85-300V 40Hz-70Hz Custom Overvoltage and Undervoltage Protector for Industrial
GEYA GPS6-VAK 2P 80A AC220V/DC 85-300V 40Hz-70Hz Custom Overvoltage and Undervoltage Protector for Industrial
GEYA GPS6-VAK 2P 80A AC220V/DC 85-300V 40Hz-70Hz Custom Overvoltage and Undervoltage Protector for Industrial
1 / 5
GEYA GPS6-VAK 2P 80A AC220V/DC 85-300V 40Hz-70Hz Custom Overvoltage and Undervoltage Protector for Industrial
GEYA GPS6-VAK 2P 80A AC220V/DC 85-300V 40Hz-70Hz Custom Overvoltage and Undervoltage Protector for Industrial
GEYA GPS6-VAK 2P 80A AC220V/DC 85-300V 40Hz-70Hz Custom Overvoltage and Undervoltage Protector for Industrial
GEYA GPS6-VAK 2P 80A AC220V/DC 85-300V 40Hz-70Hz Custom Overvoltage and Undervoltage Protector for Industrial
GEYA GPS6-VAK 2P 80A AC220V/DC 85-300V 40Hz-70Hz Custom Overvoltage and Undervoltage Protector for Industrial

GEYA GPS6-VAK 2P 80A AC220V/DC 85-300V 40Hz-70Hz Custom Overvoltage and Undervoltage Protector for Industrial

Send Inquiry

Product Description

This link price is only for GPS6-VAK 80A 2P
Products Description
Applications
Overvoltage, undervoltage and overcurrent protection for Shopping Mall Industrial Electricity, Collective Dormitory, Household Electricity.
Function Features
1
Over/Under Voltage & Current Protection
2
Energy Metering Function
3
Large LED Digital Display
4
Adjustable Parameter Settings
5
Customizable Logo Display
6
Microcontroller-Based Intelligent Control
7
Din-Rail Mounting for Easy Installation

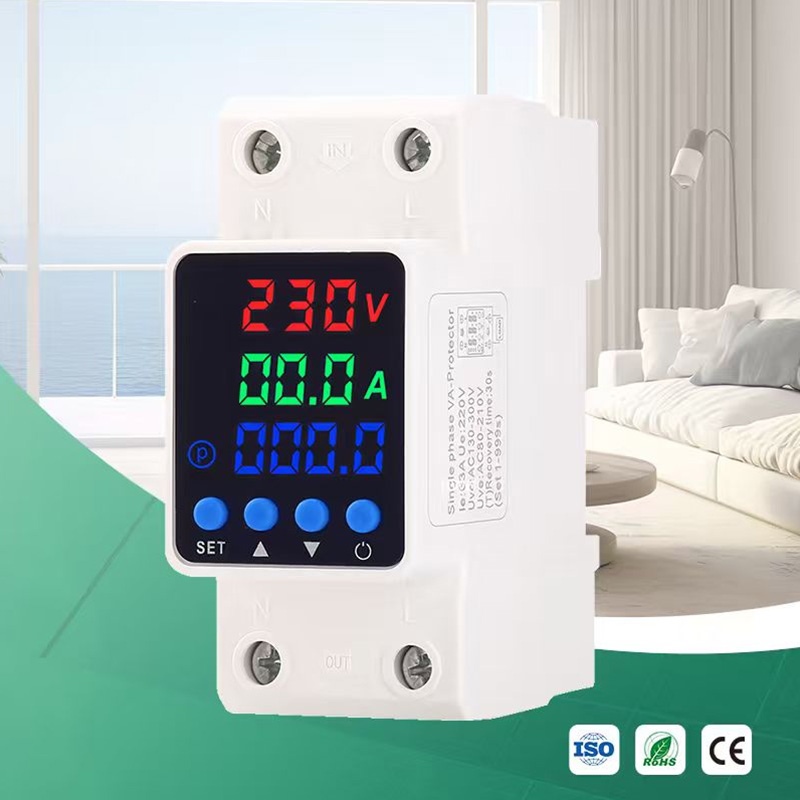

Product Image 1
Product Image 2

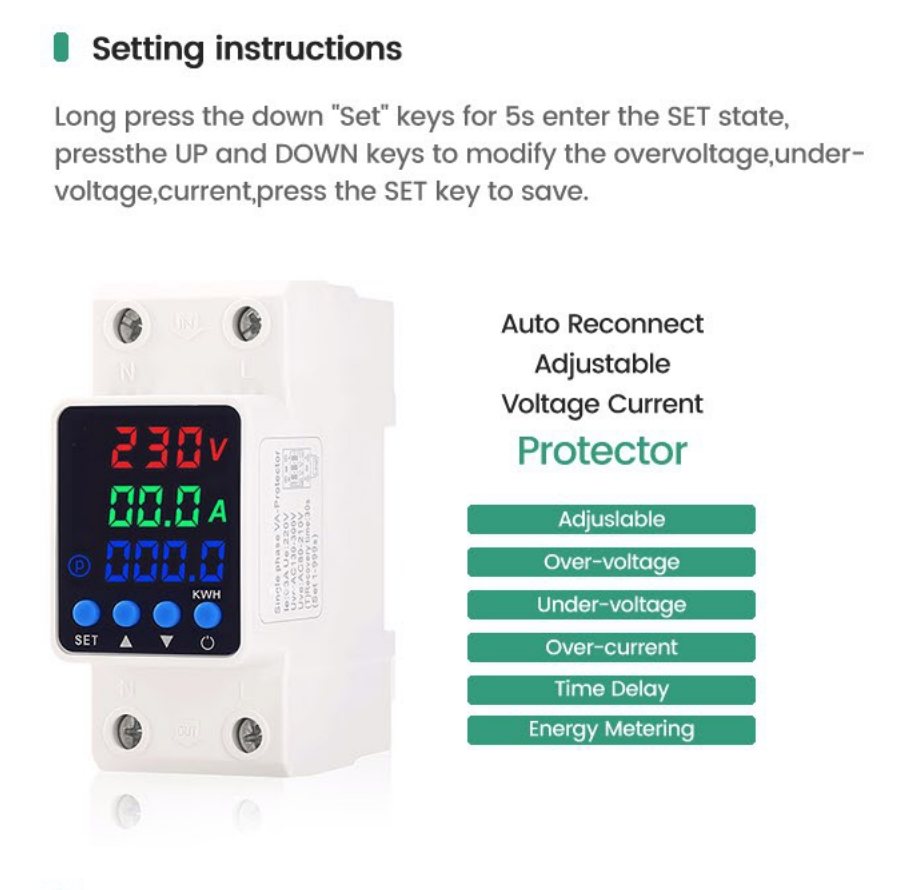

Product Image 3

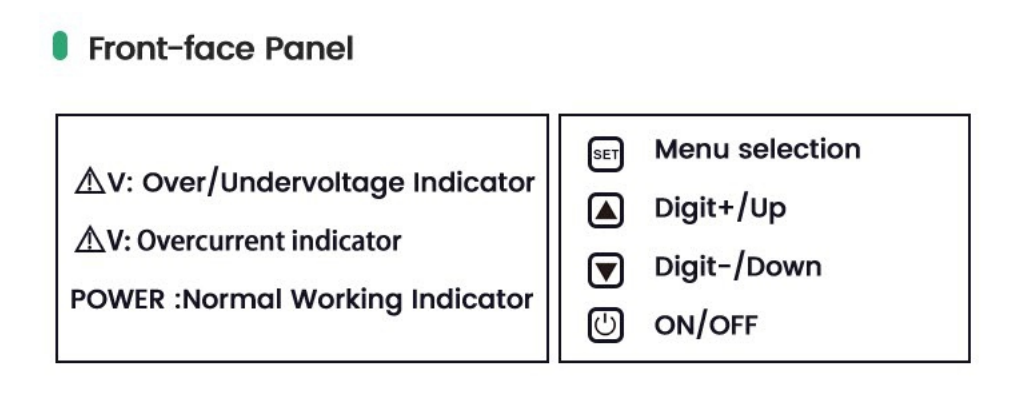

Product Image 4
Product Image 5

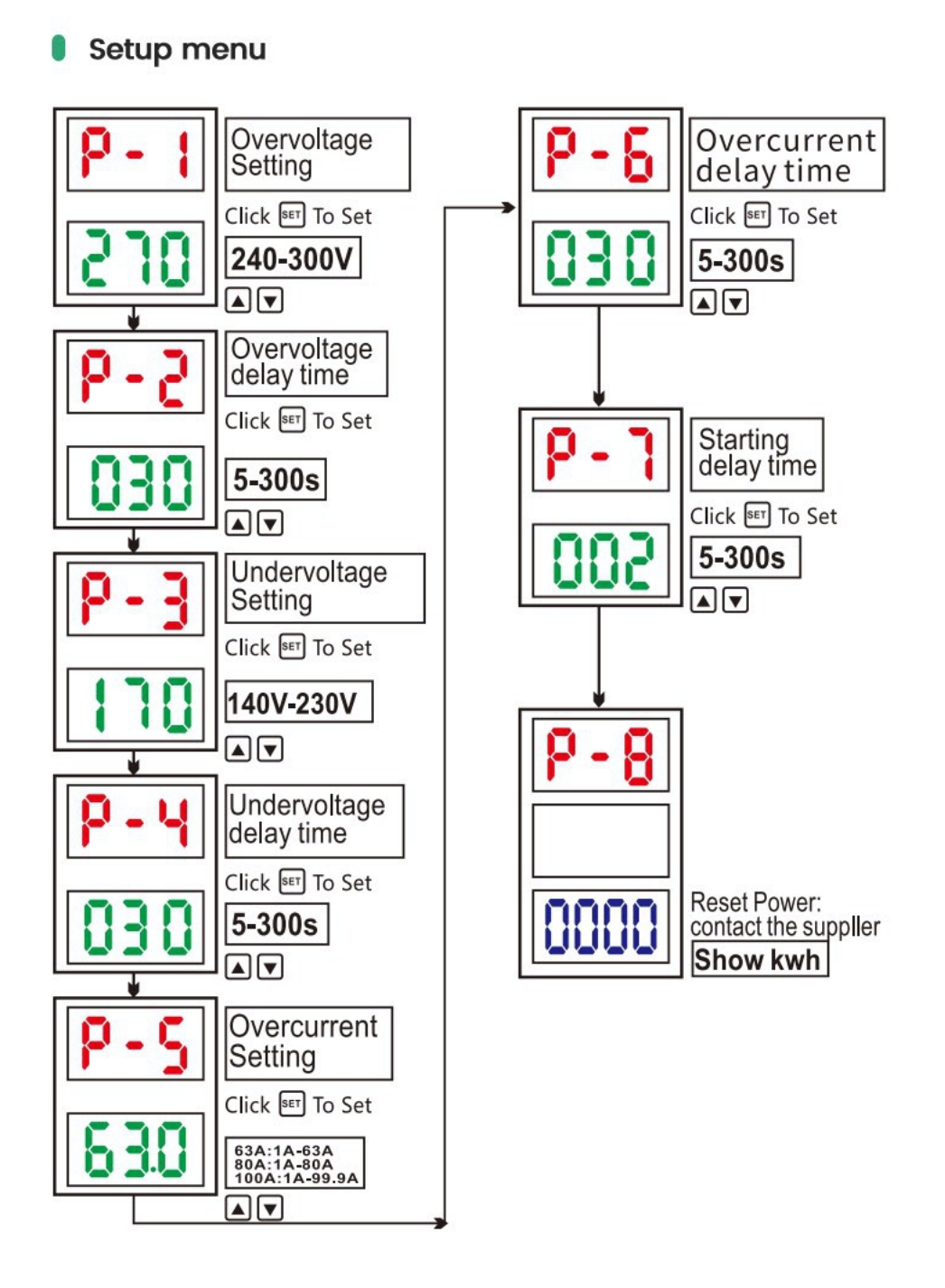

Product Image 6
Product Parameters
Product series GPS6-VAK 40A/63A/80A 2P
Function Over voltage, under voltage and over current protection
Rated supply voltage AC 220V, DC 85-300V
Rated supply frequency 40Hz/50Hz/60Hz/70Hz
>V setting range AC 130-300V / DC 130-300V
<V setting range AC 80-210V / DC 85-210V
Voltage hysteresis 5V
Overvoltage trip delay 0.5s
Voltage accuracy <1%
Max. operating phase voltage 350V
Max. operating current 40A/63A/80A
Altitude ≤2000m
Permissable relative humidity ≤50% at 40°C (without condensation)
Ambient temperature -25°C ~ +55°C

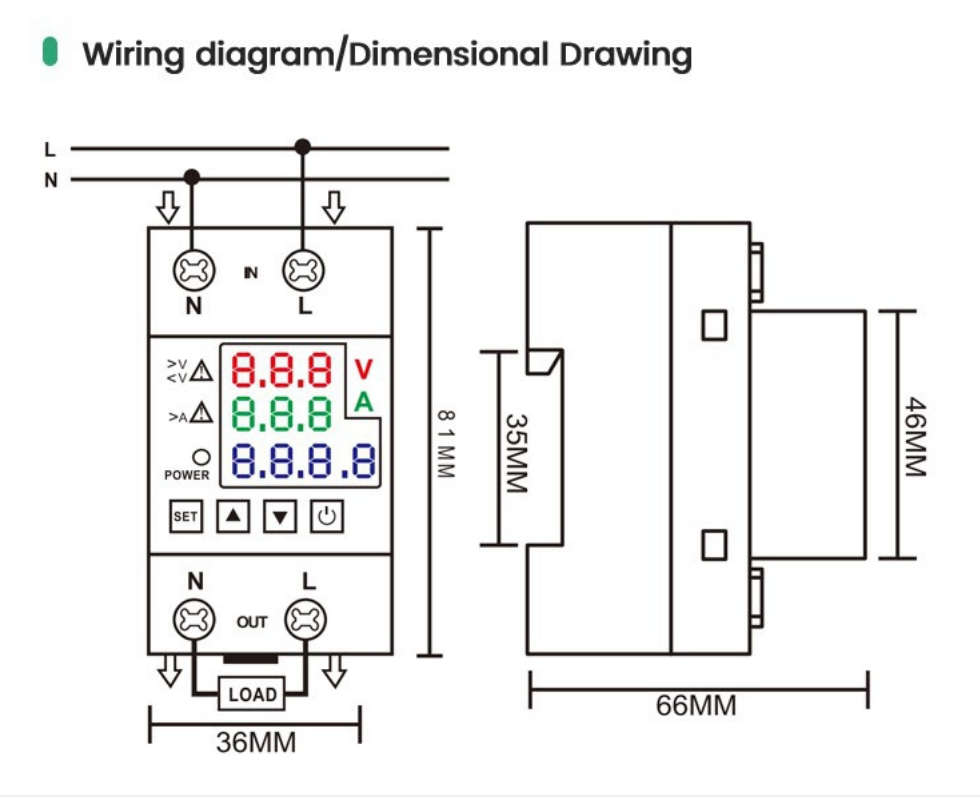

Product Size 81*36*66mm
Product Packaging
Product Packaging
Certifications
Certifications
Our Factory
VR Factory VR Preview
Factory Showcase 1
Factory Showcase 2
Factory Showcase 3
Frequently Asked Questions
What are the main protective functions of the GPS6-VAK series?
The protector provides comprehensive overvoltage, undervoltage, and overcurrent protection to safeguard your connected electrical devices and systems.
Can I adjust the threshold settings for voltage and current?
Yes. The device supports adjustable parameter settings, enabling you to configure custom thresholds for specific electrical environment requirements.
What mounting standard does the device use?
The device features standard Din-Rail mounting, making it easy and convenient to install in standard distribution boxes.
Does this model support energy metering?
Yes, it includes an integrated Energy Metering Function that allows you to monitor power consumption in real-time.
What is the ambient operating temperature range?
The device operates reliably in ambient temperatures ranging from -25°C to +55°C, making it suitable for various indoor and outdoor distribution environments.
