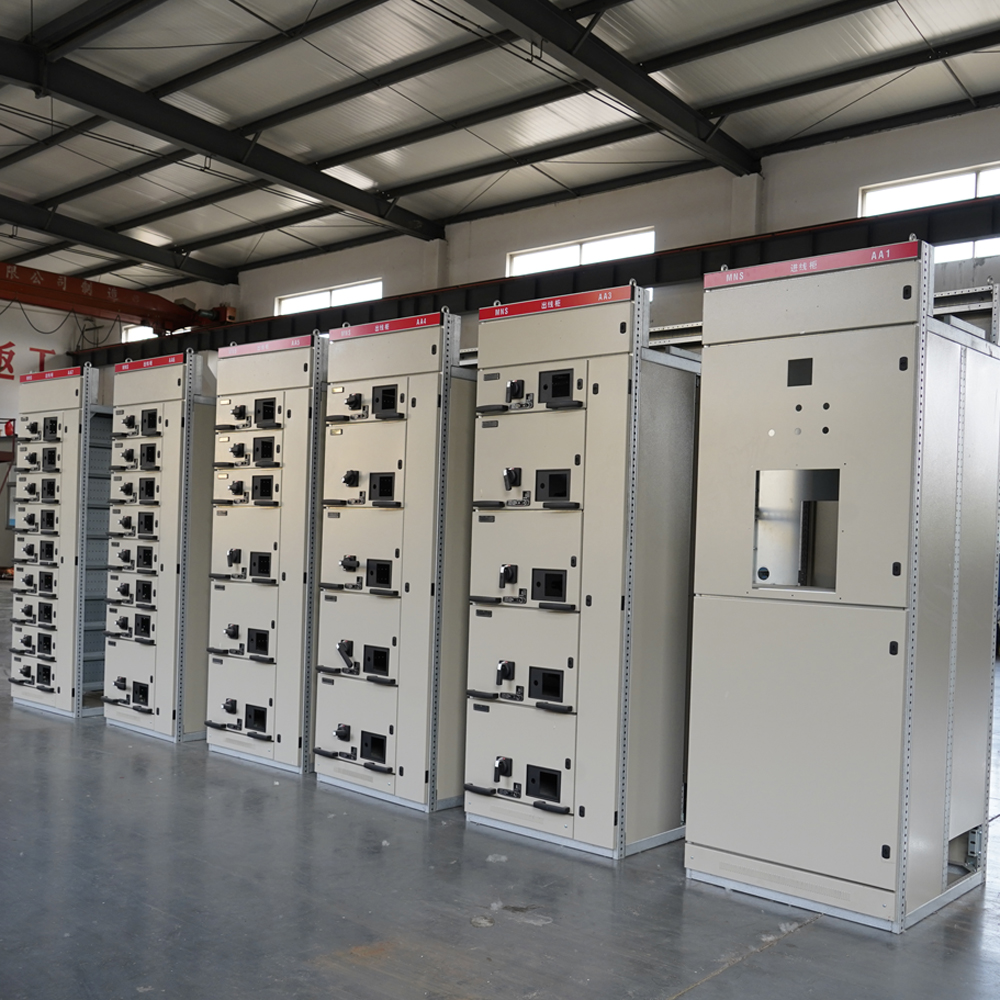

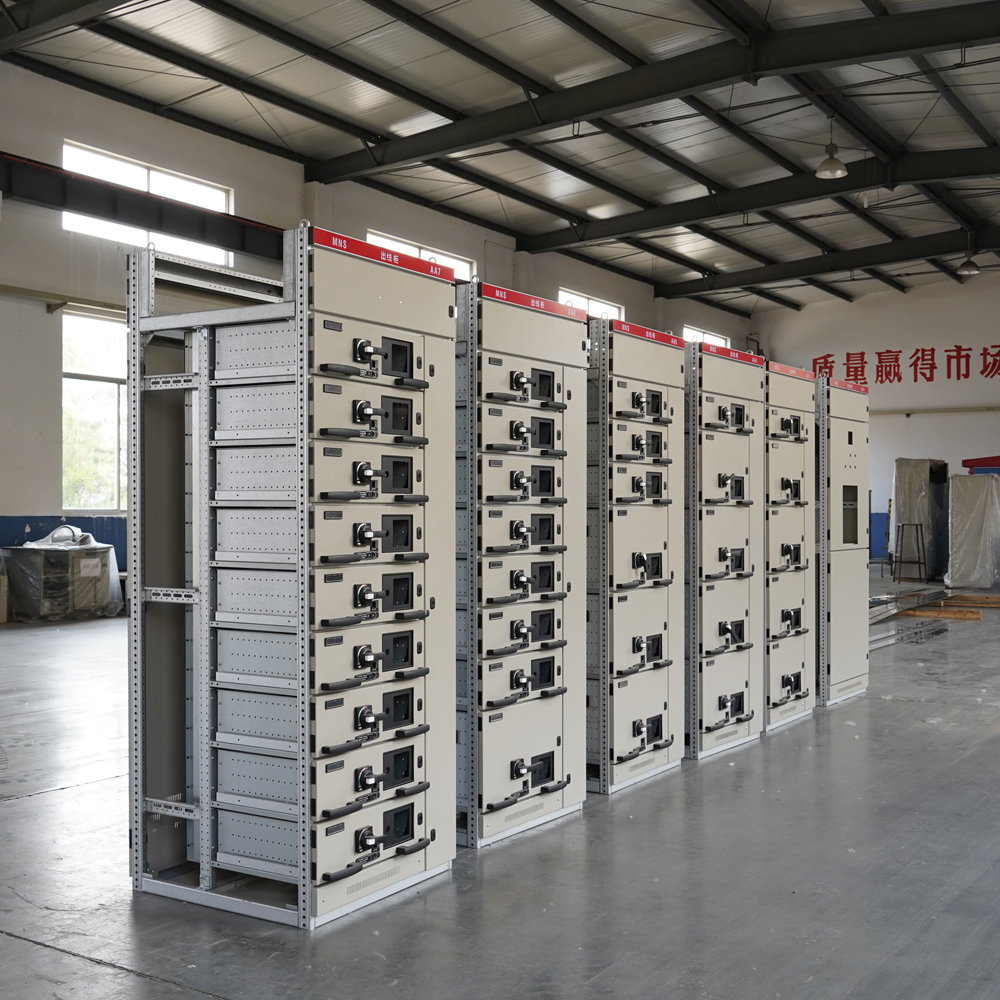

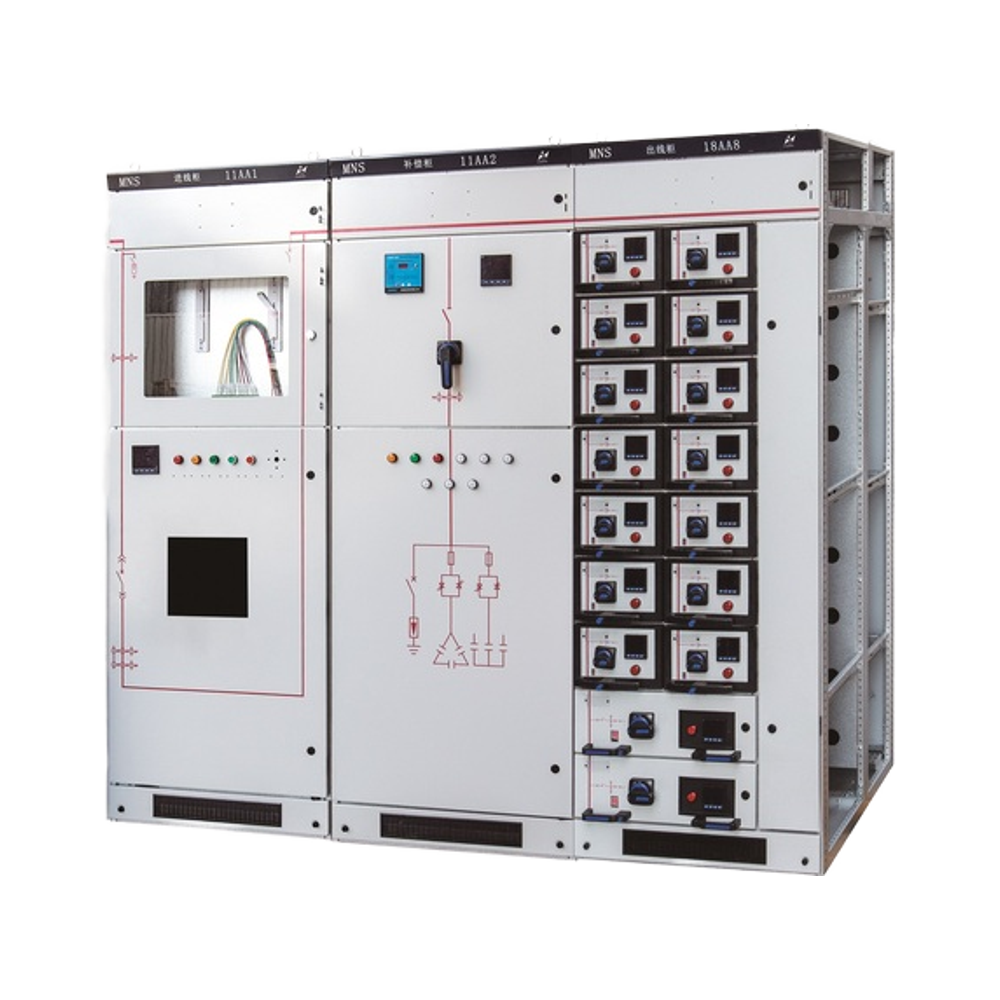

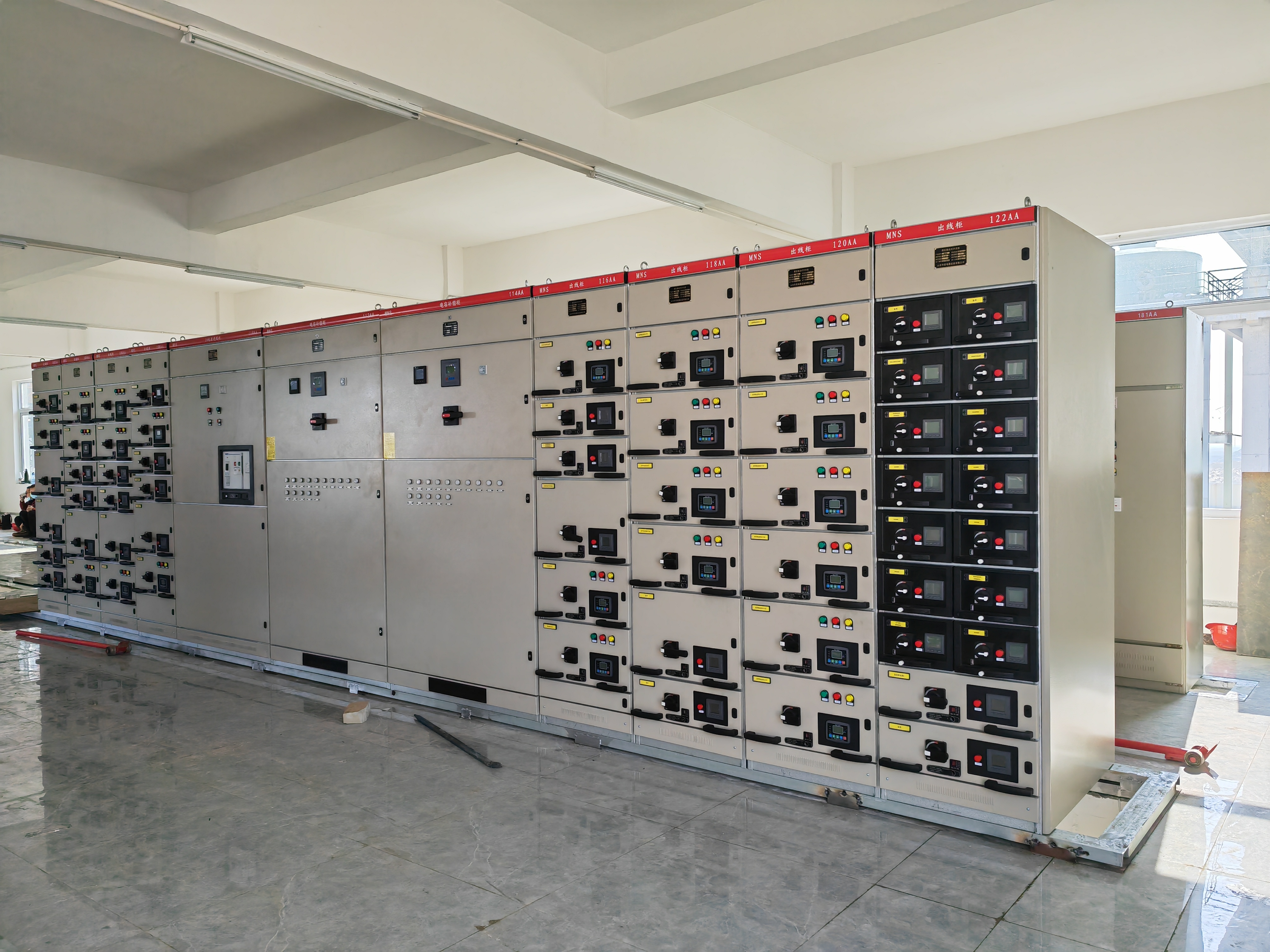

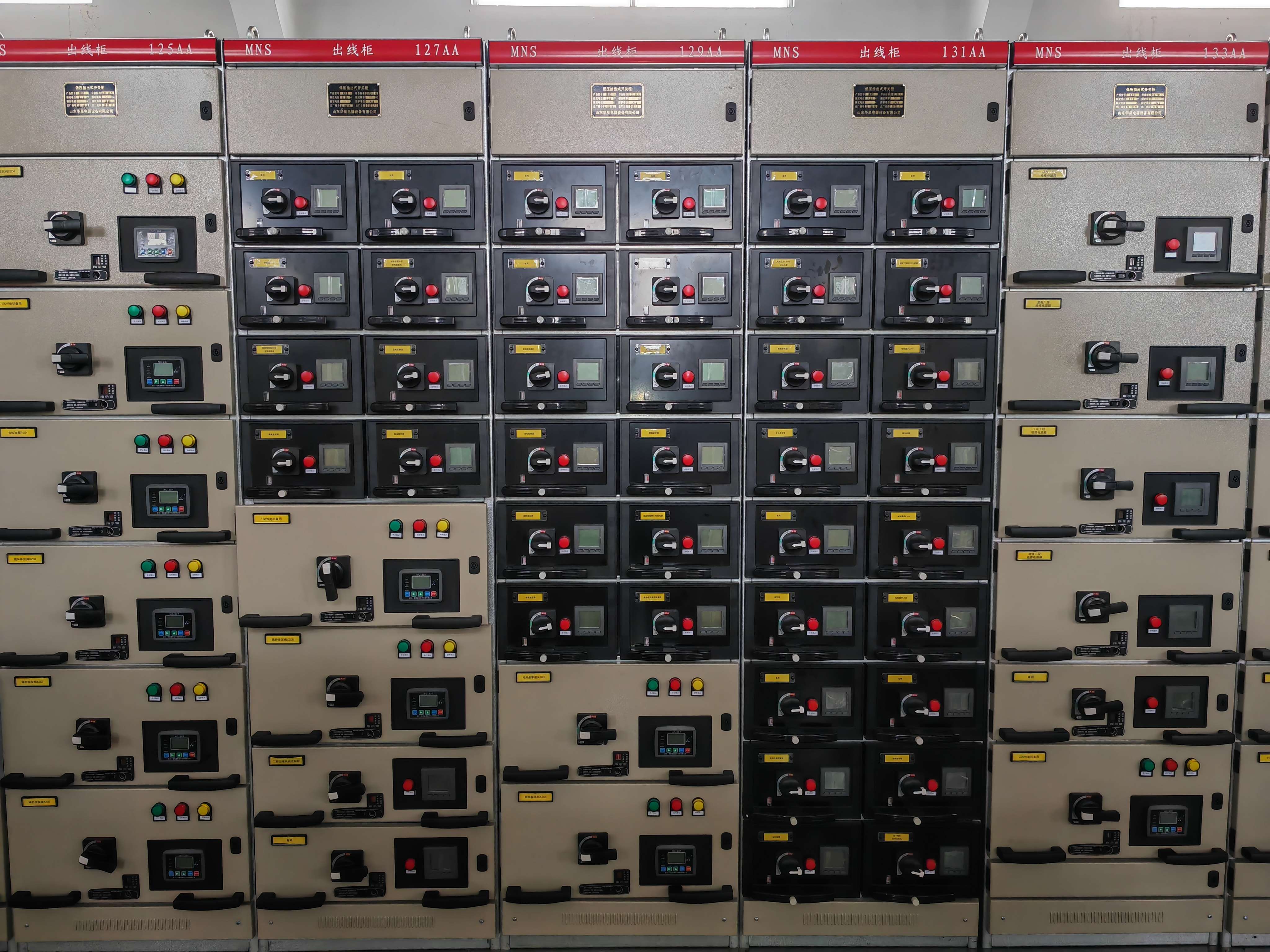

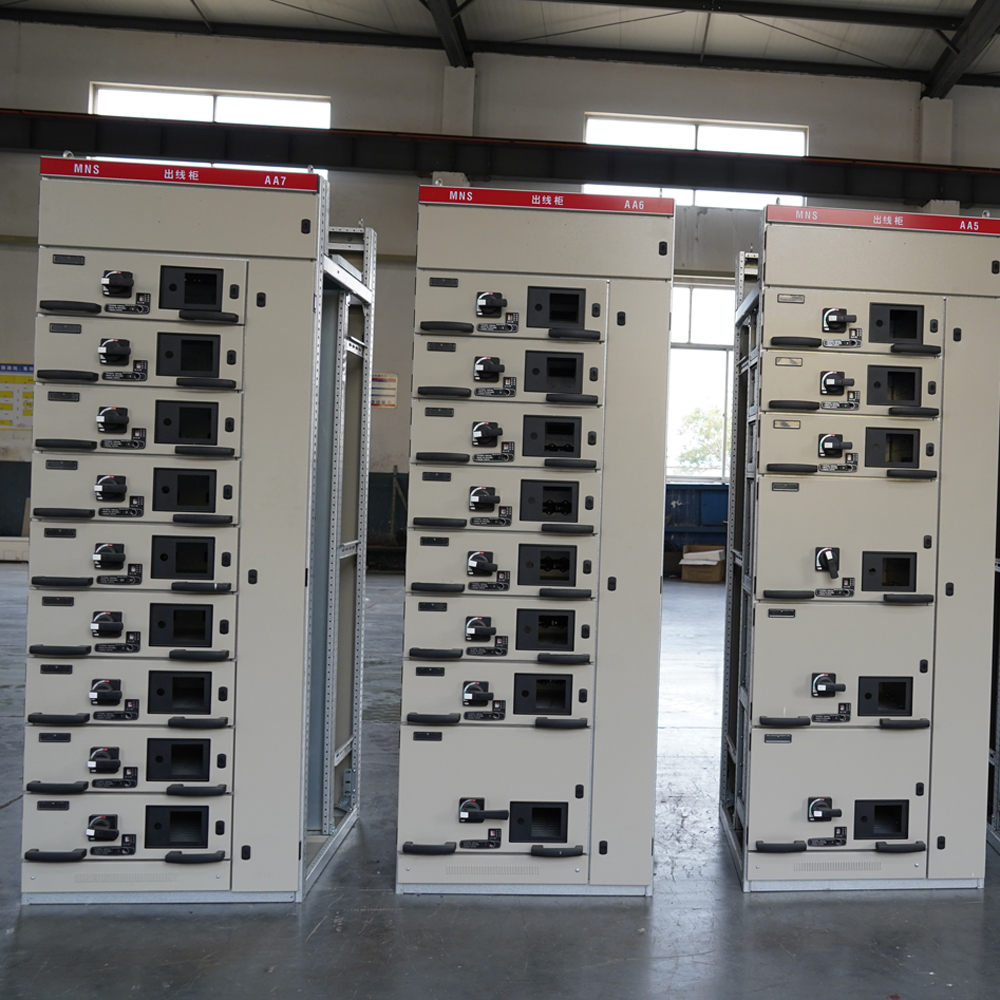

| MNS Low Voltage Draw Out Switchgear Specifications | ||
|---|---|---|
| Overvoltage Category | IV lll | |
| Pollution Degree | 3 | |
| Rated Working Voltage (Ue) (V) | 400/600 | |
| Rated Insulation Voltage (Ui) (V) | 660/1000 | |
| Rated Frequency (Hz) | 50(60) | |
| Horizontal Busbar | Rated Current | ≤5000A |
| Rated Short-time Withstand Current (lcw) (kA) | 50, 65, 80 (1s effective value) | |
| Rated Peak Withstand Current (Ipk) (kA) | 105, 140, 176 (maximum value in 0.1s) | |
| Vertical Busbar | Rated Maximum Working Current | ≤1000A |
| Rated Short-time Withstand Current | 50kA | |
| Rated Peak Withstand Current | 105kA | |
| Degrees of Protection Provided by Enclosure | IP30 / IP40 (special instructions) | |
