Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
1 / 5
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly
Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly

Low Voltage Cabinet Power Distribution Electrical Switch Equipment Mccb Panel Assembly

Send Inquiry

Product Description

LV Distribution Cabinet Banner
Product Intro
Product Description
  • LV low voltage distribution cabinet is suitable for three-phase AC 50HZ/60HZ, voltage 380V/440V, rated current to 6300A power distribution system. It is widely used in power plants, substations, industrial and mining enterprises etc. energy consumers, serving electrical energy conversion, distribution and control purposes for power, lighting and distribution equipment.
  • Protection grade is IP40. IP20-IP43 could be optional according to the requirements of service condition.
  • Good appearance, easy assembly and disassembly.
Main Features
  • Ambient air temperature: -5℃~+40℃ and the average temperature should not exceed +35℃ in 24h.
  • Indoor altitude above sea level: Maximum installation altitude: 2000m.
  • Relative humidity: Should not exceed 50% at max temperature +40℃. Higher relative humidity is allowed at lower temperature (e.g. 90% at +20℃). Special care should be taken for occasional moderate condensation due to temperature variations.
  • Environment stability: No fire, explosion hazards, serious pollution, chemical corrosion or severe vibration.
  • Installation gradient: Shall not exceed 5°.
  • Installation conditions: The equipment shall be installed in a location free of violent vibration, impact, and corrosive environments.
  • For any specific requirements, please consult with our technical service team.
Product Pictures

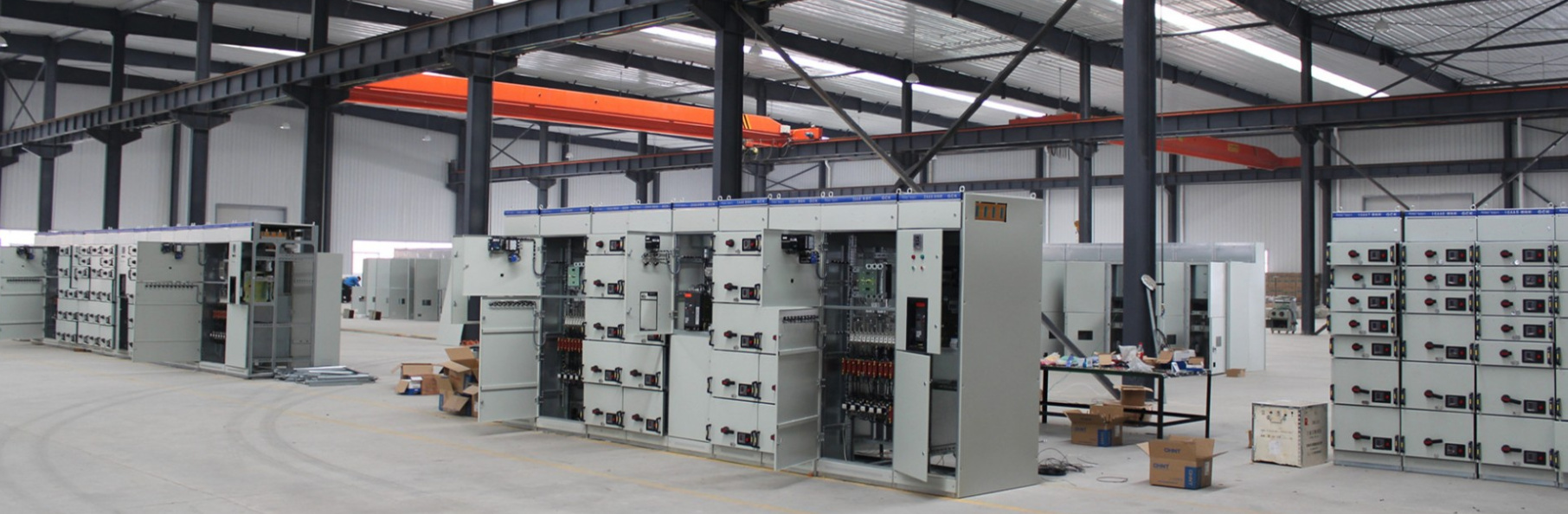

Distribution Cabinet Overview

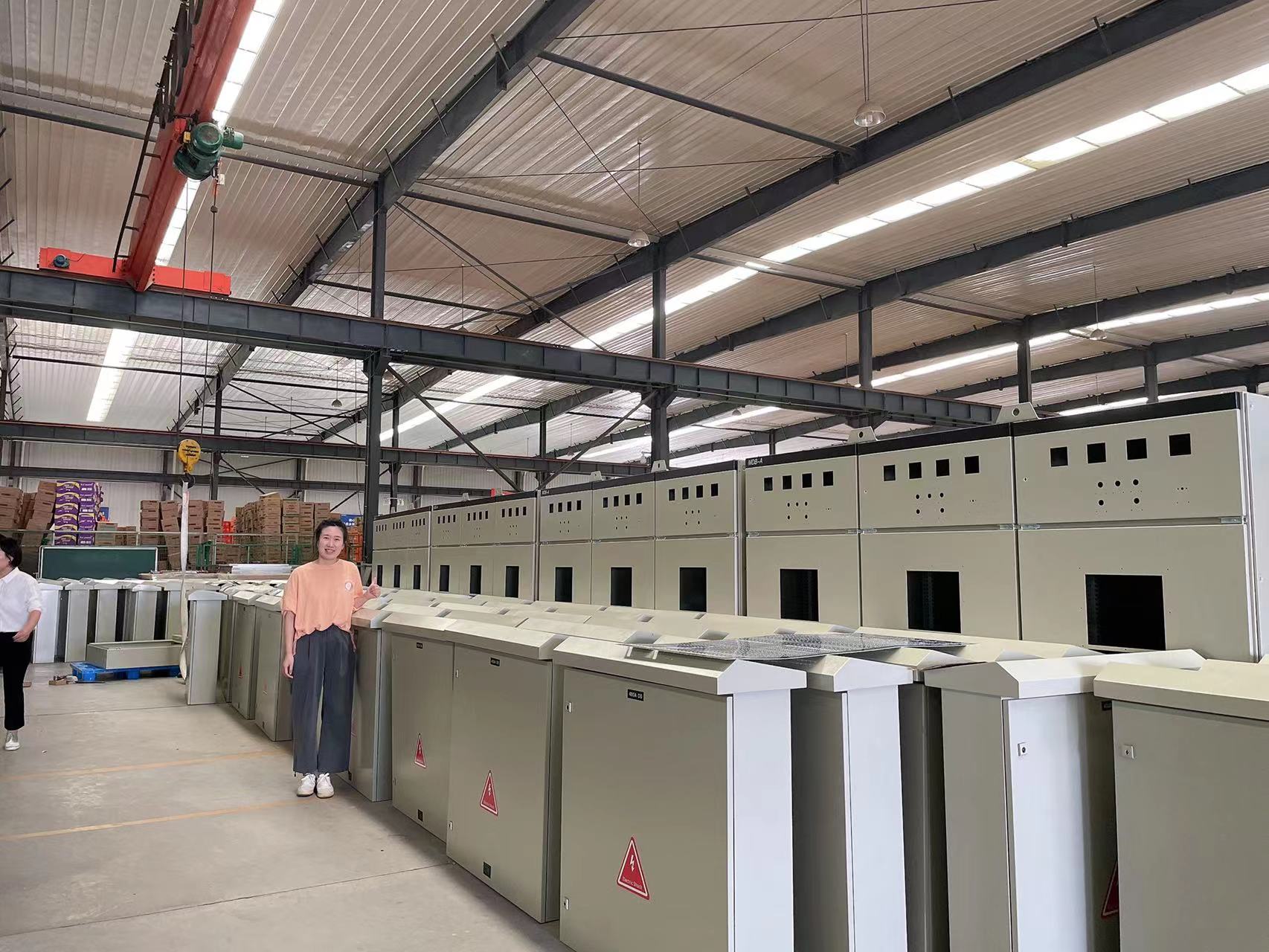

Distribution Cabinet Profile

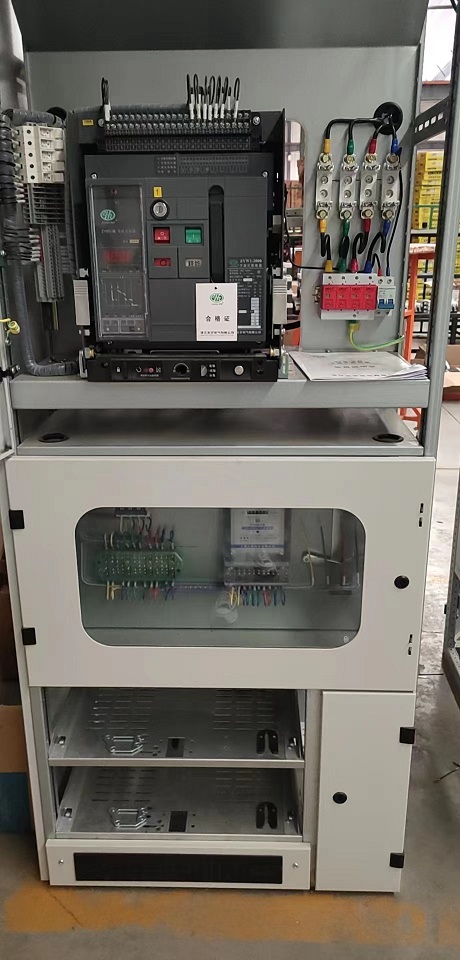

System Component Left

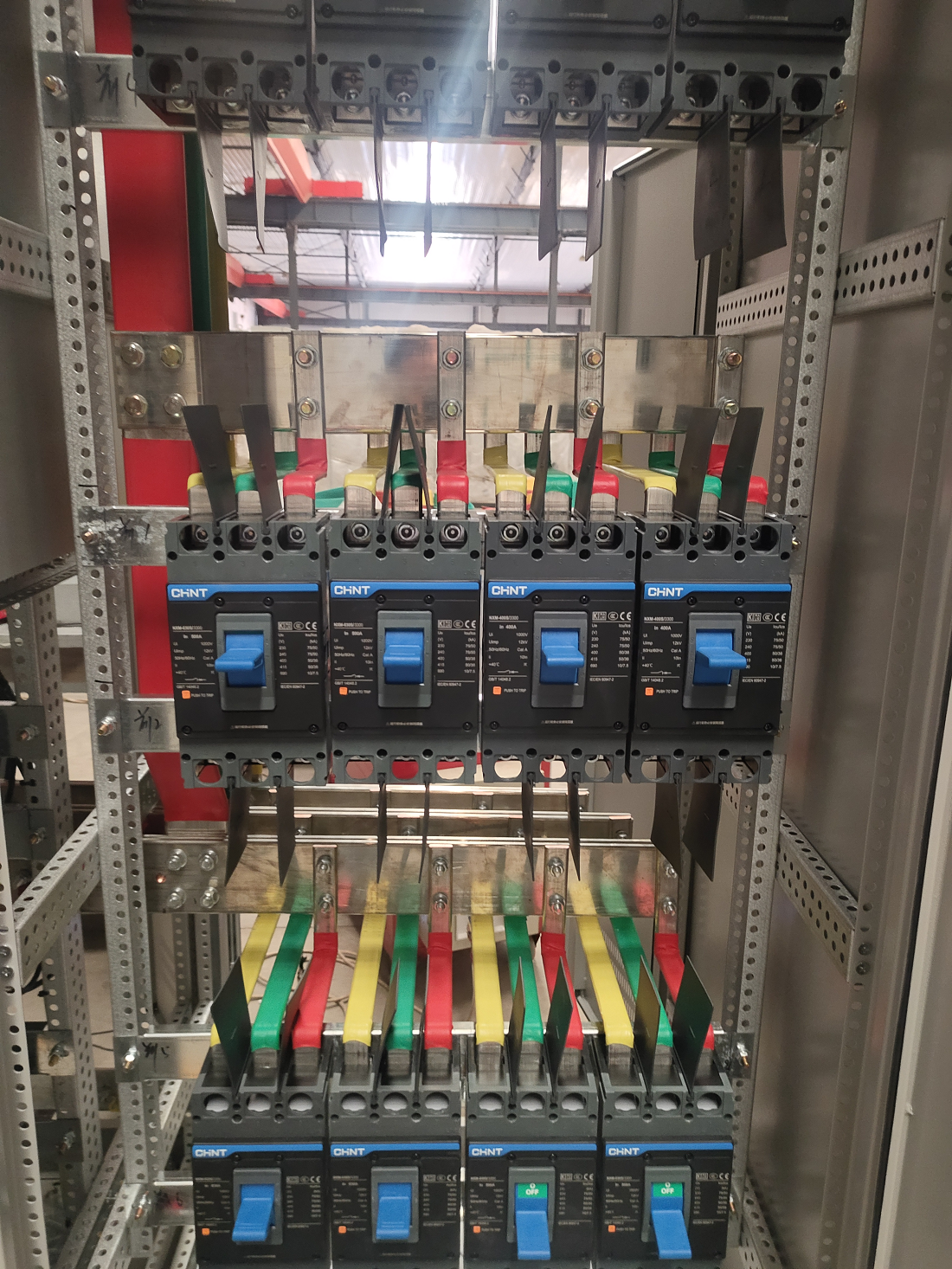

System Component Right
Detail Display

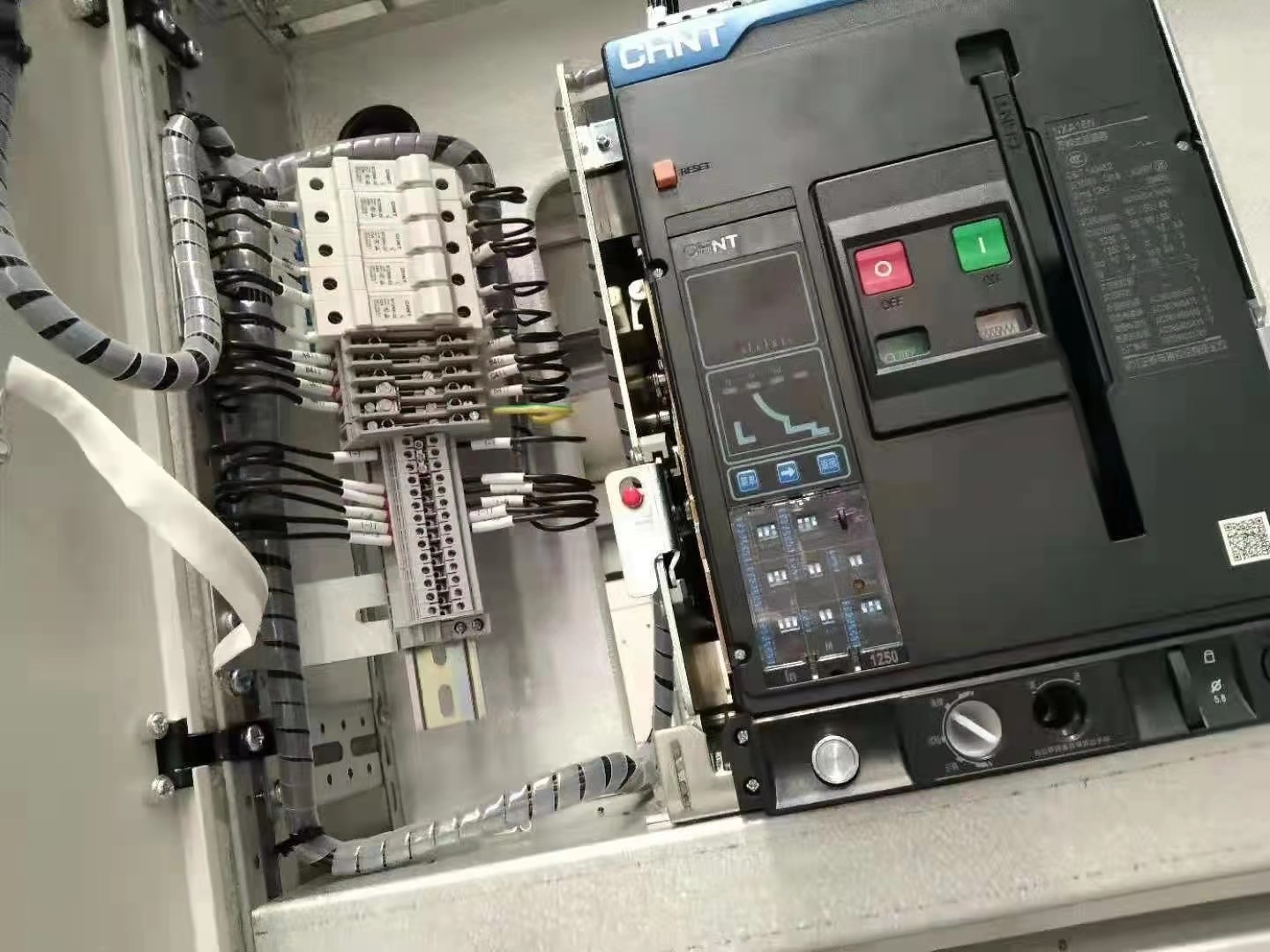

Internal Component Detail A

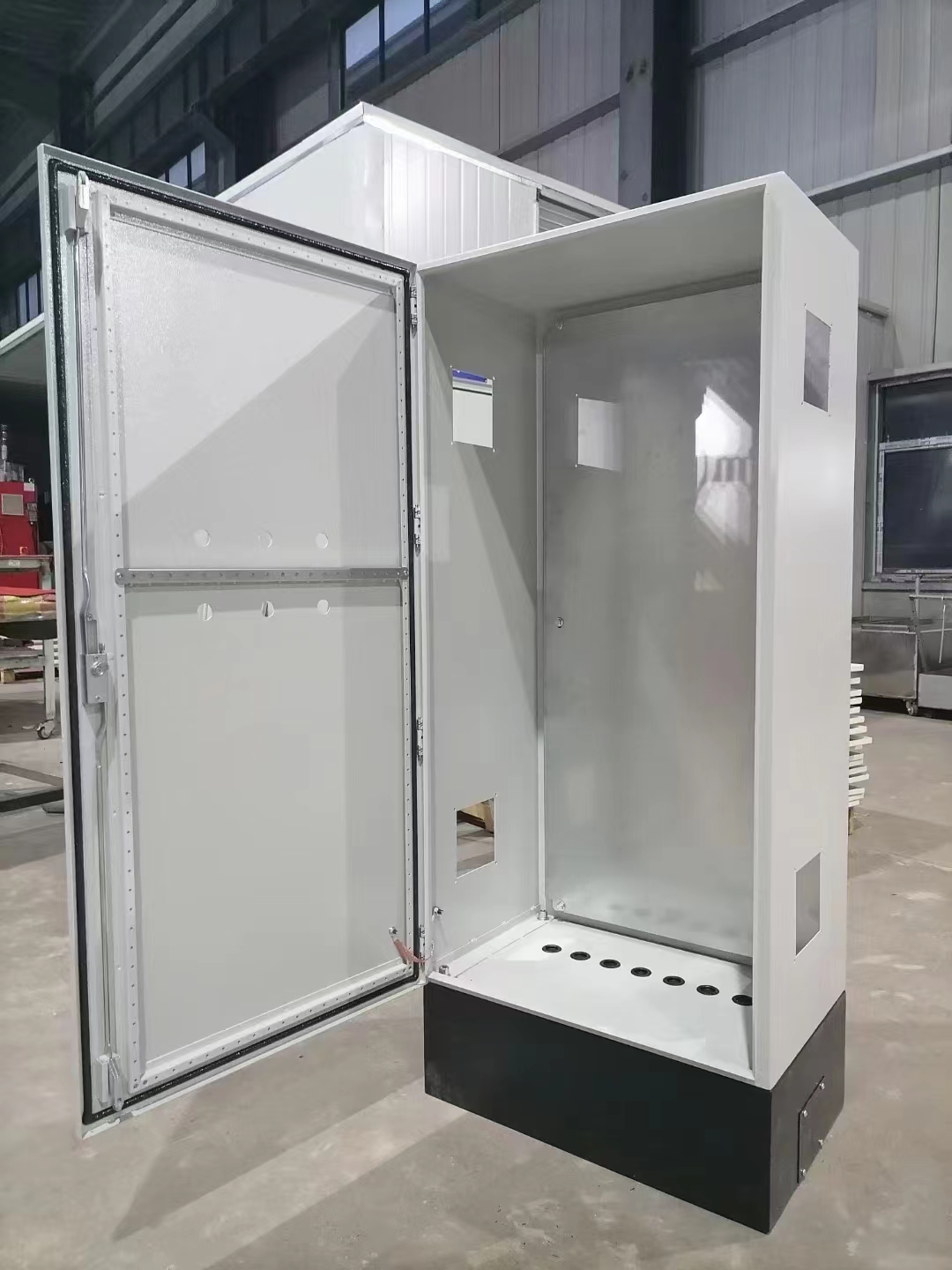

Internal Component Detail B

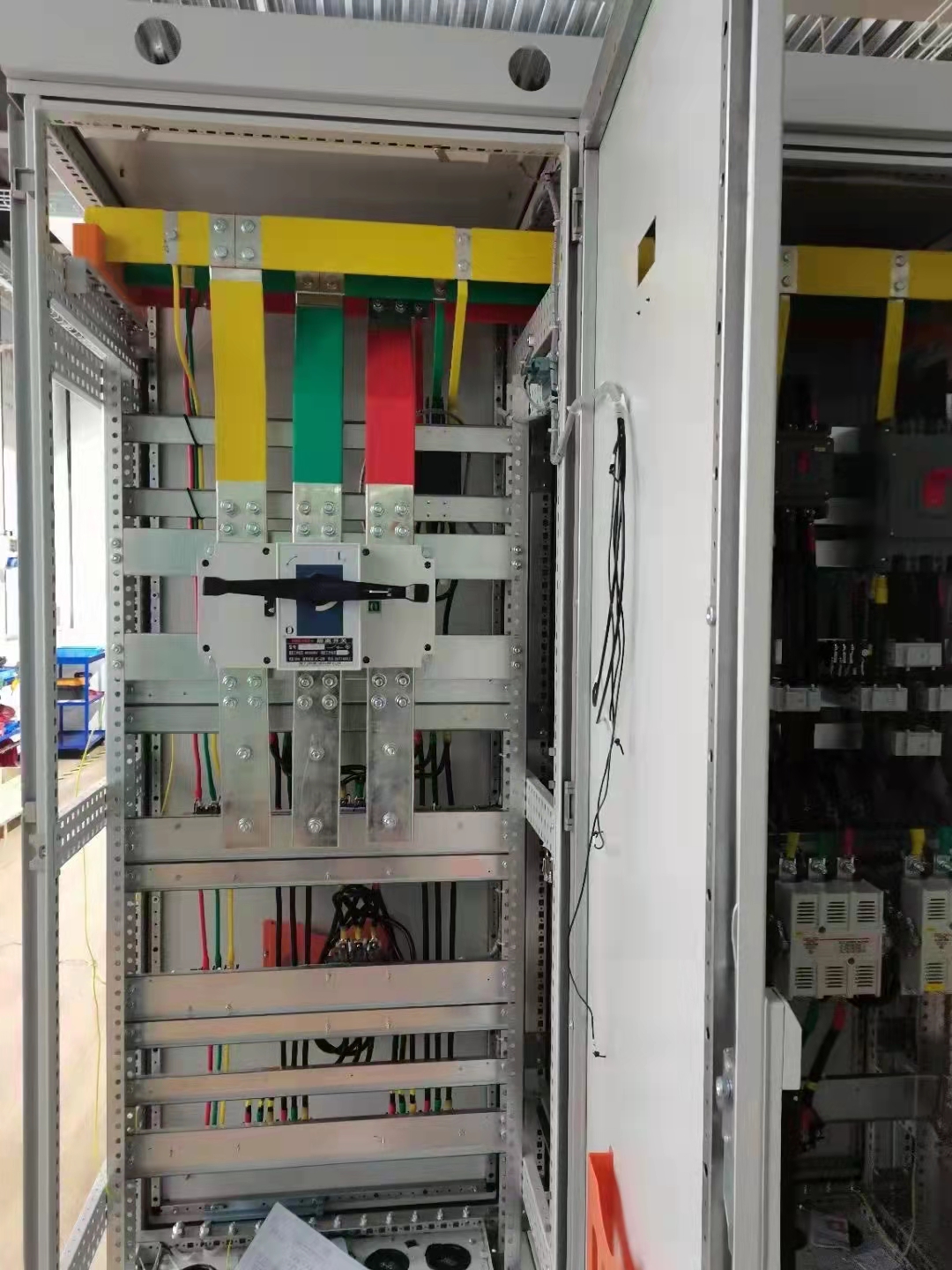

Internal Component Detail C

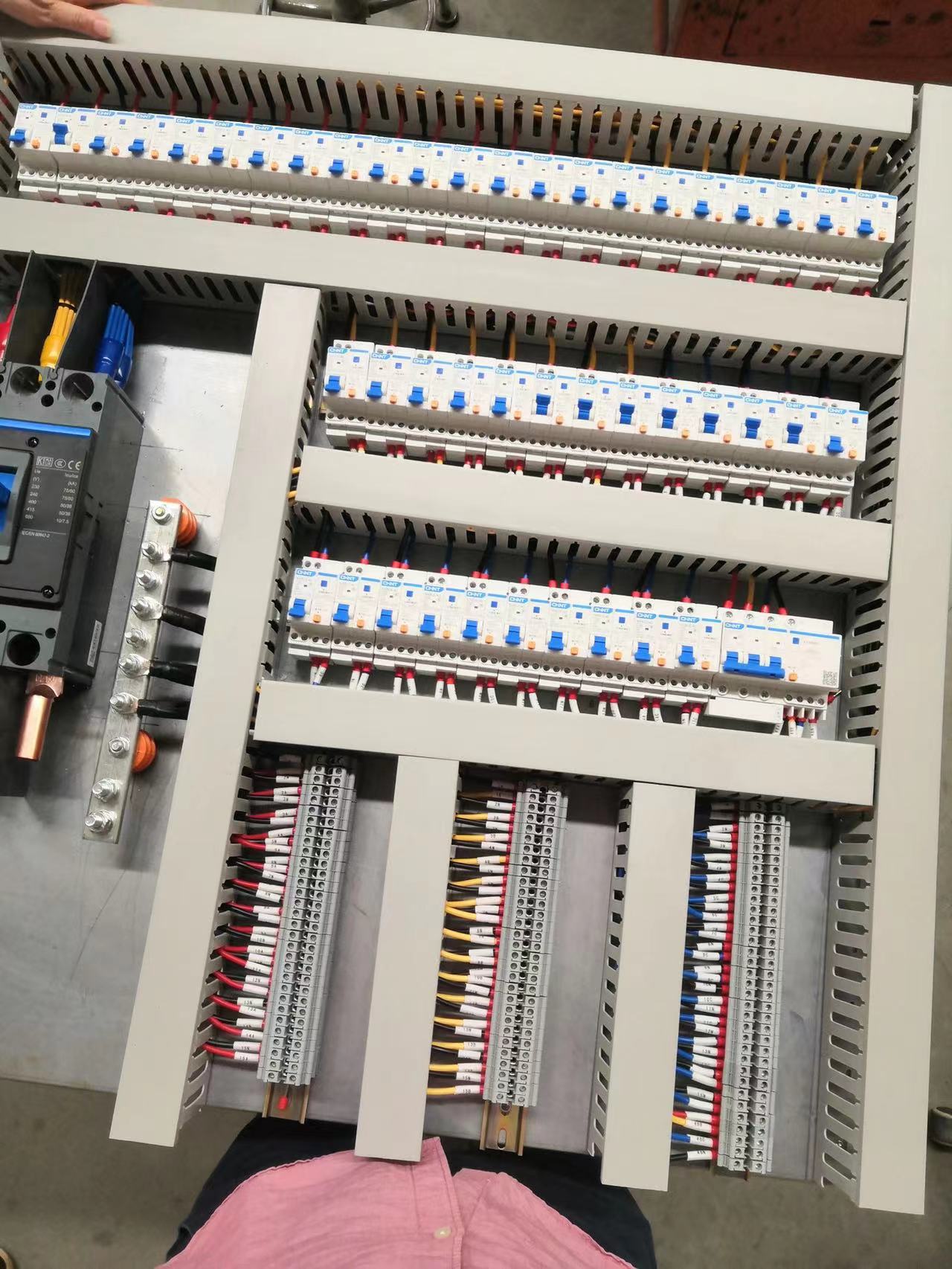

Cabinet Wiring A

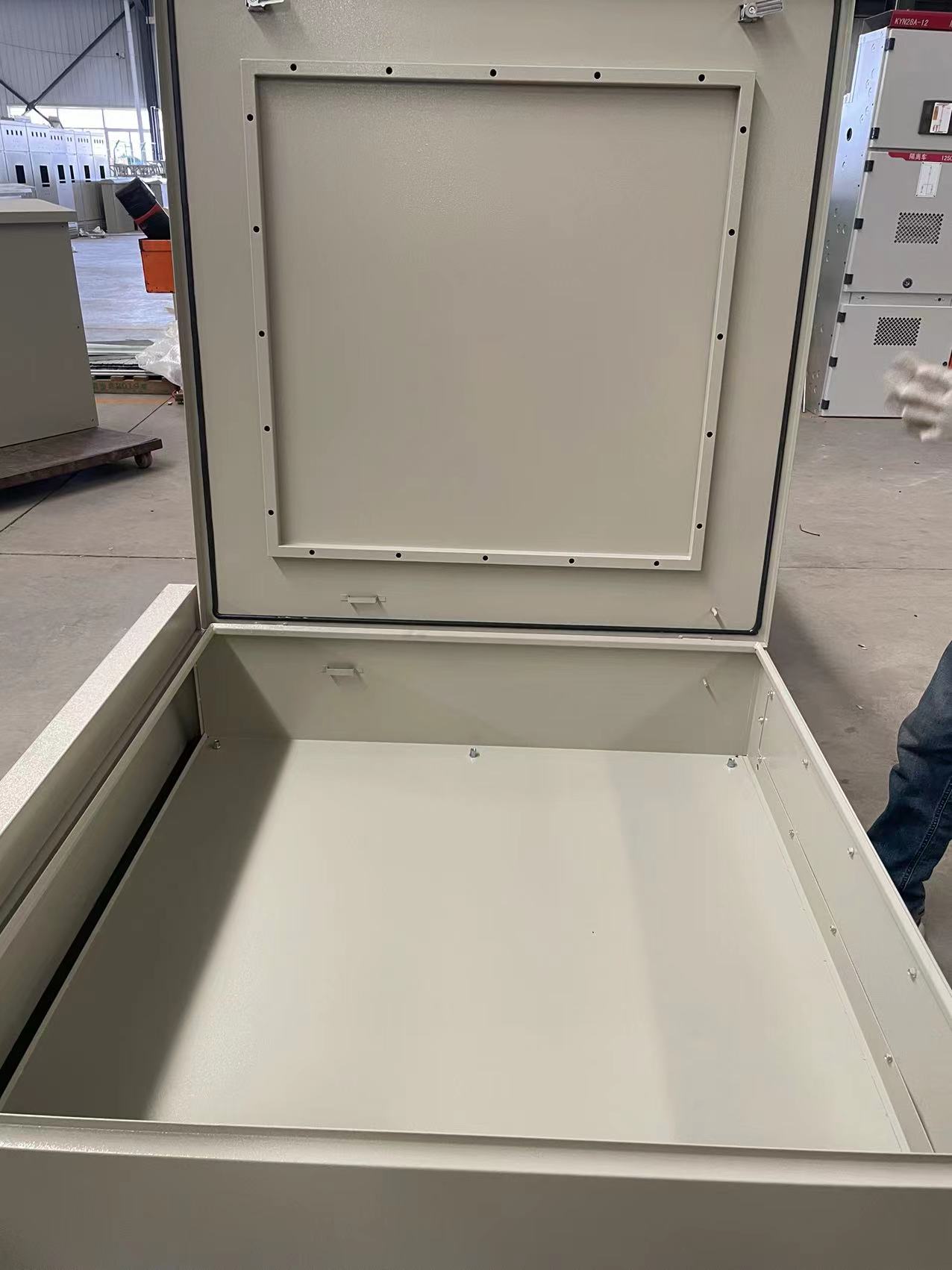

Cabinet Wiring B

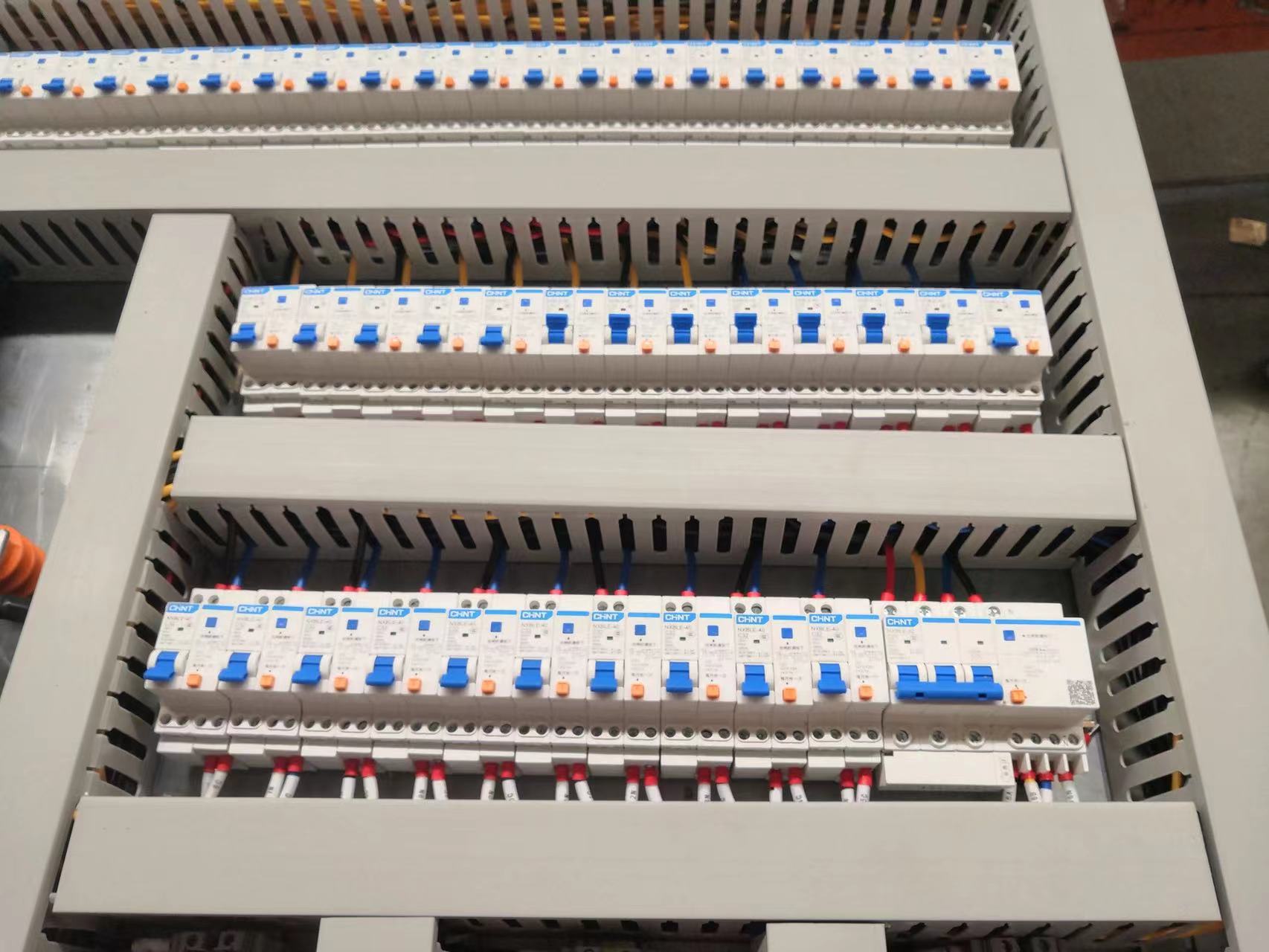

Cabinet Wiring C
Specifications
1 Item Parameter
2 Rated voltage 380/440V
3 Rated frequency 50/60Hz
4 Rated peak withstand current 1pk can cause 375kA
5 IP degree IP30/IP32/IP40/IP54
6 Outline dimension W*D*H Custom
7 Package Wooden case
Detailed Dimension Schematic
Cabinet Blueprint Layout
Project Cases
Main Distribution Box
Main Distribution Box
Applied in painting and spray plant. Built for high-efficiency and safety standards.

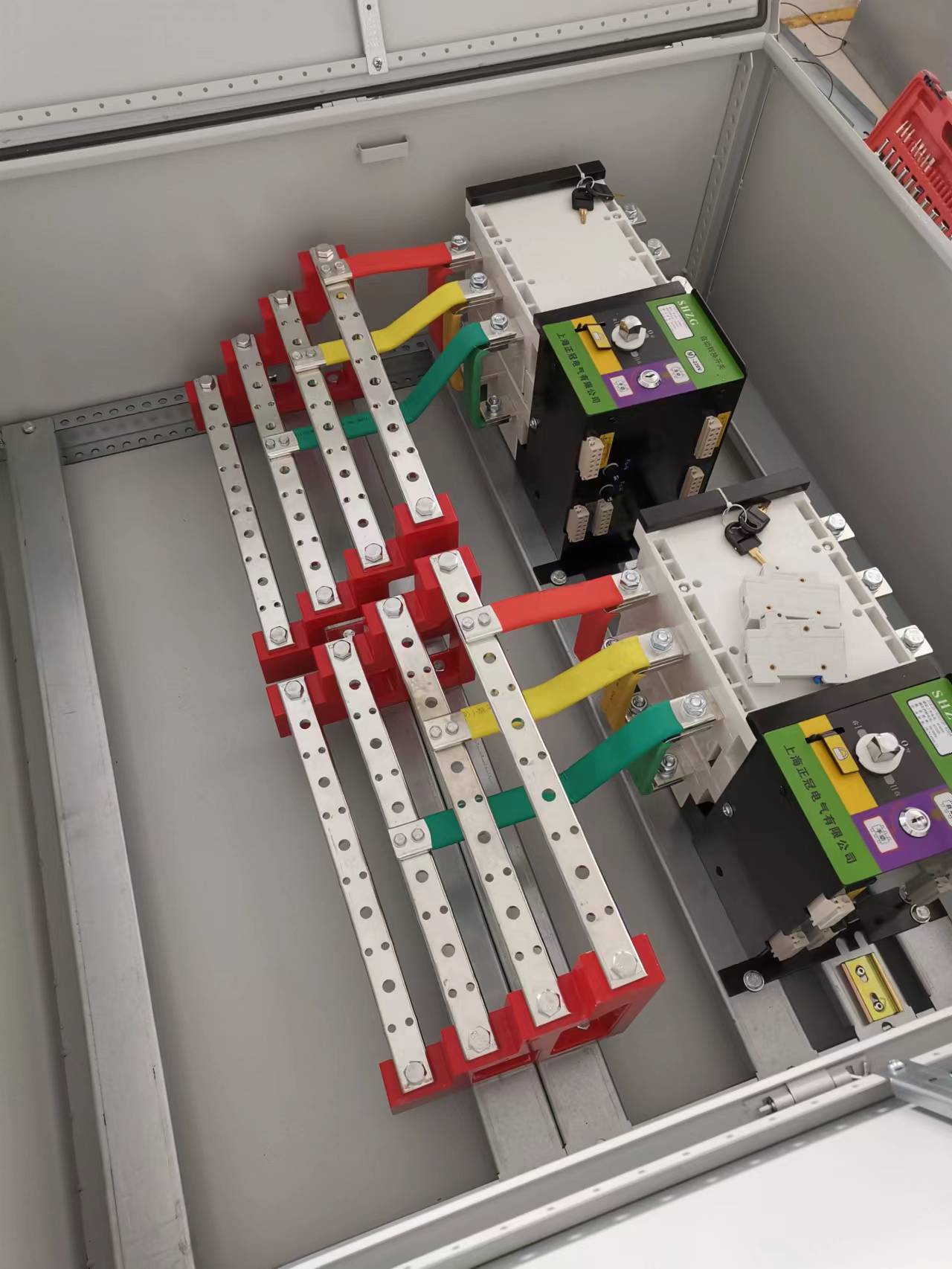

ATS Cabinet
ATS Cabinet
Applied in food production lines, offering seamless power transfer operations.

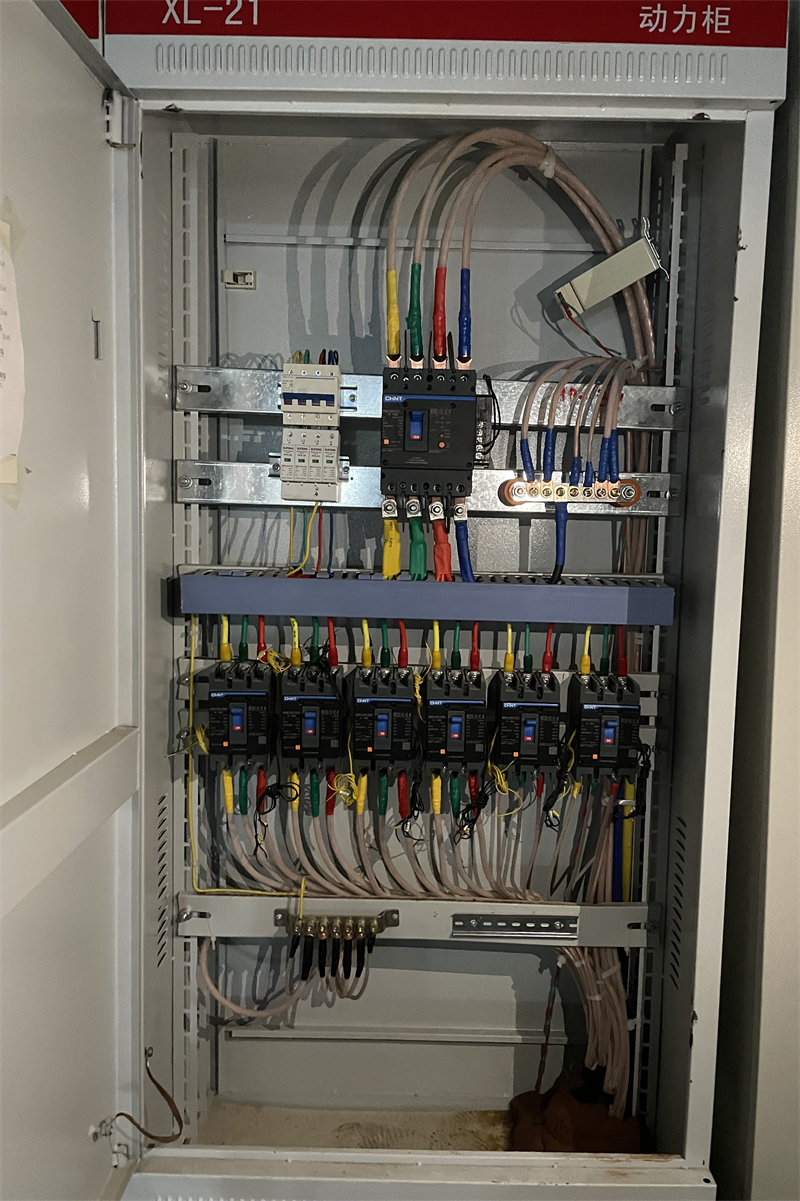

Power Distribution Panel
Power Distribution Panel
Applied in power plants, substations, industrial and mining industries for energy conversion.

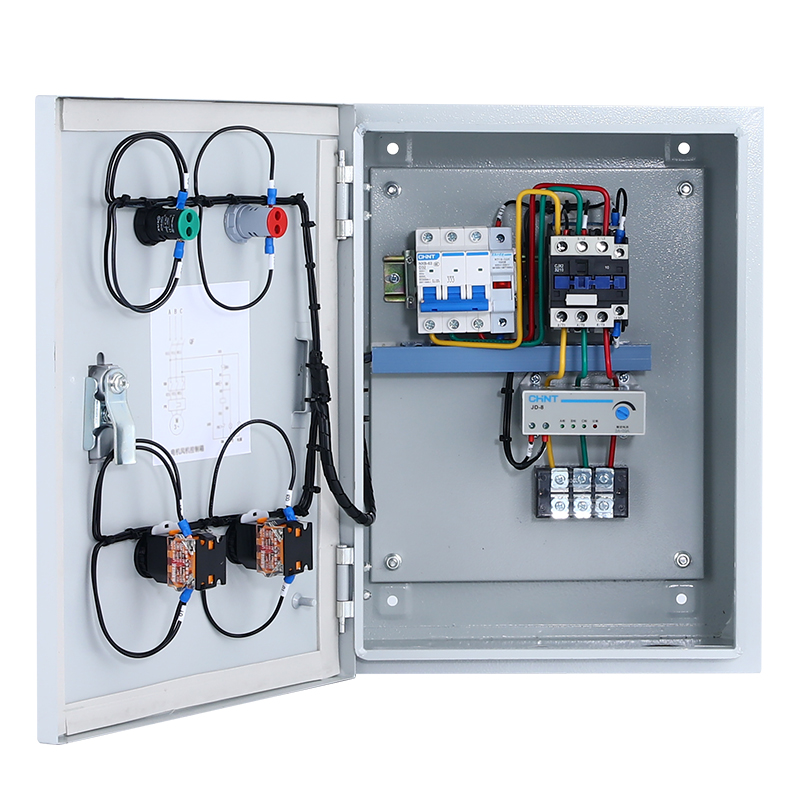

Motor Starting Panel
Motor Starting Panel
Applied in building industry, specifically customized for concrete mixing equipment.
Packing & Shipping
Packing Process A

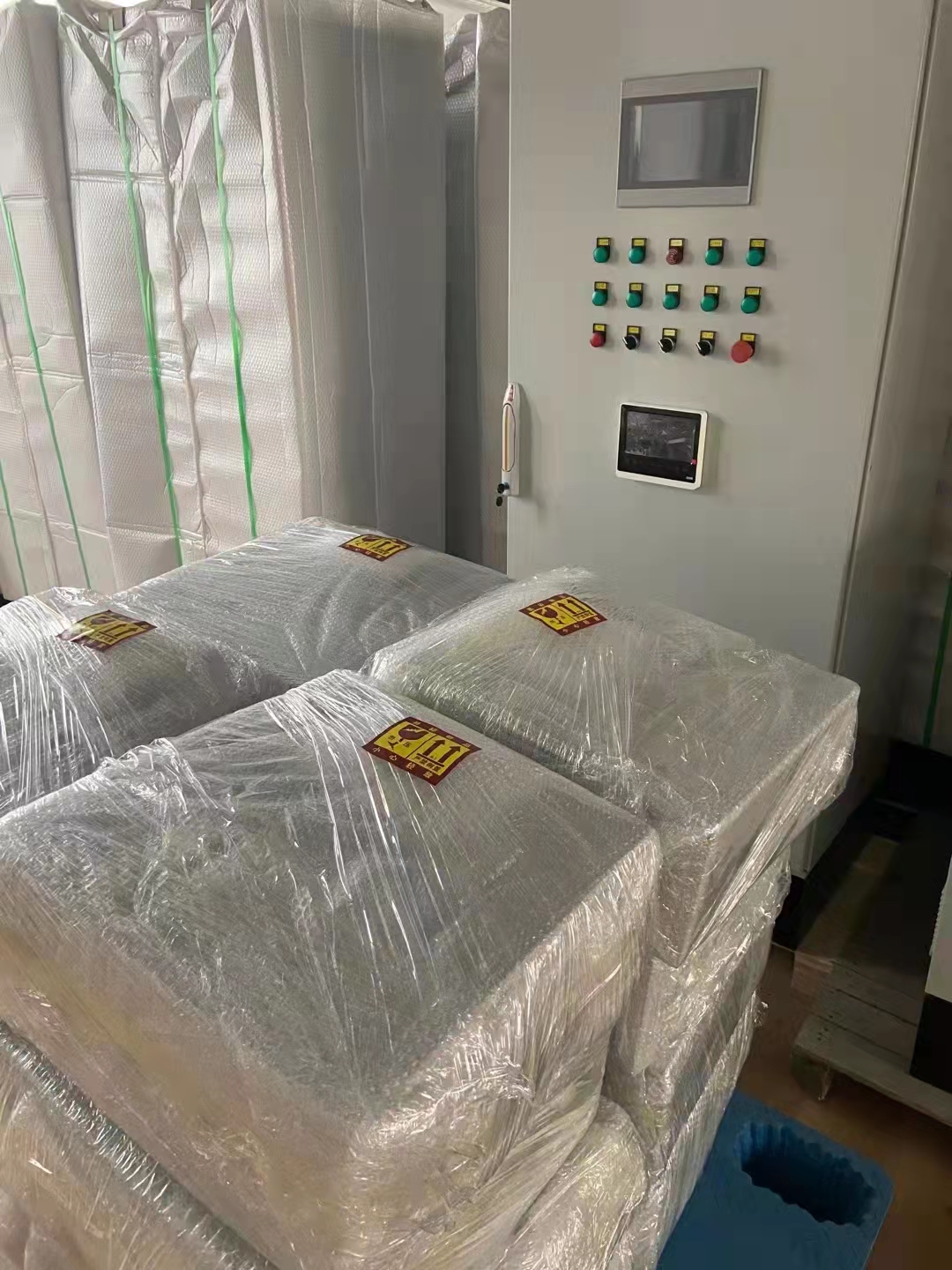

Packing Process B

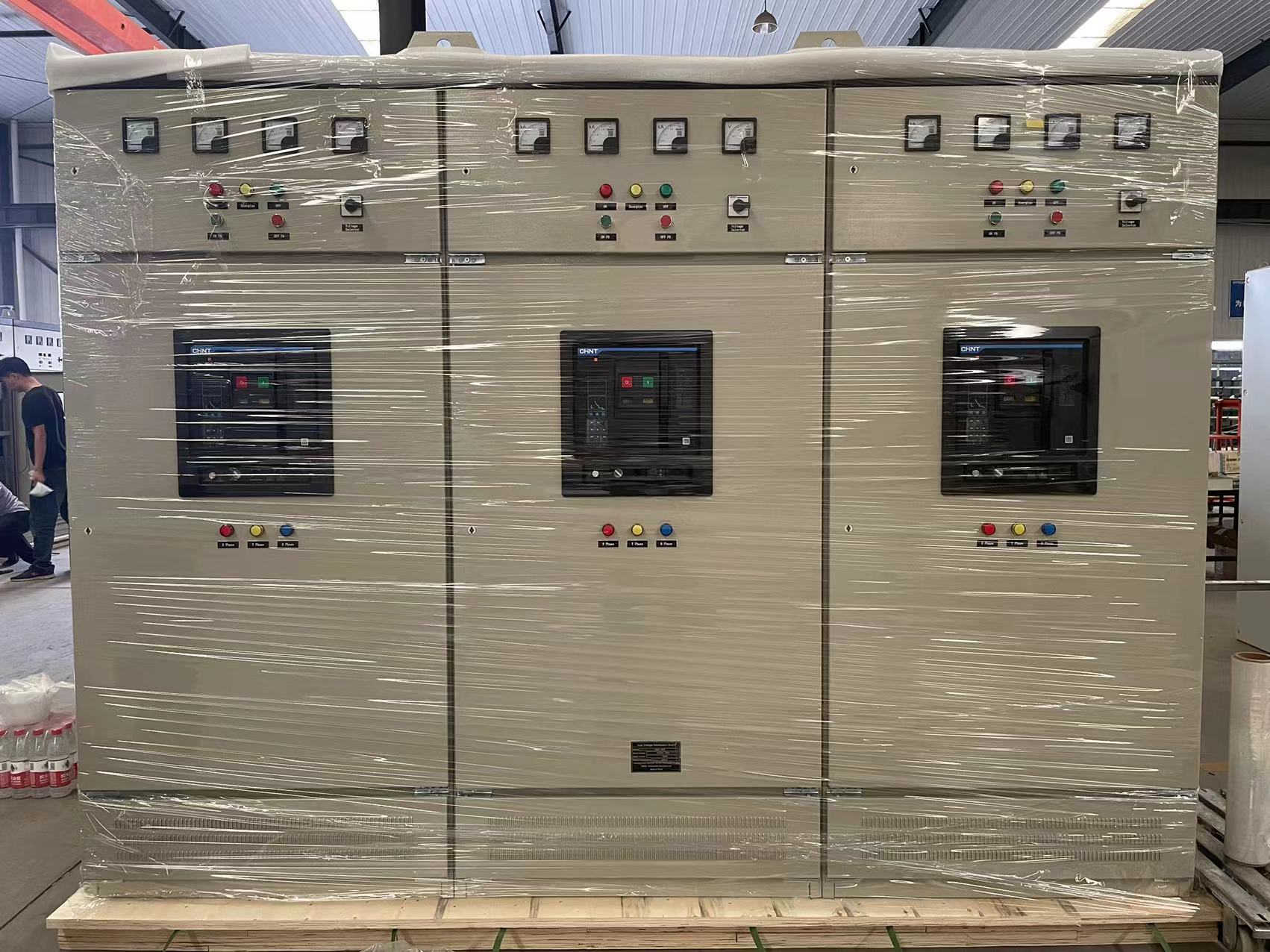

Container Loading A

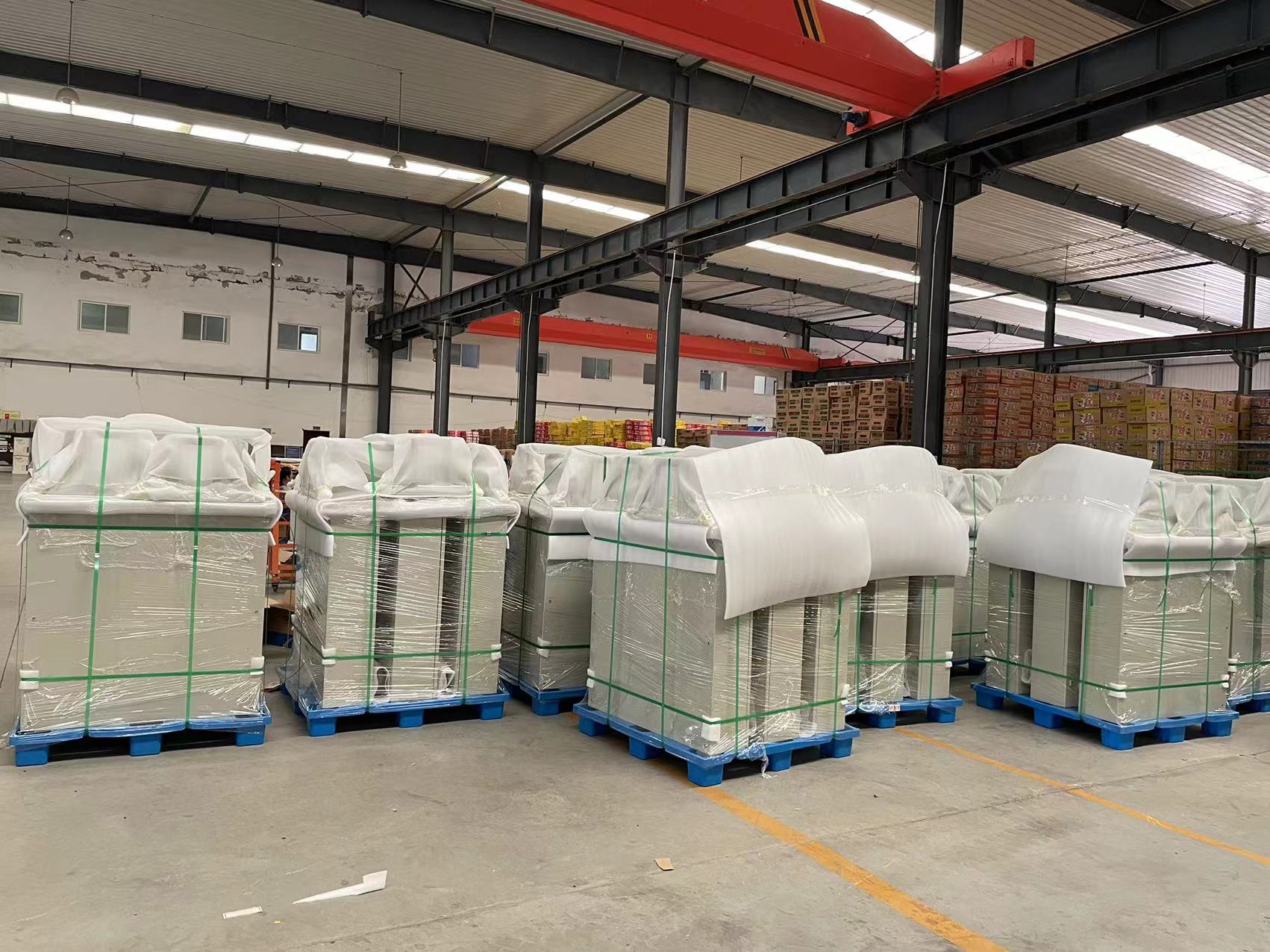

Container Loading B
Wooden Case Packaging

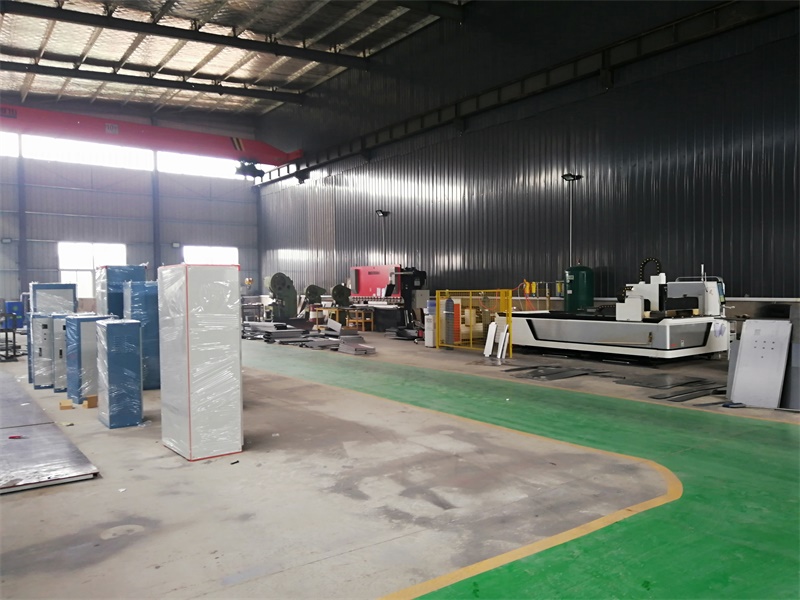

Transport Readiness A
Transport Readiness B
Transport Readiness C
Cargo Ship Loading A
Cargo Ship Loading B
Cargo Ship Loading C
Certificates
Quality Standard Certificate A
Quality Standard Certificate B
Frequently Asked Questions
What types of distribution boards and control panels do you manufacture?
We manufacture a complete range of power distribution boards and electrical control systems, including model variations such as KYN28A-12(GZS1), KYN28-24, XGN2-12, XGN15-12, MNS, GCS, GCK, and GGD.
How is product quality ensured before dispatch?
To ensure top-level reliability, a pre-production sample is consistently approved prior to mass manufacturing, and a comprehensive final inspection is performed before shipment.
What products can we buy from you?
You can purchase all categories of power distribution boards, switchgears, switchboards, and electrical control panels customized to fit industrial and mining infrastructure.
Why should we choose your products over other suppliers?
We provide eight years of expert-level experience in industrial automation, one-stop services from direct component supply to customized cabinet assembly, full OEM/ODM services, and direct support from qualified engineers.
What commercial delivery and payment options are supported?
We support standard delivery terms including FOB. Payments are primarily accepted in USD currency via T/T transactions. Customer support is available in English and Chinese.
