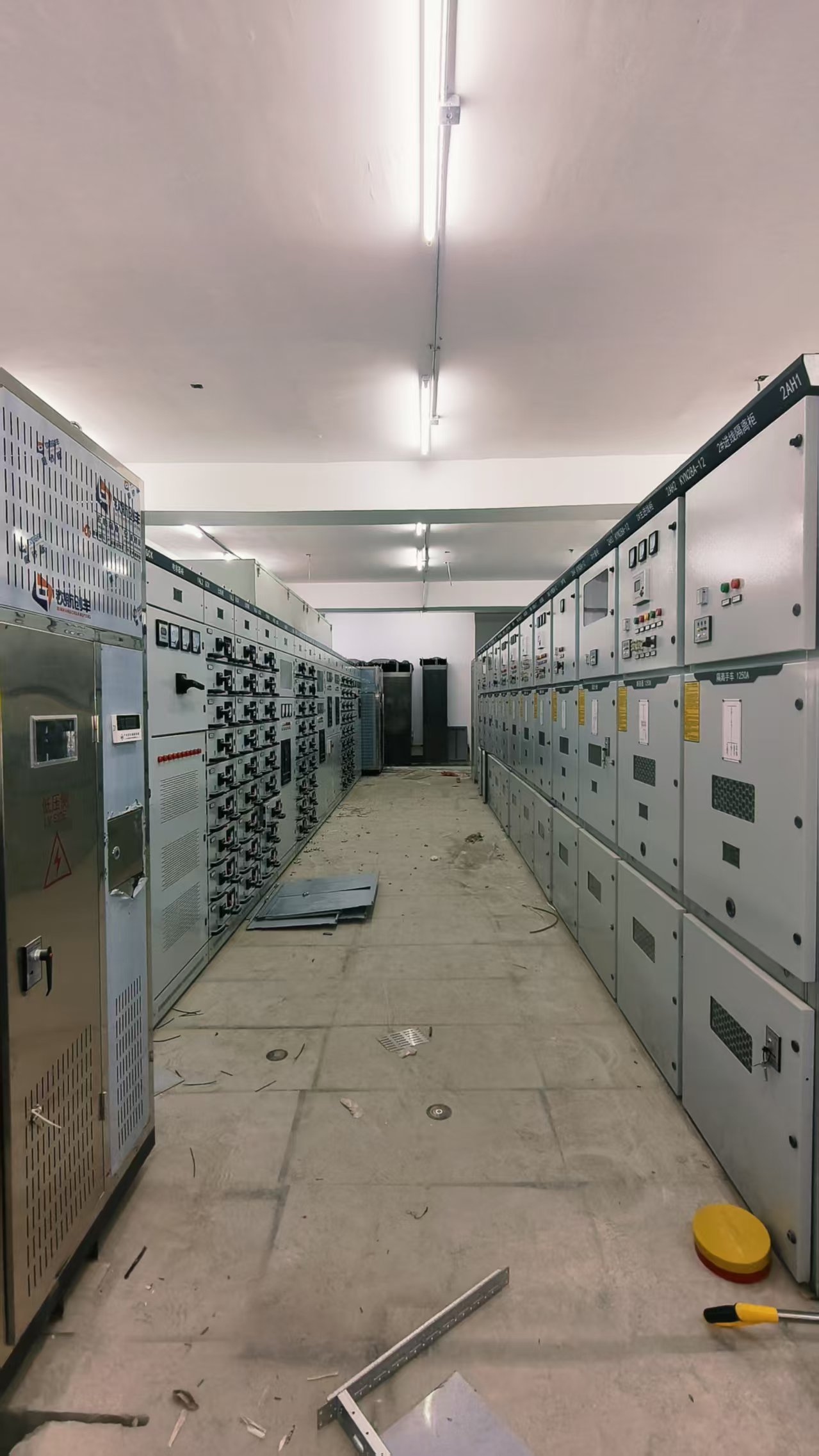

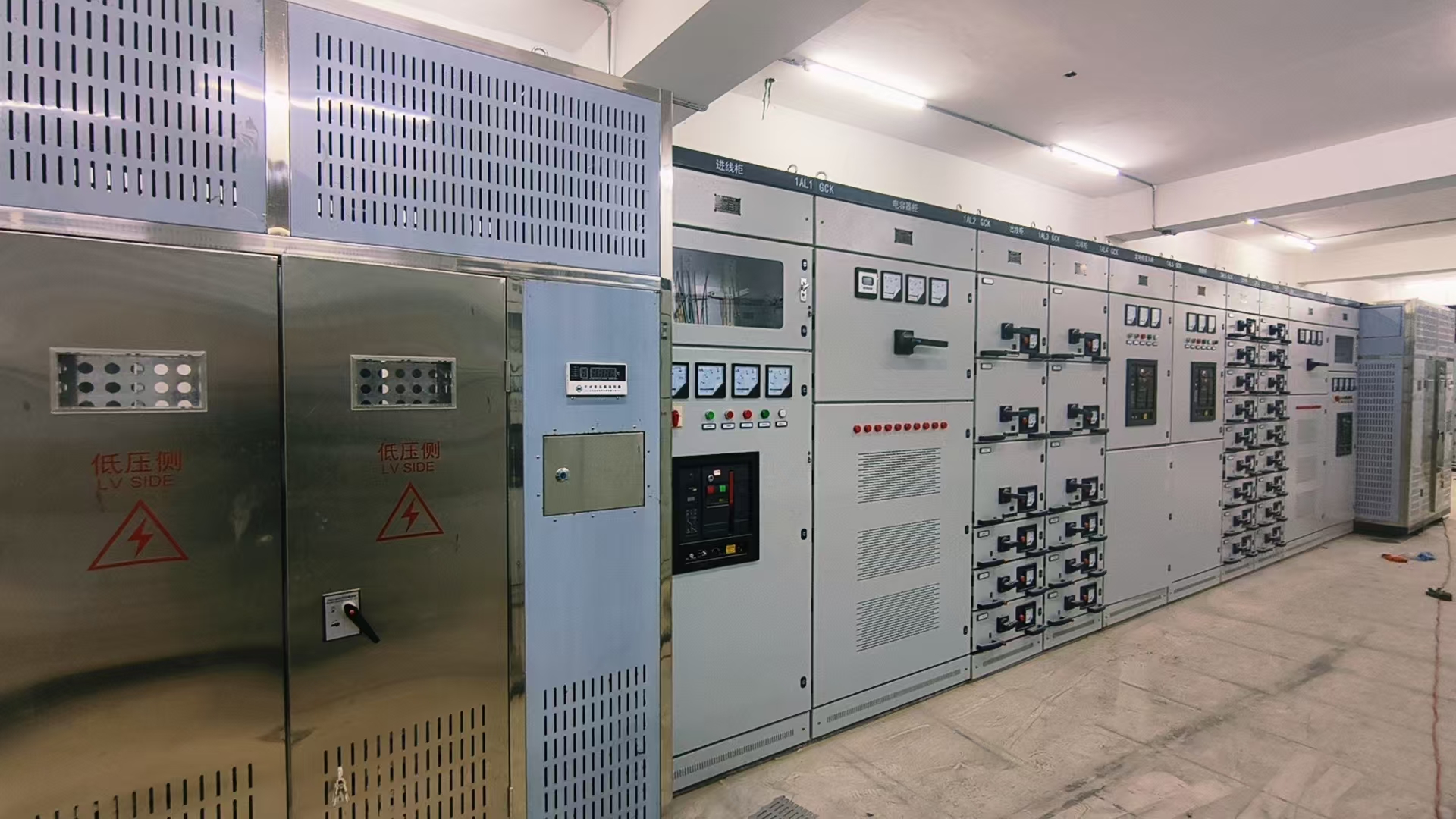

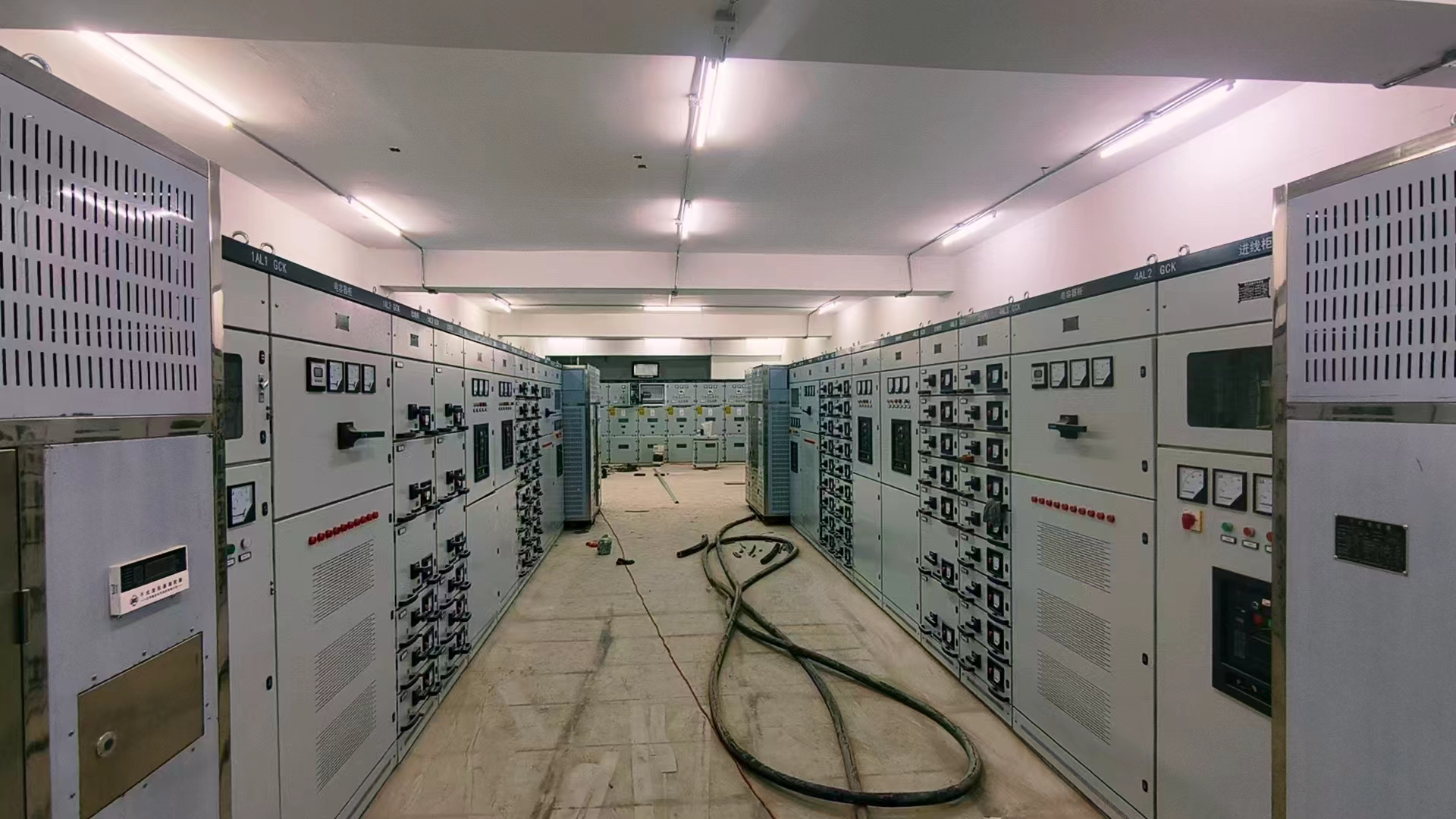

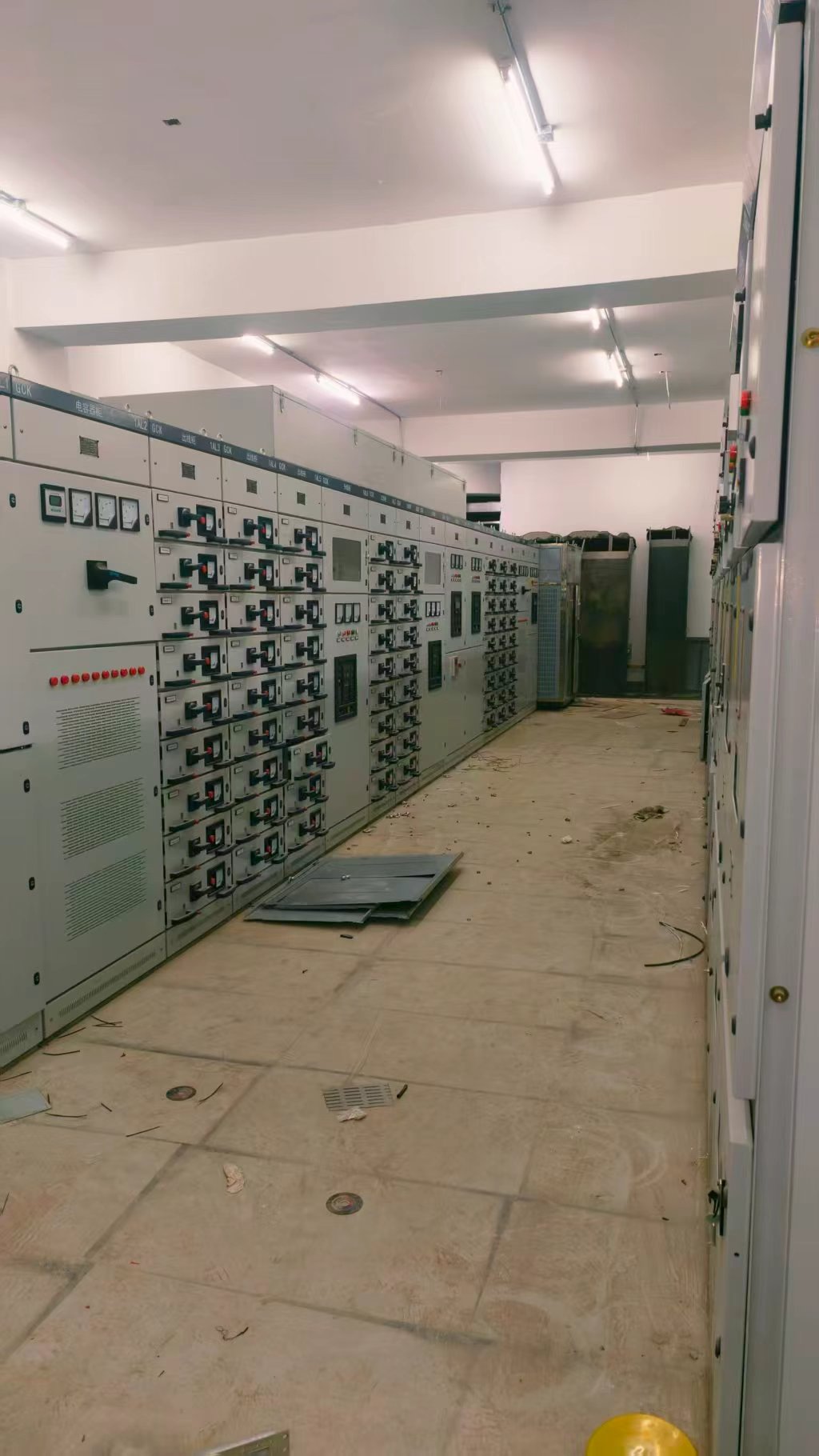

Complete Set Low Voltage Switchgear Assembly Electrical Distribution Cabinet for Power Supply Project

Product Description

Low voltage cabinet GGD2
Low voltage cabinet GGD2
GGD type AC low voltage distribution cabinet is suitable for power plants, substations, factories and other power users of AC 50HZ, rated working voltage 380V, rated working current up to 3150A distribution system, as power, lighting and distribution equipment energy conversion, distribution and control.

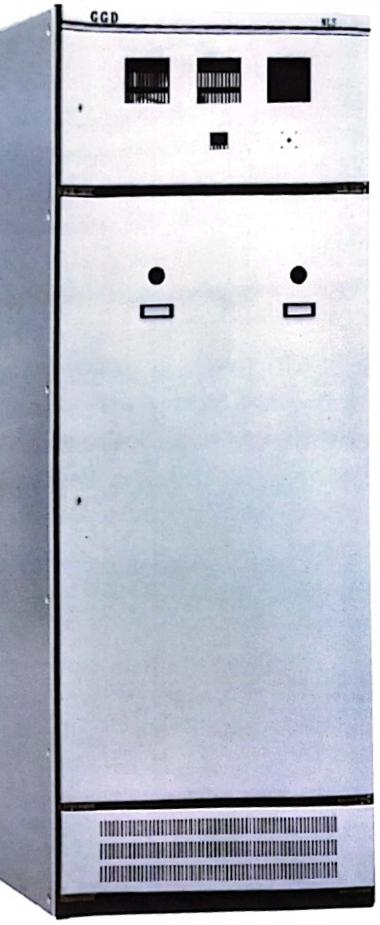

GGD type AC low voltage distribution cabinet
Structural characteristics
2.1
The cabinet body of GGD type AC low voltage distribution cabinet adopts the form of general cabinet, and the frame is made of cold bent steel 8MF by local welding or assembly. The frame parts and special supporting parts are produced and supplied by our company to ensure the precision and quality of the cabinet body. The parts of the universal cabinet are designed according to the principle of module, and there are 20 installation holes, with high general coefficient. It can realize pre-production in the factory, which not only shortens the production cycle, but also improves the working efficiency.
2.2
GGD cabinet design fully considers the heat dissipation problem in the operation of the cabinet. The slot holes at the top and bottom of the cabinet are discharged, while cold air is continuously supplemented into the cabinet from the lower slot holes, so that the sealed cabinet forms a natural ventilation channel from bottom to top to achieve the purpose of heat dissipation.
2.3
GGD cabinet is designed according to the requirements of modern industrial product styling design, and the shape of the cabinet and the division size of each part are designed by using the golden section ratio method, so that the whole cabinet is beautiful and elegant.
2.4
The cabinet door is connected to the frame with a pivot hinge, which is easy to install and remove. A mountain-shaped rubber strip is embedded in the folded edge of the door. When closing the door, the embedded strip between the door and the frame has a certain compression stroke, which can prevent the door from directly colliding with the cabinet body and also improve the protection level of the door.
2.5
The multi-strand flexible copper wire with electrical components is connected to the frame. The mounting parts in the cabinet are connected to the frame with a knurled washer, and the whole cabinet forms a complete grounding protection system.
2.6
The cabinet surface paint can be selected from polyester orange baking paint, or the
GGD cabinet details
Company Profile
Company Office
Integrating cable accessories, mechanical and electrical equipment, electrical equipment, various tools, wires and cables, high and low voltage porcelain bottles, power transformers, power hardware, distribution boxes, cable junction boxes, and fastener welding materials. Thanks to the love and support of the majority of customers, the products have formed a series and sold well in many cities and national key projects.

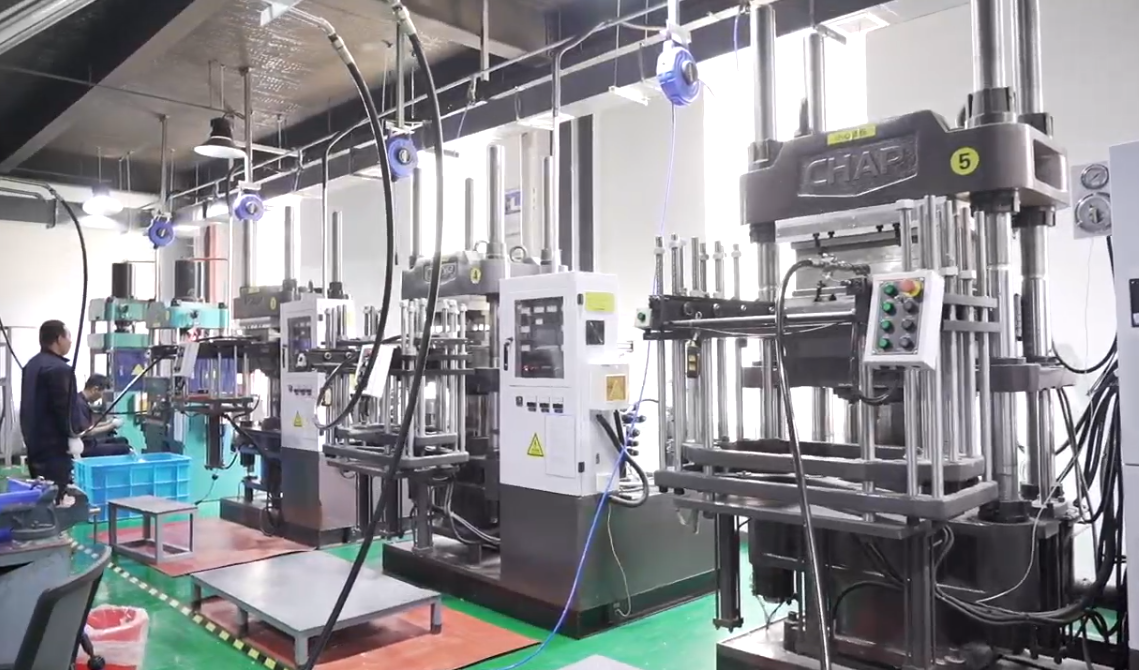

Company Showcase 1

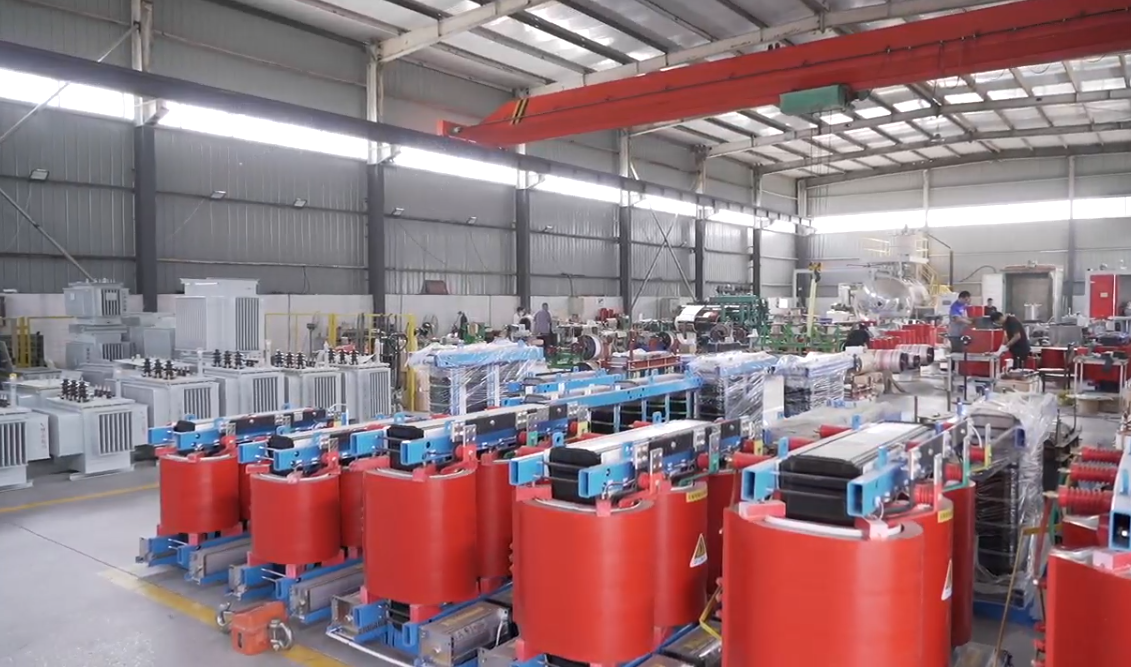

Company Showcase 2
Certifications
Certifications
Packaging and transportation
Packaging details
Transportation 1

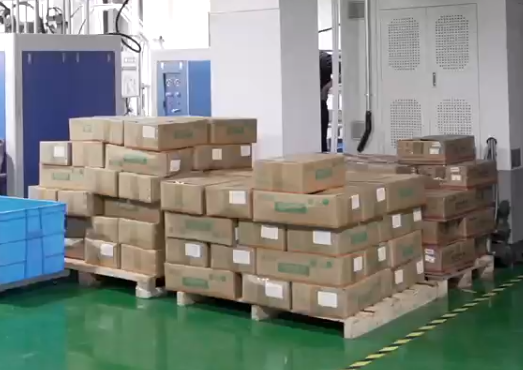

Transportation 2
FAQ
Q Are you a factory or trading company?
We are an integrated industry and trade company, and our factory is located in Hebei.
Q What can you buy from us?
Heat Shrink Terminals, Insulated Terminals, Solder Sleeve, Quick Connectors, Crimping Tools.
Q Do you provide samples?
Yes, we could offer the sample for free charge but you need to pay the cost of freight.
Q How can I make the payment?
Online Trade Assurance Payment is welcome. We also accept T/T, Paypal, Western Union.
Q What is the lead time?
3 work days for the items in stock; 15-25 days for the mass production.
Q How to arrange delivery?
If you have forwarder in China, we can send the goods to them. If you have no forwarder in China, we will arrange the delivery by international express, by air or by sea. Tracking number will be emailed to you after order has been shipped.
