Product Description

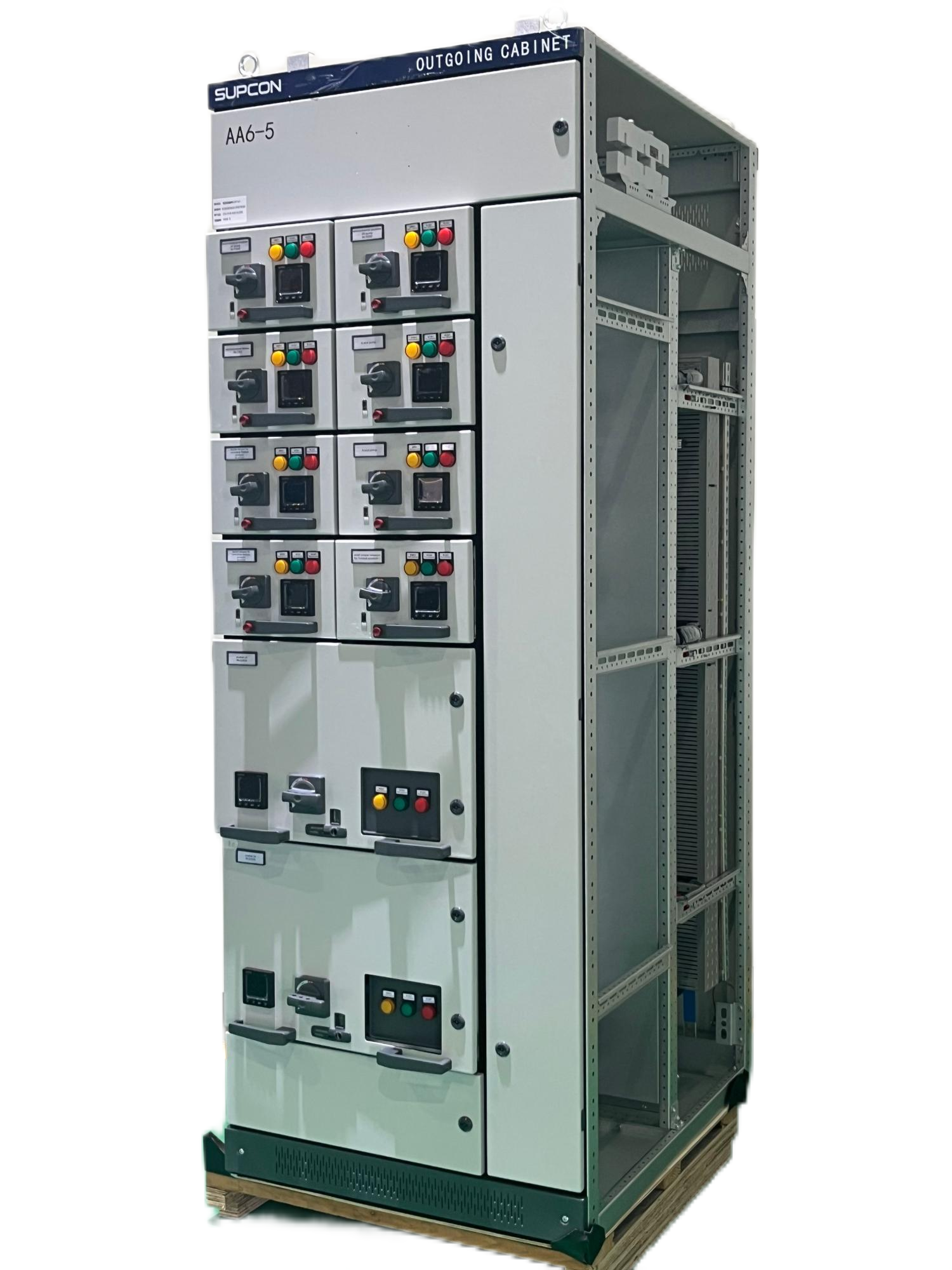

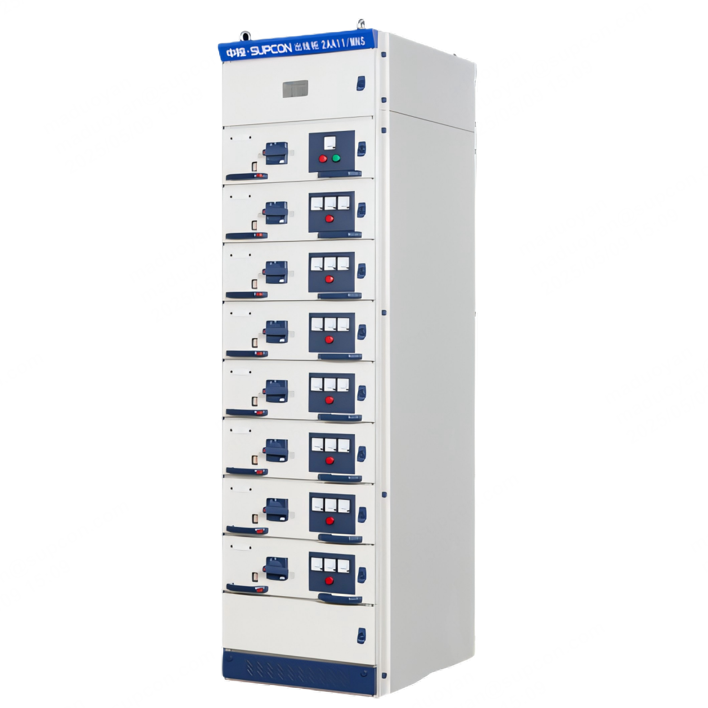

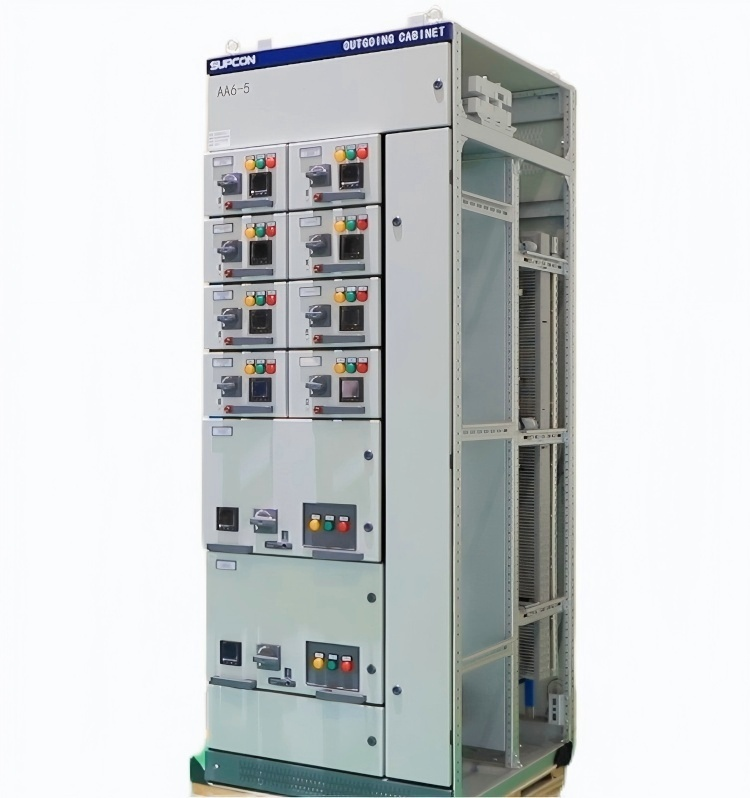

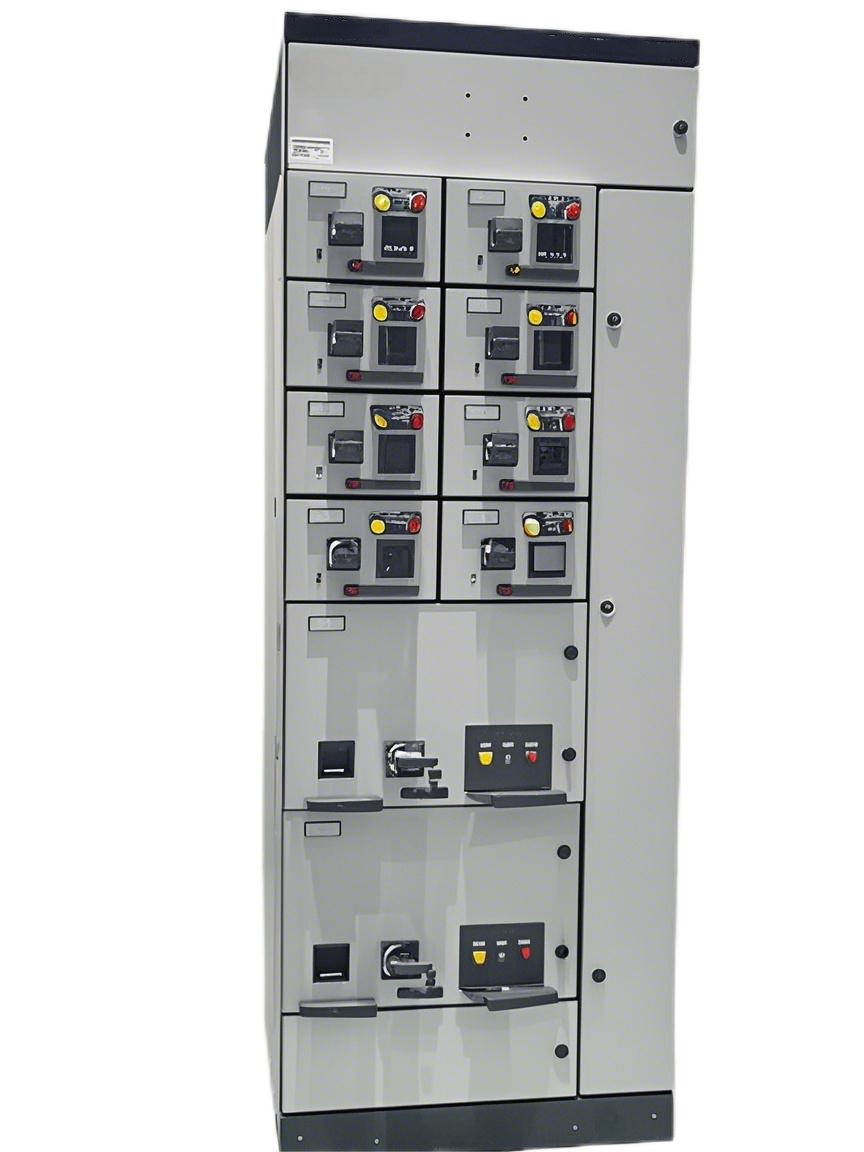

MNS Withdrawal Switchgear Electrical Power Distribution Cabinet
Name MNS Withdrawal Switchgear Electrical Power Distribution Cabinet
Feature Power receiving, distribution, control, protection, monitoring
Usage Industrial, Indoor, Electric Power Transmission
Function
  • Rated Voltage: 0.4KV
  • Rated Frequency: 50Hz
  • Rated Current: ≤6300A
  • Rated short-time withstand current (≤4 seconds): ≤100KA
  • Rated Insulation Withstanding Voltage: 0.66KV

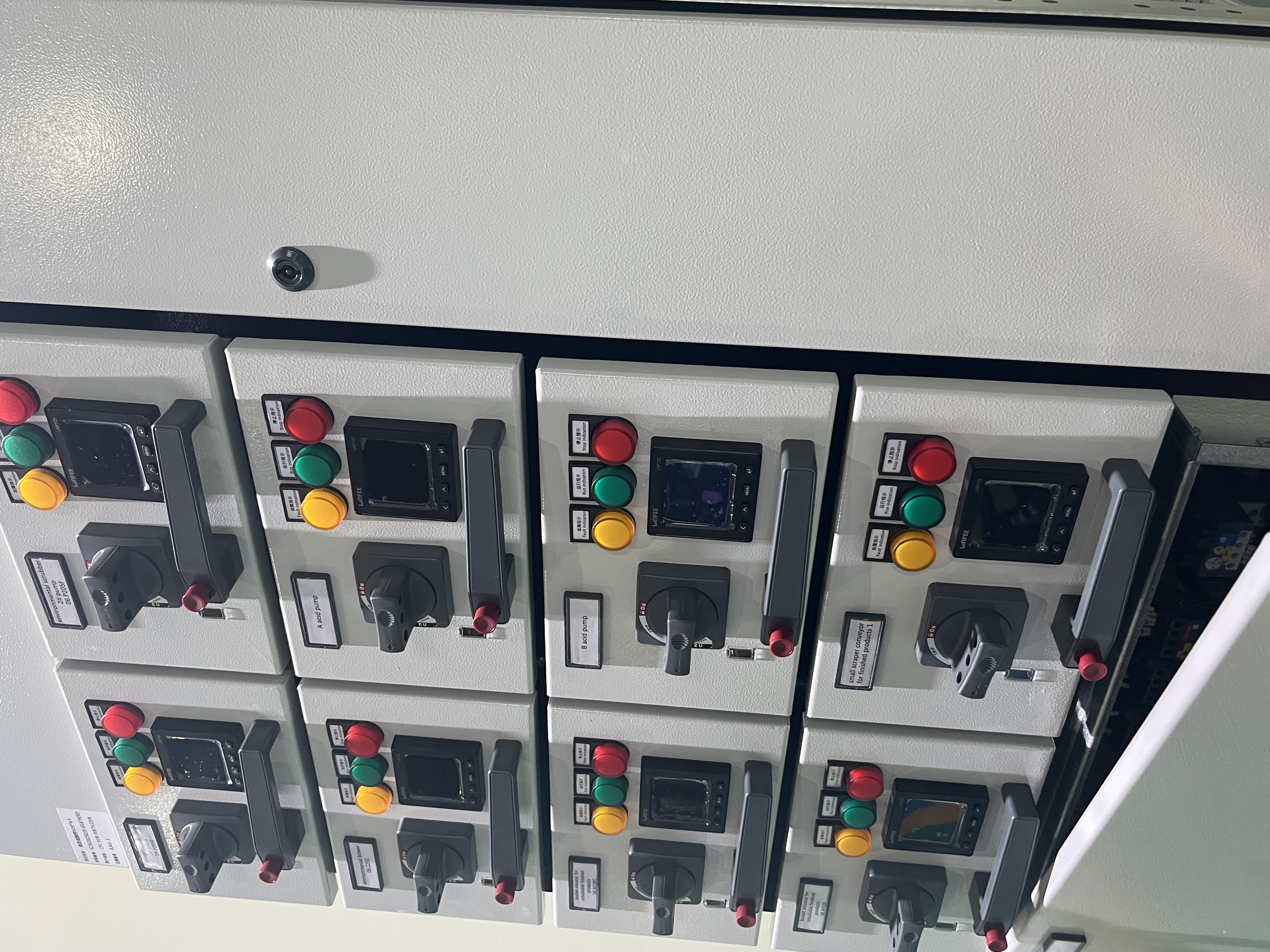

  • Cabinet Structure: Drawer Type
  • Protection Grade: IP4X
  • Certificates: ISO CE CCC IEC CQC
  • Package: Wooden Box
  • Application: Power Distribution and Motor Control
Product Detail 1

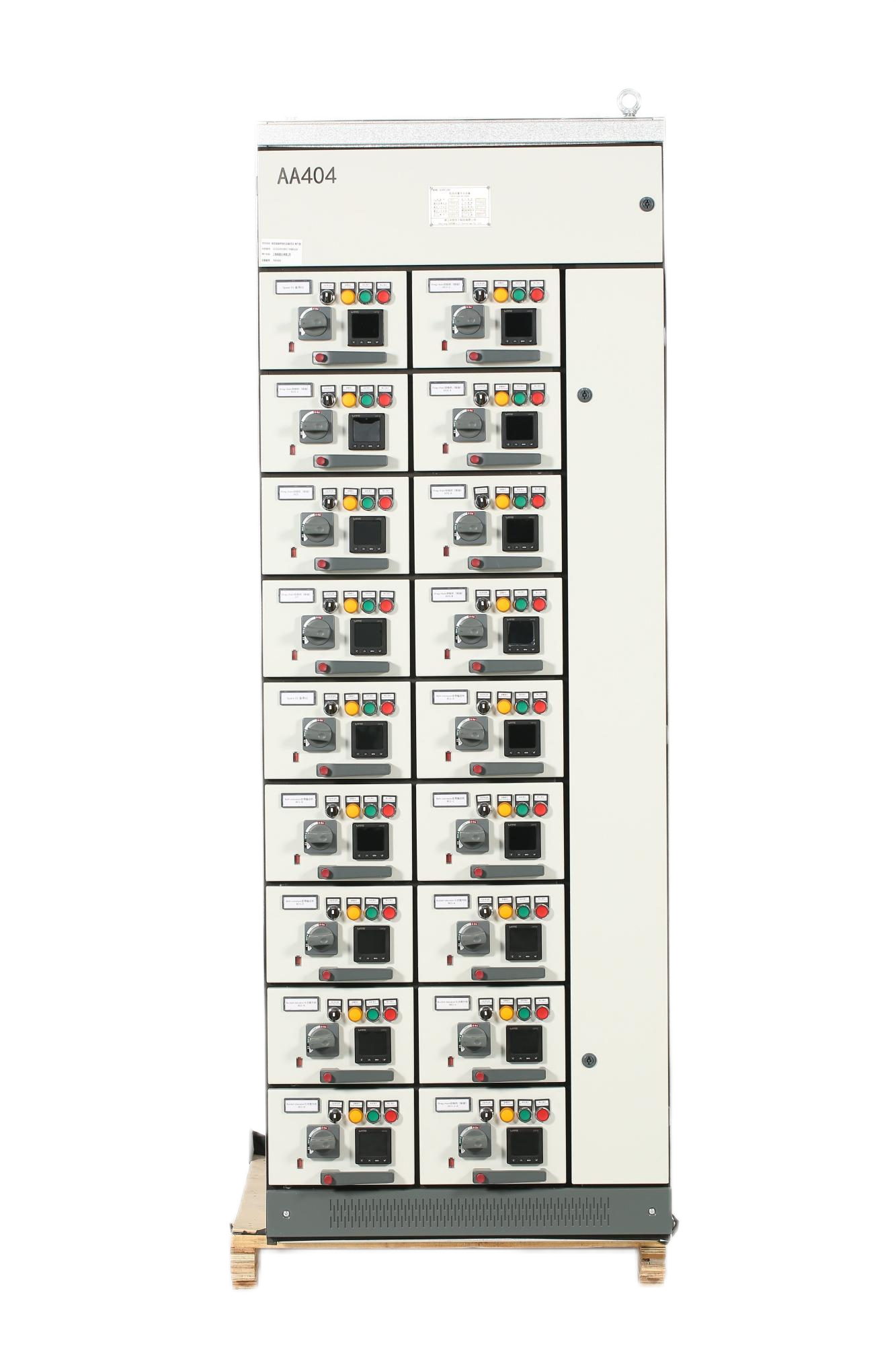

Product Detail 2

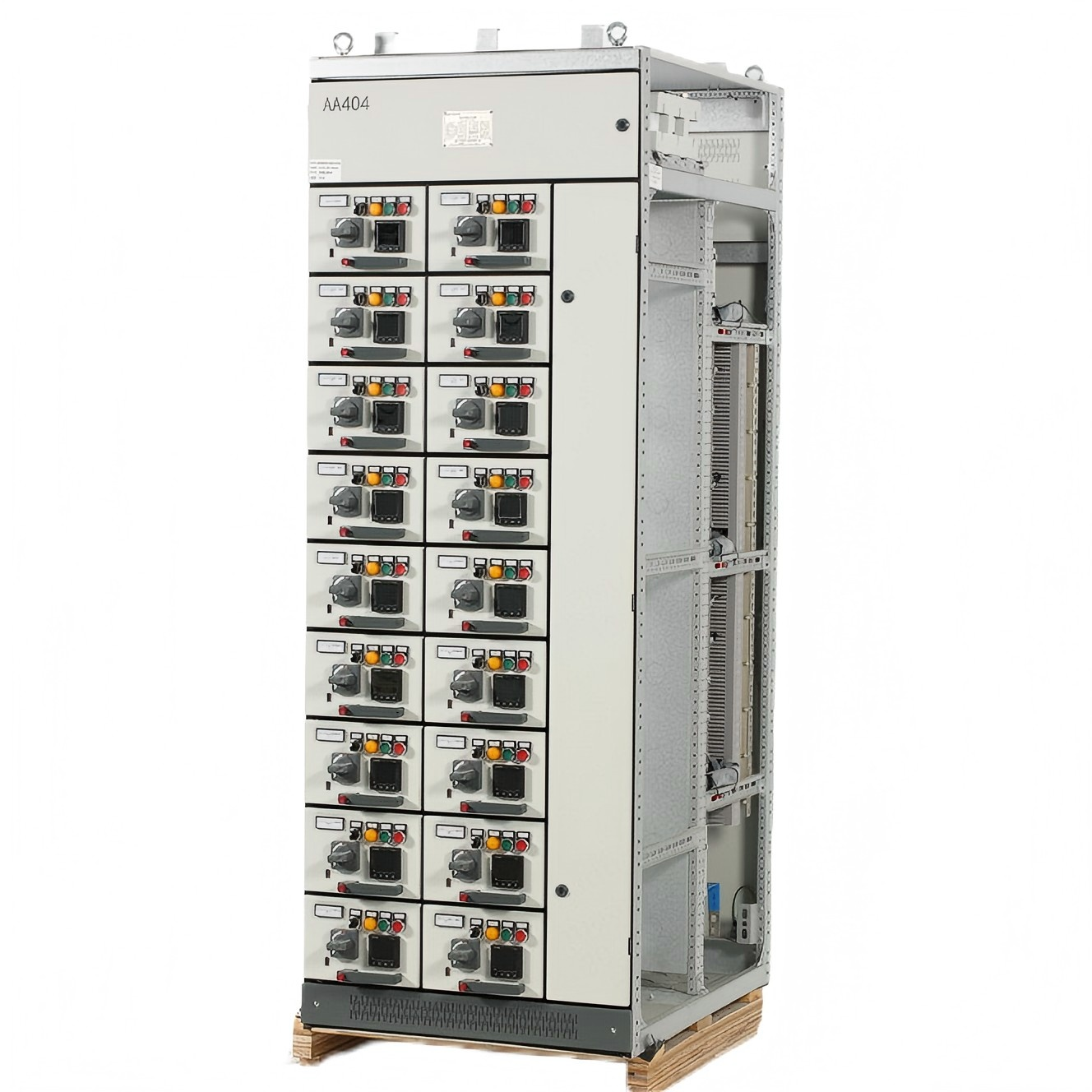

Product Detail 3
Product Detail 4
Product Detail 5
Product Detail 6
Product Detail 7
Product Detail 8
Product Detail 9
Product Detail 10
Product Detail 11
Frequently Asked Questions
What are the primary applications of the MNS Withdrawal Switchgear?
It is widely used in power distribution, motor control, power receiving, protection, and monitoring operations across industrial, indoor, and electric power transmission setups.
What is the advantage of the drawer-type cabinet structure?
The drawer-type design allows for quick components replacement, easy maintenance, and safer handling during operations, significantly reducing downtime.
What is the protection rating of this distribution cabinet?
It features an IP4X protection grade, which ensures robust protection against solid foreign objects and allows for reliable indoor performance.
What certifications does the switchgear comply with?
This product holds ISO, CE, CCC, IEC, and CQC certifications, meeting rigorous international quality and safety standards.
How is the equipment packaged for secure shipping?
The equipment is packed in heavy-duty wooden boxes designed to withstand shipping conditions and protect the internal sensitive electrical devices.
What are the maximum voltage and current capacity limits?
It handles a rated voltage of 0.4KV and a rated insulation voltage of 0.66KV, with a maximum rated current limit of ≤6300A and a frequency of 50Hz.
