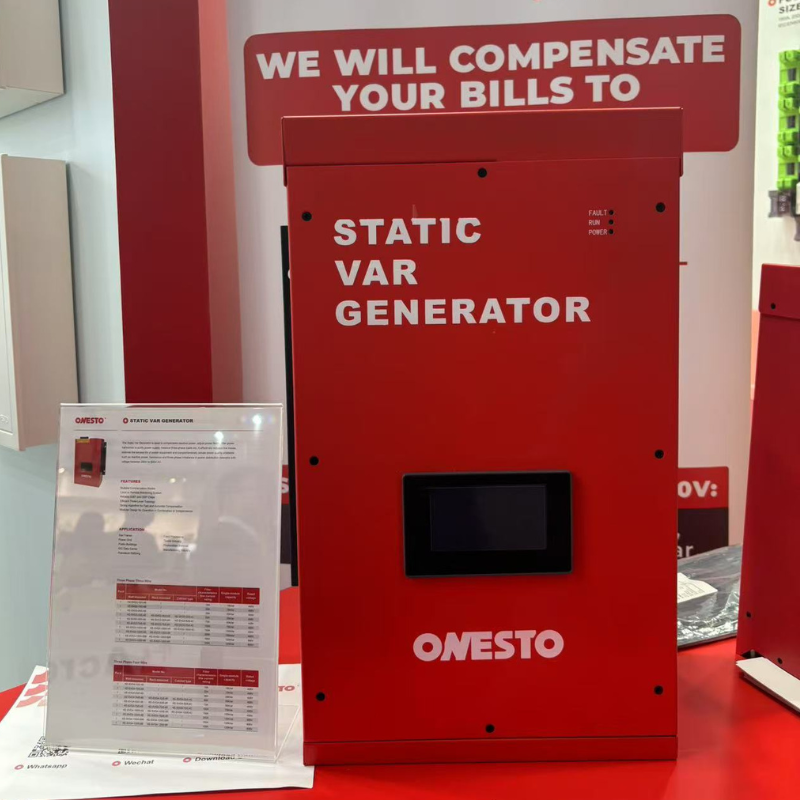

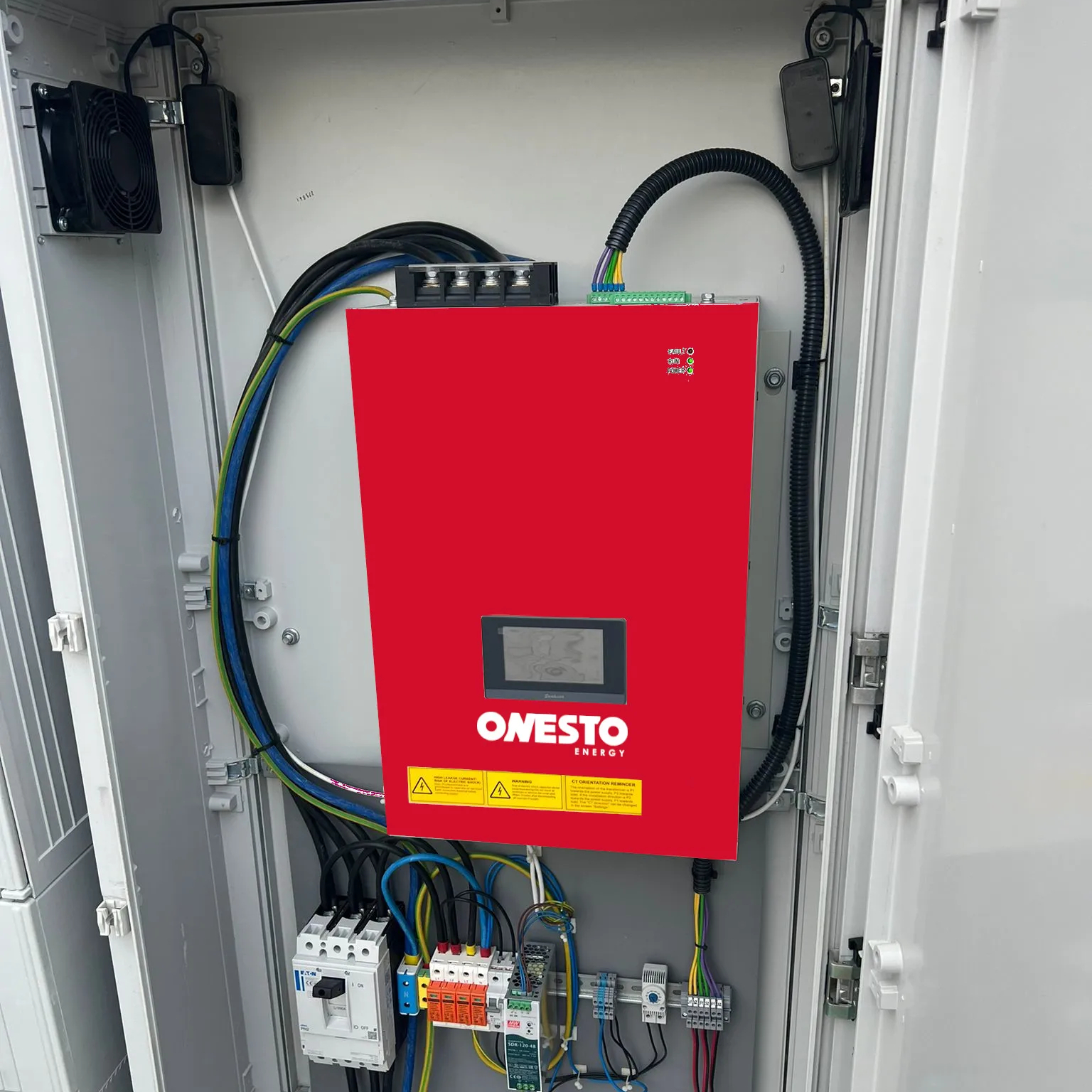

Onesto High Power Factor ASVG for Industrial Factories 400V 690V 800V 3 Phase 35kvar 50kvar 75kvar Static Var Generator SVG
Onesto High Power Factor ASVG for Industrial Factories 400V 690V 800V 3 Phase 35kvar 50kvar 75kvar Static Var Generator SVG
Onesto High Power Factor ASVG for Industrial Factories 400V 690V 800V 3 Phase 35kvar 50kvar 75kvar Static Var Generator SVG
Onesto High Power Factor ASVG for Industrial Factories 400V 690V 800V 3 Phase 35kvar 50kvar 75kvar Static Var Generator SVG
Onesto High Power Factor ASVG for Industrial Factories 400V 690V 800V 3 Phase 35kvar 50kvar 75kvar Static Var Generator SVG
1 / 5
Onesto High Power Factor ASVG for Industrial Factories 400V 690V 800V 3 Phase 35kvar 50kvar 75kvar Static Var Generator SVG
Onesto High Power Factor ASVG for Industrial Factories 400V 690V 800V 3 Phase 35kvar 50kvar 75kvar Static Var Generator SVG
Onesto High Power Factor ASVG for Industrial Factories 400V 690V 800V 3 Phase 35kvar 50kvar 75kvar Static Var Generator SVG
Onesto High Power Factor ASVG for Industrial Factories 400V 690V 800V 3 Phase 35kvar 50kvar 75kvar Static Var Generator SVG
Onesto High Power Factor ASVG for Industrial Factories 400V 690V 800V 3 Phase 35kvar 50kvar 75kvar Static Var Generator SVG

Onesto High Power Factor ASVG for Industrial Factories 400V 690V 800V 3 Phase 35kvar 50kvar 75kvar Static Var Generator SVG

Send Inquiry

Product Description

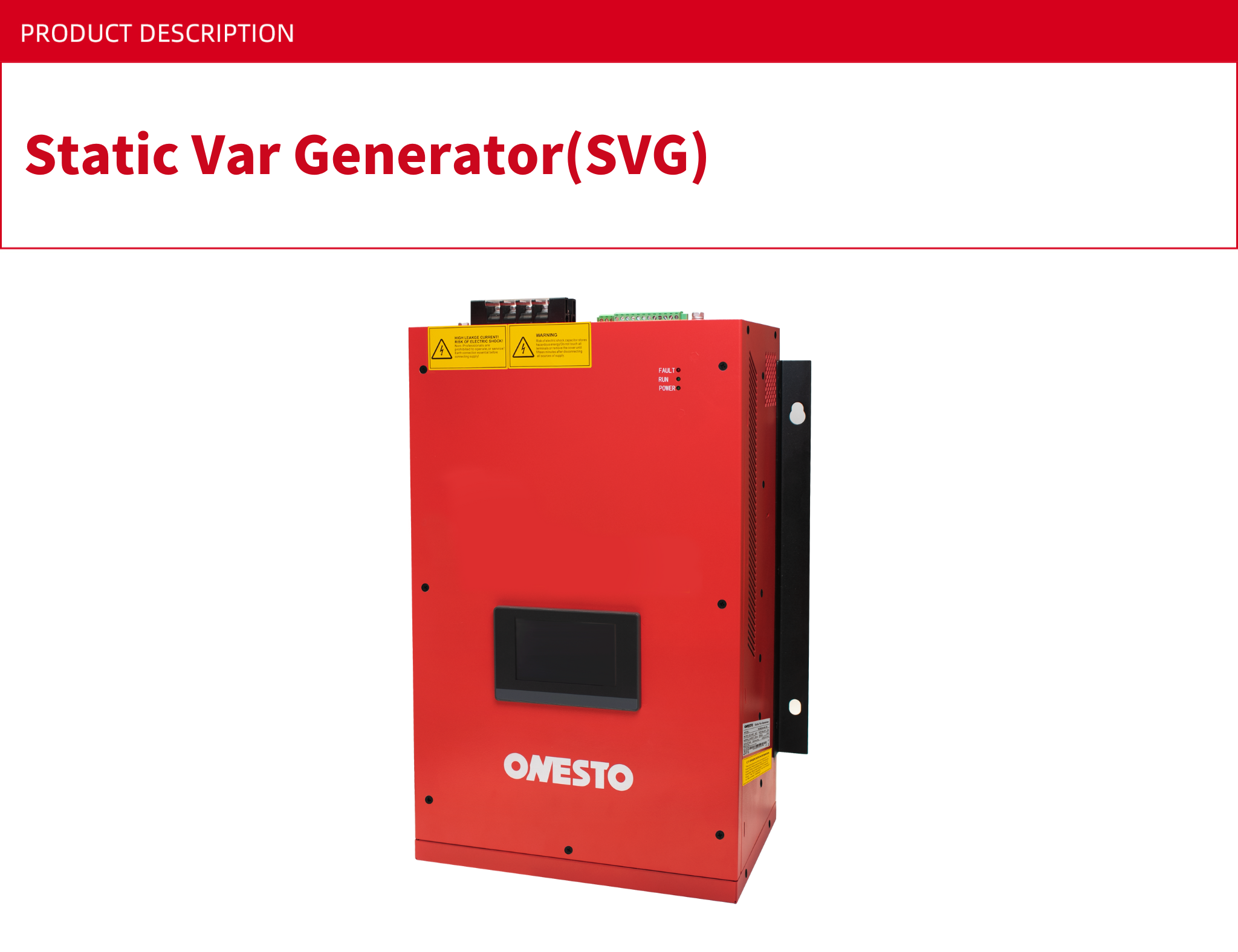

SVG System
SVG Introduction
⚡Fast Response Capability
SVG can complete reactive power compensation within 5 milliseconds, which significantly improves the response speed to load changes, thus enhancing the stability and reliability of the power system.
⚙️Stepless compensation
SVGs provide continuous compensation with the ability to flexibly adjust the power factor in the range of 0 to 1, which is more flexible than the fixed level compensation of traditional equipment.
🔋Efficient use of energy
Increased power factor (PF > 0.98) reduces power losses and thus improves the overall energy efficiency of the grid.
📉Harmonic Suppression
SVG not only provides reactive power compensation, but also actively eliminates harmonics in the power system, reducing the negative effects that may be caused to electrical equipment.
🔄Multiple compensation modes
Support multiple compensation modes (such as reactive power, harmonic, balance, etc.) to meet the needs of different types of loads and adapt to a variety of complex power environments.
📦High Power Density
The unique copper foil vertical winding process allows for a smaller unit with higher power.
Technical Detail
Parameter Detail
Rated voltage400V / 690V / 800V
Input voltage range-20%~+20% (400V); -20%~+10% (690V); -20%~850V (800V)
Mounting typeWall-mounted, Rack-mounted, Cabinet type
Power grid structure3P3W, 3P4W
Frequency50/60Hz (-10%~+10%)
SVG: Unbalanced kVar compensation100%
SVG: Compensation rangeCapacitive and inductive continuously adjustable
Overload capacity110% rated current and 1 min at 120% rated current
Circuit topologyThree-level topology
Switching frequency20kHz
Levels of protectionIP20
General structural and security issuesEN 62477-1(2012), EN 61439-1 (2011)
EMCEN/IEC61000-6-4, of the kVar class

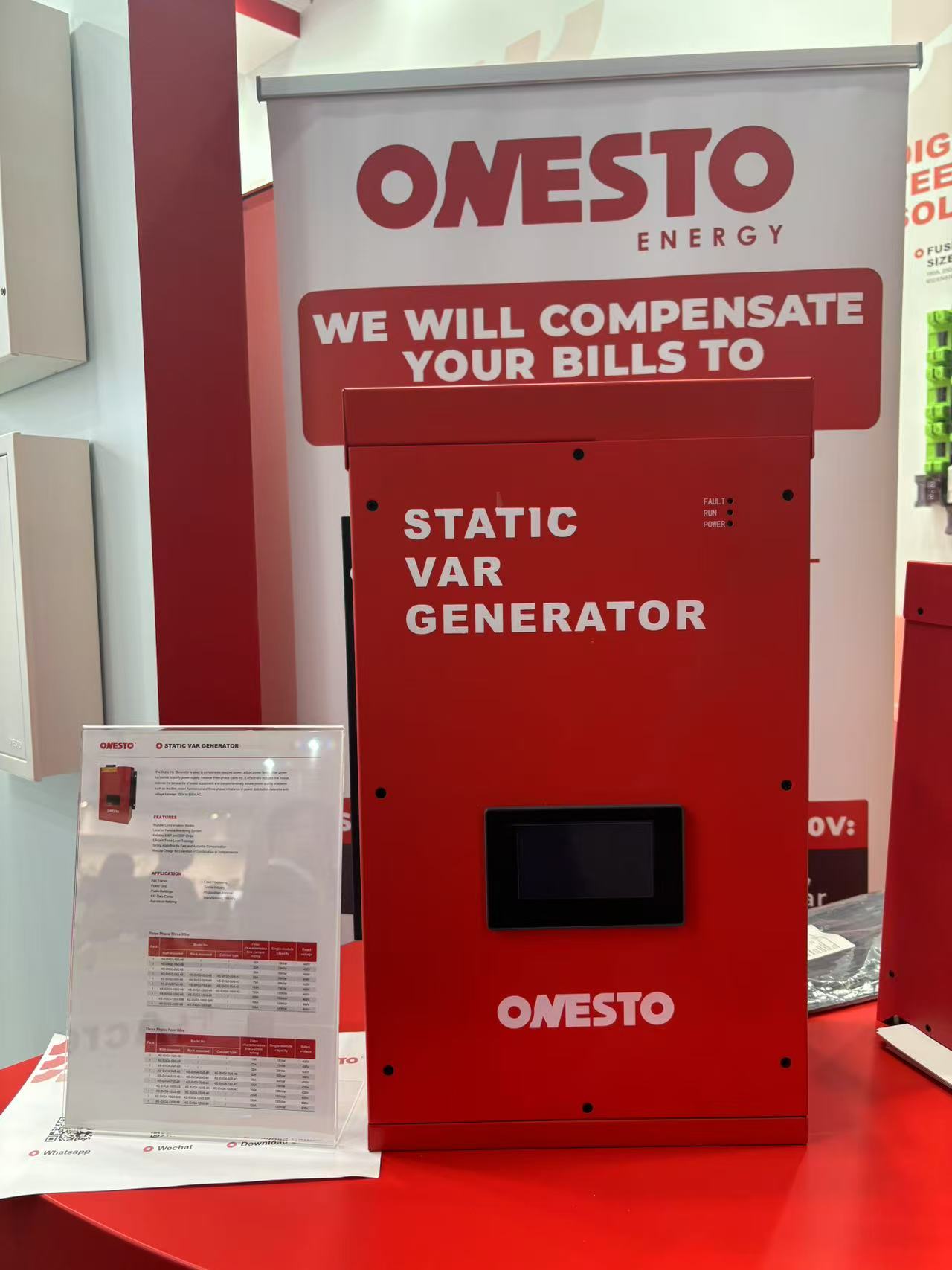

Product Image

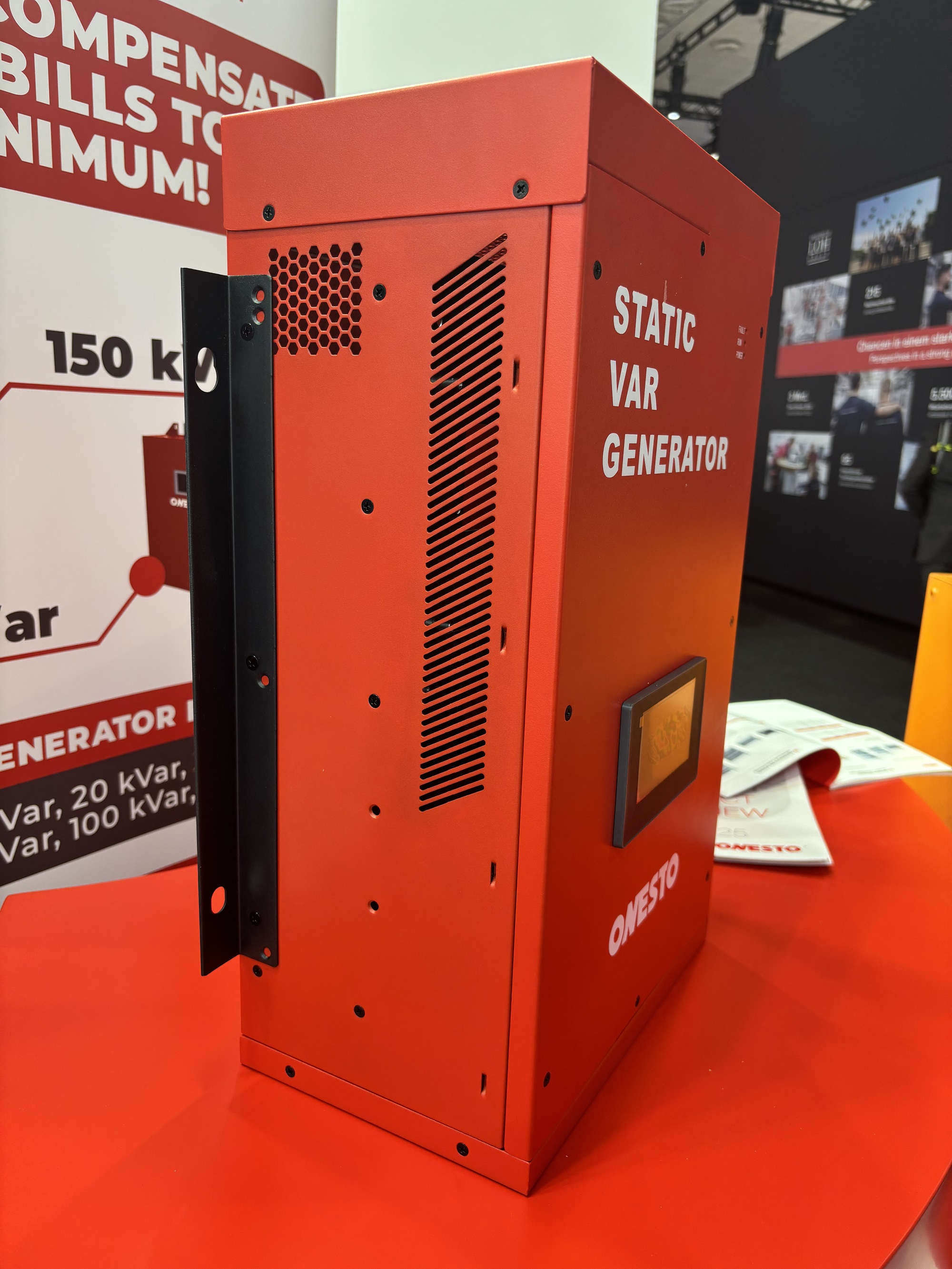

Product Detail 1

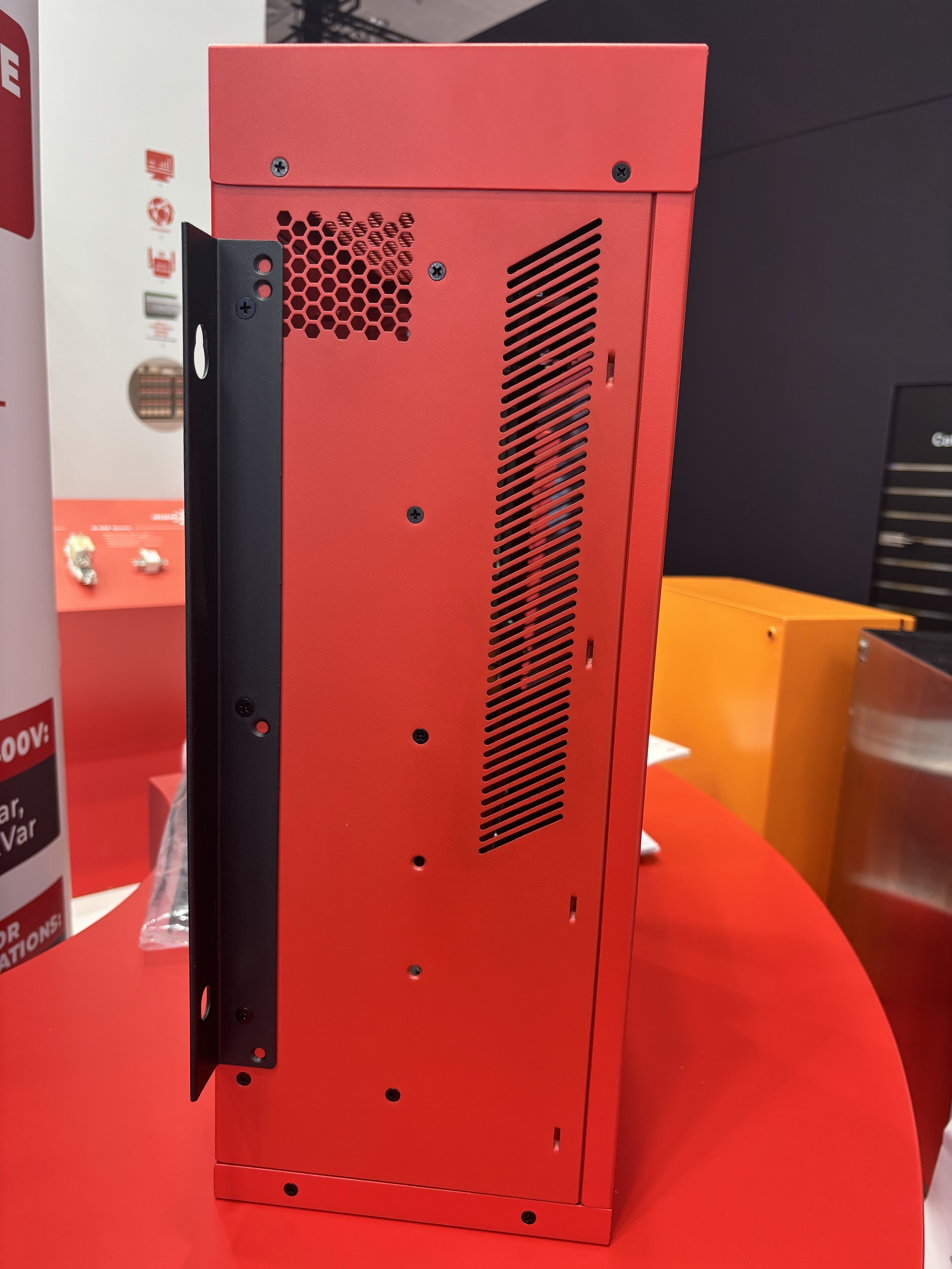

Product Detail 2

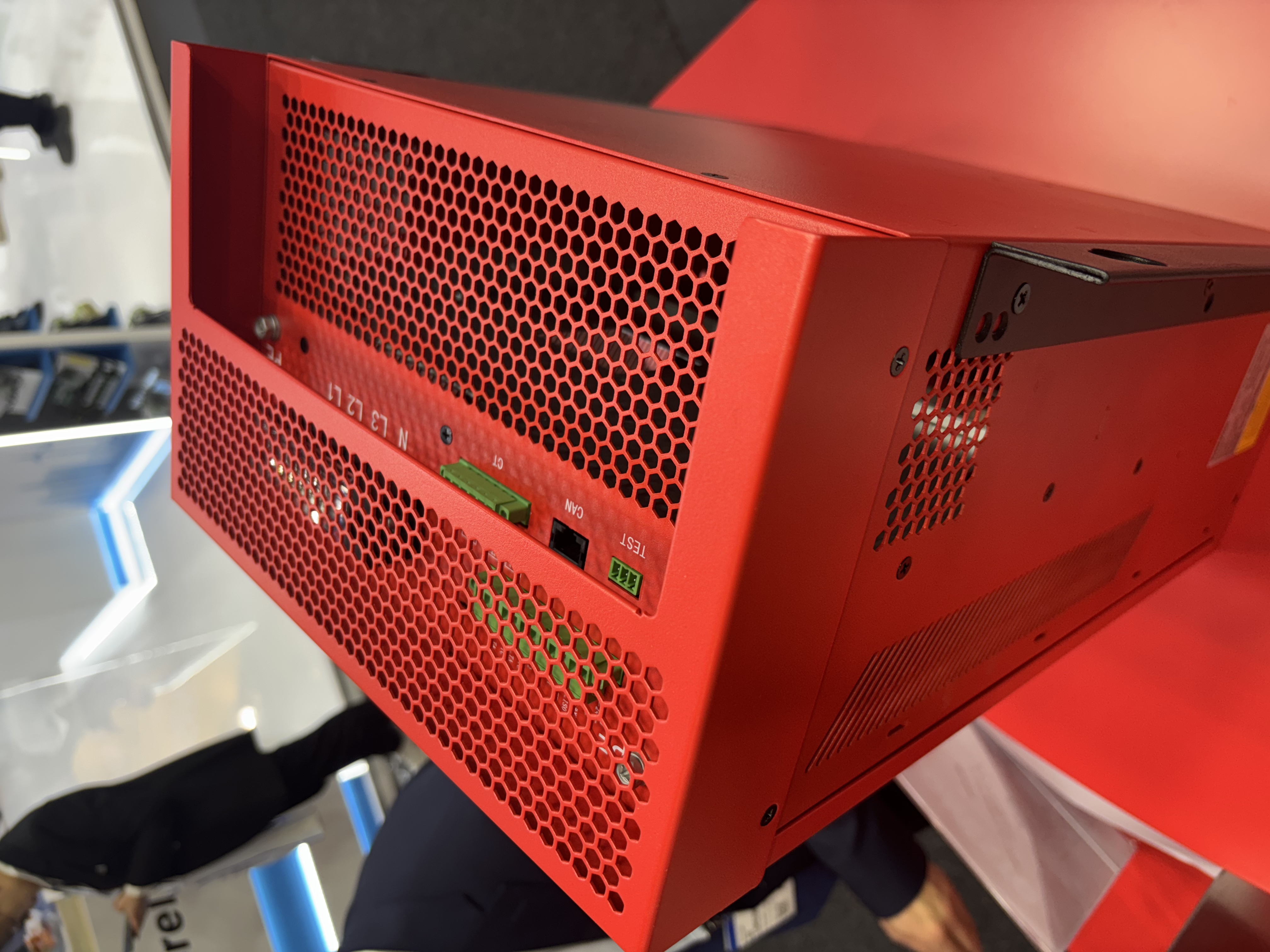

Product View 3
Product View 4
Product View 5
Product View 6
Product View 7
Product View 8
Product View 9

Frequently Asked Questions

Q1: What advantages do you have?
We are a professional enterprise with more than 15 years of experience in manufacturing low voltage electrical products. Our products have been exported to over 50 countries and are certified with CE, CB, and TUV certificates.
Q2: Can I have a free sample before a bulk order?
Yes, an acceptable free sample can be offered for your test and evaluation.
Q3: How long is the delivery time?
It usually takes 7-10 days for sample orders and 25-30 days for bulk orders.
Q4: How long is the guarantee period?
24 months of warranty is provided, and all our products undergo 100% inspection before shipment.
Q5: What payment terms do you offer?
We offer flexible payment terms such as T/T, PayPal, Western Union, and L/C at sight.
Q6: Do you provide technical support for installation?
Yes, we provide comprehensive technical documentation and remote support to assist with the installation and configuration of our products.
