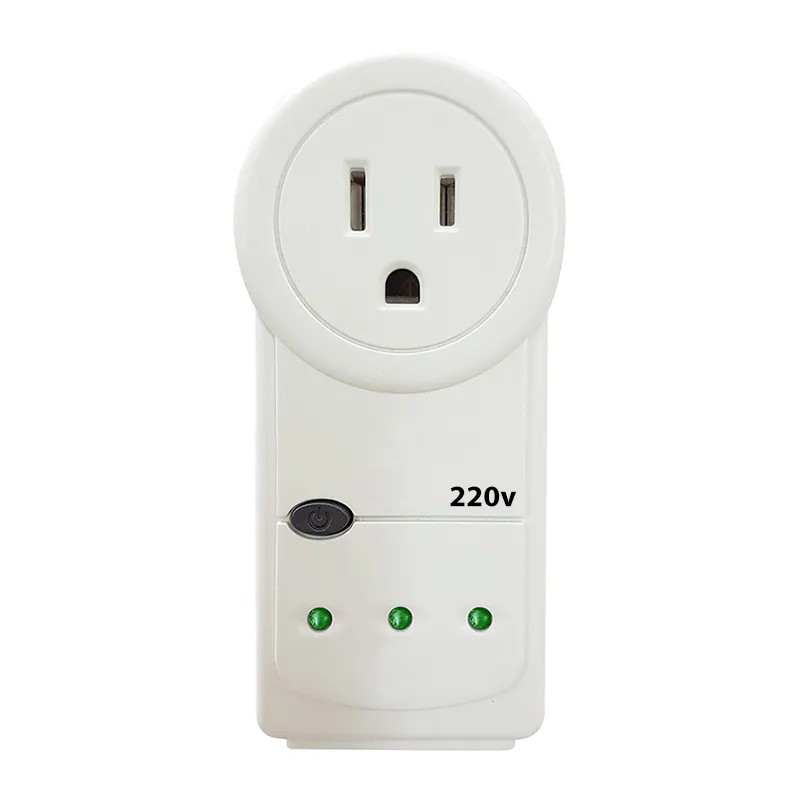

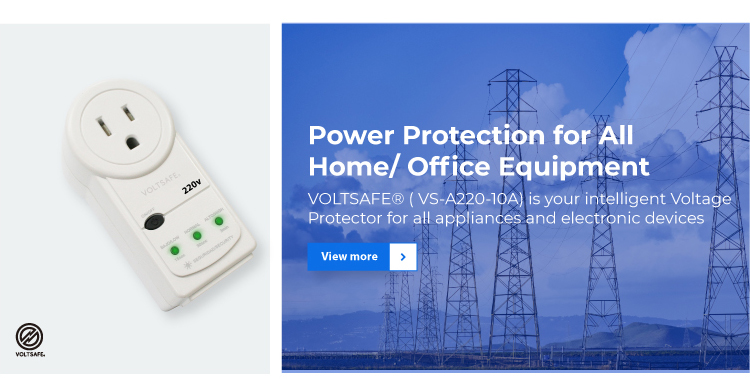

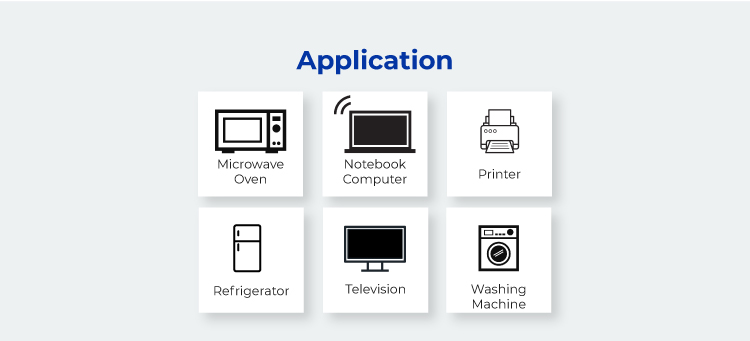

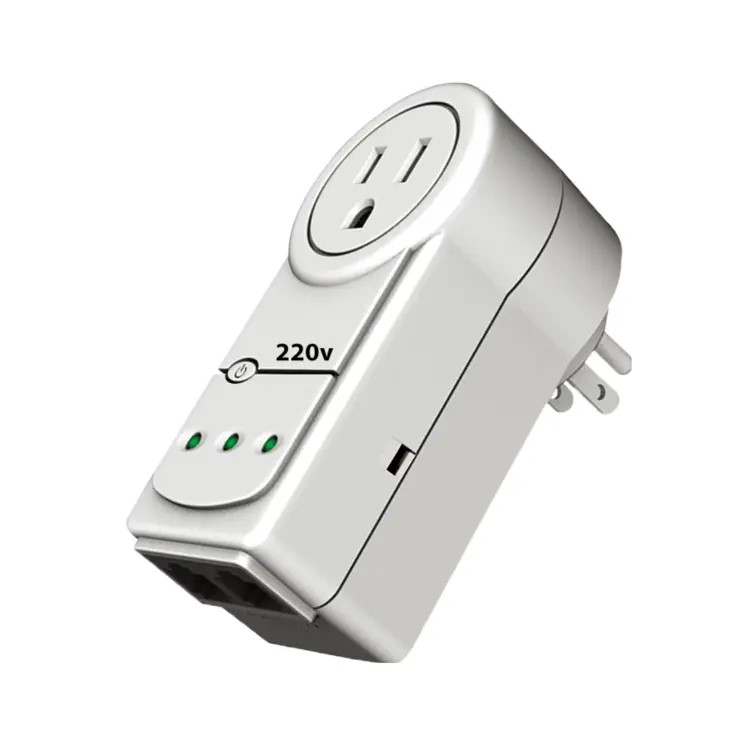

VOLTSAFE® (VS-A220-10A) is an intelligent voltage protector that provides power protection from over-voltage or under-voltage situations. With built-in 15 seconds, 30 seconds, and 3 minutes delay timer protection, our voltage protector is designed to protect your refrigerators, TVs, and other electronic devices to avoid sudden electrical surges, especially during the initial power entry when power is recovered from blackout.
| Specification Details | ||
|---|---|---|
| Model | VS-A110-15A | VS-A220-10A |
| Capacity | 1800W max. | 1800W max. |
| Input Specifications | ||
| Nominal Voltage | 115Vac | 230Vac |
| Voltage Range | 90-140Vac | 180-268Vac |
| Frequency | 50/60Hz (Auto-Sensing) | 50/60Hz (Auto-Sensing) |
| Plug Type | Nema 5-15P*1pc (On the Rear) | Nema 5-15P*1pc (On the Rear) |
| Output Specifications | ||
| Voltage Output | Same as Input | Same as Input |
| Frequency Output | Same as Input | Same as Input |
| Outlet Type | Nema 5-15R*1pc | Nema 5-15R*1pc |
| Built-in Protection | ||
| Power Line Surge Energy Rating | 900 Joules | 900 Joules |
| Delay Reconnection | 15 Seconds/30 Seconds/3 Minutes | 15 Seconds/30 Seconds/3 Minutes |

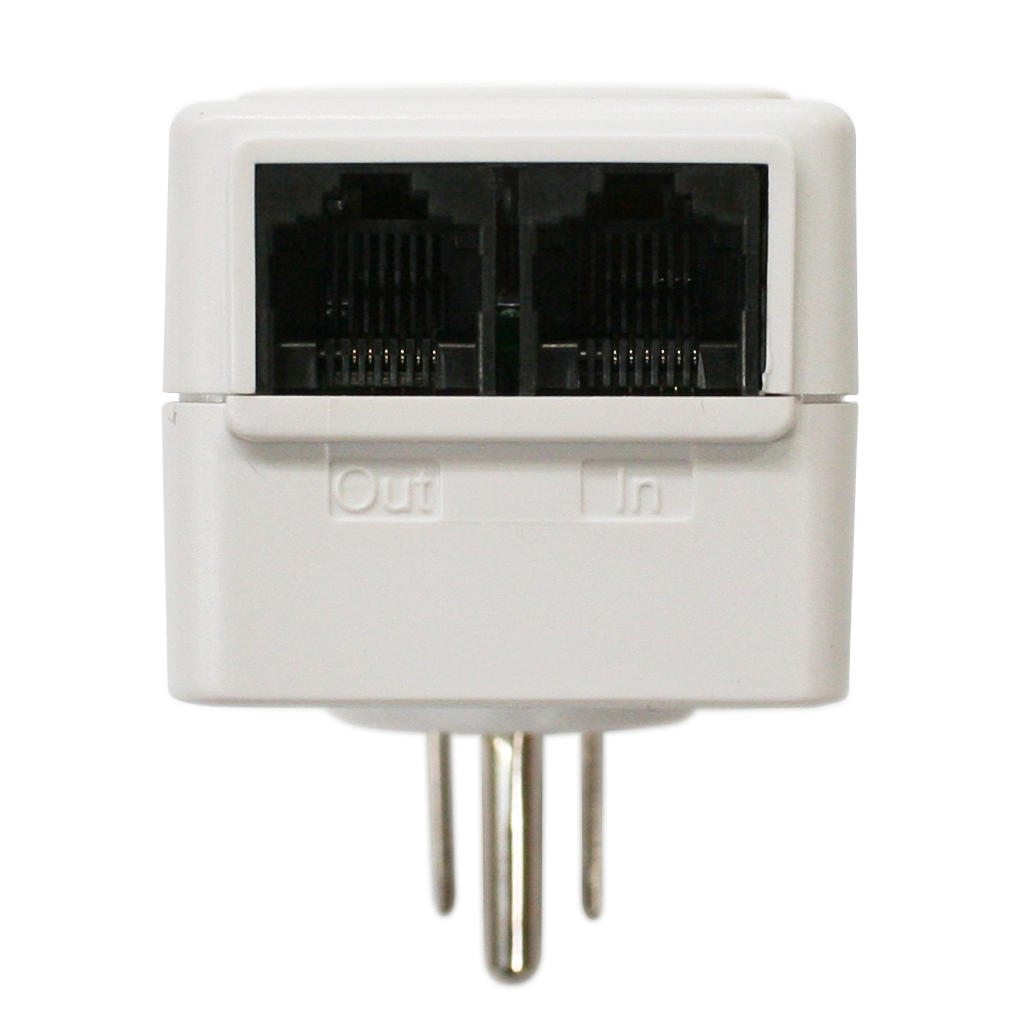

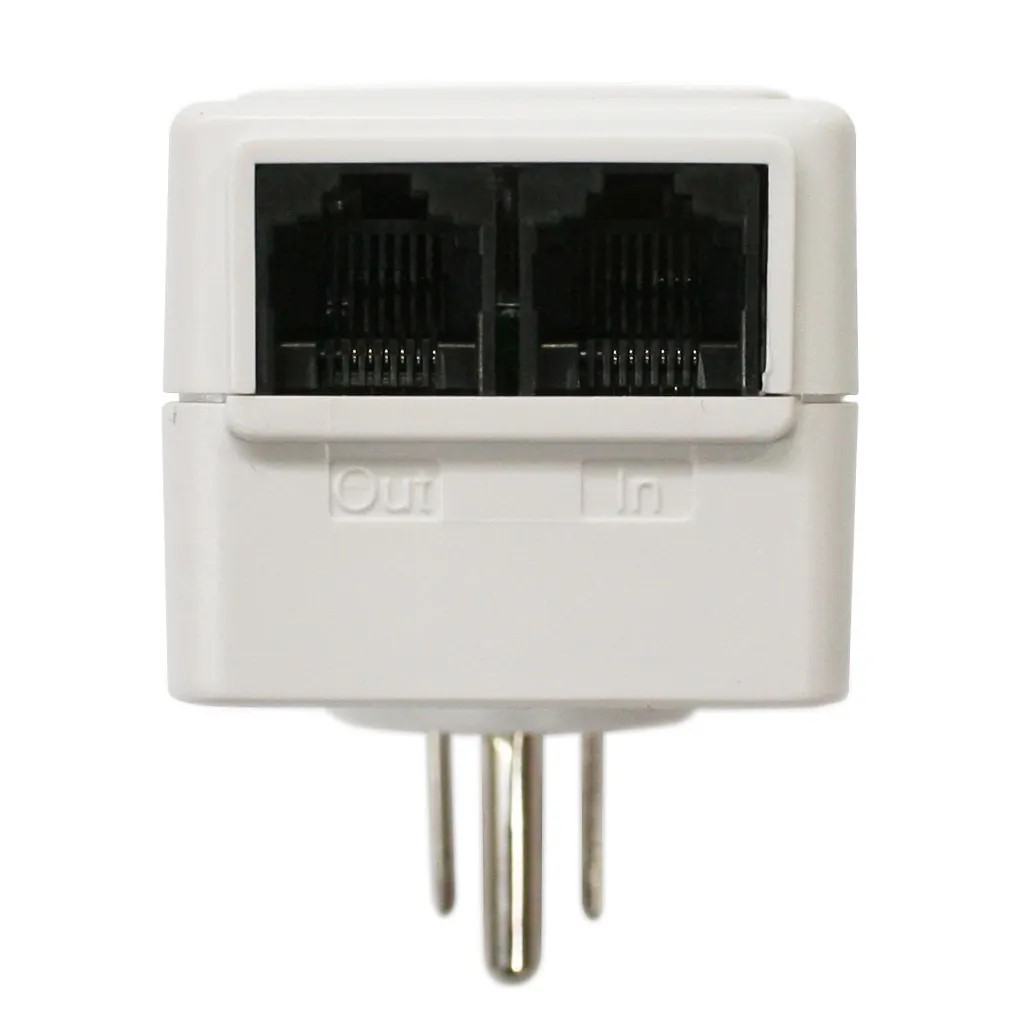

| Tel./Fax/Modem/Dsl Port | RJ-45/11 | RJ-45/11 |
| High / Low Voltage Cut-Off | Yes | Yes |
| Environmental Limits | ||
| Humidity Range | 0-95% (Non-Condensing) | 0-95% (Non-Condensing) |
| Operating Temperature | 0-40°C (32°F-104°F) | 0-40°C (32°F-104°F) |
| Physical Characteristics | ||
| Dimension (D*W*H) | 100*45*45mm | 100*45*45mm |
| Net Weight | 143g | 143g |

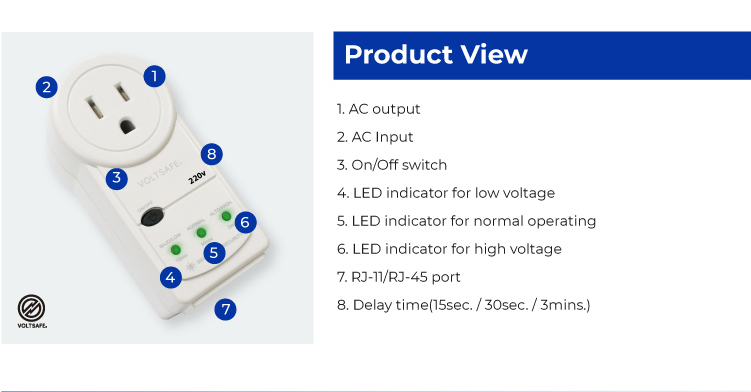

On/Off switch for power saving efficiency.
Provides high-performance lightning and surge protection.
Lightning and electric shock resistance up to 900 Joules.

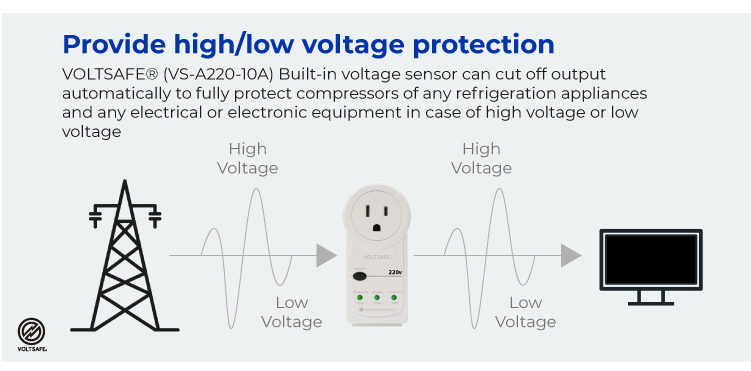

Reliable high/low voltage cut-off protection mechanisms.

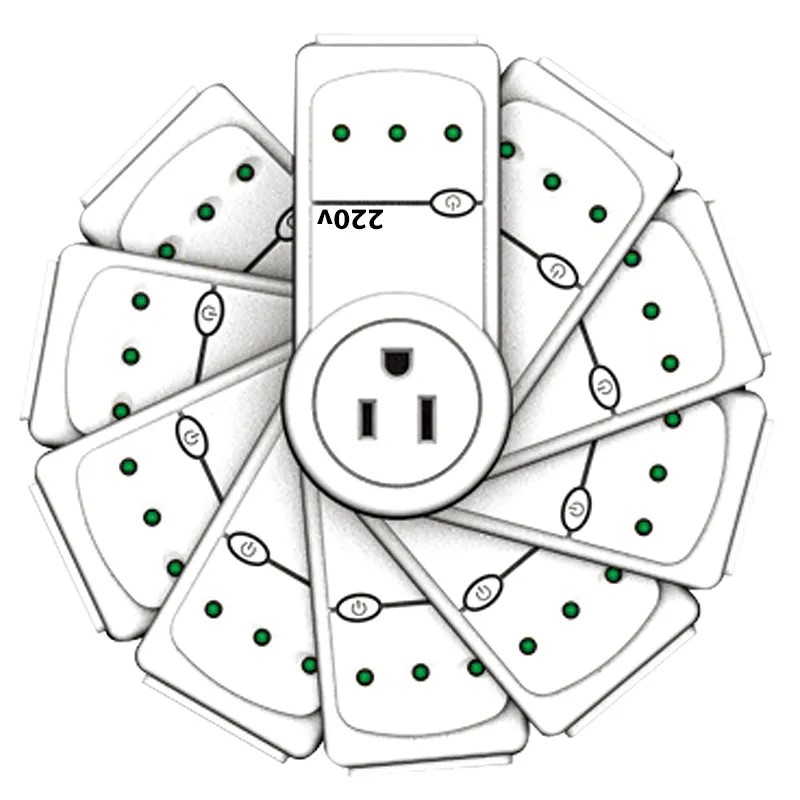

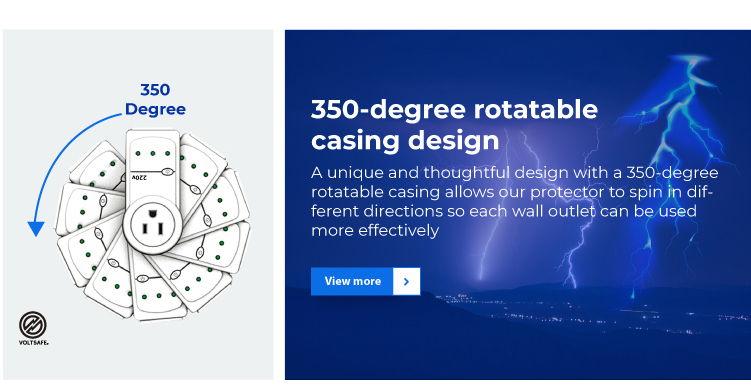

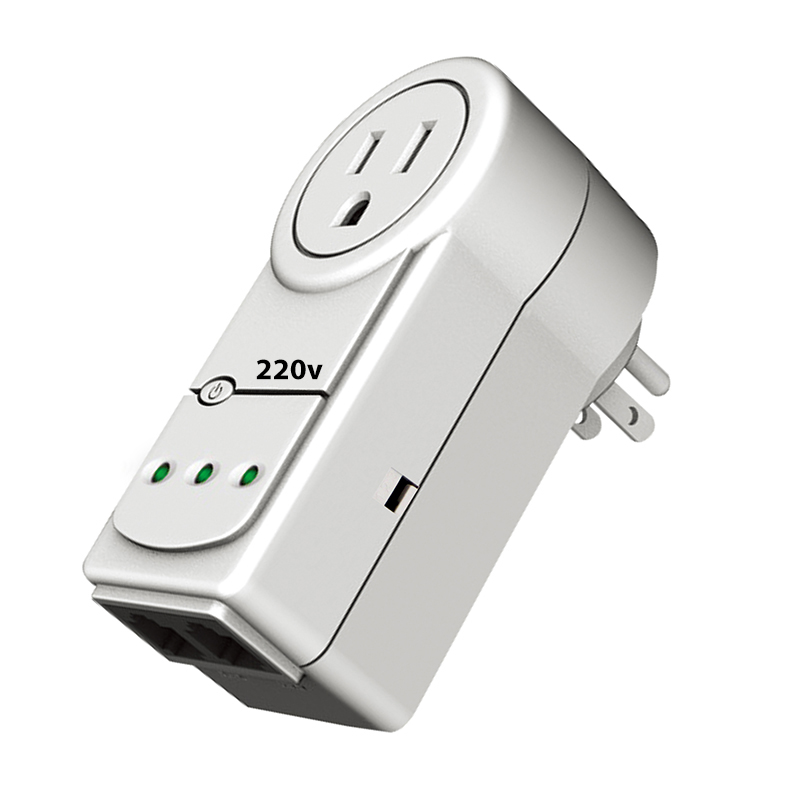

Patented 350-degree rotatable casing design for flexible installations.
Intelligent protection control driven by a modern microprocessor.
Microprocessor control ensures optimized performance and stability.
Built-in selectable delay time settings: 15 seconds, 30 seconds, and 3 minutes.
Selectable delay timer prevents connected devices from repeated on-off cycles during dangerous power fluctuations after blackouts.
Over 10 years of professional OEM/ODM experience.
A well-trained workforce alongside a highly capable engineering team.
Customized product support tailored to unique applications.
High-quality products guaranteed by strict quality control systems.

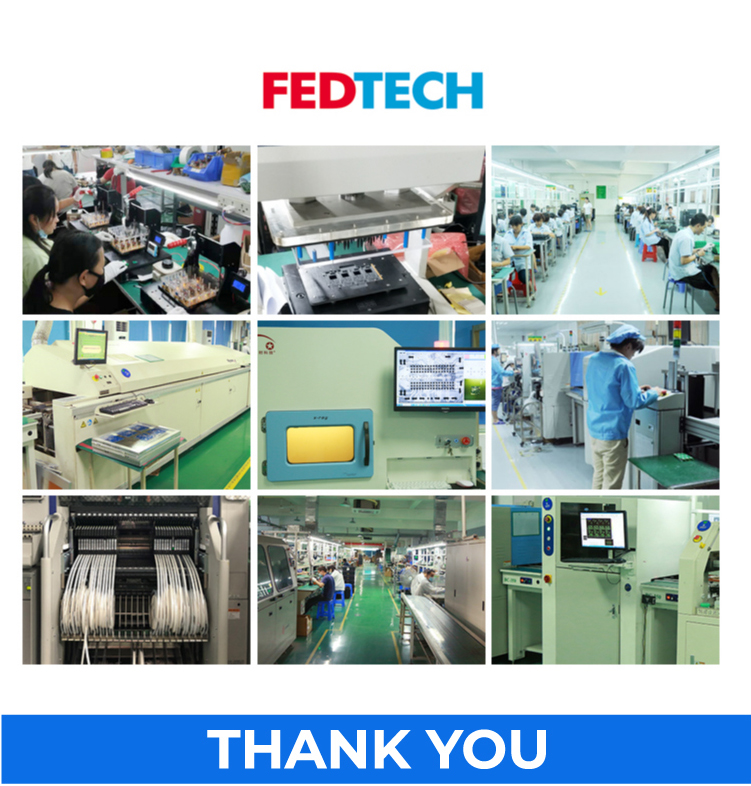

Well-organized manufacturing bases structured to meet growing worldwide demand.
