Product Features

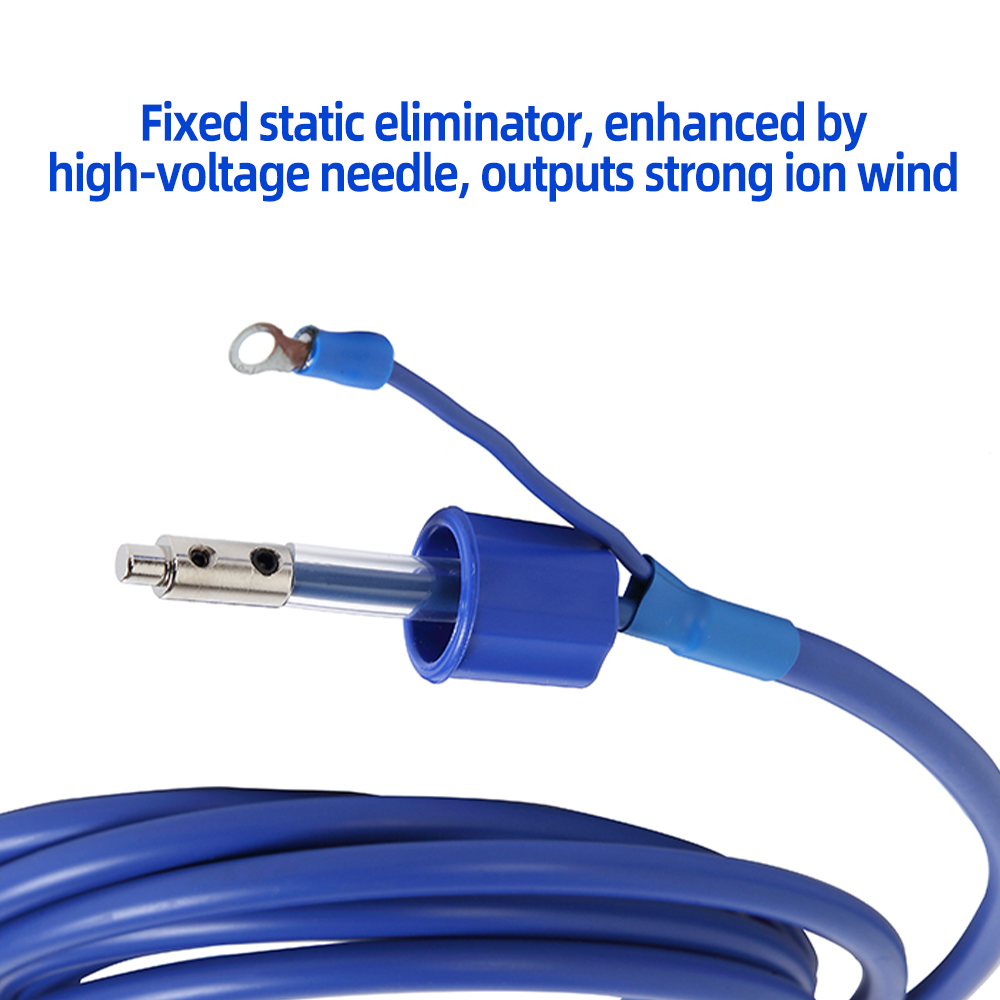

- It is a built-in high-voltage generator needle of a fixed electrostatic eliminator that can provide strong ionic wind to objects.

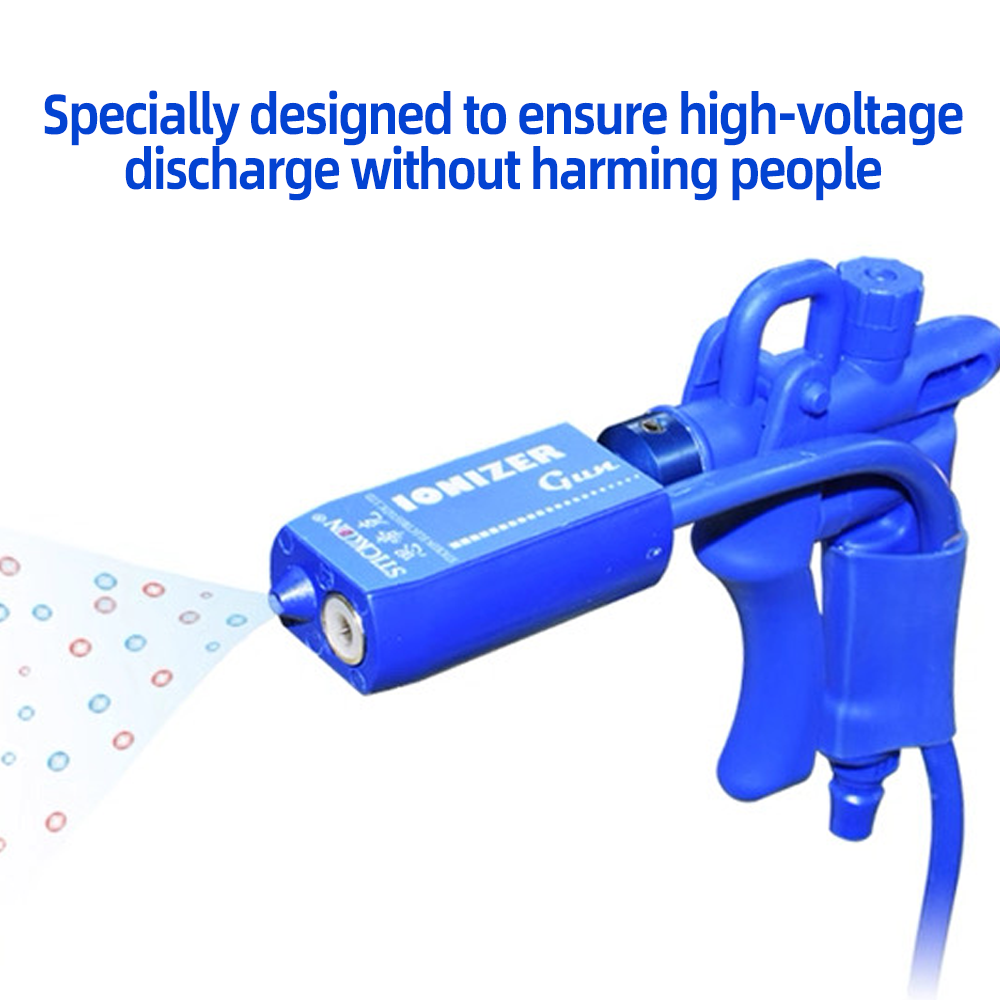

- After special process treatment, it is ingeniously designed into "no electric shock" high voltage discharge.
- It is especially suitable for places and environments that cannot be accessed by human hands, and can be set for automatic control.
- Stickon ST402A high-voltage generator is required for integrated use.
Requirement: High Voltage Generator
Required Model: ST402A (Supports One Drag Two / One Drag Four)
Specifications (ST402A)
| Parameter | Detail |
|---|
| Operating power supply | 110V/60HZ or 220V/50HZ |
| Consume power supply | 0.23A or 0.12A |
| Power | 85W |
| Operating temperature | 0-50°C |
| Weight | 2.25kg |
| High voltage cable | 1.5m |
| Output voltage | 5.6KV×2 or 4 |
| Output current | 4.5mA |
| Explosion-proof | No |
Technical Parameters (ST302E)
| Attribute | Specification |
|---|
| Model | ST302E |
| Ion generation mode | Rectifier type |
| Discharge needle material | Wolfram steel |
| Host material | ABS fireproof engineering plastics |

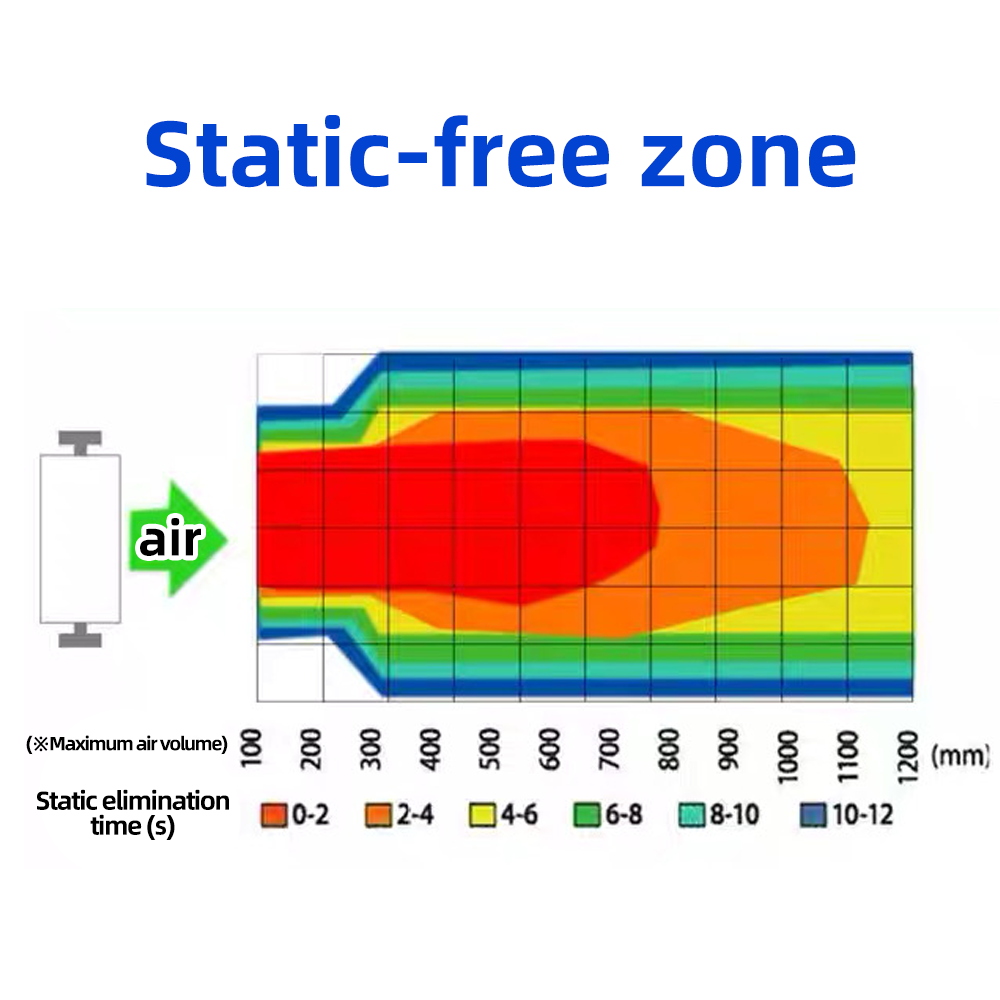

| Air ion supply range | 10cm~18cm |
| Air inlet pipe | Duct with inner diameter Φ8 |
| Static removal time | <1.5S |
| Noise | 56DB |
| Ozone production | <0.02ppm |

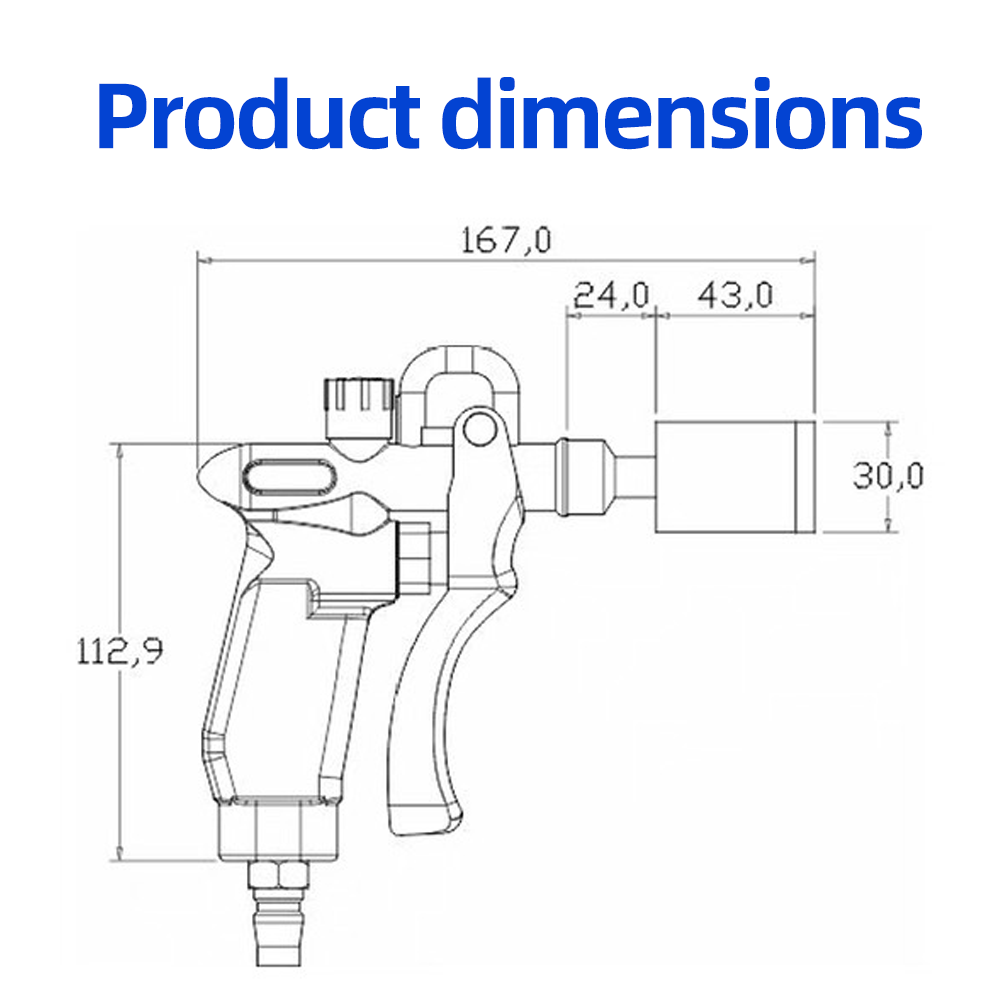

Product Size & Display
Frequently Asked Questions (FAQ)

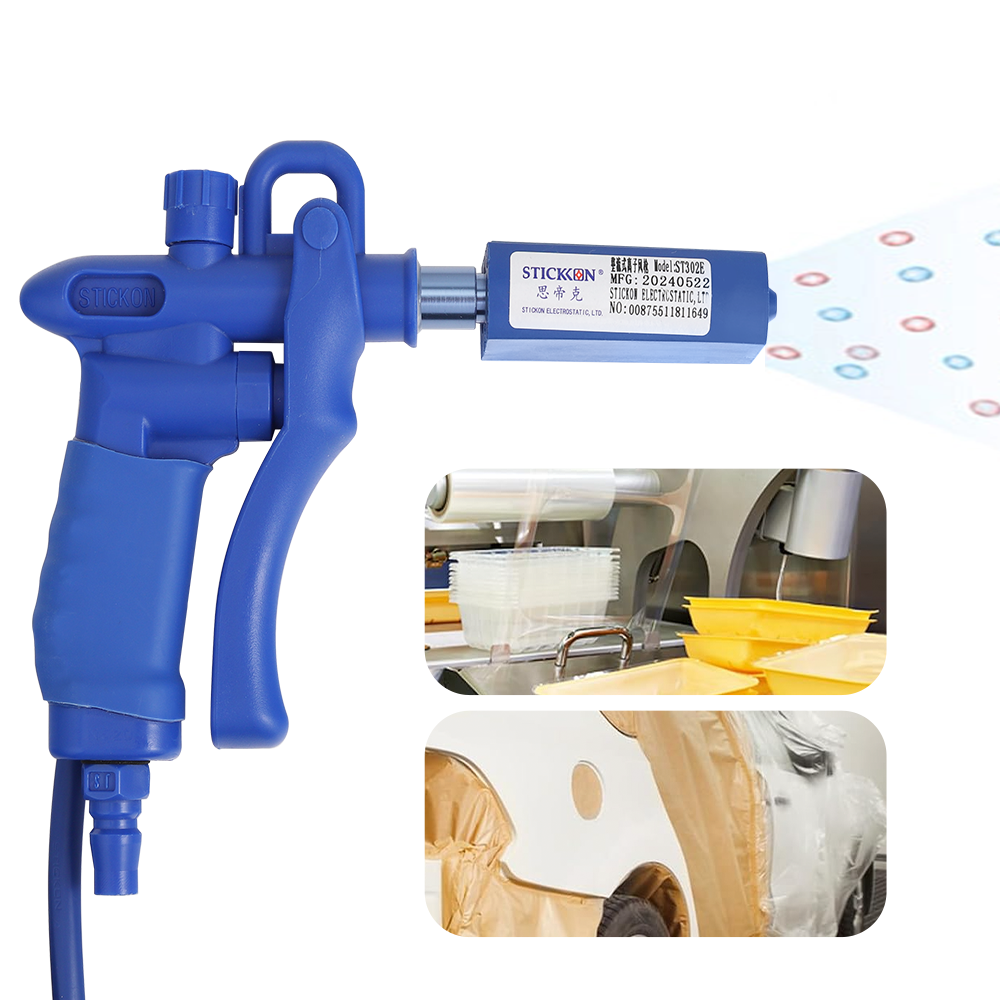

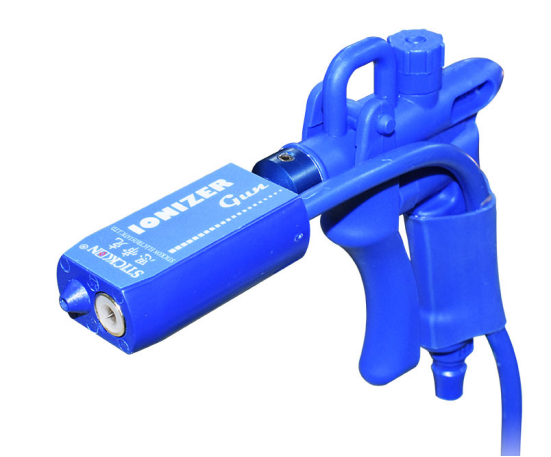

1. What is the primary function of the ST302E Ion Air Gun?
The ST302E is a rectifier ion air gun designed to provide strong ionic wind to neutralize static electricity, making it ideal for manufacturing and automated production lines.
2. Does the ST302E require an external power source?
Yes, it must be used in conjunction with the ST402A high-voltage generator to function correctly.
3. Is the device safe to use?
Yes, it features an ingenious "no electric shock" design, ensuring safe operation during high-voltage discharge.
4. Can I use this device in an explosion-proof environment?
No, this device is not designed for use in explosion-proof environments.
5. What is the effective static removal range?
The effective air ion supply range is approximately 10cm to 18cm.
6. What materials are used in the construction of the unit?
The device utilizes wolfram steel for the discharge needle and ABS fireproof engineering plastics for the main body.
