Series ST401A
High Voltage Ion Generator
Product Description
The voltages are 4.6 KV, 5.6KV and 7.0KV respectively.

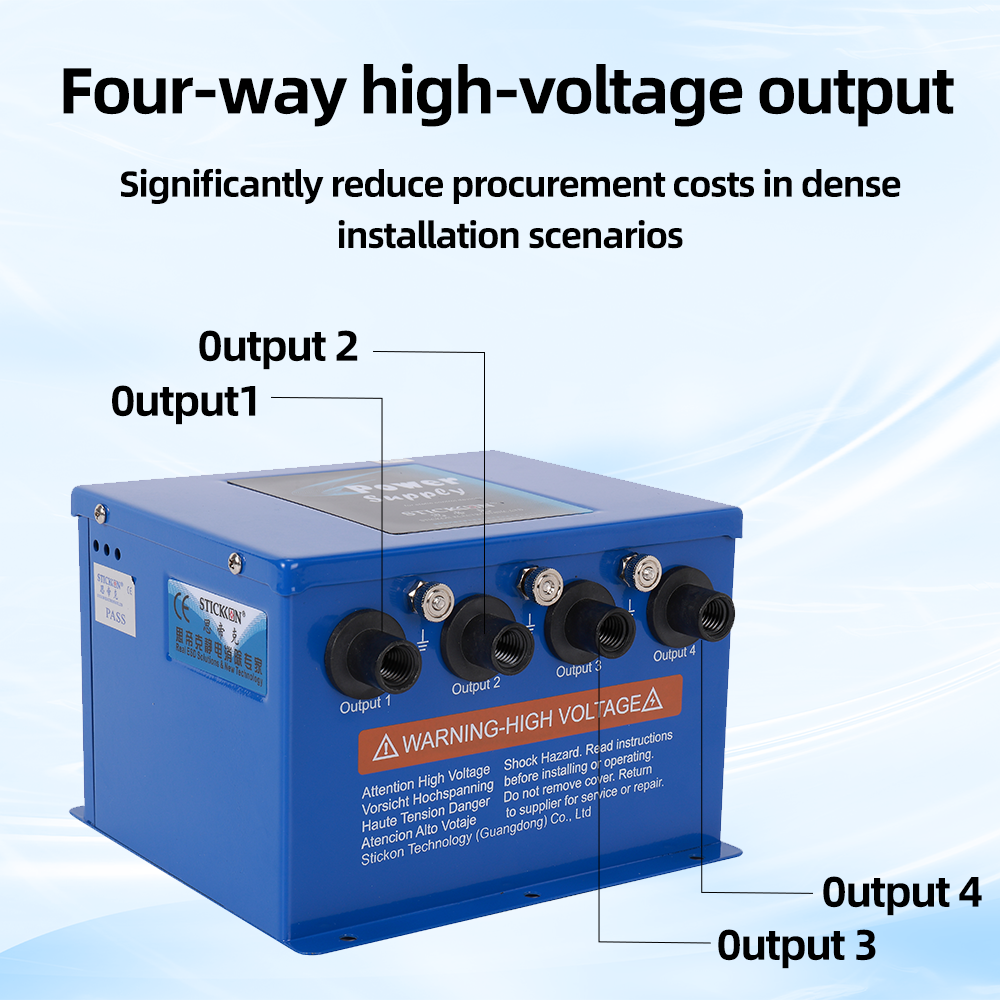

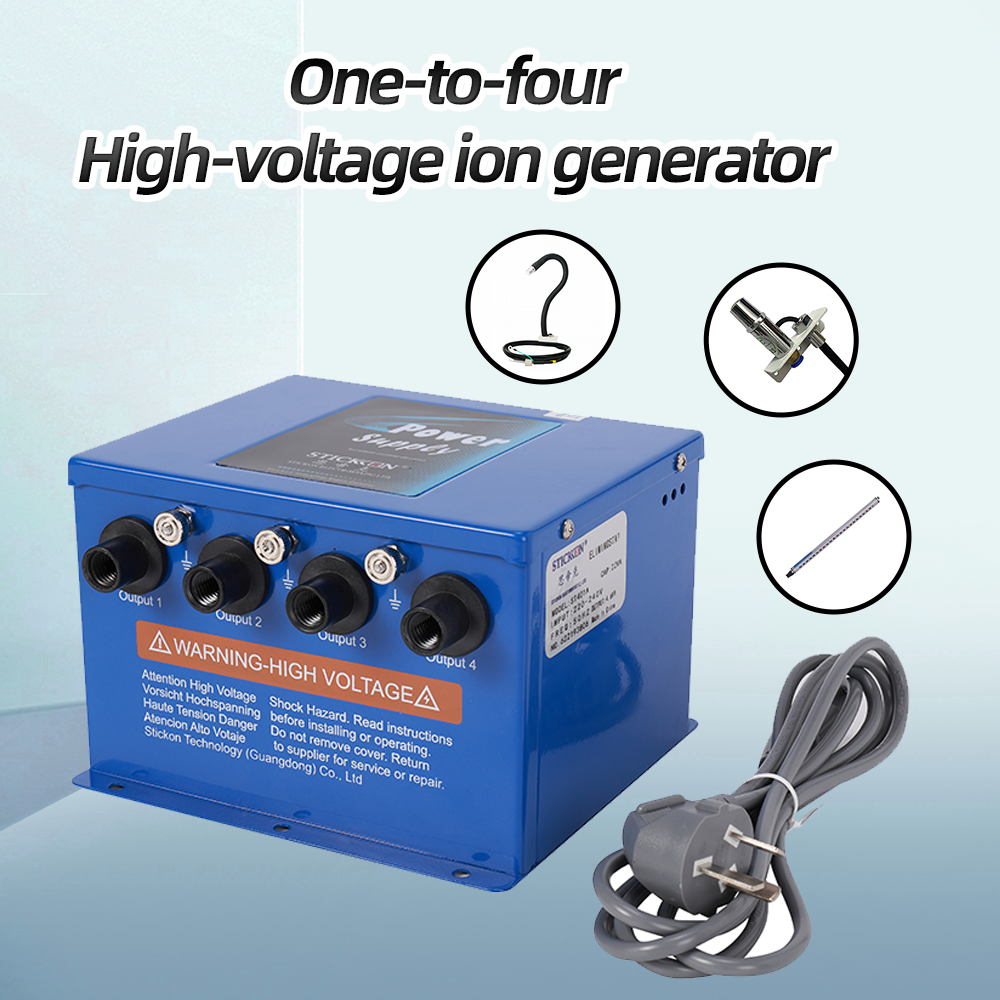

It can provide 2/4 groups of high voltage power output for ion air gun, ion air nozzle, ion air snake, ion air rod, etc.
The electrostatic eliminator can be conveniently connected according to the identification and installation instructions.
High voltage power supply has short circuit protection function, which is safe and convenient.
Product Features
- Low power consumption and high energy
- Work with high voltage and low current
- Safety, reliability and excellent performance
- Convenient operation and strong environmental applicability
- Plug-in interface, easy to install
- With energy limiting element to ensure stable output
Product Parameter
| Specification |
4.6KV Model |
5.6KV Model |
7.0KV Model |
| Operating power supply |
110V/60Hz or 220V/50Hz |
| Consumption current |
0.23A or 0.12A |
0.23A or 0.12A |
0.23A or 0.12A |
| Power |
95W |
105W |
115W |
| Operating temperature range |
0-50℃ |
| Weight |
2.65kg |
| Length of high voltage wire |
1.5m |
| Output voltage |
4.6KV×4 |
5.6KV×4 |
7.0KV×4 |
| Output current |
4.5mA |
| Can it be used in explosion-proof environment |
No |

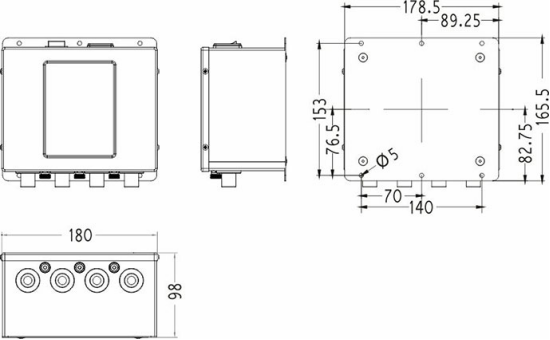

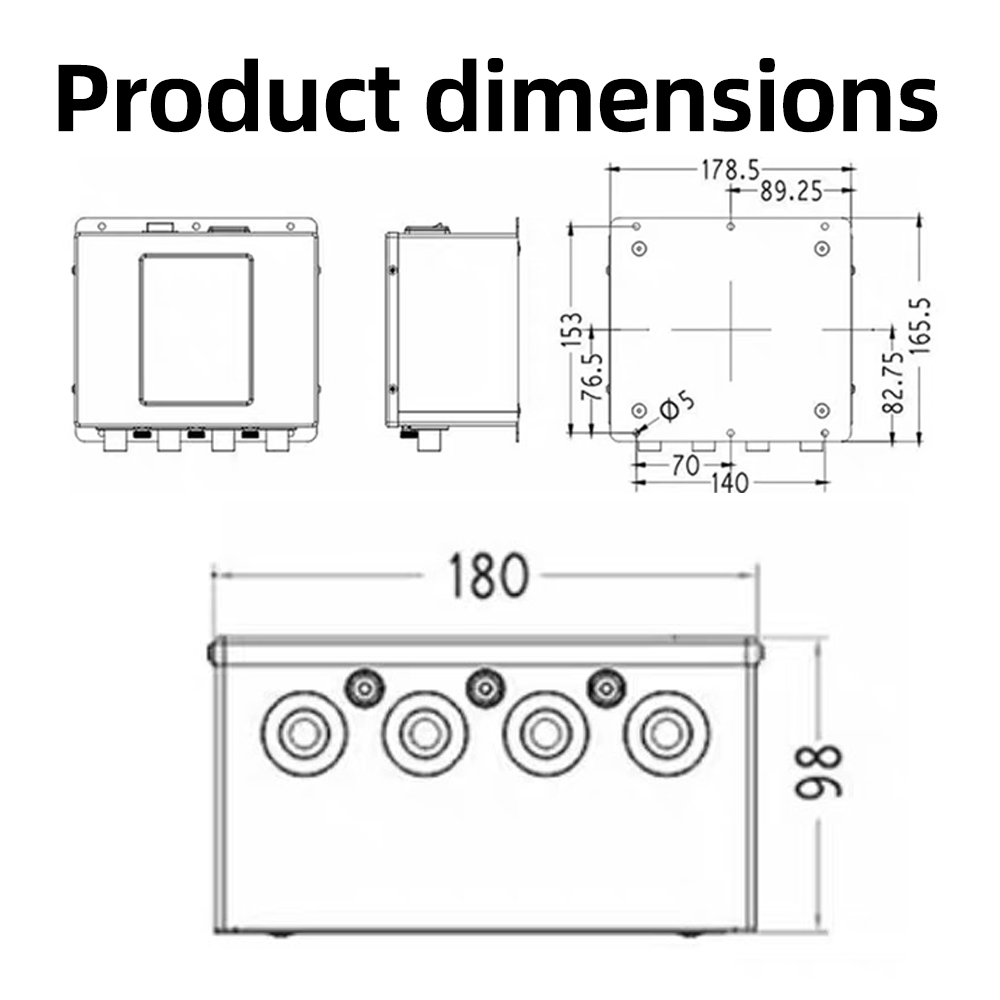

One-to-Four Series Appearance Dimensions
Frequently Asked Questions
What are the available output voltages for the Series ST401A?
The available output voltages are 4.6 KV, 5.6KV, and 7.0KV respectively.
How many output groups can this high voltage power supply support?
It can provide 2 or 4 groups of high voltage power output, making it suitable for devices like ion air guns, ion air nozzles, ion air snakes, and ion air rods.
Does the power supply include safety protections?
Yes, it features built-in short circuit protection and uses an energy-limiting element to ensure safe, stable, and reliable output.
What is the operating temperature range for this ion generator?
The device has an operating temperature range of 0 to 50℃.
Can the Series ST401A be used in explosion-proof environments?
No, it is not designed to be used in explosion-proof environments.
What is the length of the high voltage wire provided?
The standard length of the high voltage wire is 1.5 meters.
