Product Description

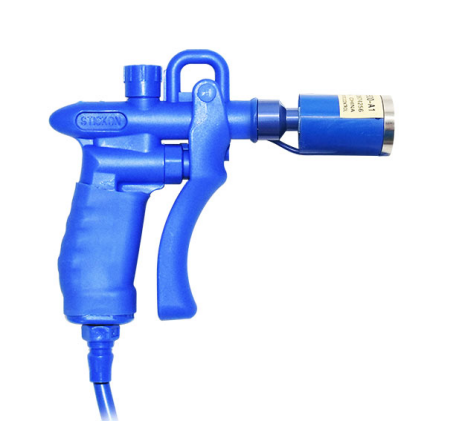

ST302A Piezoelectric Ion Air Gun

High-performance industrial static electricity remover designed for quick neutralization and cleaning of sensitive parts.

ST302A Piezoelectric Ionizing Gun
Product Features
1
Quick elimination of static electricity; ideal for cleaning small, sensitive parts and materials.
2
Inductive design: ion needle does not shock personnel; airflow is separated from the high-voltage line.
3
Integrated performance: optimized for use with specialized high-voltage power supplies.
4

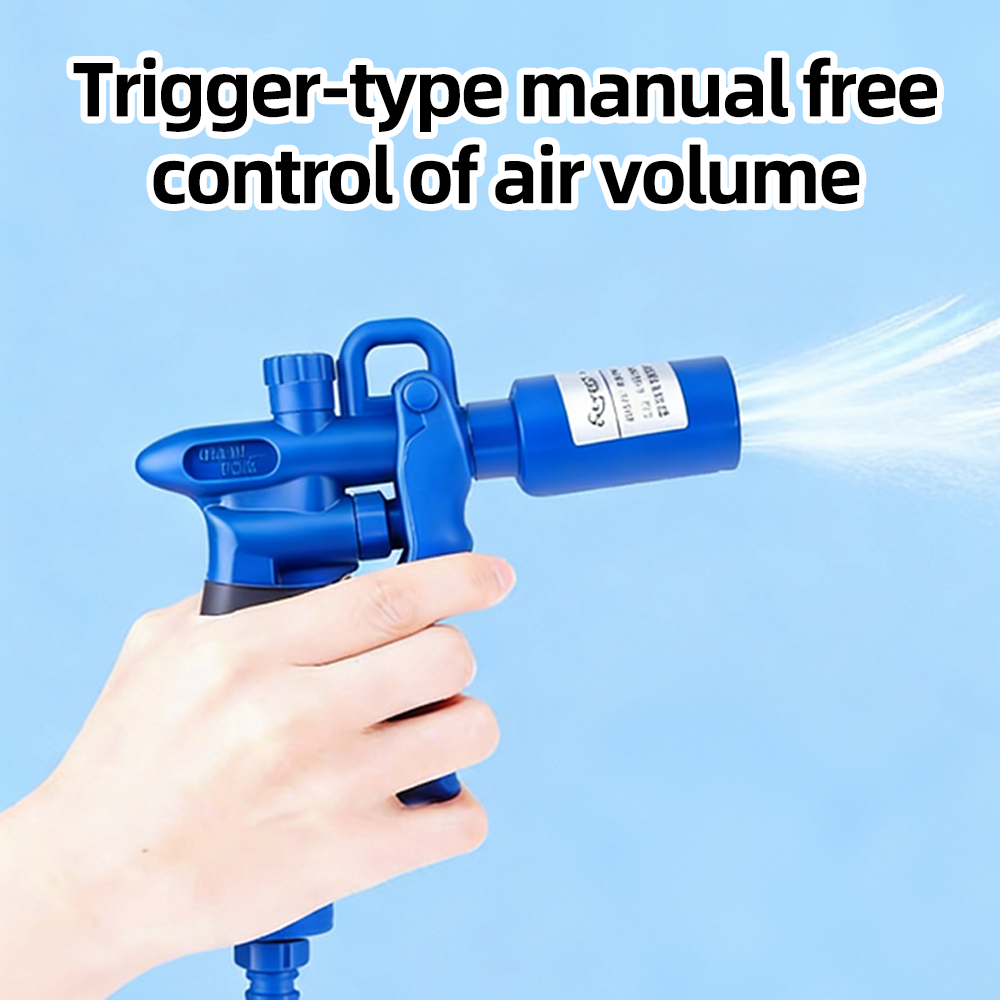

Ergonomic plastic body with a built-in air volume regulator for enhanced control and comfort.
5

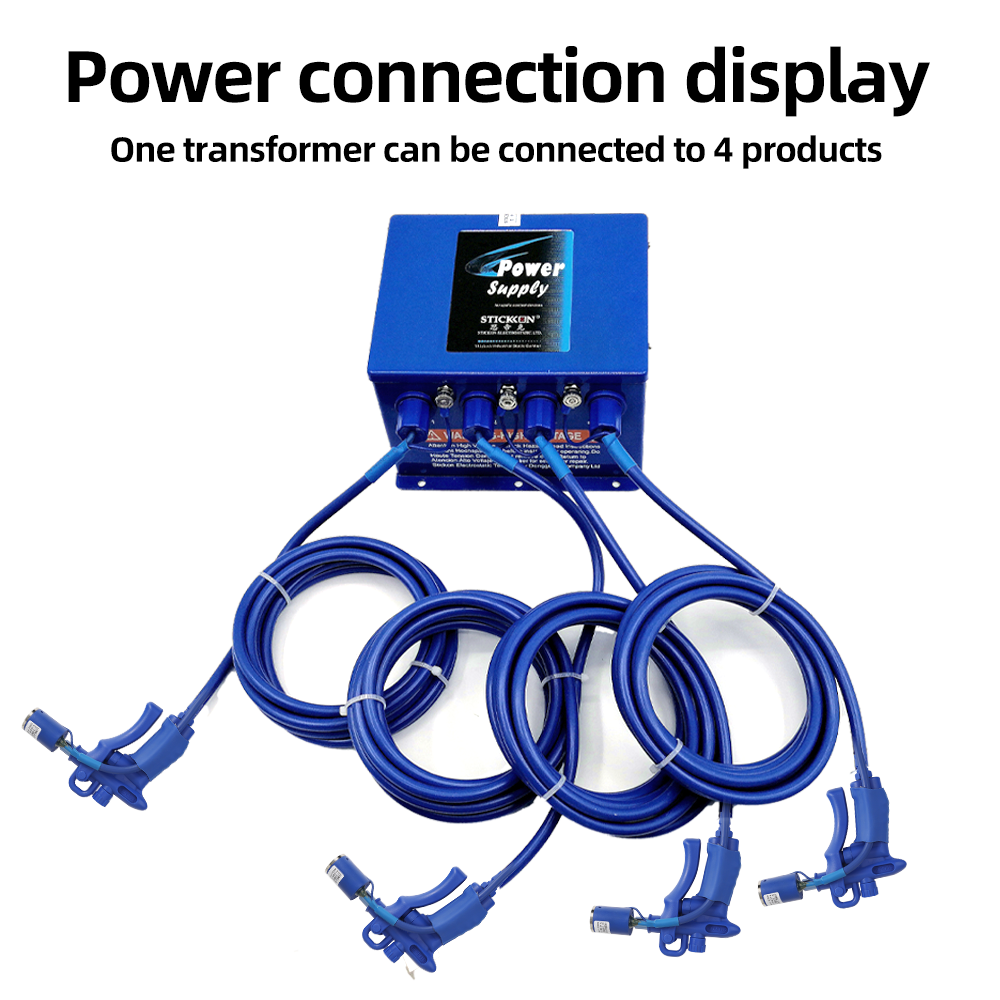

Compatible with ST403A high-voltage generator for integrated industrial applications.
ST302A Technical Parameters
ParameterSpecification
ModelST302A
Ion Generation ModePiezoelectric type
Discharge Needle MaterialWolfram steel
Host MaterialIron / ABS fireproof engineering plastics
Air Ion Supply Range10cm ~ 18cm
Air Inlet PipeInner diameter Φ8 air duct
Body Size260mm(L) × 42mm(W) × 164mm(H)
Cable LengthStandard 2.5m
Static Removal Time< 1.5S
Air Consumption0.09m³/min
Noise Level56DB
Ozone Production< 0.02ppm (at 200mm distance)
Required High Voltage Generator: ST403A
ST403A High Voltage Generator
ParametersST403A (One Drag Two/Four)
Operating Power Supply110V/60HZ or 220V/50HZ
Power Consumption0.23A or 0.12A
Power95W
Operating Temperature0 - 50℃
Weight2.25kg
High Voltage Cable Length1.5m
Output Voltage7.0KV × 2 or 4
Output Current4.5mA
Explosion-proofNo

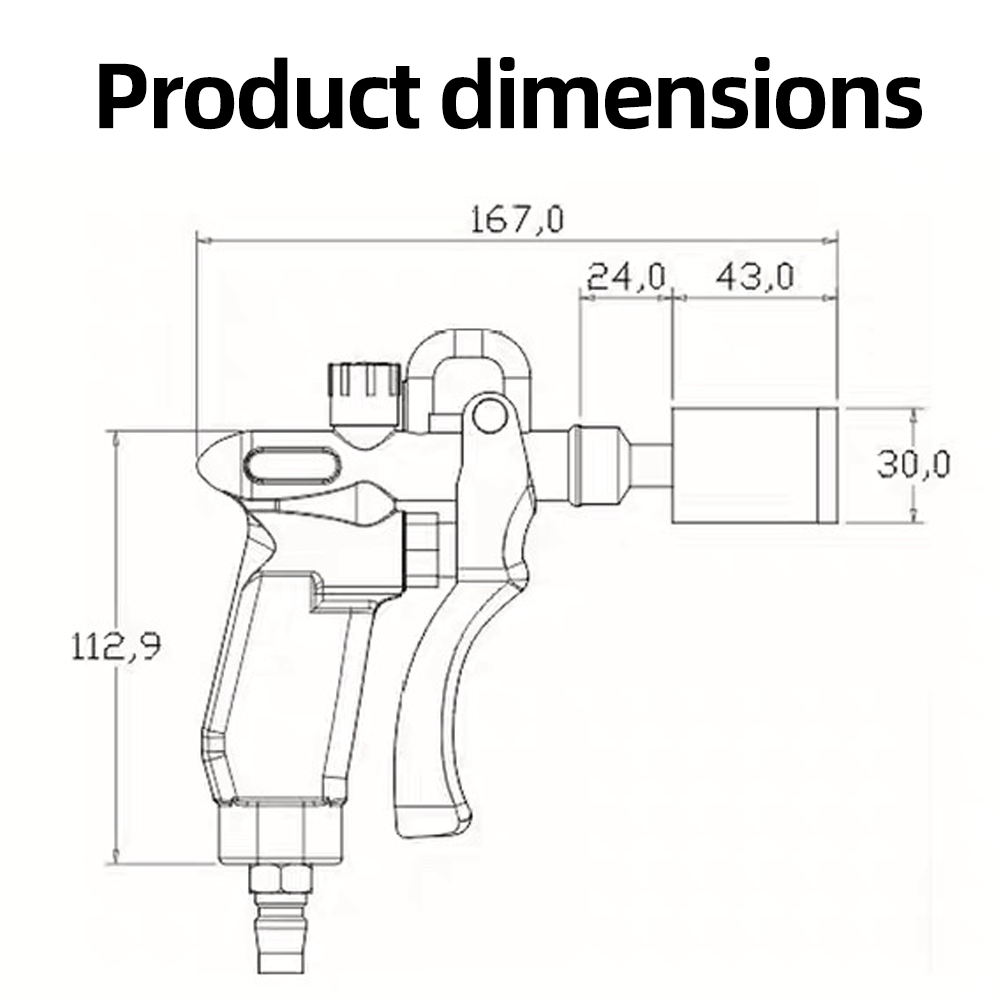

Product Dimensions

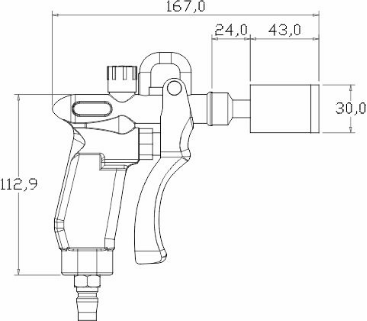

ST302A Product Size
Product Gallery
Gallery 1
Gallery 2
Gallery 3
Gallery 4
Gallery 5
Gallery 6
Frequently Asked Questions
How long does it take to eliminate static electricity?
The ST302A is highly efficient, with a static removal time of less than 1.5 seconds within its effective range.
Is the ion air gun safe for the operator?
Yes, it adopts an inductive design which ensures the ion needle does not electrify personnel. Additionally, the airflow is separated from the high-voltage line for safety.
What kind of power supply is required?
The ST302A must be equipped with the ST403A high-voltage generator (available in 110V or 220V versions) for operation.
What materials are used for the discharge needle and body?
The discharge needle is made of durable Wolfram steel, and the gun body is constructed from ABS fireproof engineering plastics for a lightweight and safe feel.
Can this equipment be used in hazardous environments?
No, the ST302A and the ST403A generator are not rated for use in explosion-proof environments.
What is the effective range of the air ion supply?
The optimal air ion supply range for effective static neutralization is between 10cm and 18cm from the target material.
