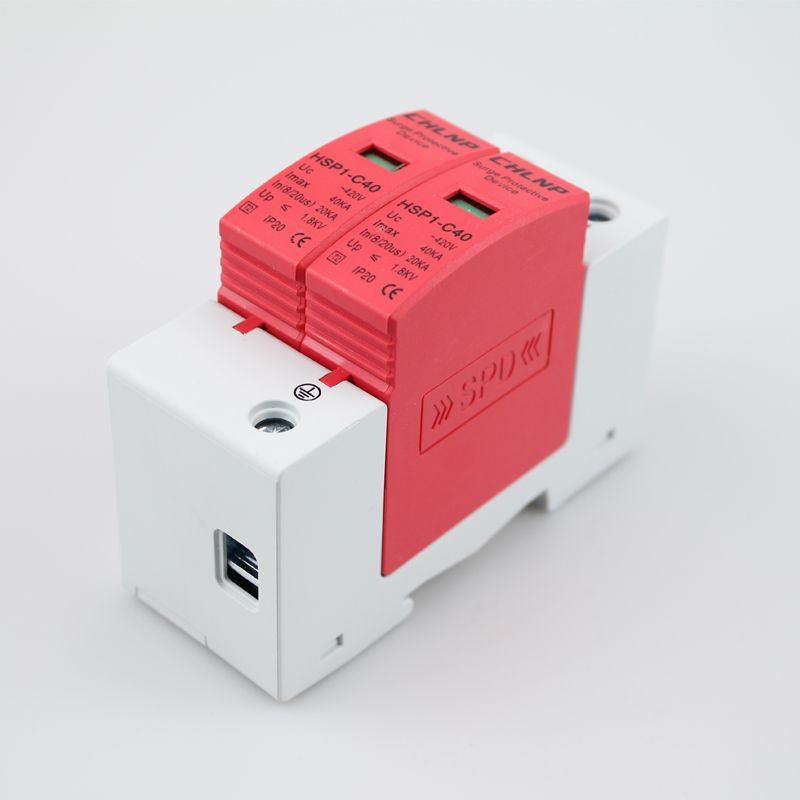

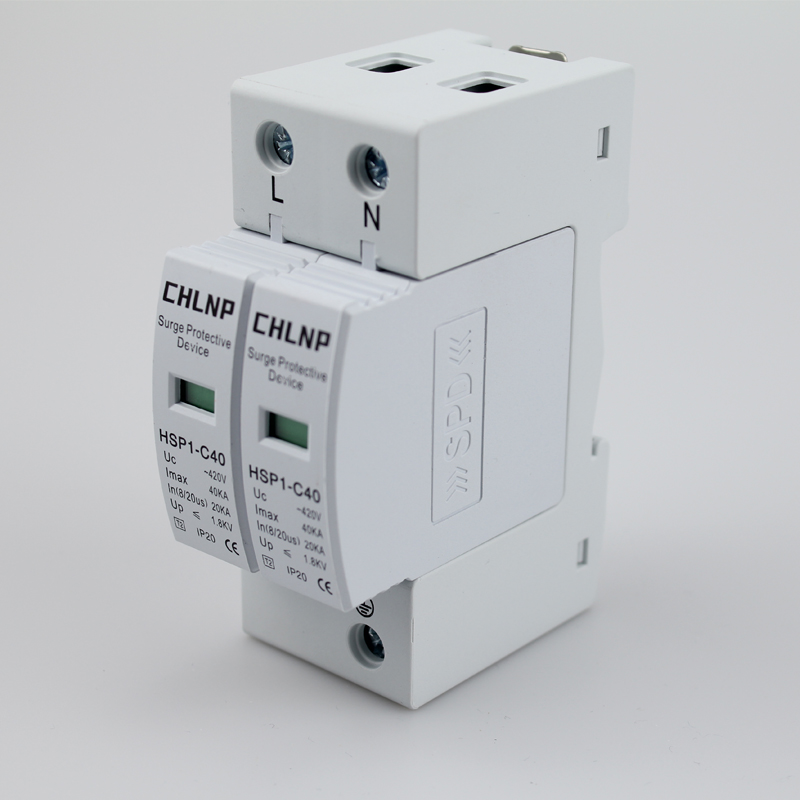

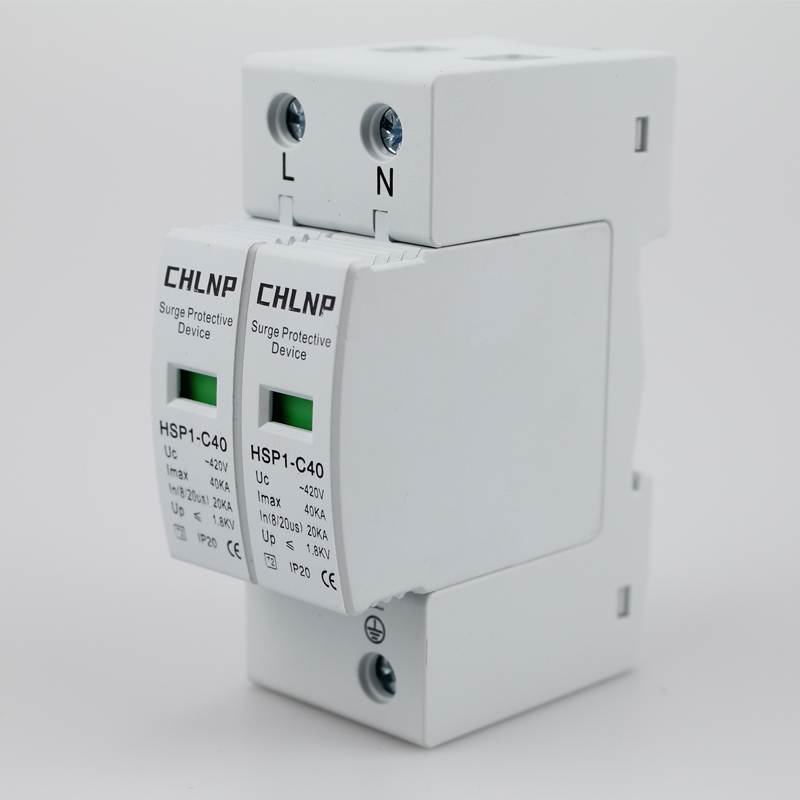

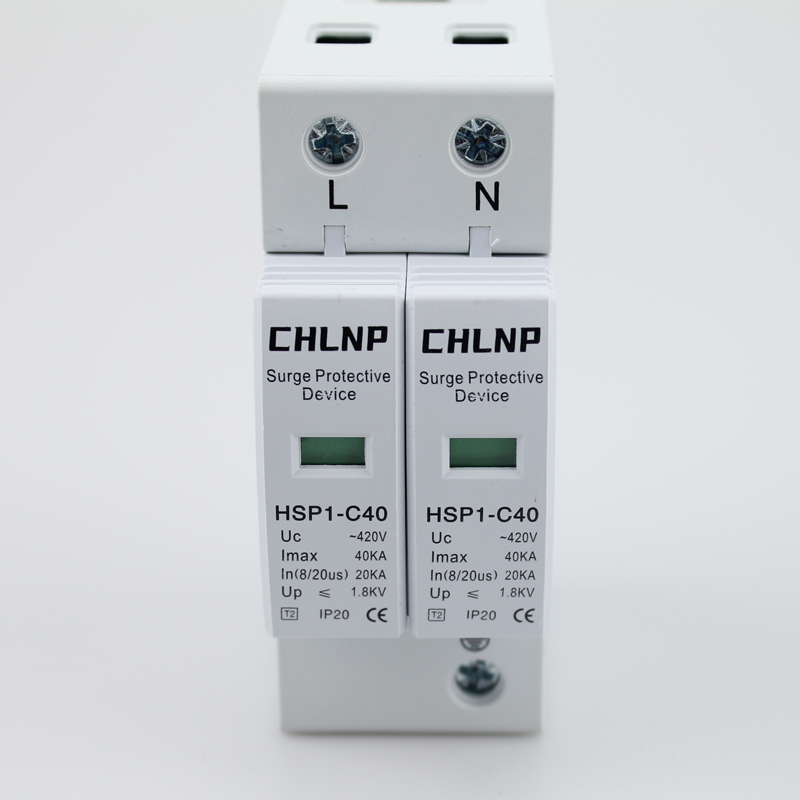

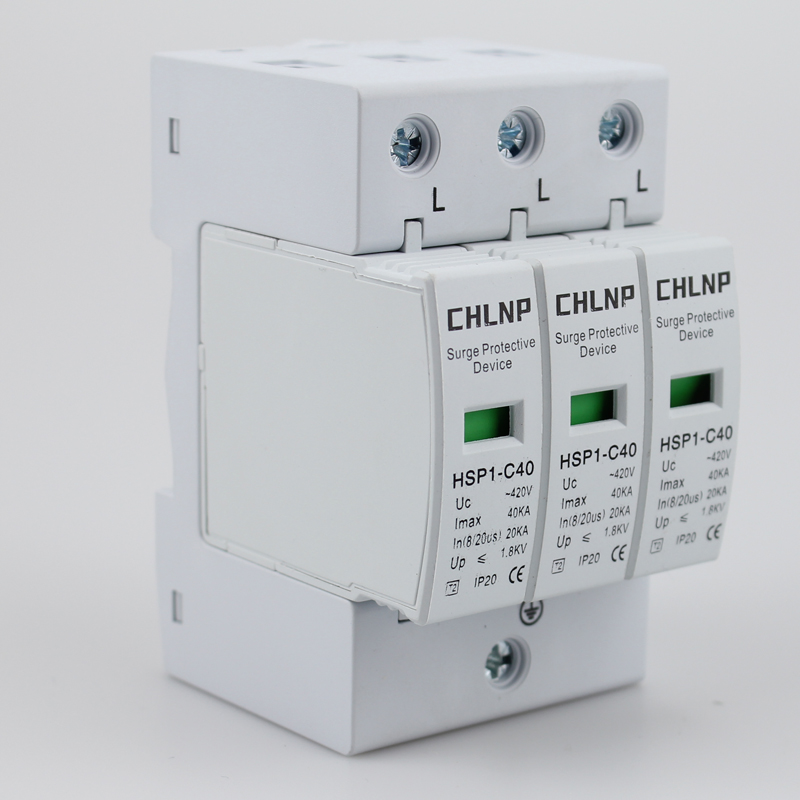

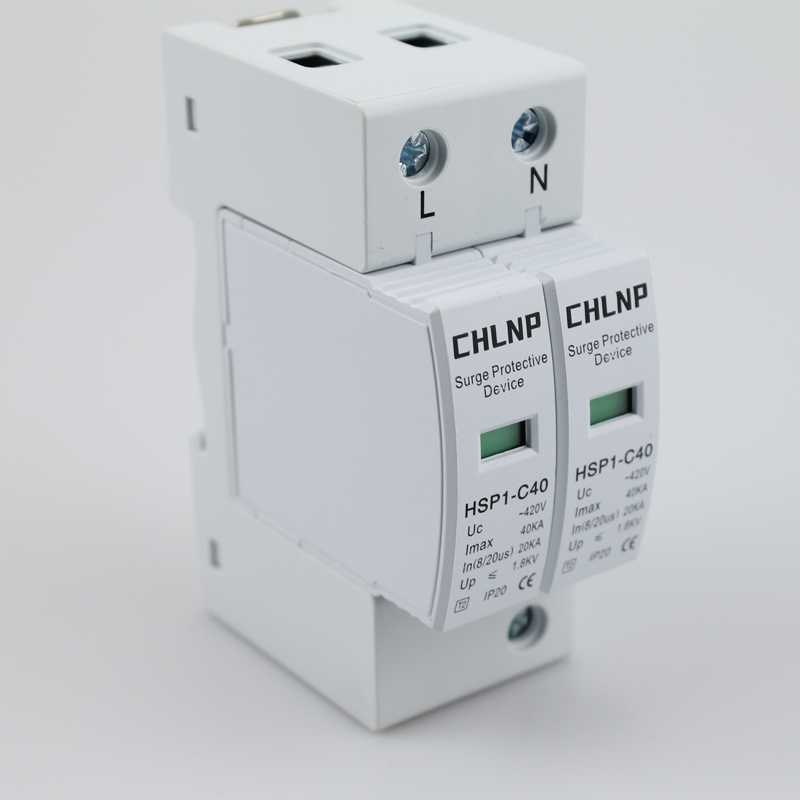

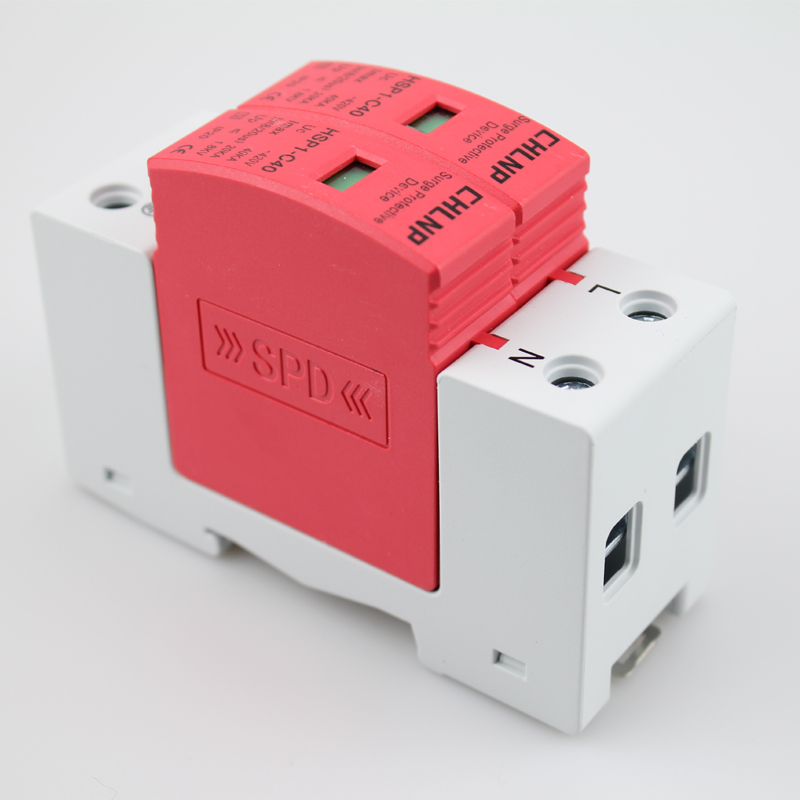

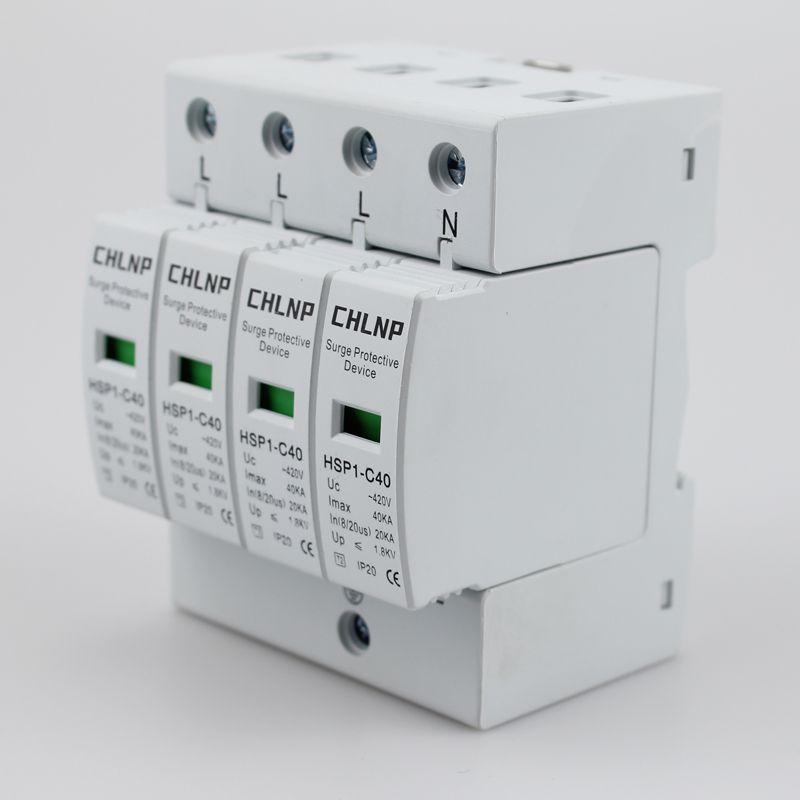

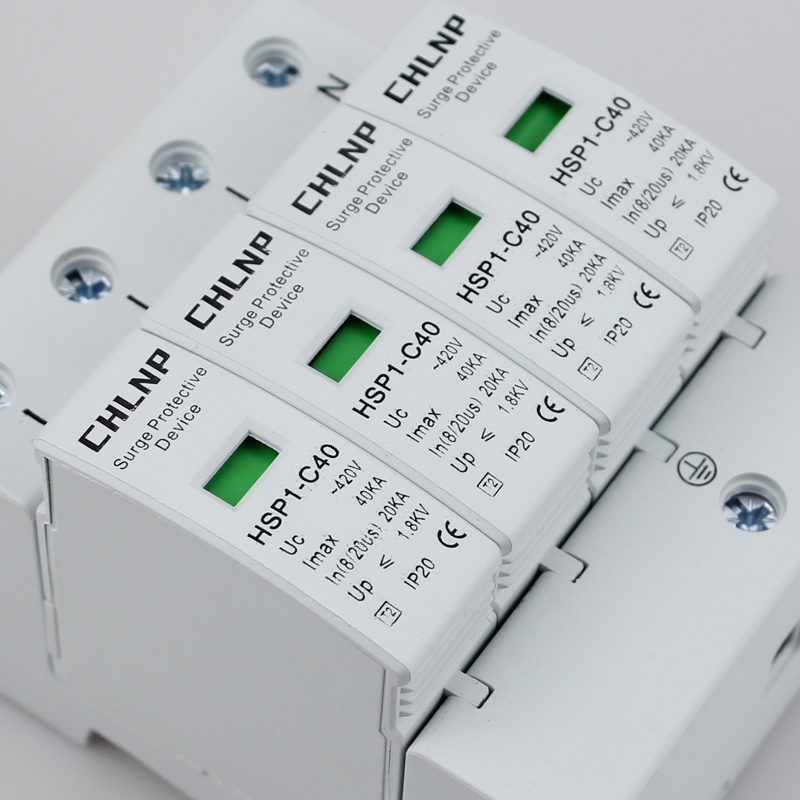

| TYPE | HSP1-C 20KA-40KA Surge protector | |||
| Protection Class | C | |||
| Working Voltage Un(AC) | 220V | 320V | 320V | 420V |
| Max. continuous operating voltage Uc(AC) | 275V | 380V | 420V | 480V |
| Volt protection level Up(V~)KV | ≤1.0 | ≤1.2 | ≤1.8 | ≤2.8 |
| Nominal Discharge Current (8/20μs) (In) | 20KA | |||
| Max. Discharge Current (8/20μs) (Imax.) | 40KA | |||
| Voltage Protection Level( Up) | ≤1.5KV | |||
| Test standard | IEC61643.1, GB18802.1 | |||
| Response Time | < 25ns | |||
| Leakage current | ≤20μA | |||
| Working Environment | Temperature -40°C +85°C; Relative humidity <95% | |||
| Max connection line | 35mm² hard wire / 35mm² strand wire copper line | |||
| Recommended connection line | 16mm² hard wire / 25mm² strand wire copper line | |||
| indicate deterioration | Green: Normal; Red: Deterioration | |||
| Protection Mode | L-PE, N-PE (2P) | |||
| Material of Outer Shell | Flame retardant materials | |||
| installation | Standard rail 35mm | |||

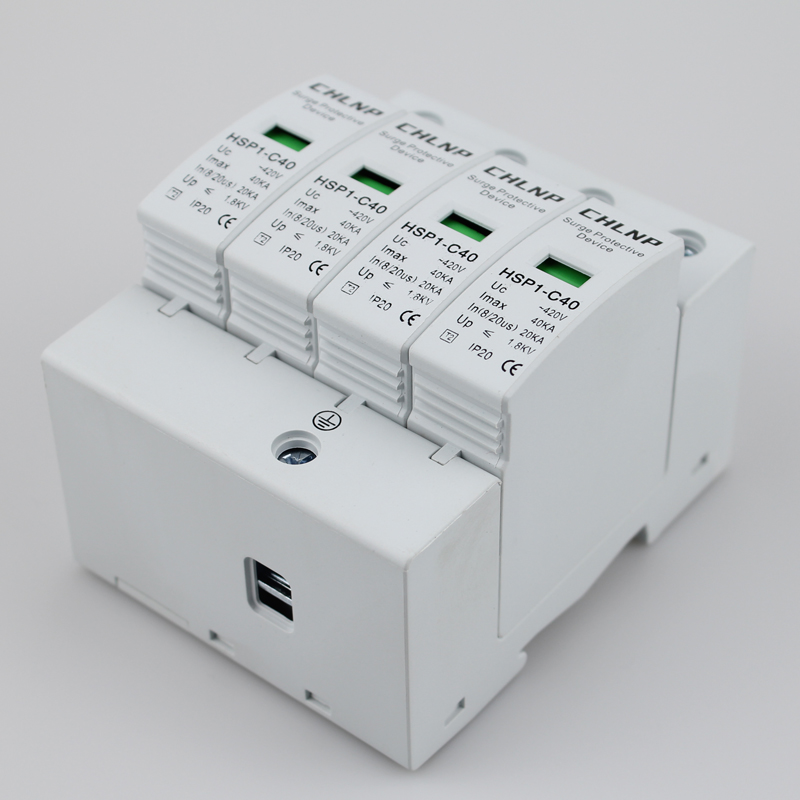

| Weight | 0.56kg/4 pole | |||
| Material of outer covering | Burning proof nylon | |||
