10kvar 15kvar SVG Static Var Generator Reactive Power Compensator Active Power Filter AHF Power Distribution Equipment With CE

1 / 5

10kvar 15kvar SVG Static Var Generator Reactive Power Compensator Active Power Filter AHF Power Distribution Equipment With CE

Send Inquiry

Product Description

Technical Specifications

System voltage	400V/220V/230v	System voltage range	±15%
Frequency	50Hz ±5%/60Hz ±5%	Capacity specification	10kvar/15Kvar
Module type	Rack/Wall Mounted	Incoming way	Upper incoming/Back incoming
Harmonics filtering rate	≥90%	Harmonics filtering range	2nd ~51st harmonics
Full response time	≤5ms	Overload protection	Automatic current limit at 100% rated output
IP level	IP20（customized）	Other protection	Over-voltage protection, under-voltage protection, over-temperature protection, over-current protection
Operating environment temperature	-25℃~40℃	Storage/ transport temperature	-25℃~55℃
Work humidity	Relative humidity 5~95%，no condensation	Altitude	1000m and below

Advanced Static Var Generator With Harmonics Control Function

Static var generator, operates on the base of a three-level topology circuit, provide power quality solutions such as stepless power factor correction, eliminate harmonic and load balance. The statcom svg module capacity from 25kvar to 100kvar, users can easily get the target reactive power compensation capacity.

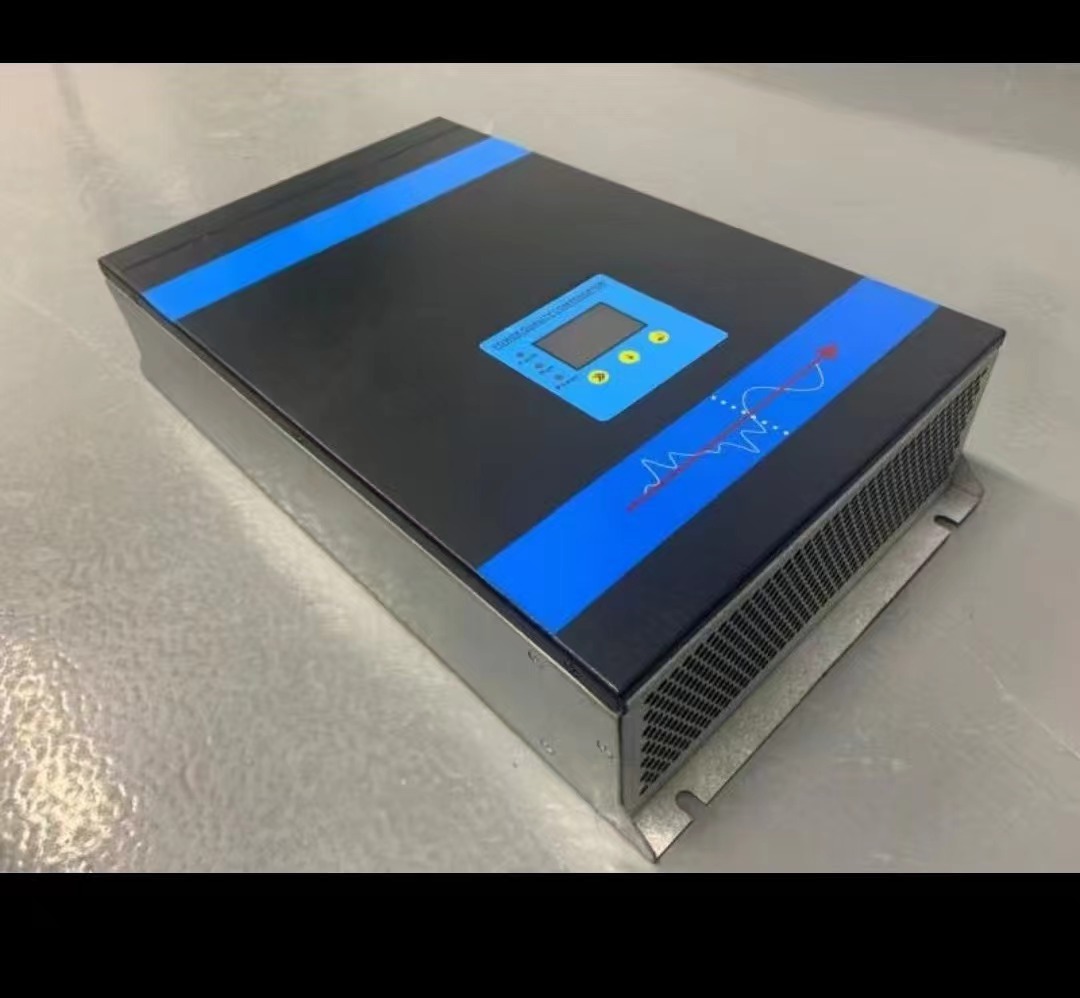

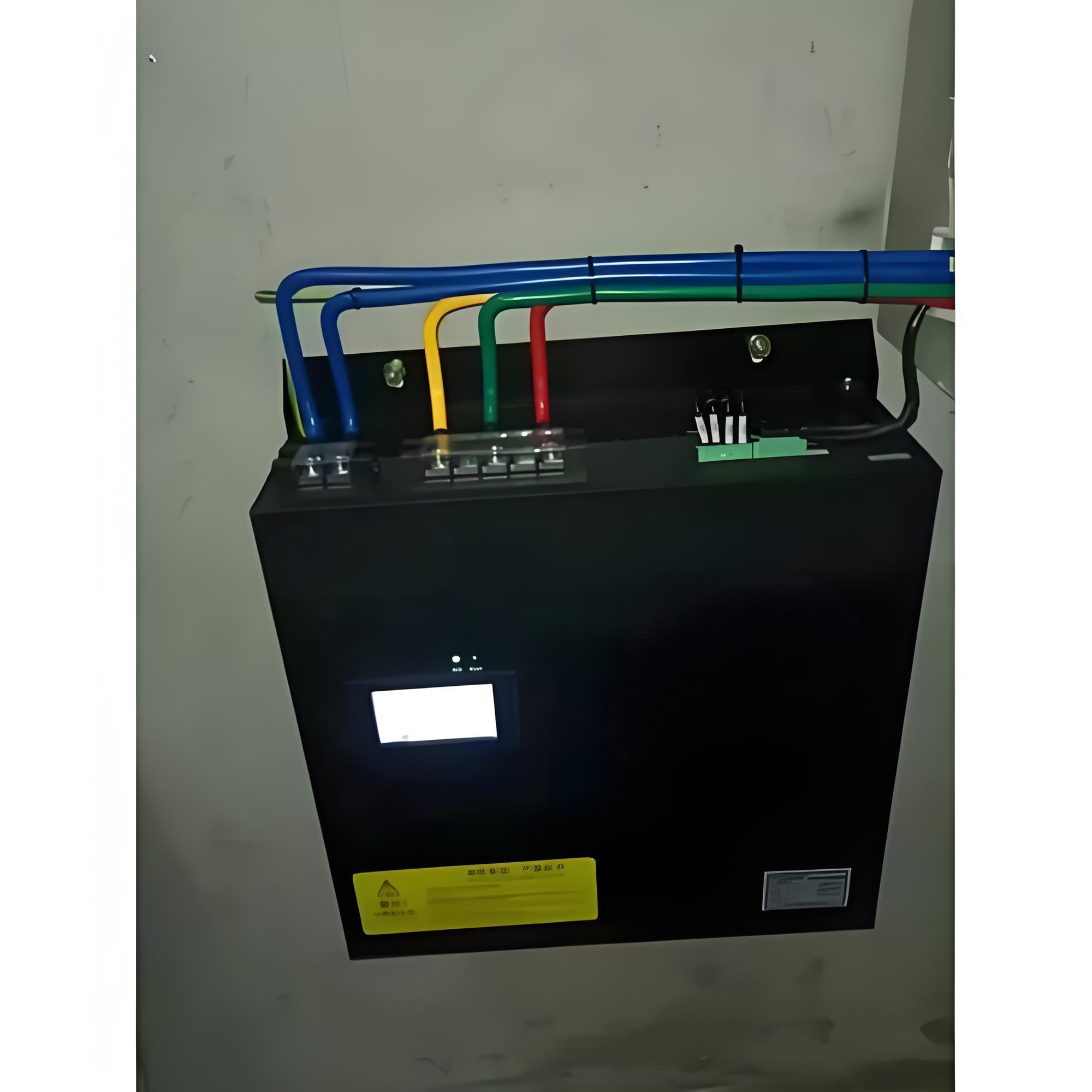

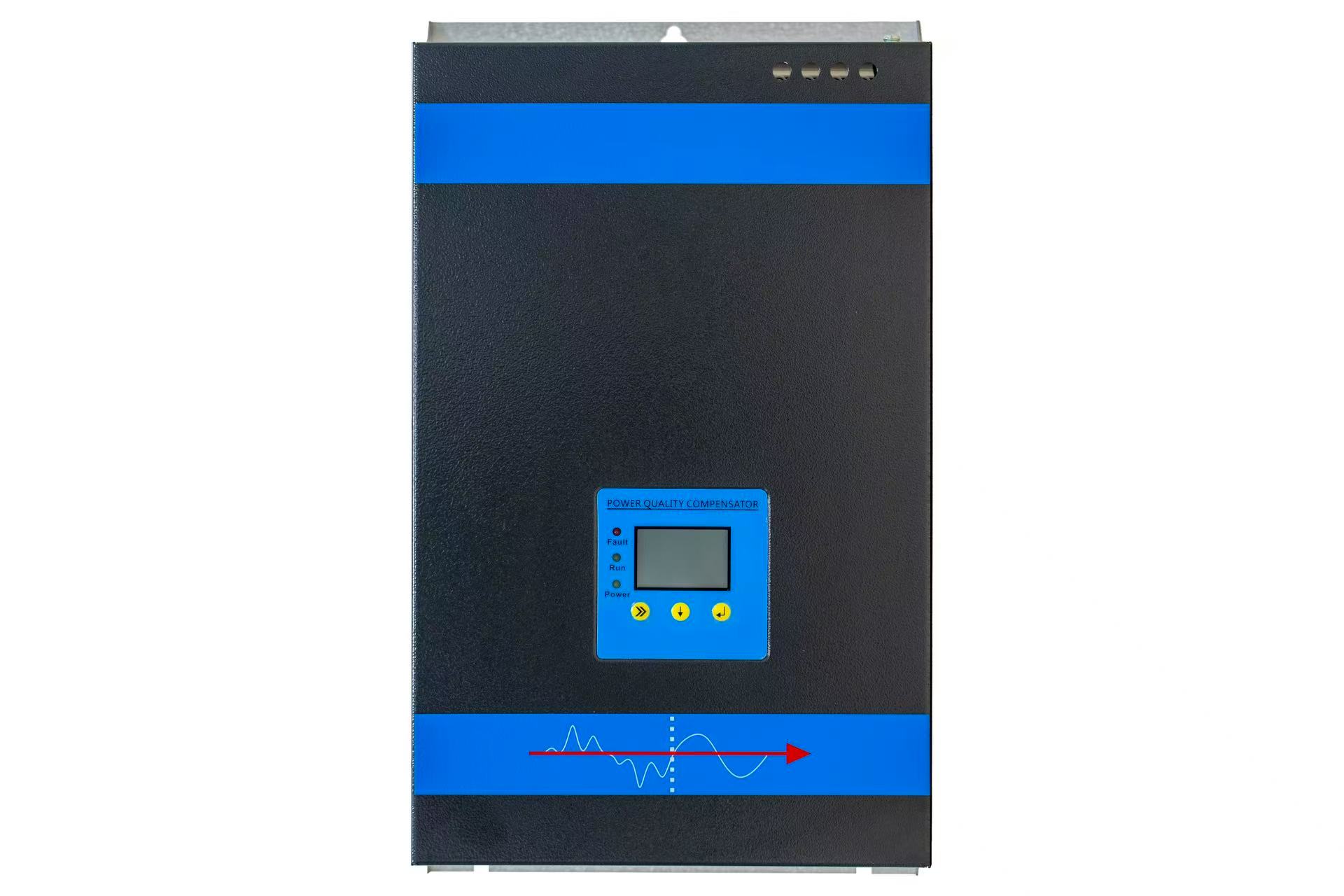

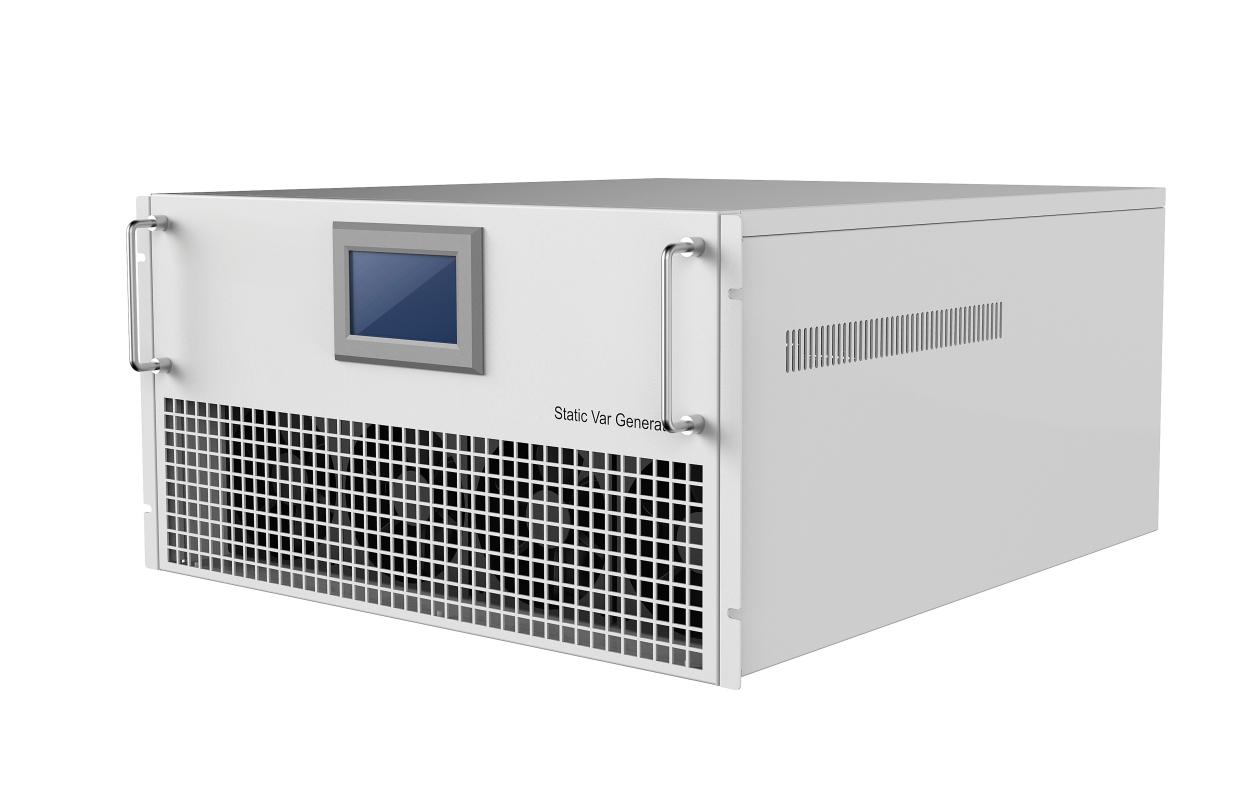

Product Gallery

Product Advantages

Lightweight and portable, easy to install, cost saving

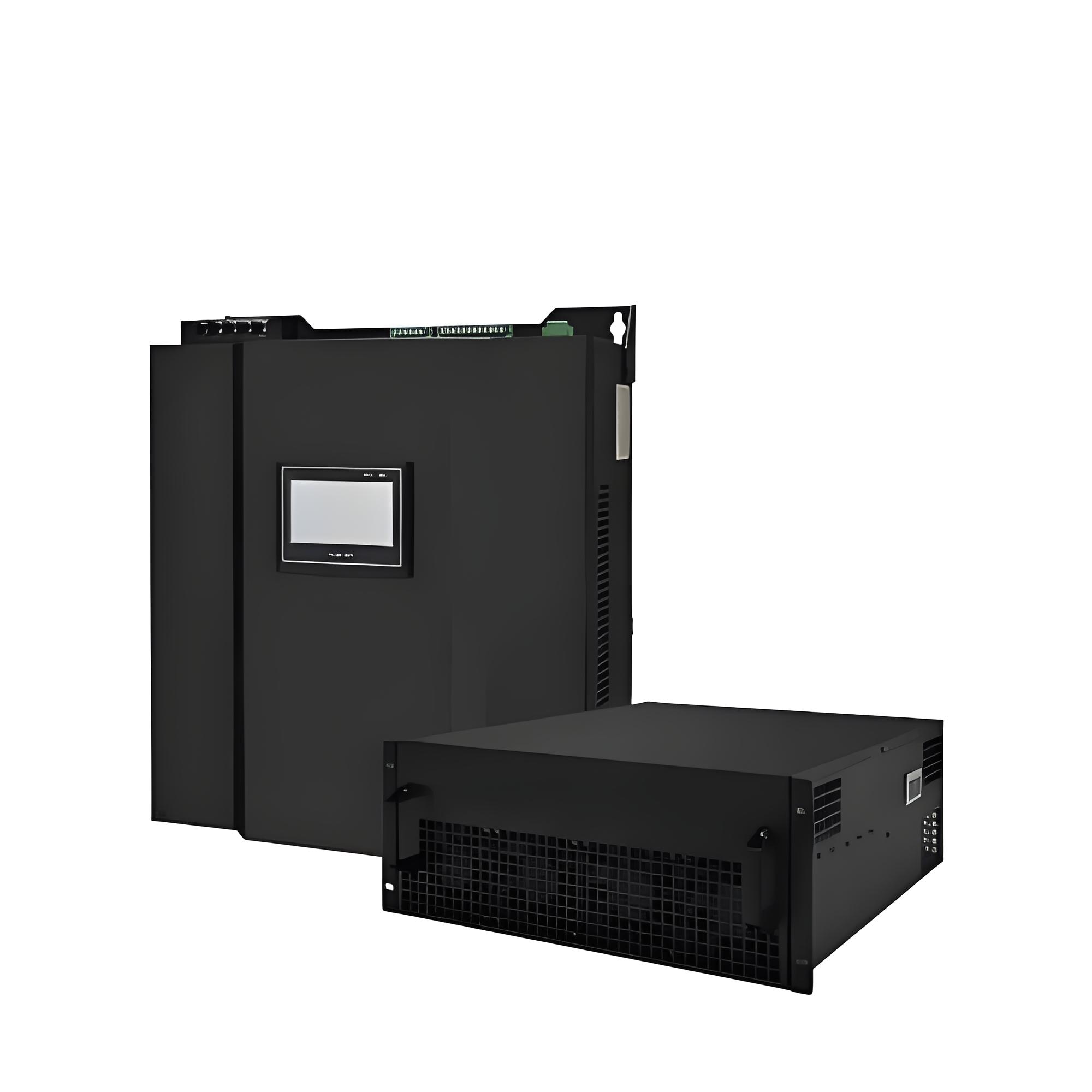

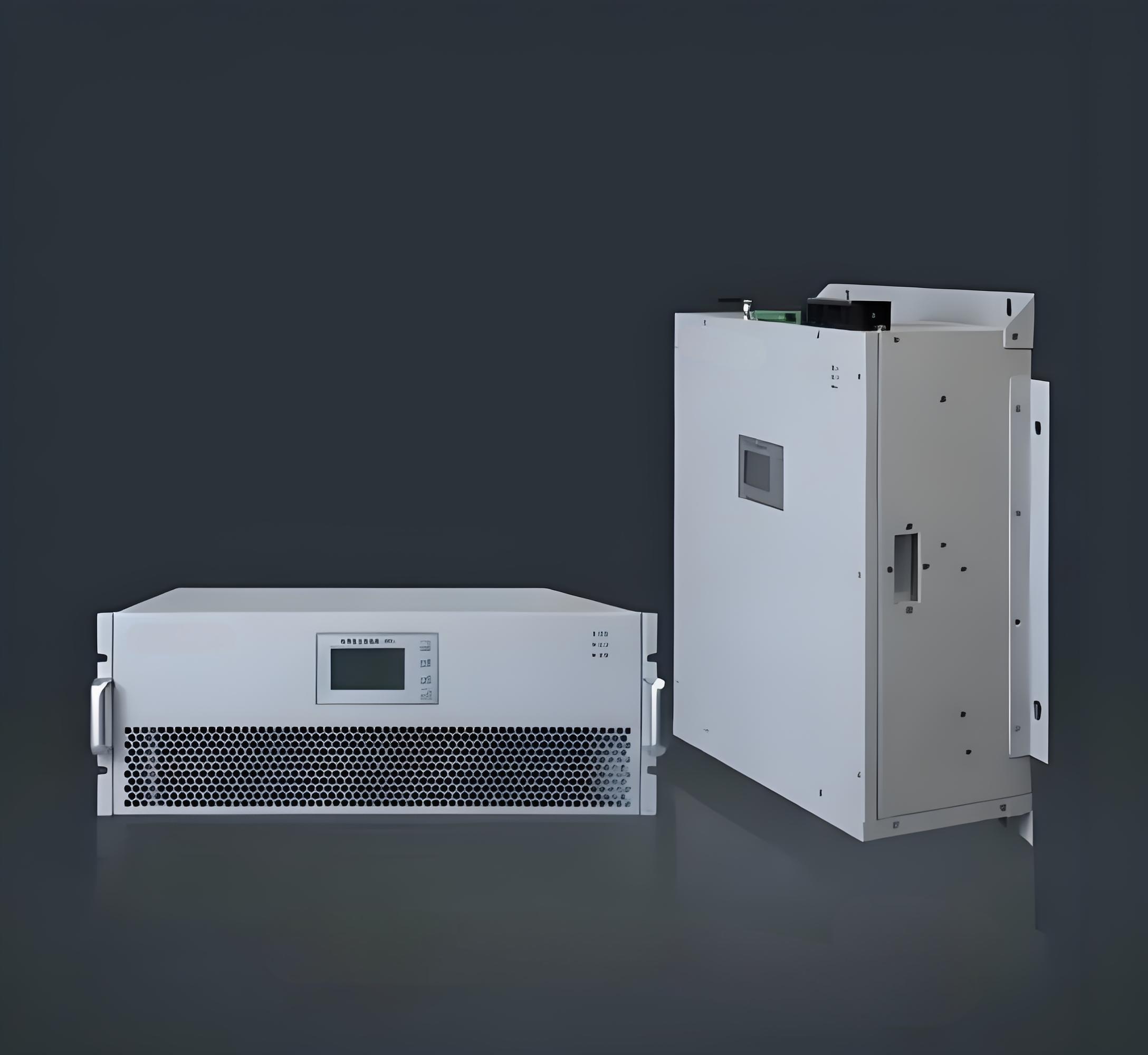

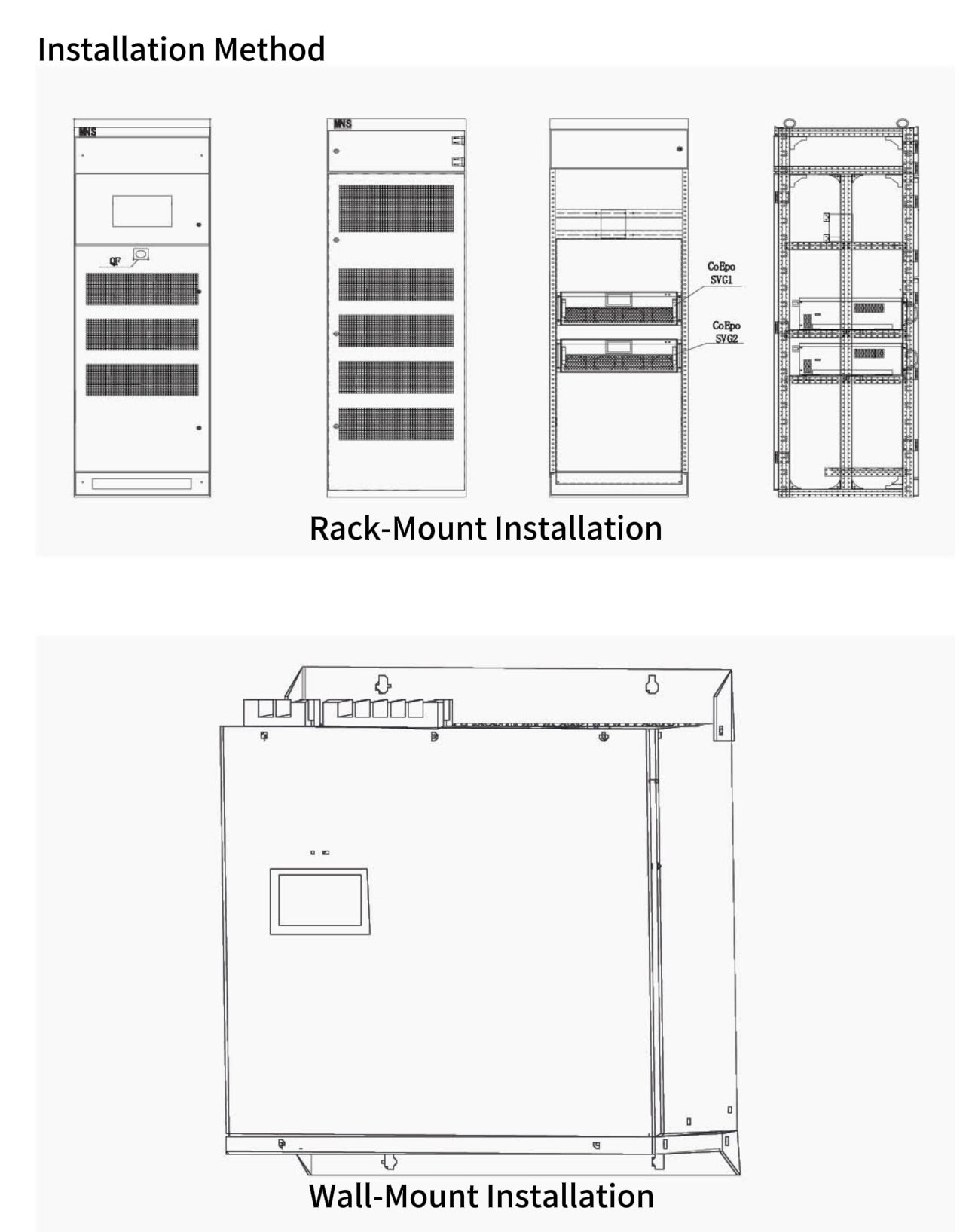

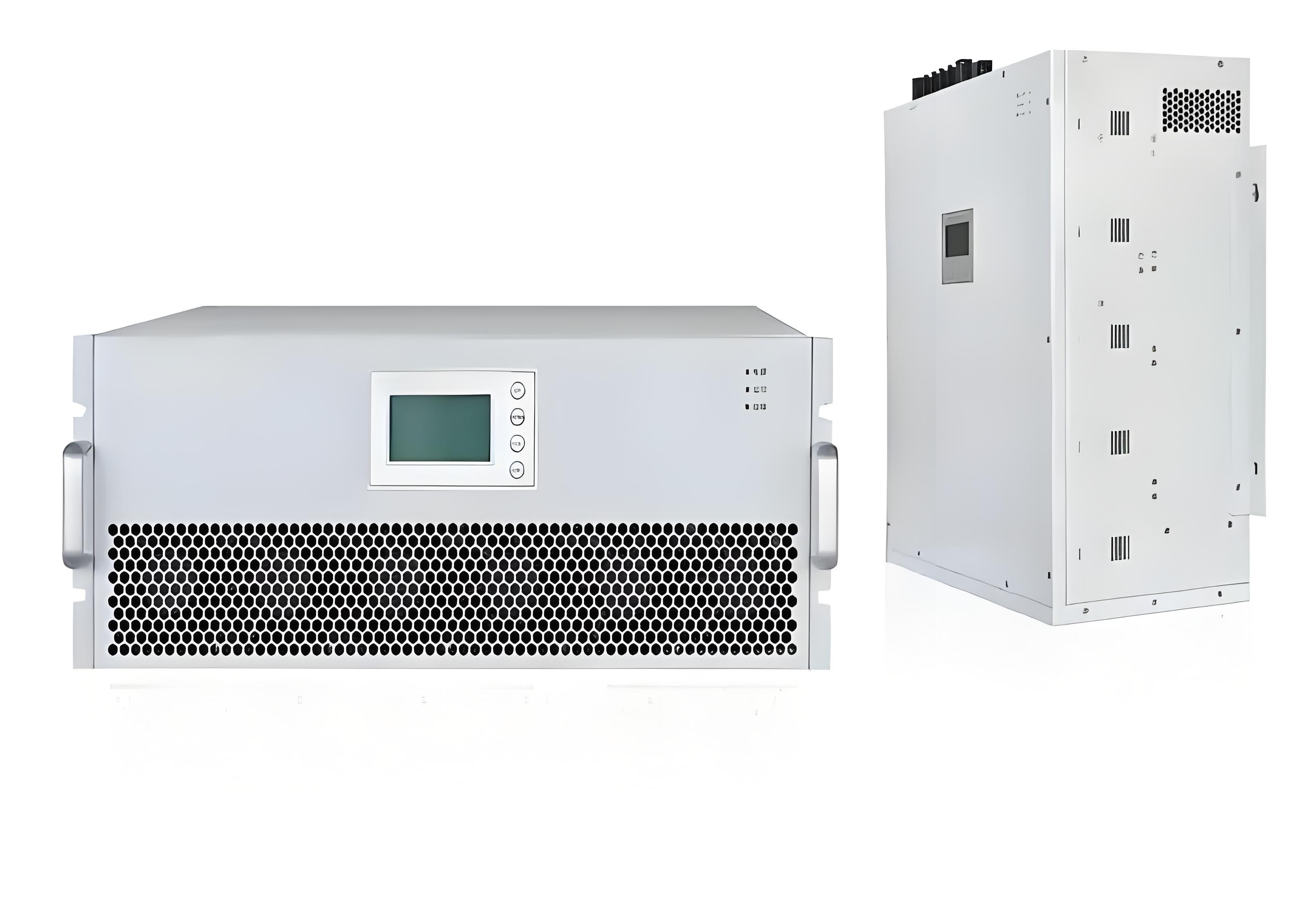

Suitable for various installation types such as rack mounted, wall mounted, and vertical

Small size, suitable for embedded installation projects, improving space utilization efficiency

Applicable Scene

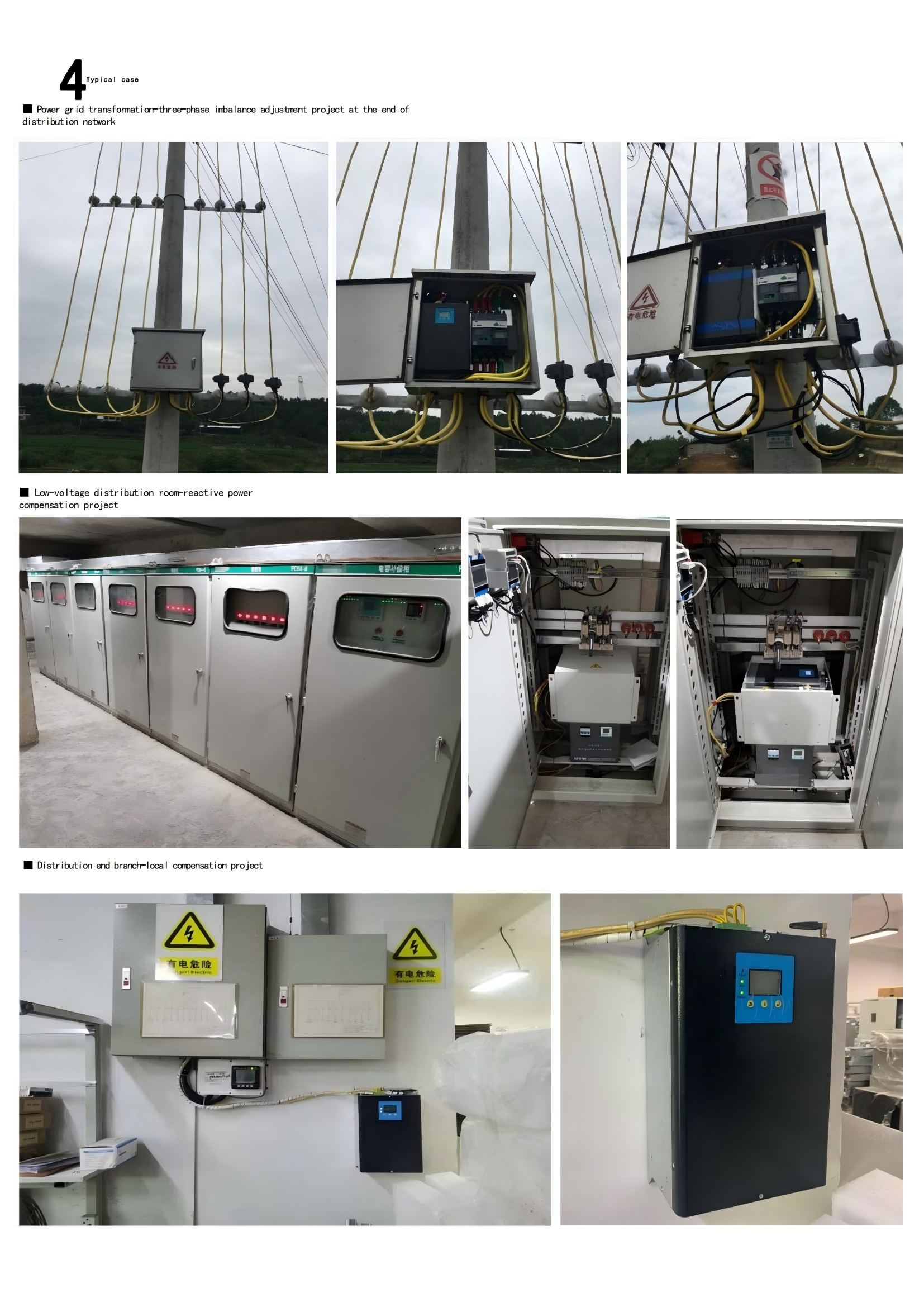

SVG can be widely used in a variety of challenging environments:

Steel Industry Metallurgy Industry Mining Industry New Energy Industry Automotive Industry Water Treatment Industry Telecommunications Industry Research Institutes Hospital Bank Shopping Mall Schools Computer Rooms Computer Centers Electrified Railways Subways

Data Room

Office Building

Industry Sector

Port Terminal

Frequently Asked Questions (FAQ)

What is a Static Var Generator (SVG)?

A Static Var Generator (SVG) is a power quality device based on a three-level topology circuit. It helps in stepless power factor correction, harmonic control, and load balancing.

What is the harmonic filtering range and rate of the module?

The module features a harmonic filtering range covering the 2nd to the 51st harmonics, with an efficient filtering rate of 90% or higher.

What are the available installation options?

The SVG module supports multiple flexible installation configurations, including Rack-Mounted, Wall-Mounted, and Vertical installations, making it highly versatile for various spaces.

How fast is the response time for power factor correction?

The device features a rapid full response time of 5 milliseconds or less, allowing for real-time reactive power compensation and transient voltage stabilization.

What built-in protection capabilities does the system offer?

The module offers comprehensive protection features including over-voltage, under-voltage, over-temperature, over-current protection, and automatic current limiting at 100% rated output.

Where is this SVG module typically applied?

It is widely used in settings such as data rooms, office buildings, port terminals, industrial environments, metallurgy, mines, and telecommunication systems where power quality control is vital.
