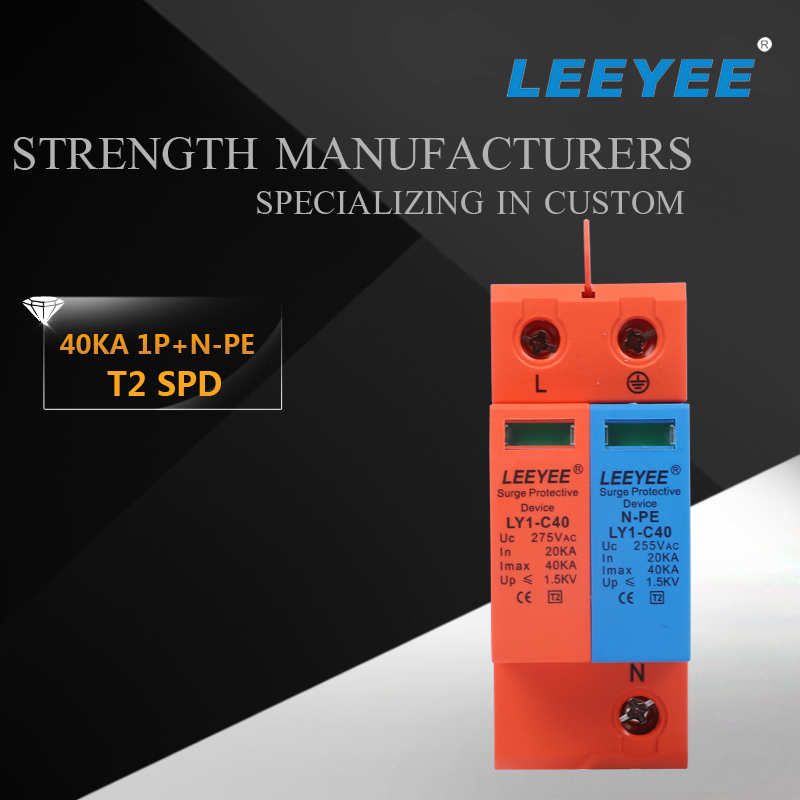

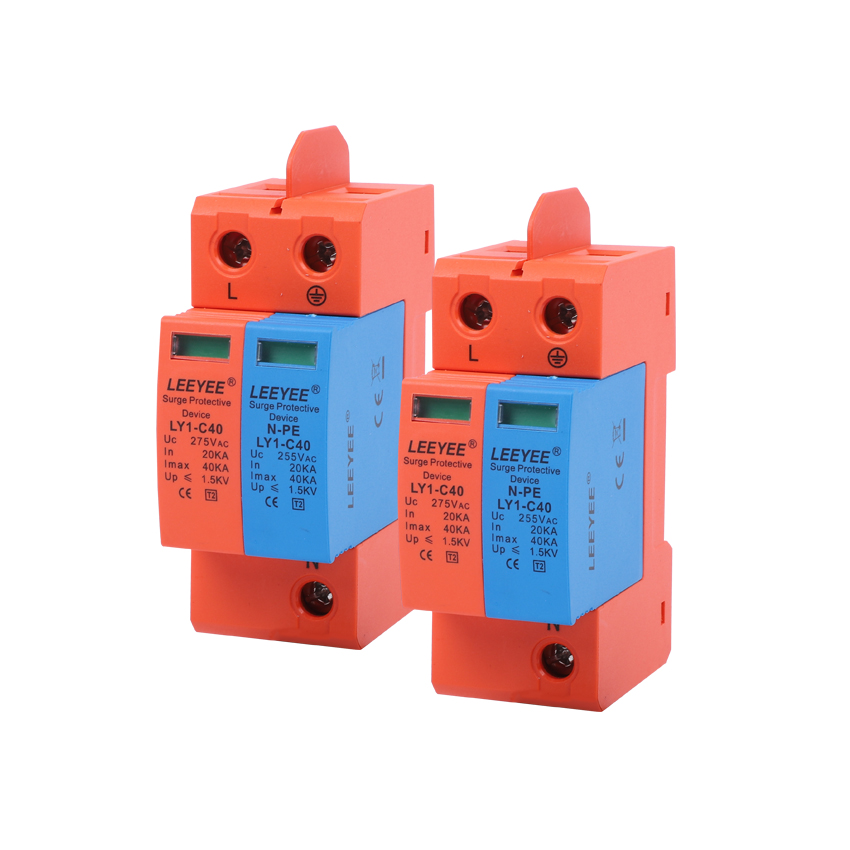

Type 2 AC spd 40ka 1P+N Solar spd 275v Ac Single Phase Surge Protective Device
Type 2 AC spd 40ka 1P+N Solar spd 275v Ac Single Phase Surge Protective Device
Type 2 AC spd 40ka 1P+N Solar spd 275v Ac Single Phase Surge Protective Device
Type 2 AC spd 40ka 1P+N Solar spd 275v Ac Single Phase Surge Protective Device
Type 2 AC spd 40ka 1P+N Solar spd 275v Ac Single Phase Surge Protective Device
1 / 5
Type 2 AC spd 40ka 1P+N Solar spd 275v Ac Single Phase Surge Protective Device
Type 2 AC spd 40ka 1P+N Solar spd 275v Ac Single Phase Surge Protective Device
Type 2 AC spd 40ka 1P+N Solar spd 275v Ac Single Phase Surge Protective Device
Type 2 AC spd 40ka 1P+N Solar spd 275v Ac Single Phase Surge Protective Device
Type 2 AC spd 40ka 1P+N Solar spd 275v Ac Single Phase Surge Protective Device

Type 2 AC spd 40ka 1P+N Solar spd 275v Ac Single Phase Surge Protective Device

Send Inquiry

Product Description

Specification Details
Product Description
This 1P+N 40kA 275V AC SPD solar power surge protection device is designed for power supply systems. It complies with IEC61643-11 and GB18802.11 standards and features standard 35mm DIN rail mounting. It is equipped with a failure release module that disconnects the device from the power supply during over-heat or over-current faults, providing visual status signals: Green for normal operation, and Red for faults.

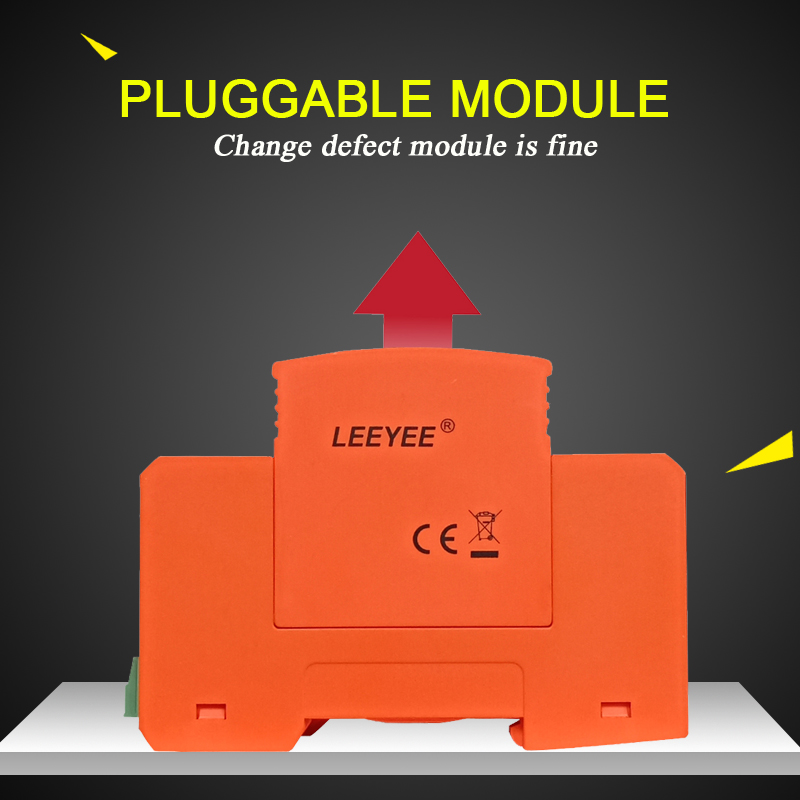

Module Design
Easy to install and replace without shutting down power.
Built-in Protection
Equipped with over-current, over-heat, and temperature control open circuits.
Rapid Response
Delivers fast response times with low residual voltage.

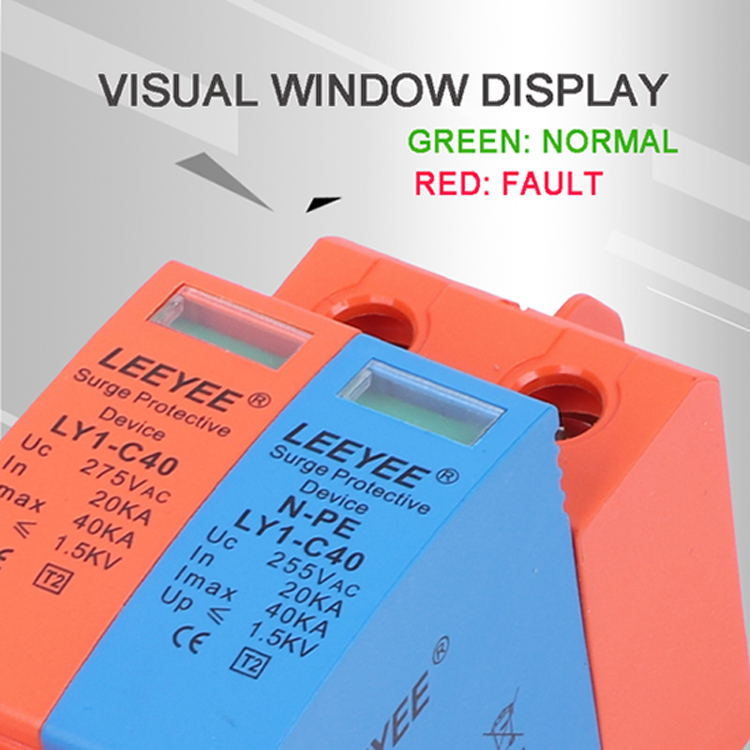

Status Indicator
Clear visual window color: green indicates normal, red indicates fault.
High Discharge
Supports Class II T2 surge protection with max discharge current up to 40kA (8/20µs).
Installation Position
Typically installed in household distribution boards, computer systems, information technology networks, electronic equipment, and control socket boxes.
Model LY1-C40
Maximum Continuous Operating Voltage Uc 275V AC
SPD Type T2 / Class II
Nominal Discharge Current (8/20µs) 20kA
Maximum Discharge Current(8/20µs) 40kA
Voltage Protection Level Up ≤1.5kV
Response Time tA ≤25ns
Indication Method Visible window (Green = Normal, Red = Defect)
Min. sectional area of incoming wire L/N 4mm²
Min. sectional area of incoming ground wire PE 6mm²
Method of Installation 35mm DIN Rail
Material of Shell PBT Fireproof

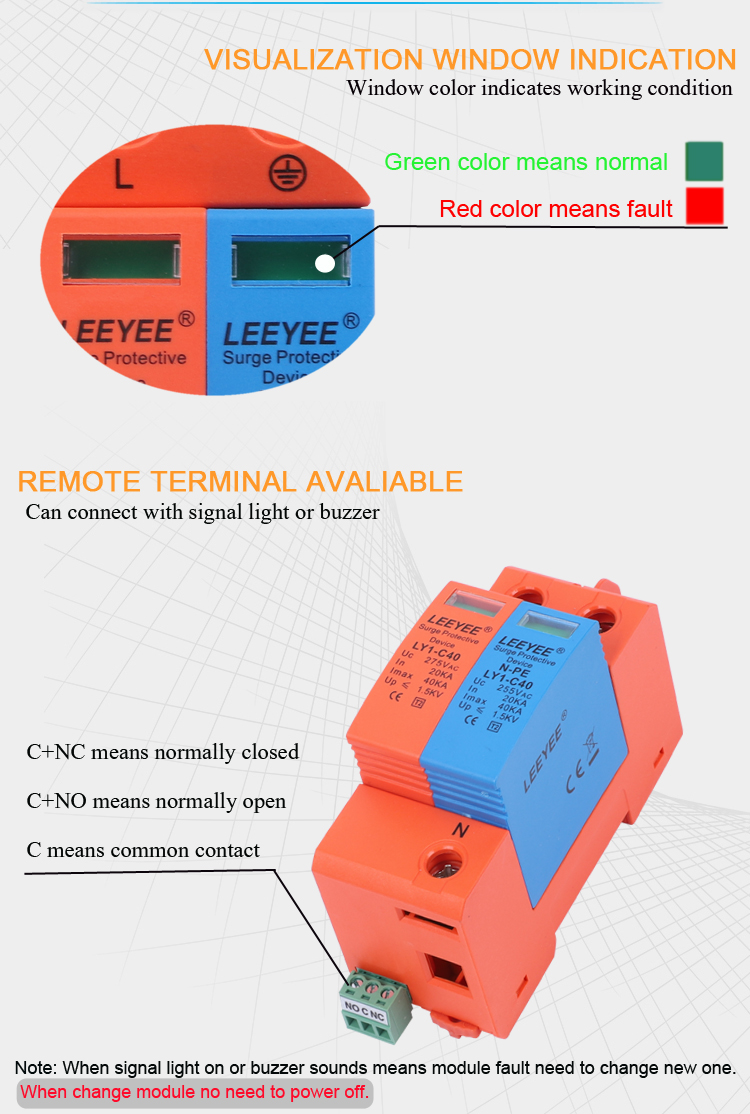

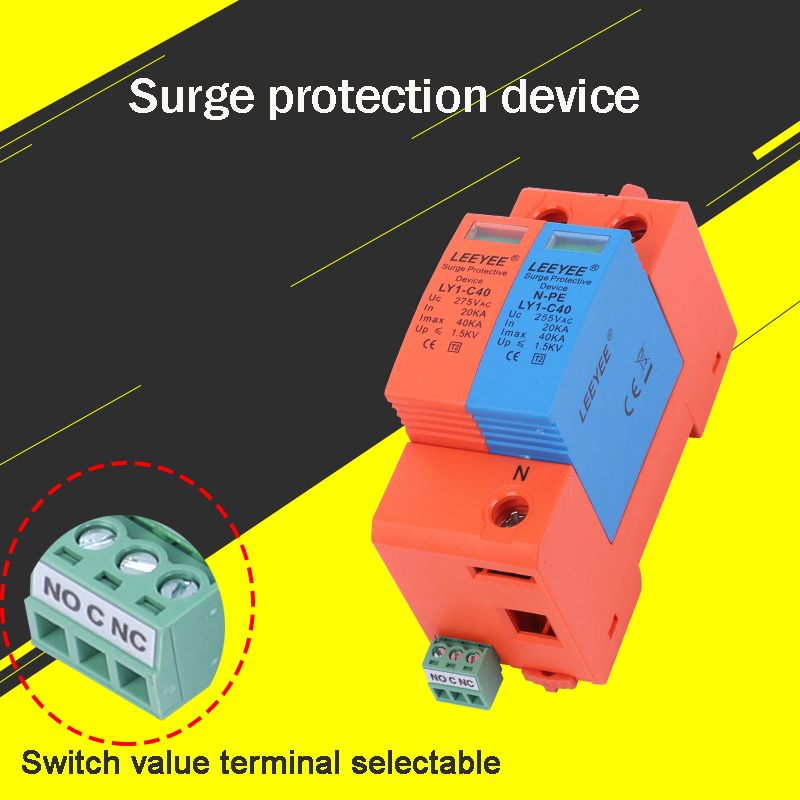

Remote Contact Selectable C+NC (normally closed), C+NO (normally open), C (normal contact)
Protection Level of Outer Shell IP20
Working Temperature -25°C to +70°C
Test Standard IEC/EN 61643-11 / GB18802.11
Poles Selectable 1P / 2P / 3P / 4P / 1P+N-PE
Products Description

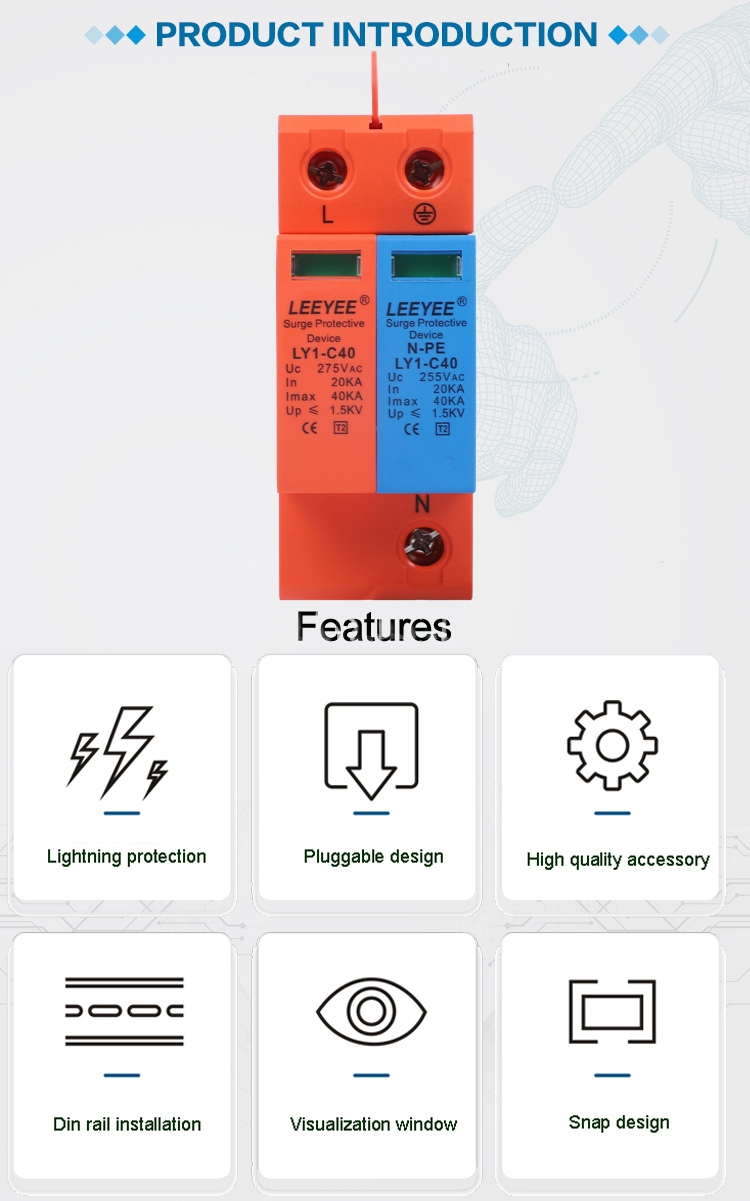

Surge Protection Device View 1

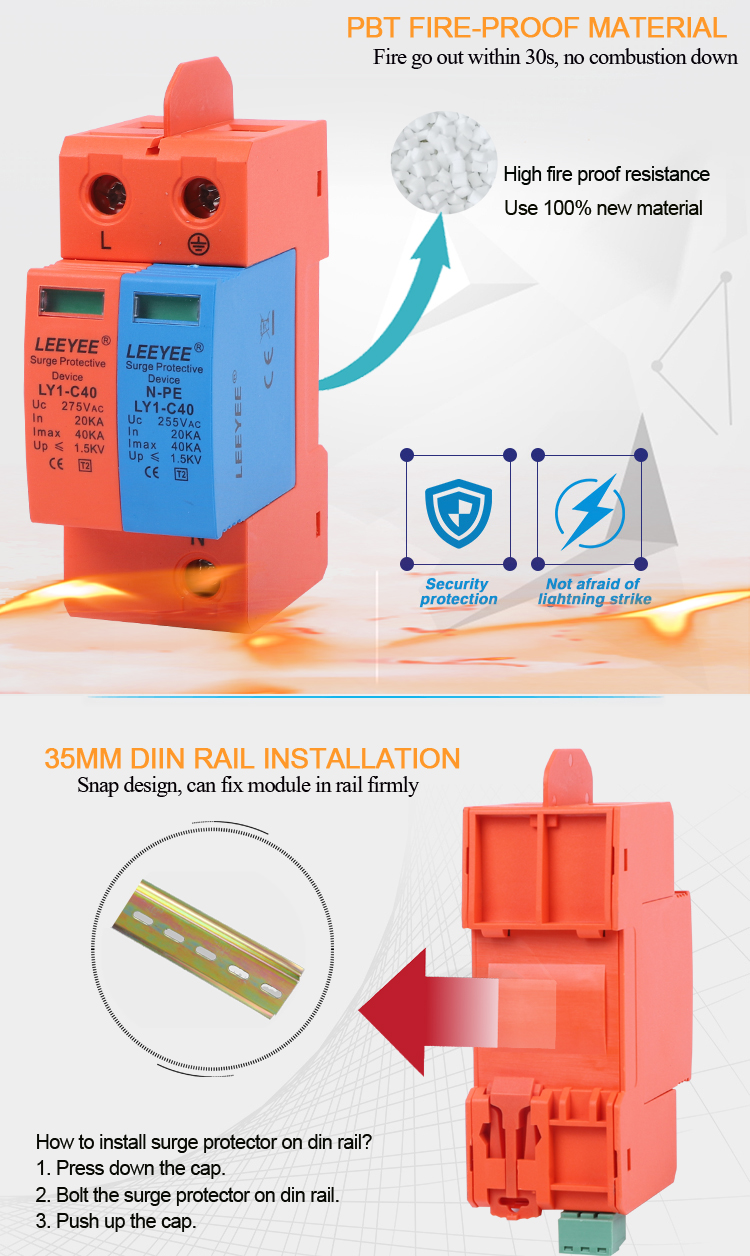

Surge Protection Device View 2
Surge Protection Device View 3

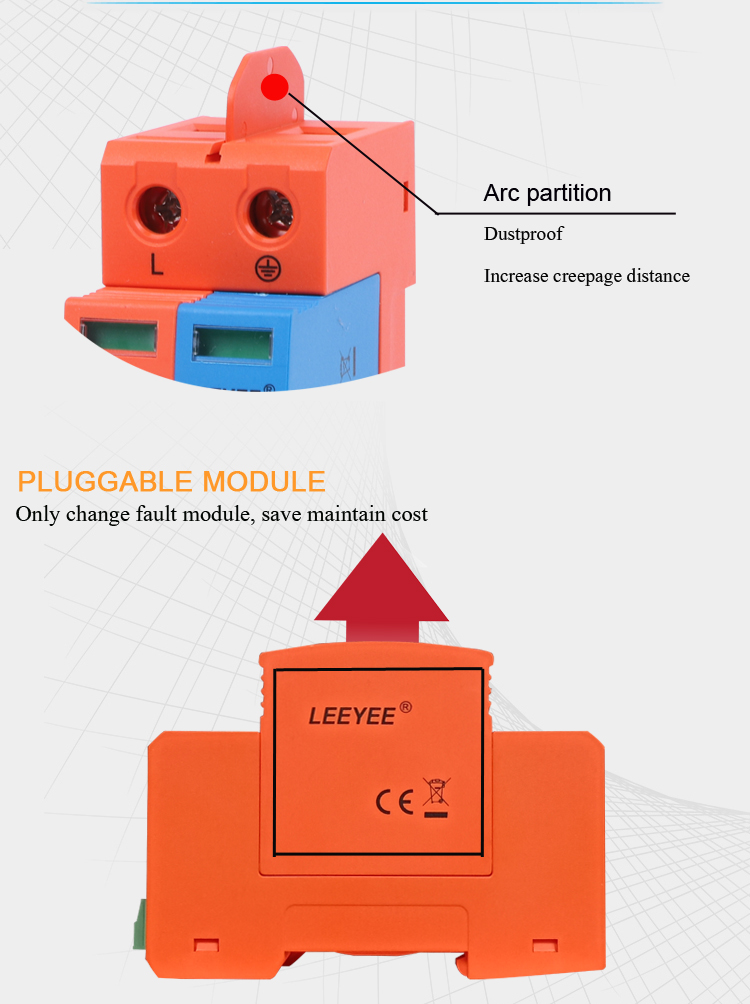

Surge Protection Device View 4

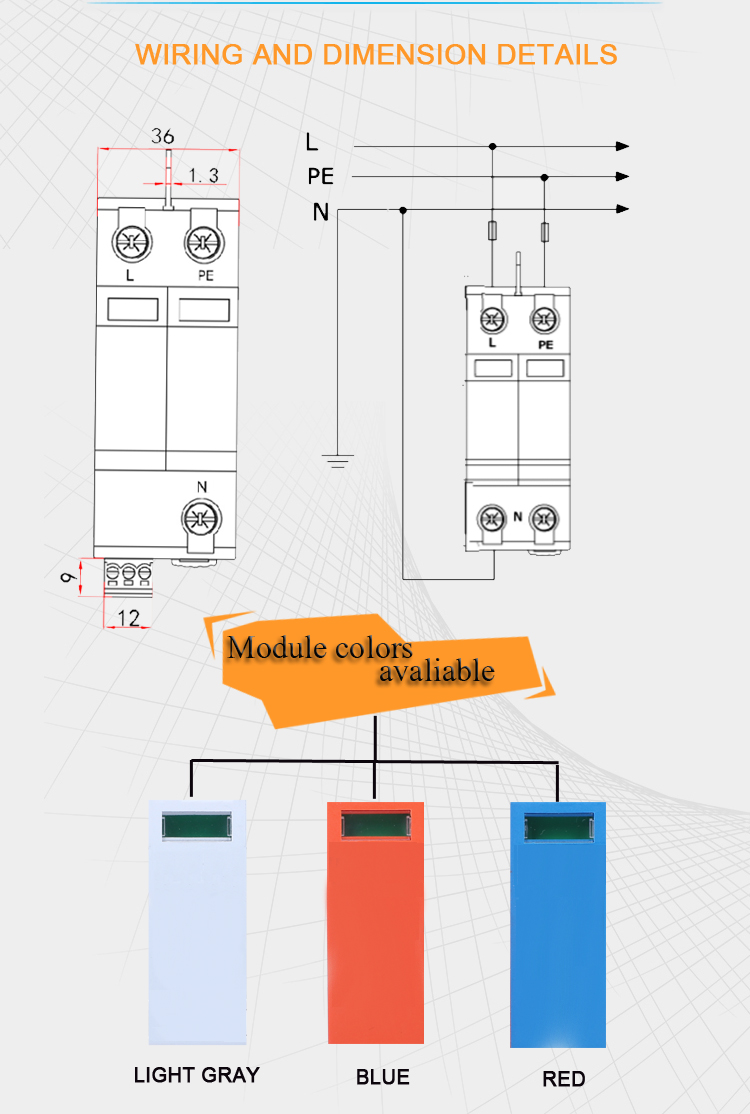

Surge Protection Device View 5
More Surge Protectors
Alternative Surge Protectors
Delivery
Delivery and Logistics Details
Factory & Production Facilities
Production Facility View 1
Production Facility View 2

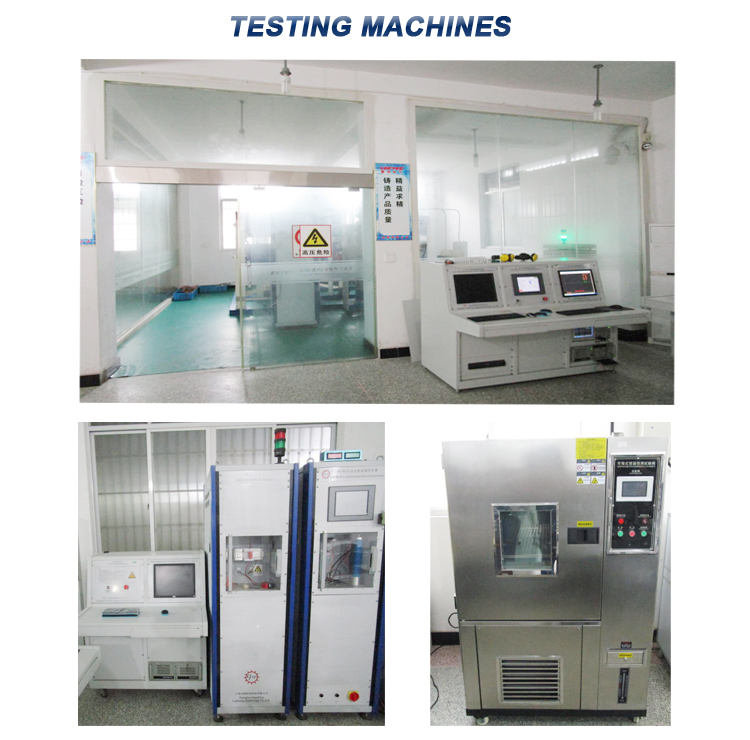

Production Facility View 3
Production Facility View 4
Why Choose Us
Why Choose Us Diagram
Frequently Asked Questions
1. Who are we?
We are a professional manufacturer based in China, established in 2010. We specialize in producing and exporting surge protectors worldwide, with a dedicated facility employing between 101 to 200 people.
2. How can we guarantee quality?
We ensure high product quality by strictly providing a pre-production sample before mass production begins, along with completing a thorough final inspection on all units prior to shipment.
3. What can you buy from us?
Our product catalog includes AC Surge Protective Devices (SPD), DC Surge Protective Devices, Power Distribution Units (PDU), Signal Surge Protective Devices, and T1 Surge Protective Devices.
4. Why should you buy from us instead of other suppliers?
With over 12 years of factory manufacturing experience, we specialize in AC/DC surge protectors, signal surge protectors, surge protection boxes, lightning rods, and lightning strike counters. Our products are CE and TUV certified, and we provide professional OEM/ODM custom services.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDP, Express Delivery;
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Languages Spoken: English, Chinese.
6. How does the status window indicator function on this SPD?
The visual status indicator provides real-time feedback: Green represents normal operation, while Red indicates a fault condition, signaling that the device module requires immediate replacement to ensure continuous protection.
