| SVG Specifications | |
|---|---|
| Voltage Rating | 220V/380V/400V/480V/540V/690V/720V/890V/1140V |

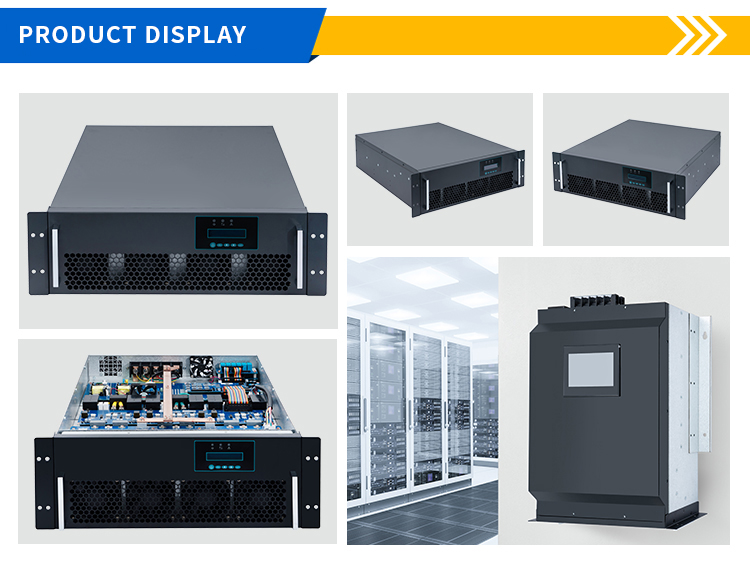

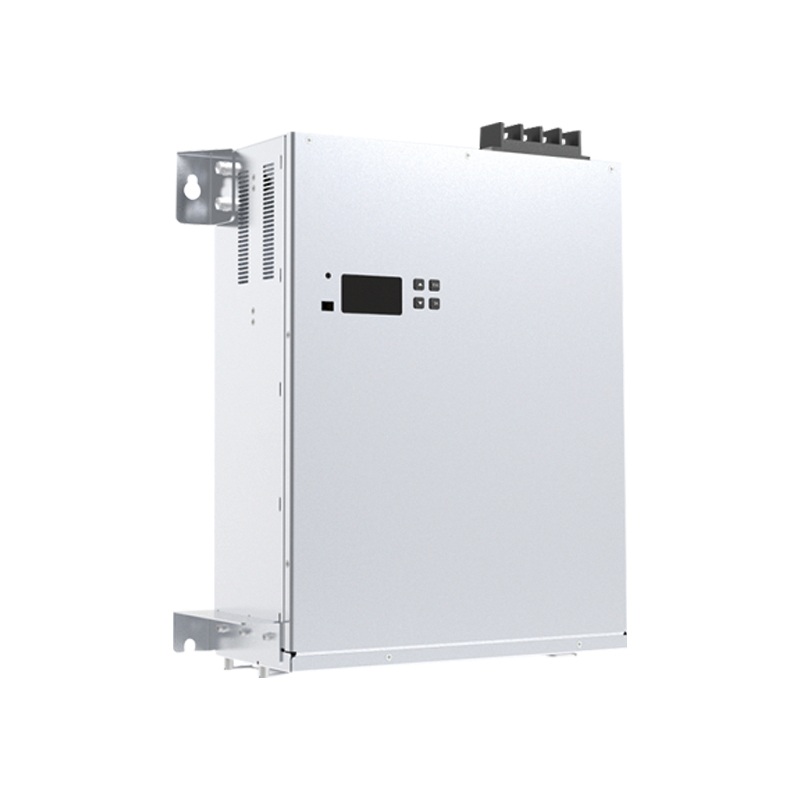

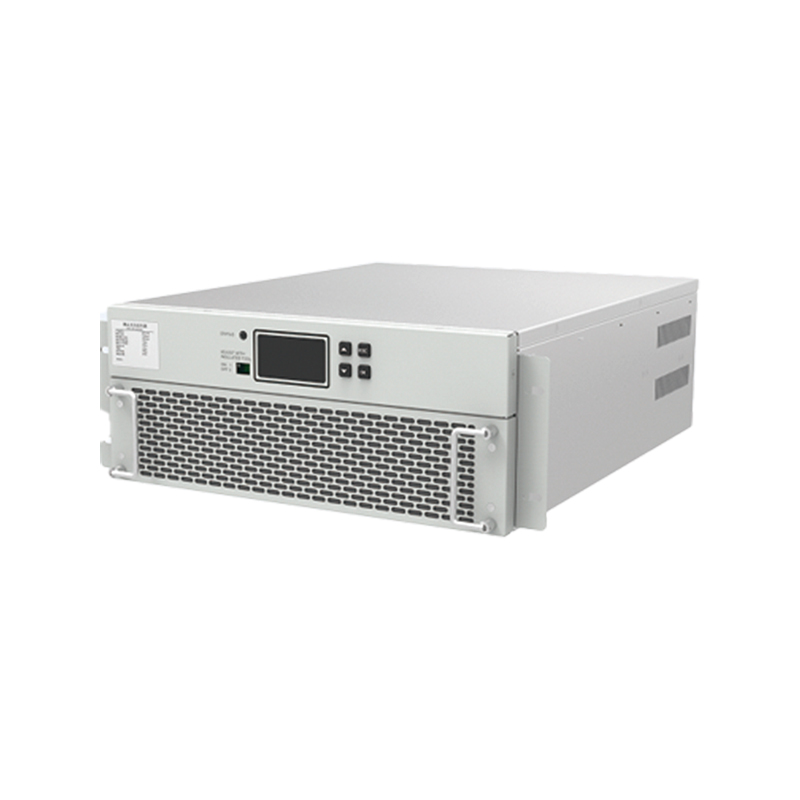

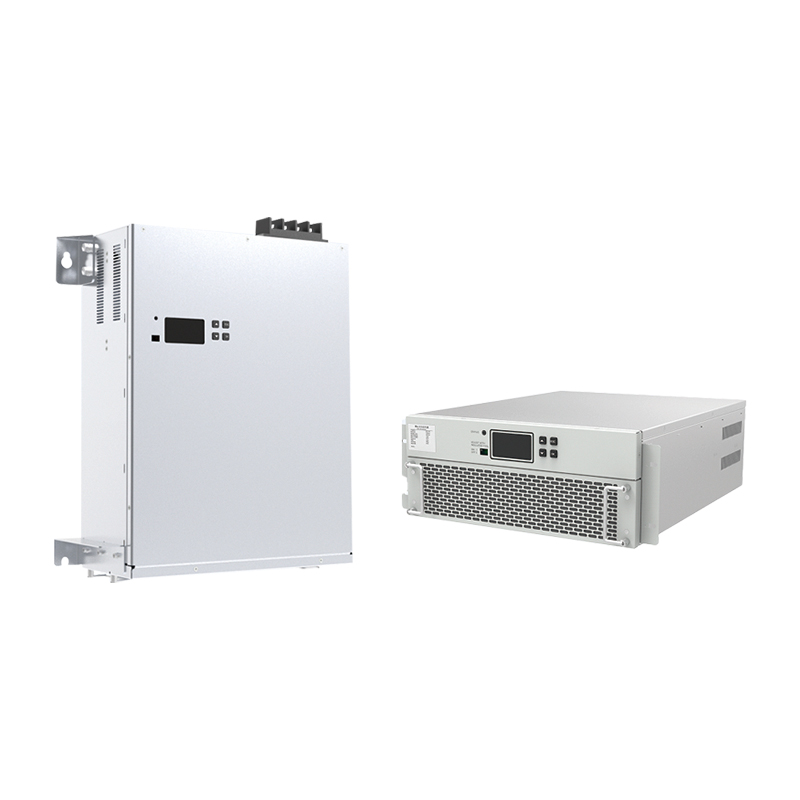

| Drawer (Rackmount) / Wall Mounted | |
| Rated Parameters | |
| Rated Voltage | Three-phase four-wire system, 230VAC±20% |
| Rated Frequency | 50Hz/60Hz (optional) ±1Hz |
| Rated Current | Phase line current 15A, zero line current 15A |
| Main Functions | |
| Reactive Compensation | Capacitive / Inductive |
| Imbalance Compensation | Negative sequence / Zero sequence |
| Harmonic Compensation | 3rd~13th harmonic (not more than 50% of rated current) |
| Mutual Transformer | |
| Transformer Position | Single device: grid side or load side; Parallel: load side RS485, Network Port |
| Transformer Ratio | 10:5 ~ 50000:5 |
| Electrical Performance | |
| Grid Adaptability | Voltage unbalance <5%, Common point short circuit ratio >10 |
| Switching Frequency | 16kHz |
| Harmonic Comp. Rate | >90% |
| Full Load Loss | <3% |
| Response Time | <40ms |
| Noise | <60dB |
| Cooling Method | Intelligent air-cooling |
| Environmental Conditions | |
| Storage | -25~55℃, 5%~90% without condensation |
| Operating | -10~40℃, 5%~90% no condensation |
| Protection Function | Output current limiting, Over-temperature protection, Grid abnormal protection (voltage/frequency) |

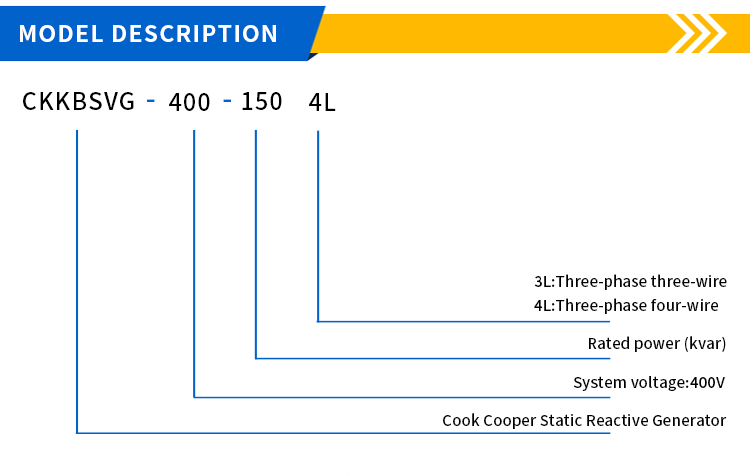

| Voltage (V) | Model (A) | Norm | Size (L*W*H) mm | Weight |
|---|---|---|---|---|
| 400V | 10Kvar | SVG-400-10K | 450*580*88 | 18KG |
| 20Kvar | SVG-400-20K | 450*580*88 | 18KG | |
| 50Kvar | SVG-400-50K | 450*580*110 | 18KG | |
| 100Kvar | SVG-400-100K | 450*580*192 | 30KG | |
| 450V-480V | 120Kvar | SVG-480-120K | 450*580*210 | 38KG |
| 540V-690V | 150Kvar | SVG-690-150K | 450*580*230 | 33KG |
* Unconventional models or other voltage levels and capacity can be customized.
