FTS series automatic transfer switch are mainly composed of power conversion actuator, circuit breaker and controller. This dual power switch with automatic, manual, power indicator, normal switch indicator, ready switch indicator working state. Switch's features are small volume, long life, low power consumption, light weight, stable work, easy to use and so on.
ATS Normal Operating Conditions
The ambient temperature shall not be higher than +40ºC, or lower than -5ºC, and the daily average shall not exceed +35ºC.
The altitude of installation site shall not exceed 2000m.
Relative humidity shall not exceed 50% at the ambient temperature of +40ºC, a higher humidity is allowable at a lower temperature. The average maximum relative humidity is 90% in the wettest month at a monthly average minimum temperature of +25 ºC, and special measures shall be taken for the condensation on surface of product due to temperature change.
Pollution class: class III.
Designed for installation where there is no intense vibration and impact, no harmful gas corrosive and disruptive to the insulation, no severe dust, no conducting microparticles, explosive substances, or high electromagnetic interference.
Moulded Case ATS Technical Data
CB Class Automatic Transfer Switch
Output Frequency: 50Hz
Output Type: 2/4 Poles
Output Current: 63A
Output Voltage: 110V, 220V, 380V, 440V
Output Power: >500W
Input Voltage: 110V, 220V, 380V, 440V
High Reliability & Safety
Service Life: Reaching above 8,000 times
Electro-magnetic Compatibility
Approved: CE- and CCC-approved
Rated Current: 63A
Poles Config: 2Poles, 3Poles, and 4Poles
Application: Suitable for shift of two-way power, transfer of load equipments and safe isolation
Standards Compliance: Certifications: IEC60947-3 and GB14048.3 standards

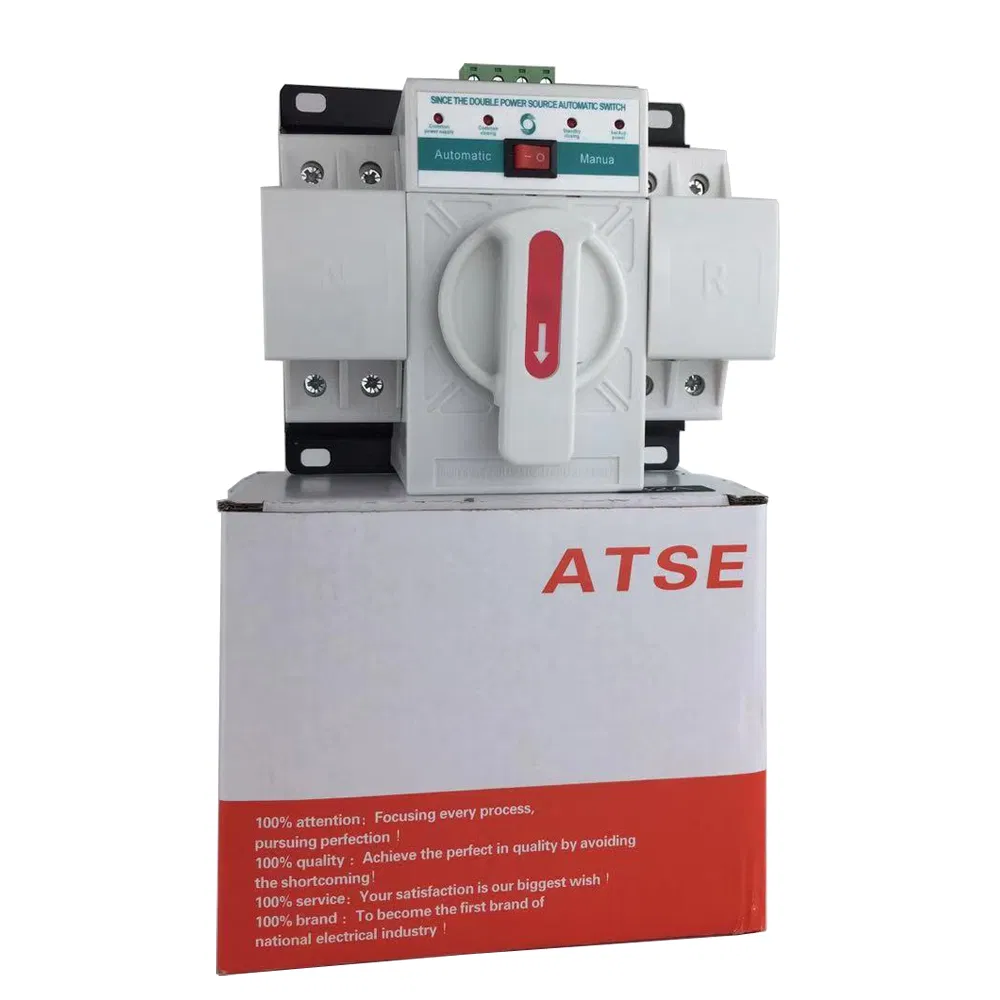

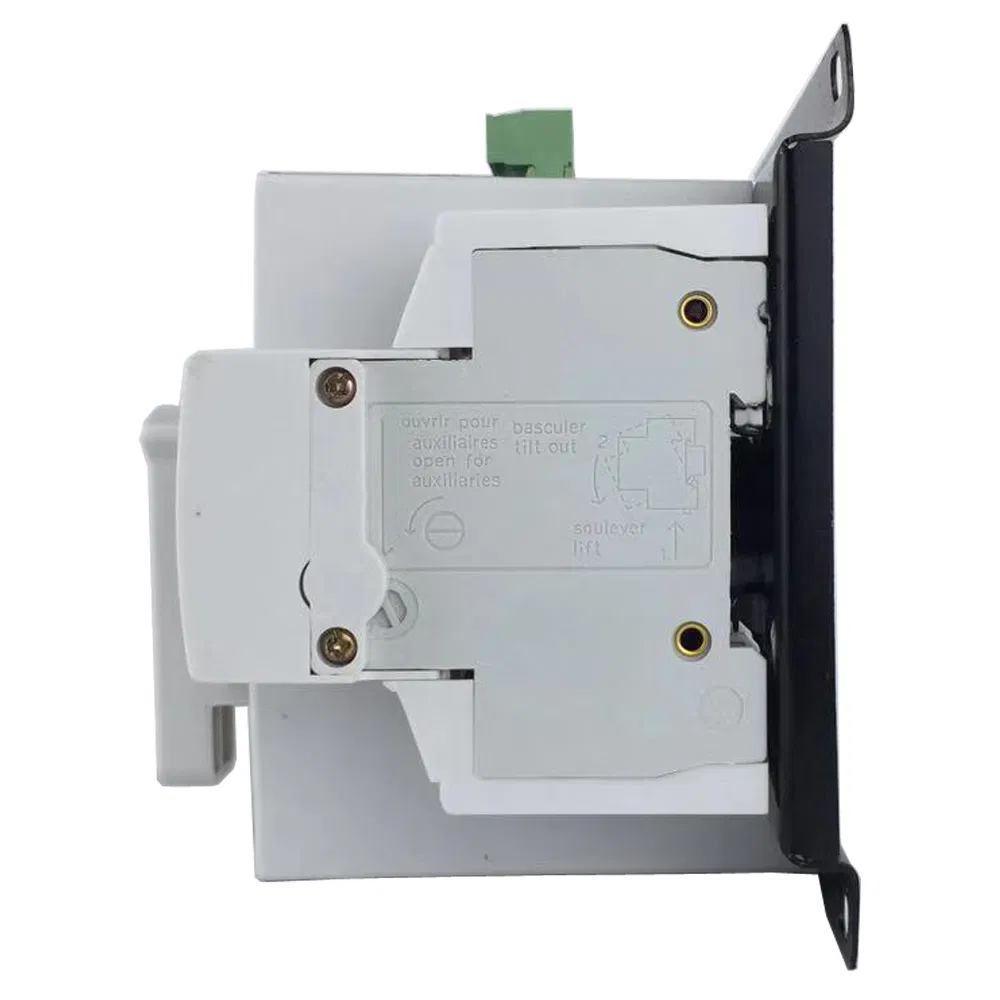

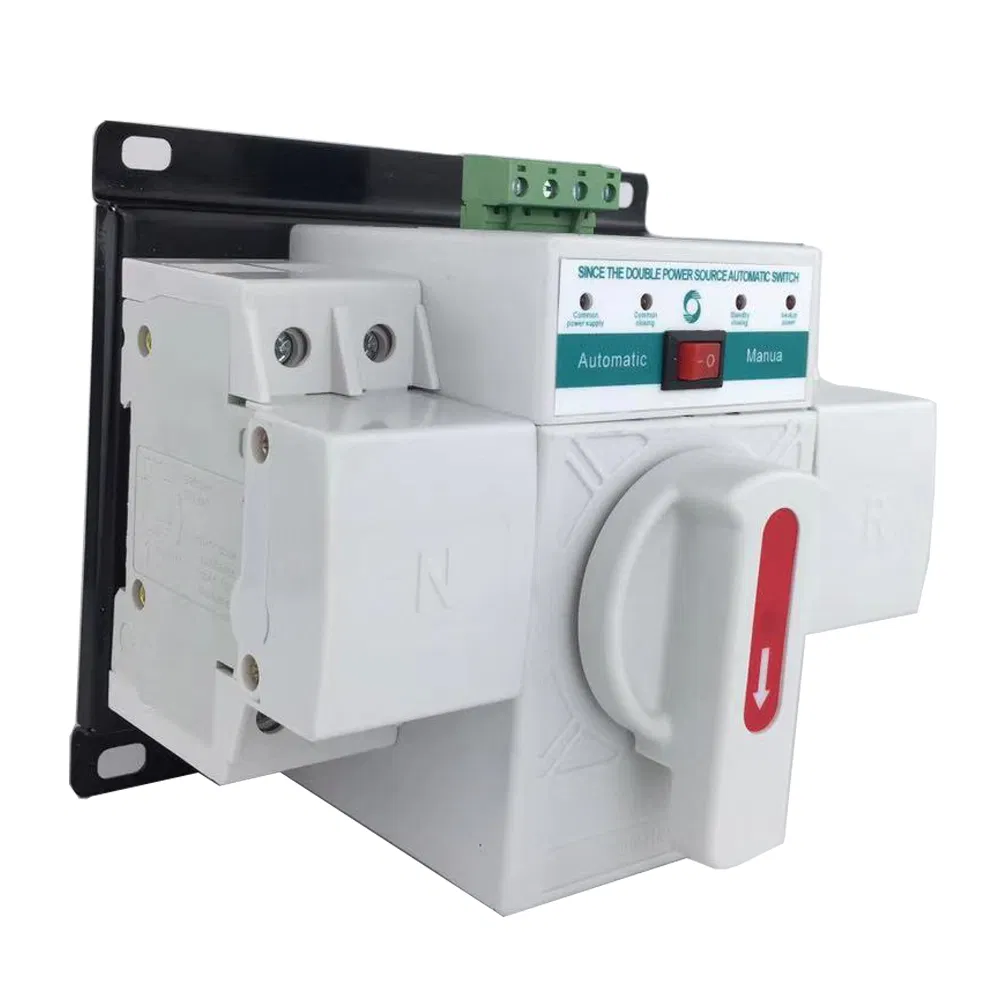

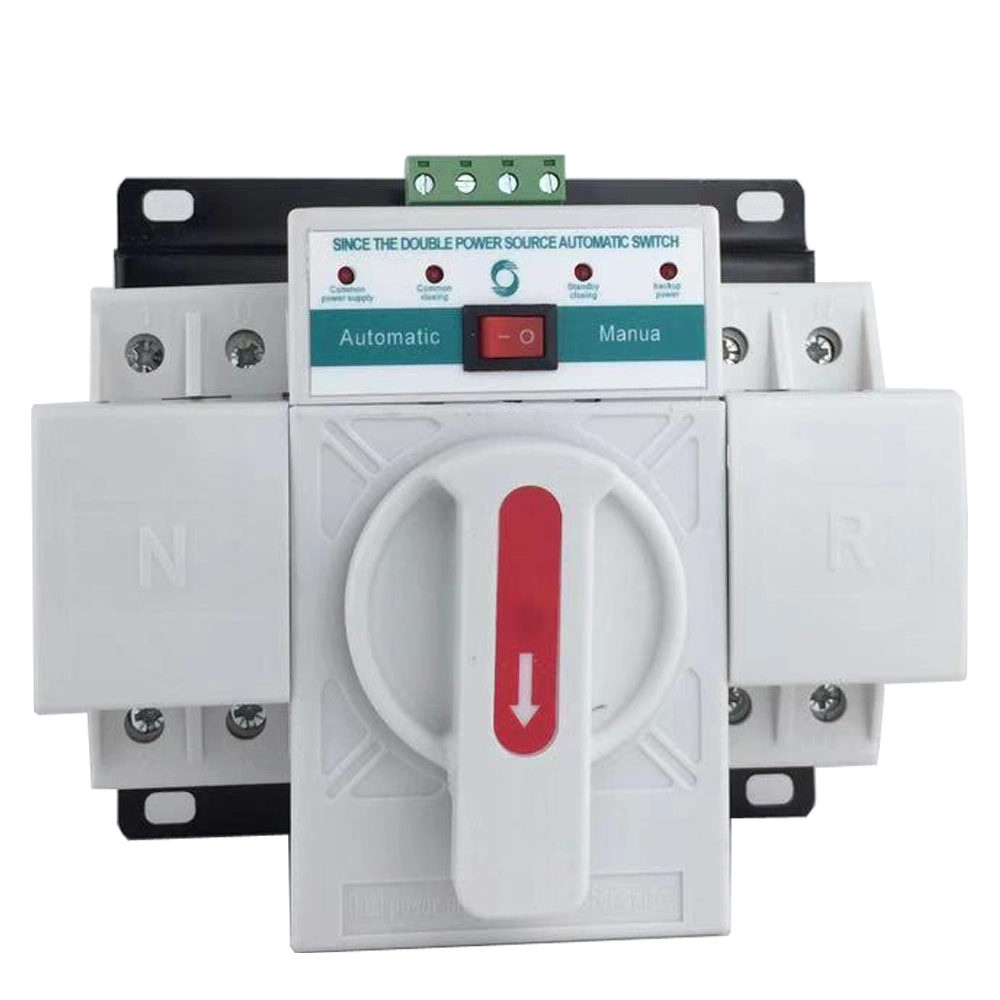

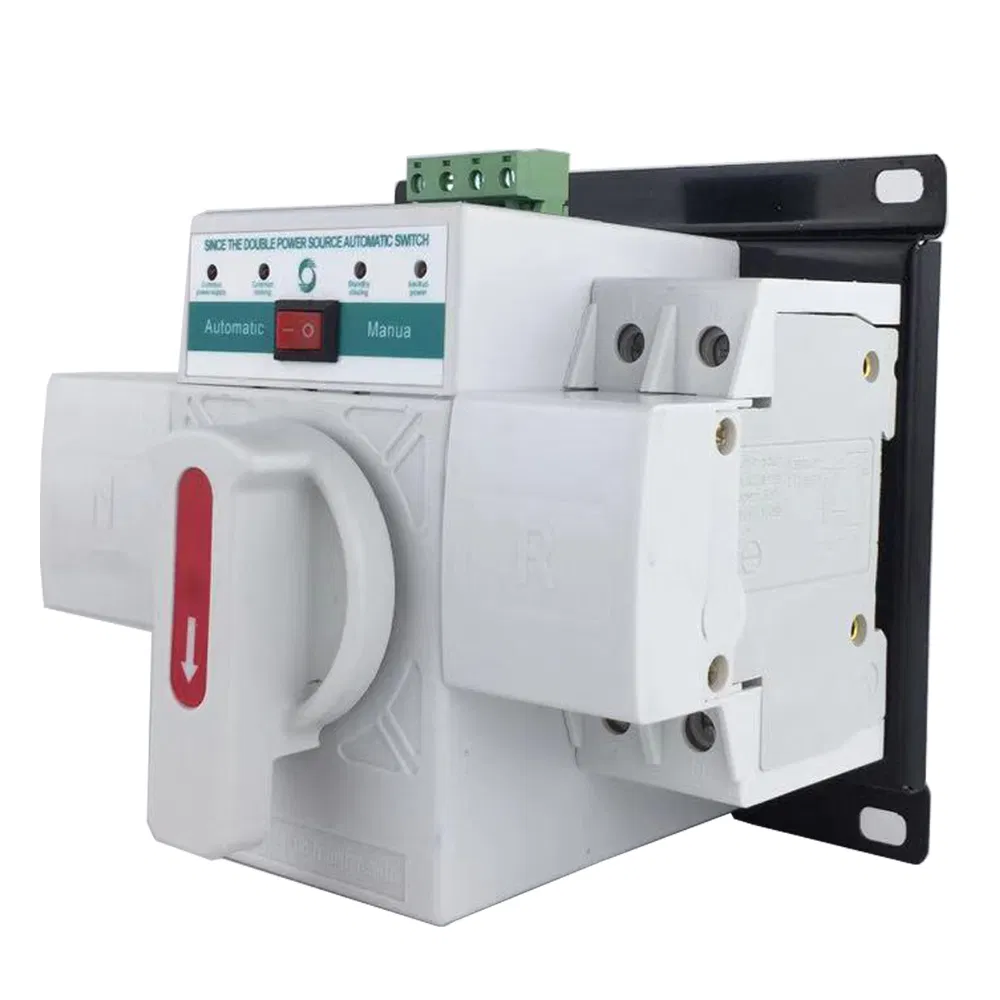

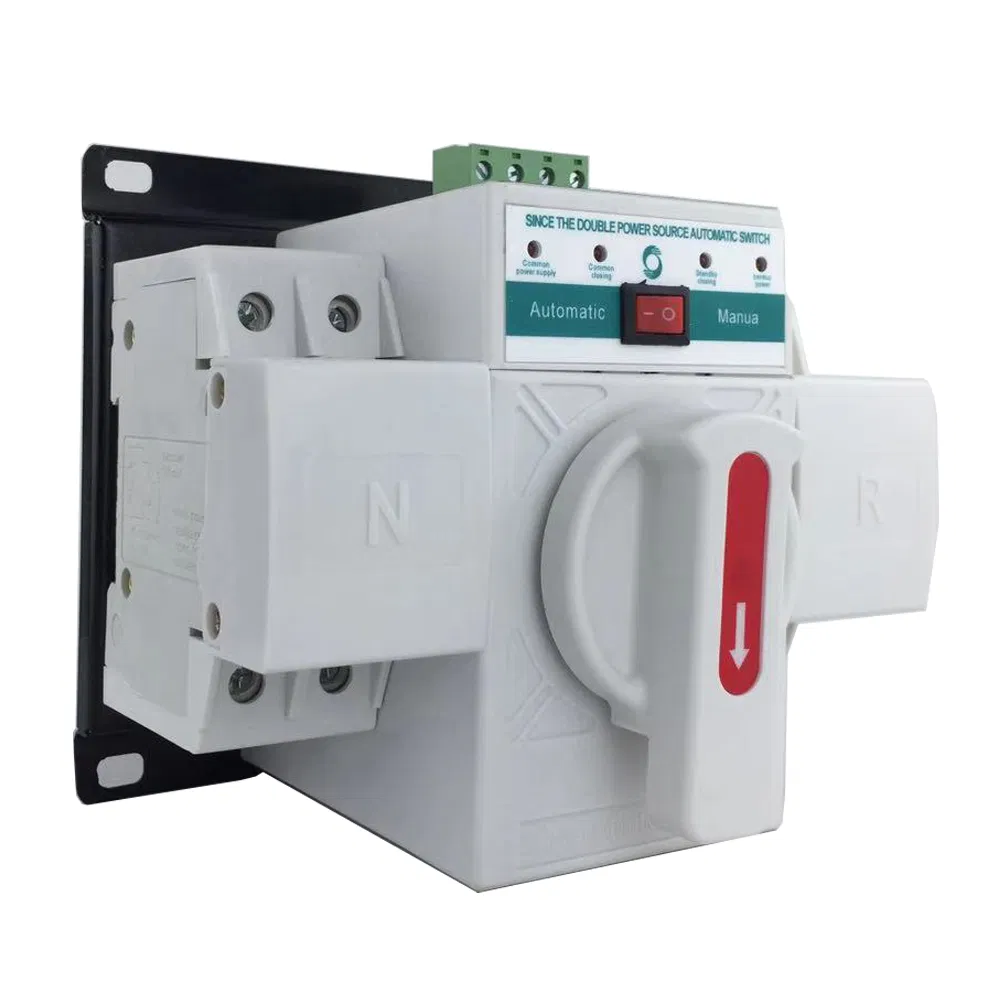

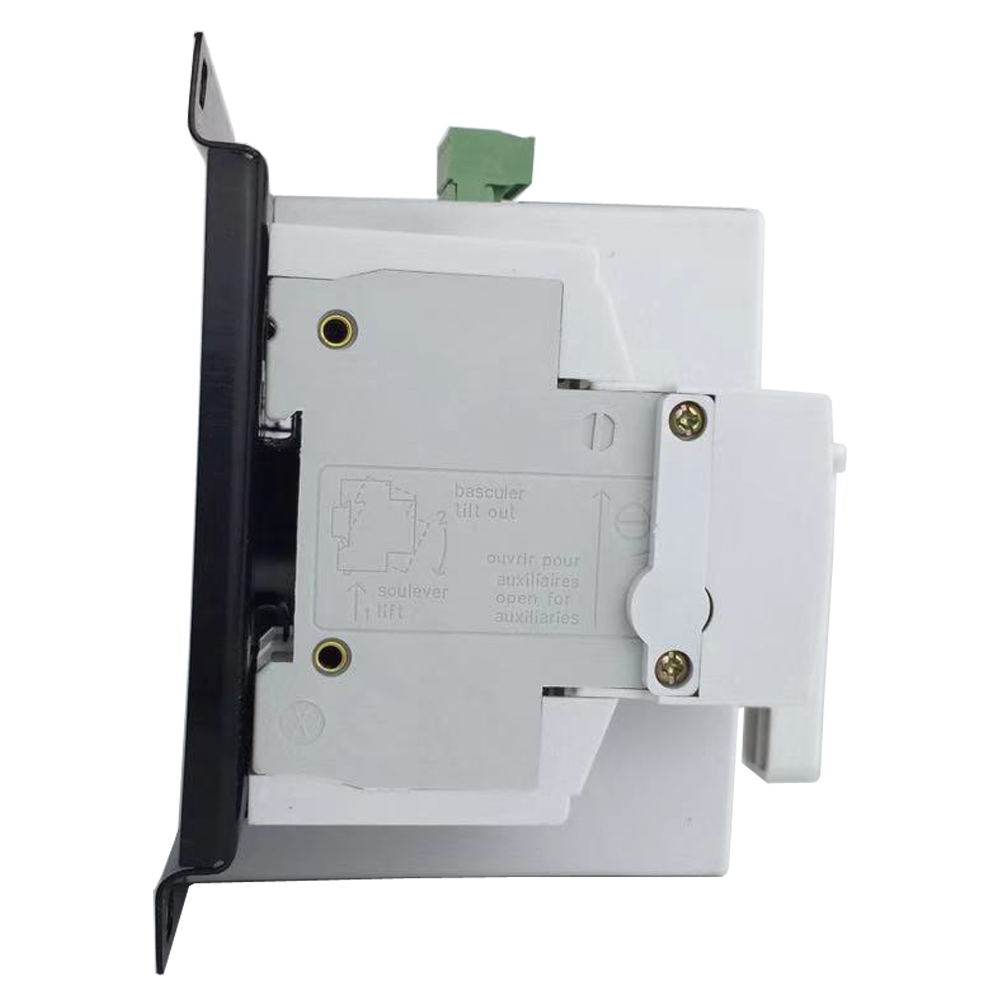

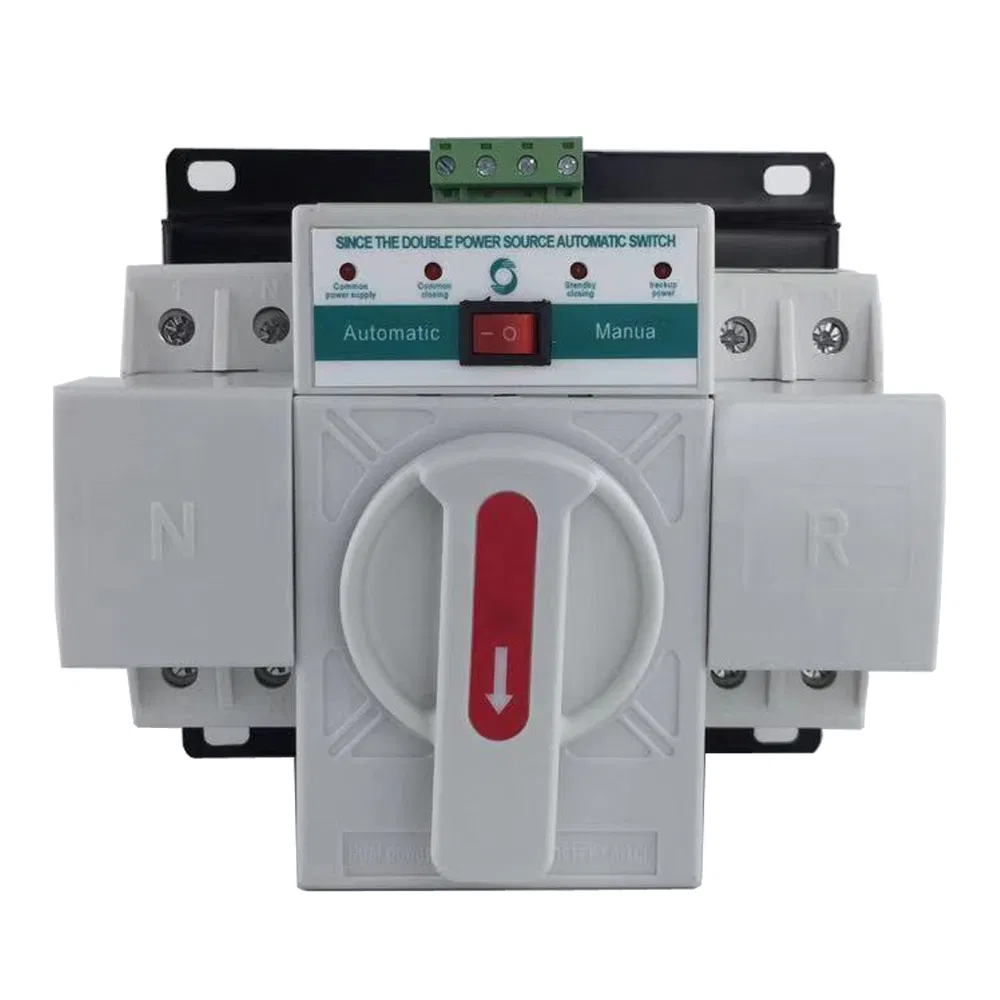

Product Gallery
Packaging & Shipping
Packaging: Standard export box package.
Delivery Time: 10-15 days for batch goods.
Transit Options: By Air or by Sea for batch goods, Airport/Port receiving.
Flexibility: Customers specifying freight forwarders or negotiable shipping methods!
Our Services
01
One to one service, with professional feedback within 24 hours.
02
Design for special packing, product printing, and logo OEM customization.
03
Active response to find immediate solutions for any issues or queries.
Frequently Asked Questions (FAQ)
What are the core features of the FTS series Automatic Transfer Switch?
The FTS series Automatic Transfer Switch features automatic and manual operating states, visual indicator lights (power, normal switch, and ready switch indicators), a compact design volume, low power consumption, and long operational life.
What ambient temperature range is suitable for this ATS?
The ambient operating temperature should remain within the range of -5ºC to +40ºC. Additionally, the daily average temperature should not exceed +35ºC for reliable functioning.
Can this Automatic Transfer Switch be installed in high-altitude areas?
Yes, the device is suitable for installation in locations where the altitude does not exceed 2000 meters above sea level.
What are the electrical parameters of the CB Class switch?
It supports output voltages of 110V, 220V, 380V, and 440V, works with a frequency of 50Hz, has a rated current of 63A, and outputs power exceeding 500W.
What international quality standards does the switch comply with?
The product complies with IEC60947-3 and GB14048.3 standards, and holds CE, CCC, TUV, and ISO9001 certifications.
What is the expected service life and durability of this device?
Thanks to its robust design and superior electromagnetic compatibility, the device features a service life reaching above 8,000 switching operations.
