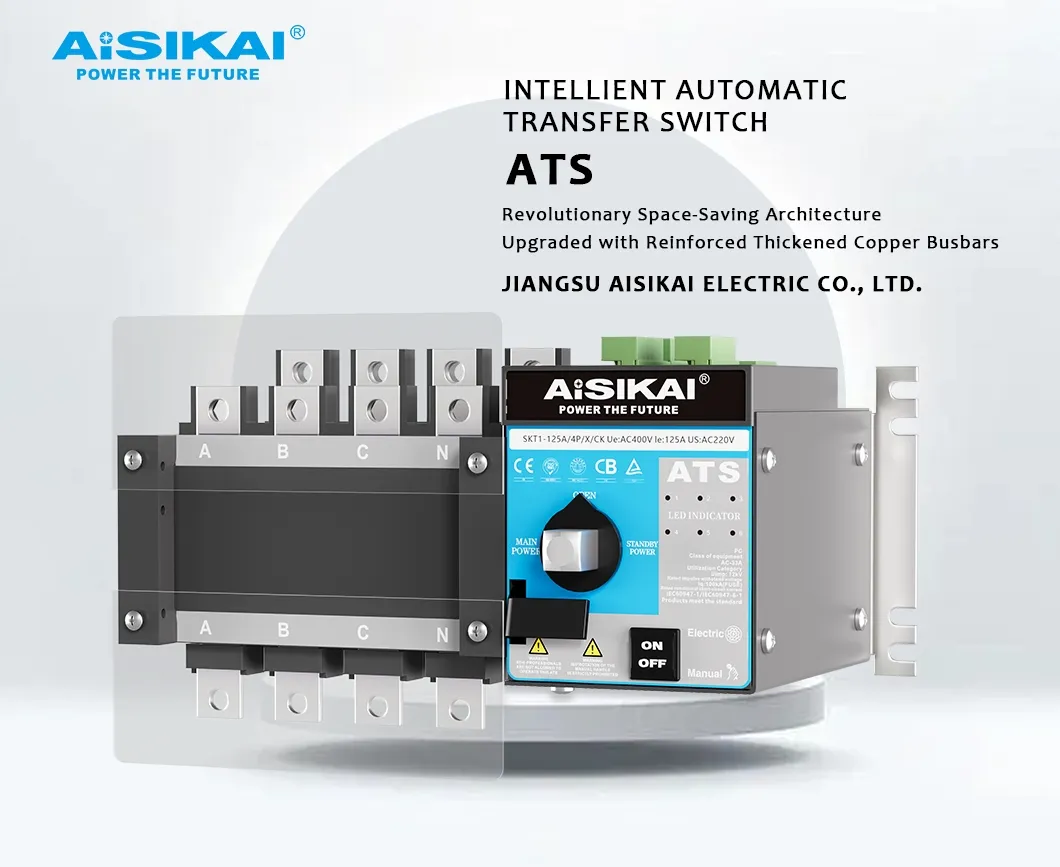

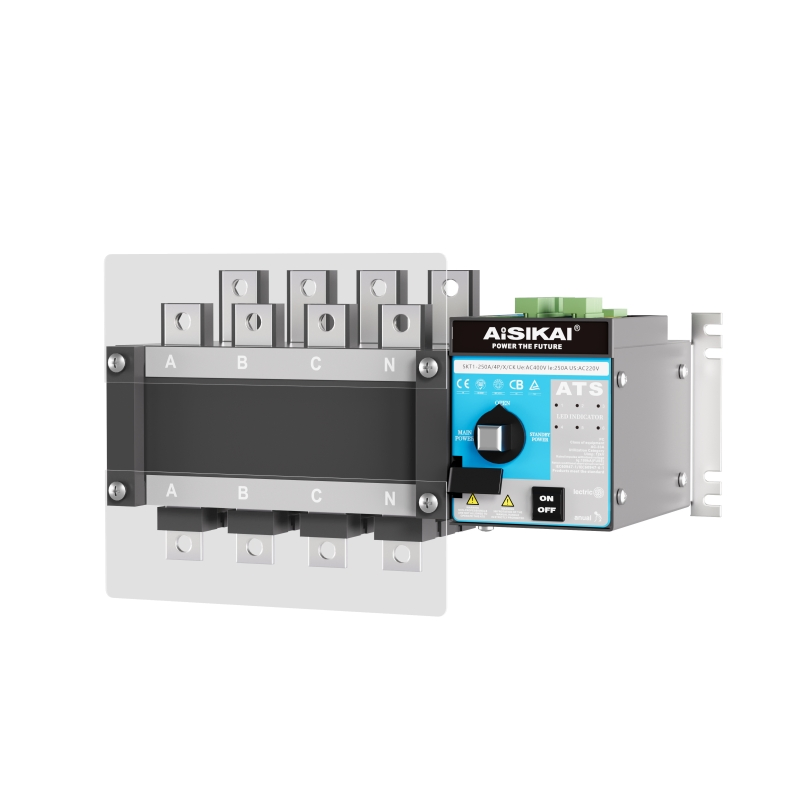

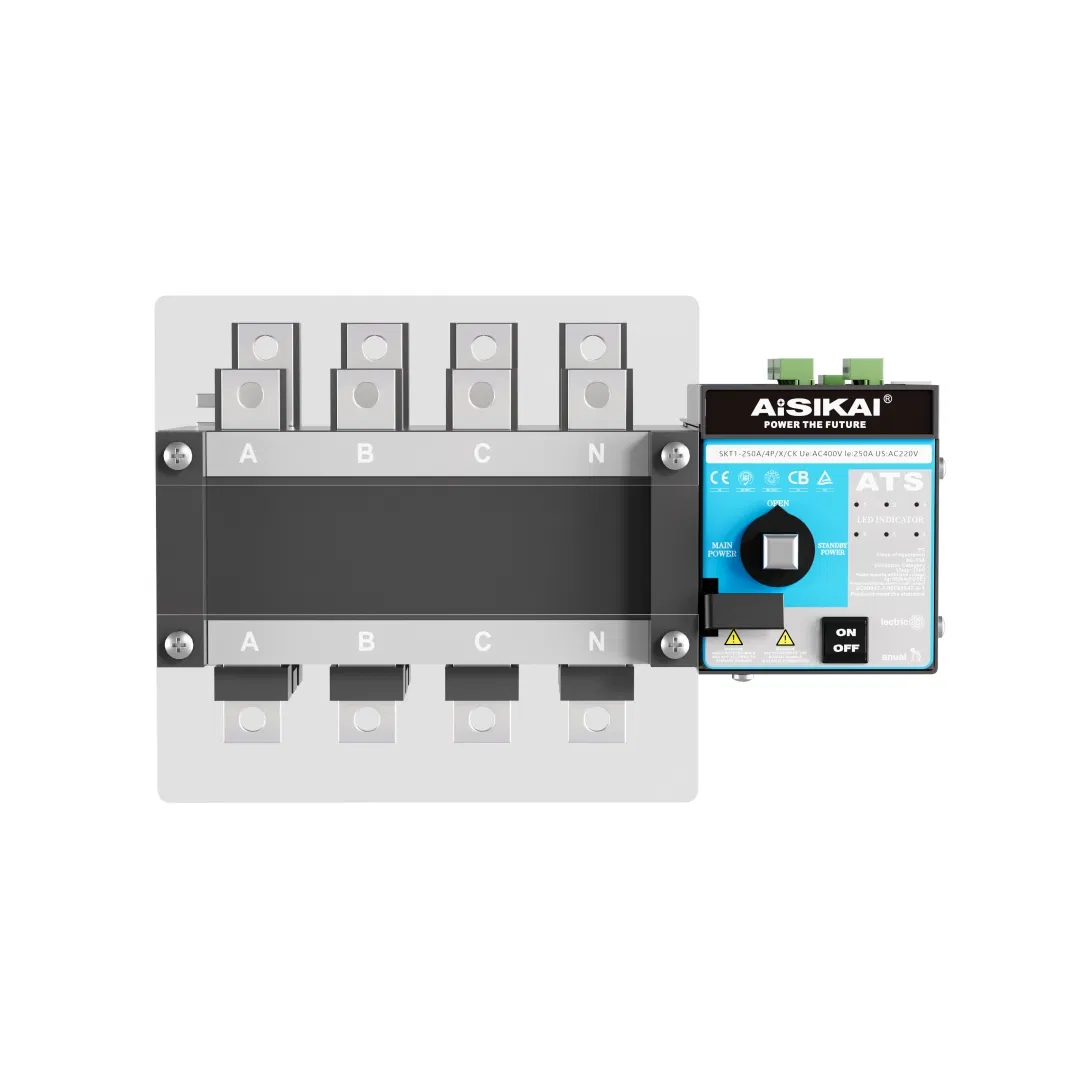

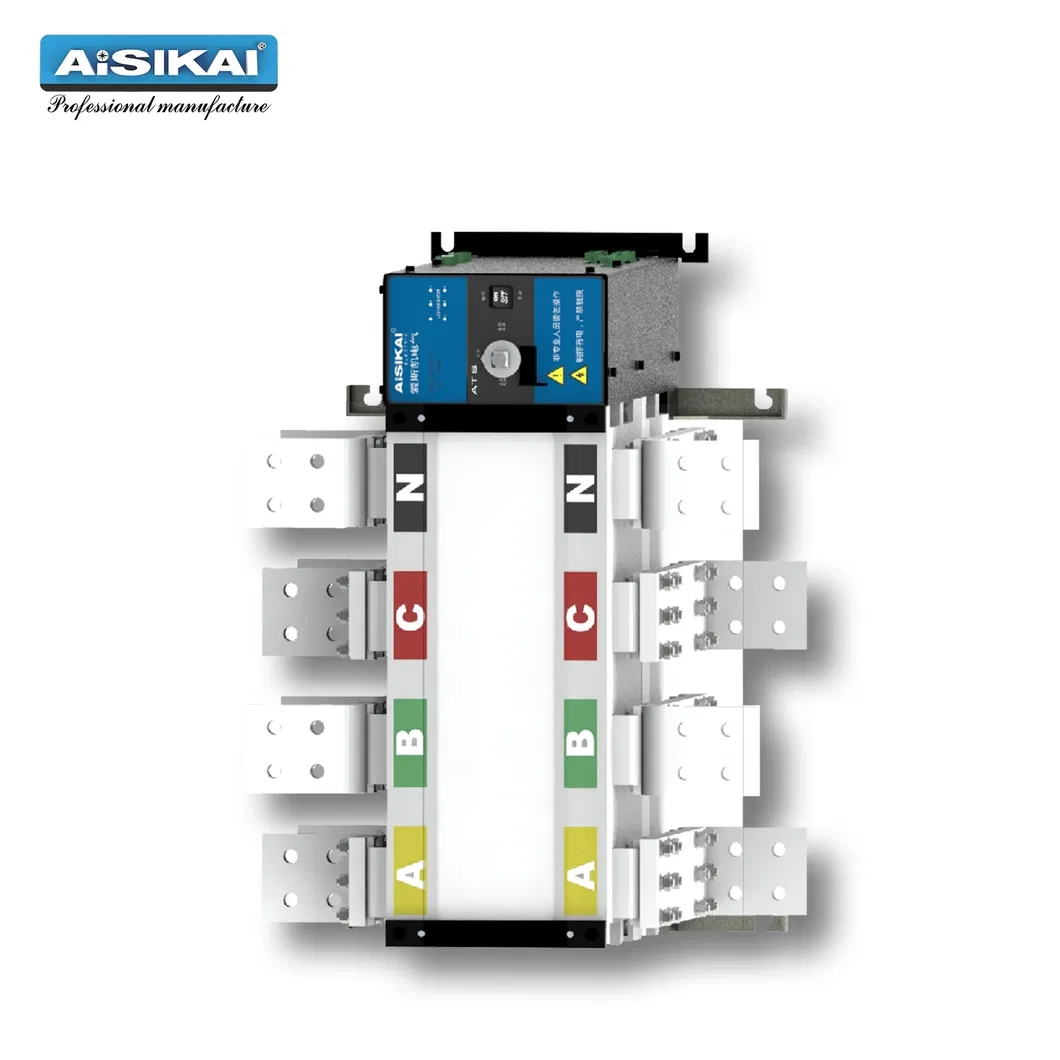

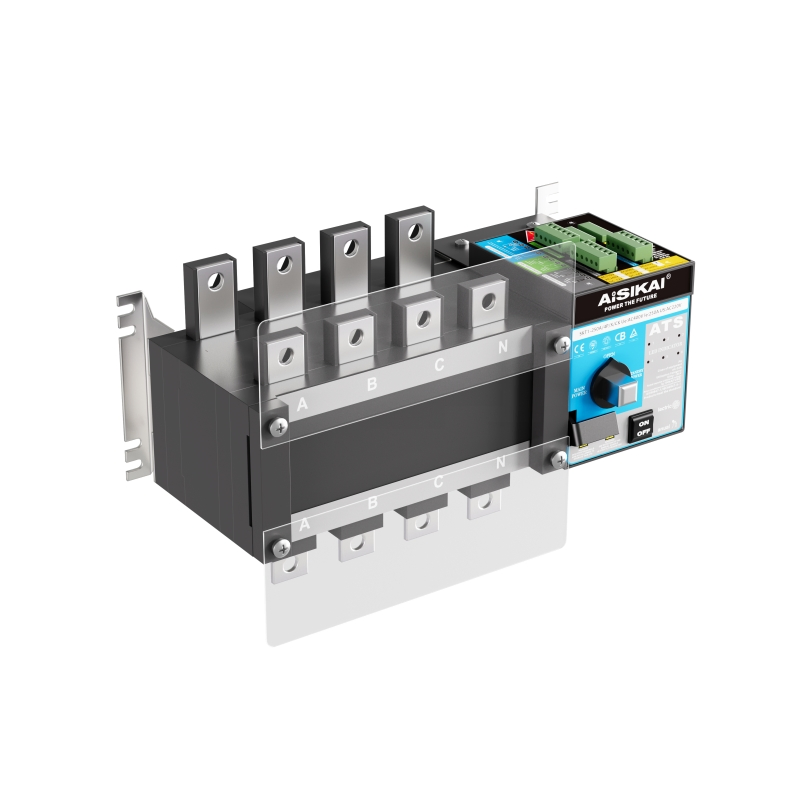

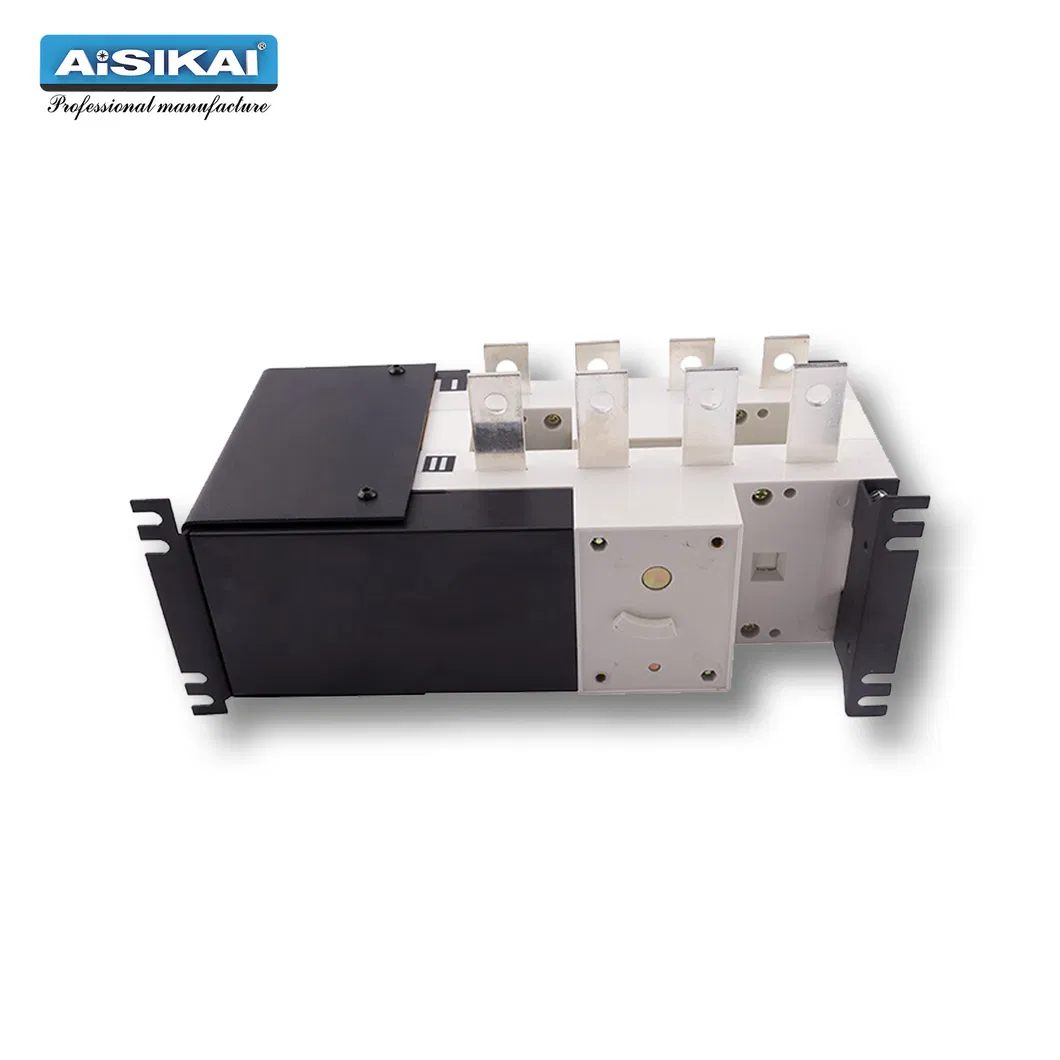

3p/4p 63A 100A 400A 800A Generator Changeover Automatic Transfer Switch ATS

1 / 5

3p/4p 63A 100A 400A 800A Generator Changeover Automatic Transfer Switch ATS

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview
Product Description

Basic Info.

Model NO. 250A ATS

Operation Electric/Handle

Certification CCC, CE, ISO9001

Type Integrated automatic transfer switch

Poles 3/4 P

Output type Single

Brand Name Aisikai

Class PC Class

Number of Pole 3/4

Product Name Dual Power Automatic Transfer Switch ATS

Insulation Voltage AC 690V

Rated Voltage AC 400V

Catagory AC-33A

Transport Package Standard Carton

Specification 250A

Trademark AISIKAI

Origin China

HS Code 8536500000

Production Capacity 5000 PCS / Month

Packaging & Delivery

Package Size 39.00cm * 23.50cm * 21.50cm

Package Gross Weight 9.000kg

Product Description

AISIKAI AUTOMATIC TRANSFER SWITCH Main Technical Parameters
Conventional thermal current Ith	250A
Copper rated insulation voltage Ui	1000V
Rated impulse withstand voltage Uimp	12KV
Copper rated working voltage Ue	AC440V
Copper rated working current Ie	250A
Rated connection capacity	10Ie
Rated breaking capacity	10Ie
Rated limited short circuit current	Fuse for protection / circuit breaker for protection (100KA / 50KA)
Transfer time I-II	0.45S
Control voltage of the switch motor Us	DC24V AC220V AC280V
Start / Normal	88W
Use category	AC-33A

AISIKAI Automatic Transfer Switch consists of SKT, SKQ and ASKQ series. We provide perfect solution with product from general performance CB class to high performance PC class, from none-frequently transfer to frequently transfer.

Our product covers a wide current range from 6A to 6300A innovatively, and easily meets the various requirements of load in civil, industrial and commercial fields.

Our product is suitable for 1, 2, 3 classes of low voltage power distribution system. Our perfect feature configuration satisfies the power switching between utility-utility, utilitygenerator, generator-generator and more load's uninterruptible backup power supply.

Our product is in compliance with related IEC/GB technical standards, is manufactured according to international standards, and has obtained Chinese compulsory certificate (CCC) and European certificate (CE).

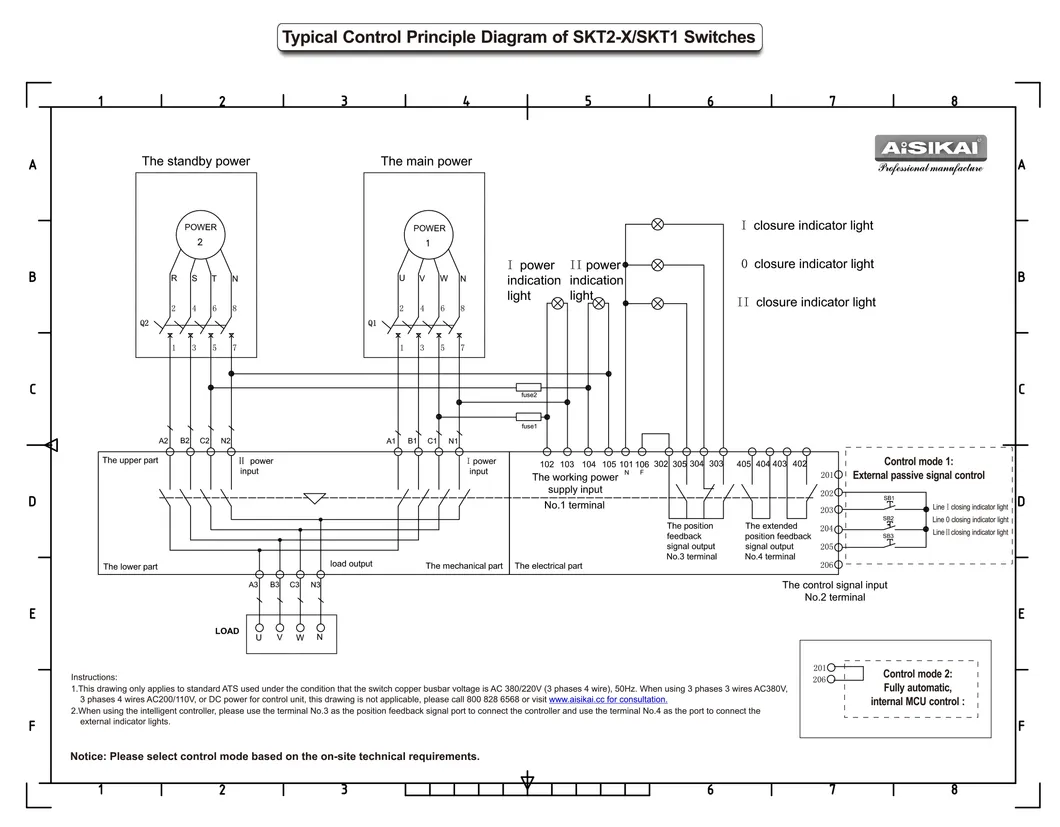

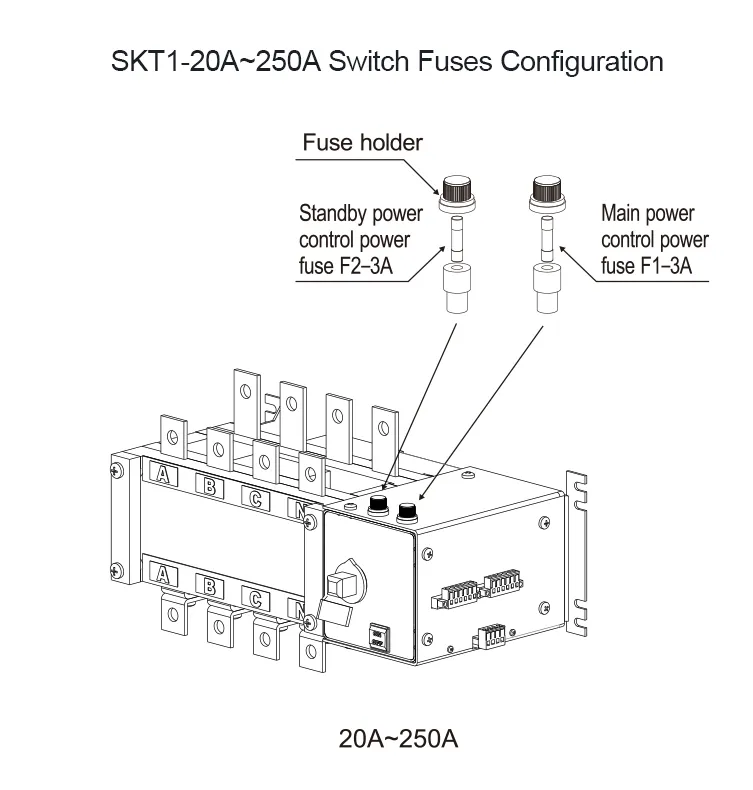

SKT series dual power automatic transfer switch is the most advanced third generation product. Its class is PC and its usage category is AC-33A frequently operate electrical transfer switch.

It's suitable to be used in 50/60Hz 10A-3200A low voltage AC power distribution system for reliable transfer between two power supplies.

It has four working modes: Automatic, Electric, Emergency Manual and Locking.

• Classify by volume

Standard type: Type 1, 20A-3200A, 5 kinds volume specification
Ultra-thin type: Type 2, 10A-100A, 1 kind volume specification
Note: Ultra-thin type is 50% smaller than the standard type.

• Classify by function

M1: Terminal type (Automatic switch and automatic recovery)
M2: Terminal type (Automatic switch but not automatic recovery with controller)
X: Fire-fighting type (fire-fighting O position)
WA: Intelligent type (fire-fighting type+ SKR2-ALED controller)
WB: Intelligent type (fire-fighting type+ SKR2-A LCD controller)
N: Intelligent type (Built-in MCU program control panel)

• Classify by poles

2P: 2 poles, 1 phase and 2 lines
3P: 3 poles, 3 phases
4P: 4 poles, 3 phases and 4 lines

Technical Parameters

AISIKAI Automatic Transfer Switch Technical Parameters
Type	SKT2 Series	SKT1 Series
Shell frame grade current (Inm)	100A	160A		250A	630A		1600A				3200A
Rated current (In)	100	125A	160	250	400	630	800	1000	1250	1600	2000	2500	3200
Conventional thermal current (Ith)	10, 16, 20, 25, 32, 40, 50, 63, 80, 100A	63, 80, 100, 124, 140, 150, 160A		160, 180, 200, 225, 250A	160, 180, 200, 225, 250, 315, 350, 400, 500, 630A		800, 1000, 1250, 1600A				2000, 2500, 3200A
Rated insulation voltage of copper bar (Ui)	660V						800V
Rated impulse withstand voltage (Uimp)	6KV						8KV
Rated operating voltage of copper bar (Ue)	AC400V
Use category	AC-33A
Rated operating current of copper bar (Ie)	10, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 140, 150, 160, 180, 200, 220, 250, 315, 35, 400, 500, 630						800, 1000, 1250, 1600, 2000, 2500, 3000
Rated making capacity	10Ie
Rated breaking capacity	10Ie
Rated limit short-circuit current	7KA	13KA		35KA			50KA				75KA
Transferring time I-II or II-I	1.2S				0.6S		1.2S				2.4S
Rated operating voltage of control power Us	AC220V (Special voltage DC24V, DC110V, DC220V, AC110V, AC280V)
Start	40W				325W		355W		400W	440W	600W
Normal	18W				62W		74W		90W	98W	120W
Net weight (kg) 4 poles	3.5	5.3	5.5	7	17	17.5	37			44	98

AISIKAI Automatic Transfer Switch Performance

1. Double complex contact, horizontal and vertical type frame basically, it have come to "Zero" arc (no arc chute);

2. Reliable machine interlock and electric interlock, the executive union parts adopt independency overload disconnect switch, making it more reliable and safe.

3. "Zero" technique, can force to set "zero" under emergency situation (break off two ways power supply at the same time). Meet the requirement of the fire protection linkage.

4. Operate overload disconnect switch change over adopt single electromotor drive, switch over smooth and reliable, no noise, little wallop.

5. Operate machine drive motor use only under the executive overload disconnect switch change over instantaneous current across, outstanding energy saving.

6. Perform overload disconnect switch with mechanism interlock device. It ensures the common use, standby power working reliable and not interference.

7. Distinct on and off position indicator, padlock function etc. safely realize the isolation between electric power and overload.

8. High security, high automation, high reliability, use life more than 8000 times.

Normal Working Conditions and Installation Methods

Category	Requirements
Temperature	-5ºC- +40ºC, 24H average not more than +35ºC
Humidity	In the +40ºC conditions, the average humidity not more than 50%, no condensing
Altitude	<2000m, if used at higher than 2000 meters, please use the product at lower ratings
Vibration and gas	Free of strong vibration and impact, harmful gases leading to corrosion against metals and damage to insulation
Surrounding material	Free of thick dust, conductive particles and explosive material
Class of pollution	III
IP classification	IP20
Storage requirements	Stored at -30ºC to 70ºC, in a dry environment without corrosion or salts and the longest period of storage shall be no more than 1 year
Installation	Vertically or horizontally
Wiring	The standard type is suitable for upper-in and lower-out wiring. Do not wire reversely. The type for lower-in and upper-out wiring can be customized.

Fast Reading Diagram For Cabinet Body Installation

Current (A)	Switch Lmax (mm)	Switch Wmax (mm)	Switch Hmax (mm)	Recommended cabinet LWH (mm)	Compact cabinet LWH (mm)
10~100	290	195	142	500 X 400 X 800	500 X 250 X 600
125-160	290	195	142
250	359	195	170
400-630	433	262	270	600 X 500 X 1800	550 X 450 X 1600
800-1250	633	321	350	800 X 600 X 2000	720 X 600 X 1800
1600	633	321	407	800 X 600 X 2200	720 X 600 X 2000
2000-3200	633	500	470	800 X 800 X 2200	720 X 800 X 2000

Cabinet Installation Notes:

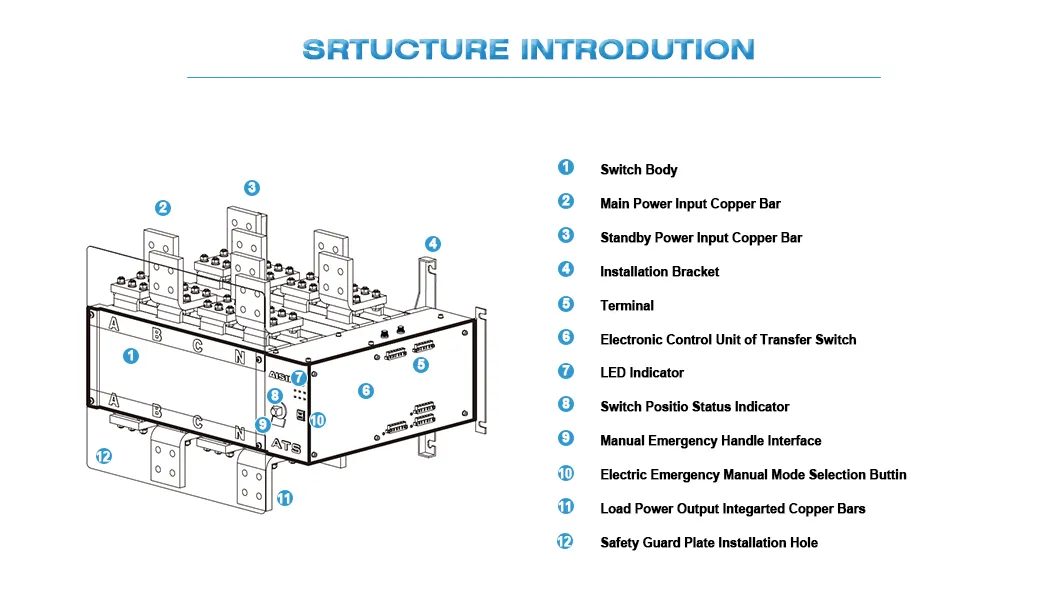

Switch maximum length (Lmax) is the distance from the left elevation of the left installation bracket to the right installation bracket.
Switch maximum width (Wmax) is the distance from the rear elevation of the installation bracket to the front elevation of the manual emergency handle interface.
Switch maximum height (Hmax) is the distance from the top elevation of the upper copper bar to the bottom elevation of the bottom copper bar.
For the cabinet height, please consider the actual situation of the space required for the operation and connection of the cables.

Frequently Asked Questions

How could I get a sample?

Before we received the first order, please afford the sample cost and express fee. AISIKAI will return the sample cost back to you within your first order.

What is the sample lead time?

For existing items: Within 3 days.

Can you print our brand on your products?

Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

What is the MOQ and delivery time?

1pcs for ATS. Normally less than 1000A ATS are in stock for quick support.

How do you guarantee the quality of your products?

1) Strict detection during production one by one.
2) Strict inspection on products one by one before shipment and intact product packaging ensured.
