Product Description

Overview
Product Description
Packaging & Shipping
Our Services
Production Gallery

■ Basic Info.

Model NO.

SAQ3-100

Certification

CCC, CE, ISO9001

Type

Dual Power Automatic Switch

Poles

Output type

Dual

Input Voltage

380V

Output Power

1 - 50W

Starting Mode

Self-Excited Switching Power Supply

Power Supplying System

Level 1 Power Distribution Equipment

Rated Insulation Voltage (Ui)

750V/1000V

Rated Working Voltage (Ue)

AC440V

Rated Current

20A-1600A

Connection Mode

Series Switching Power Supply

Voltage Regulating Mode

Frequency Modulation Type

Transport Package

Standard Export Packing

Specification

150*138*115mm

Origin

China

HS Code

8536500090

Production Capacity

50000 Units/Years

■ Product Description

General Information

Dual Power Automatic Transfer Switching Equipment (hereinafter referred to as switch) is applicable to AC 50Hz or 60Hz, rated operating voltage 400V, rated operating current 63A or below double-loop power supply system. It manages the conversion with selectivity between the two-way power supplies according to operation requirements. The product is built with short circuit, overload, under-voltage, and voltage loss protection functions, as well as fire signal prep, double points, and output switching signal functionalities. It is especially suitable for installation in fire lighting circuits in office buildings, shopping malls, banks, railway stations, hospitals, and high-rise buildings where fire protection requirements are mandatory.

Rated current (Ith)		20A	40A	60A	80A	100A	125A	160A	250A	400A	630A	800A	1000A	1250A	1600A
Rated insulation voltage (Ui)		750V								1000V
Rated impulse withstand voltage (Uimp)		8kV								12kV
Rated working voltage (Ue)		AC440V
Rated working current(Ie)	AC-31A	20	40	63	80	100	125	160	250	400	630	800	1000	1250	1600
	AC-35A	20	40	63	80	100	125	160	250	400	630	800	1000	1000	1600
	AC-33A	20	40	63	80	100	125	160	250	400	400	630	800	800	1000
Rated connection capacity		10Ie
Rated breaking capacity		8Ie
Rated limited short circuit current (Is)		50kA								70kA				100kA	120kA
Rated short-time withstand current (Is)		7kA						9kA		13kA		26kA		50kA
Transfer I-II or II-I		0.45s								0.6s		1.2s
Control power voltage		DC24V, 48V, 110V AC220V
Electrical consumption		-
Rated Start		300W						325W		355W		400W	440W
frequency Normal		55W						62W		74W		90W	98W
Weight(kg) 4 pole		7.0	7.2	7.2	7.2	7.5	7.5	8.8	9.0	16.5	17	32	36	40	43

20A~1600A Installation Dimensions

Specification	Total size							Switch installation											Connection terminal
Specification	A	A1	B	B1	C	E	G	H	J	K	L	N	O	P	R	S	T	U	V	ΦX	Y	Y1	Z
20A	279	243	106	103	169	145	115	19	229	85	7	76	153	30	14	18	2.5	103	20	6	41	94	3
40A	279	243	106	103	169	145	115	19	229	85	7	76	153	30	14	18	2.5	103	20	6	41	94	3
63A	279	243	106	103	169	145	115	19	229	85	7	76	153	30	14	18	2.5	103	12	6	41	94	3
80A	279	243	106	103	169	145	115	19	229	85	7	76	153	30	14	18	2.5	103	12	6	41	94	3
100A	279	243	106	103	169	145	115	19	229	85	7	76	153	30	14	18	2.5	103	12	6	41	94	3
125A	322	300	135	128	230	189	115	10	284	102	7	91	190	36	20	25	3.5	127	18	9	55	125	4
160A	322	300	135	128	230	189	115	10	284	102	7	91	190	36	20	25	3.5	127	18	9	55	125	4
250A	406	362	163	142	230	189	143	4	343	80/102	7	91	252	36	25	30	3.5	142	15	11	57	125	11
400A	552	433	234	222	230	273	189	14	416	180	9	93	323	50	40	38	5	222	18	13	83	193	19
630A	552	433	250	222	284	273	189	14	416	99/180	9	93	323	65	40	45	6	222	18	13	83	193	19
800A	760	633	328	250	284	350	443	28	613	220	11	87	526	65	60	64	8	250	31	13	109	254	54
1000A	760	633	328	250	363	350	443	28	613	220	11	87	526	120	60	64	8	250	31	13	109	254	54
1250A	760	633	336	250	363	350	443	28	613	220	11	87	526	120	80	68	8	250	21	13	110	254	54
1600A	760	633	336	250	363	350	443	28	613	220	11	87	526	120	80	68	10	250	21	13	110	255	54

■ Packaging & Shipping

Package Size	30.00cm * 20.00cm * 20.00cm
Package Gross Weight	5.000kg

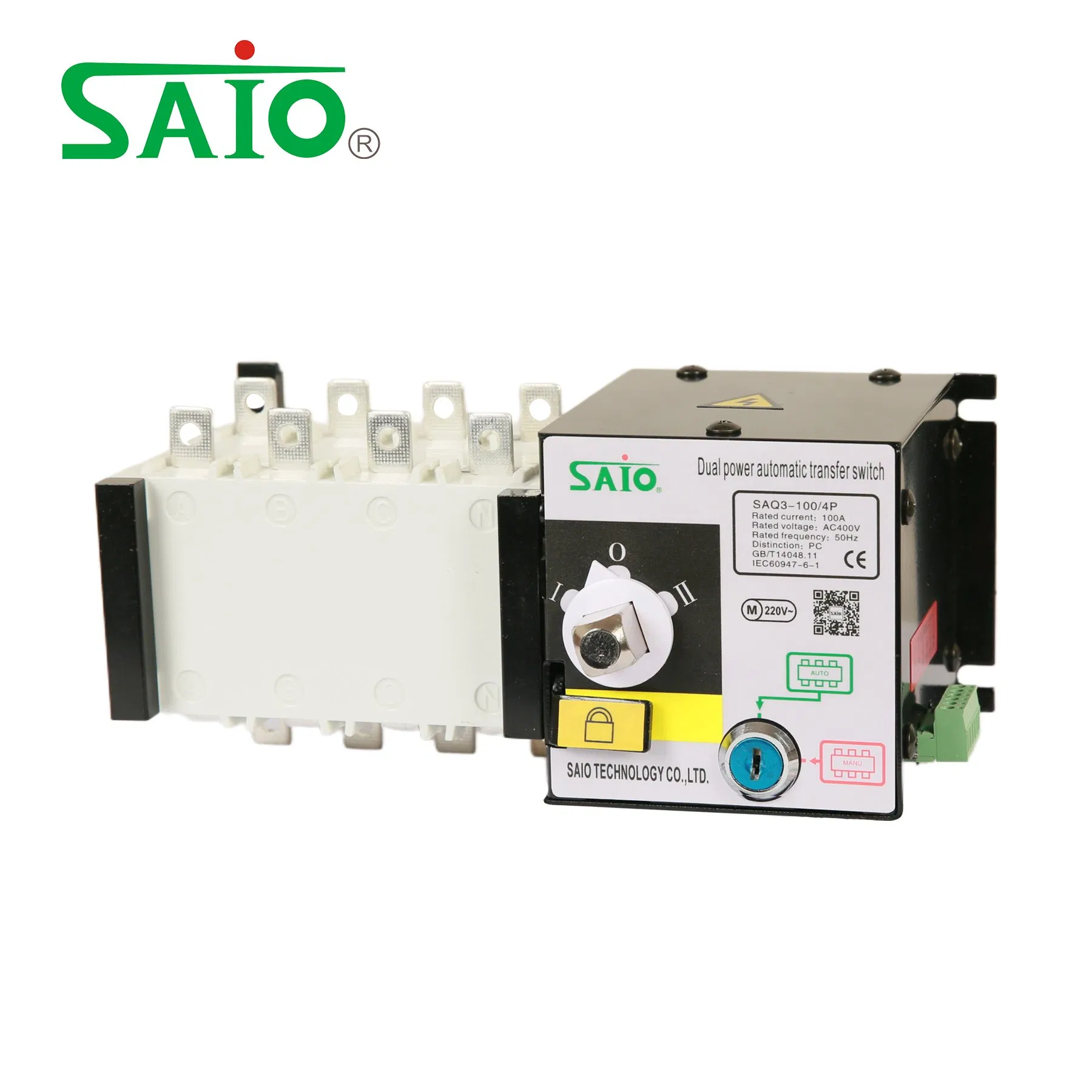

Dual Power Automatic Transfer Switch Overview

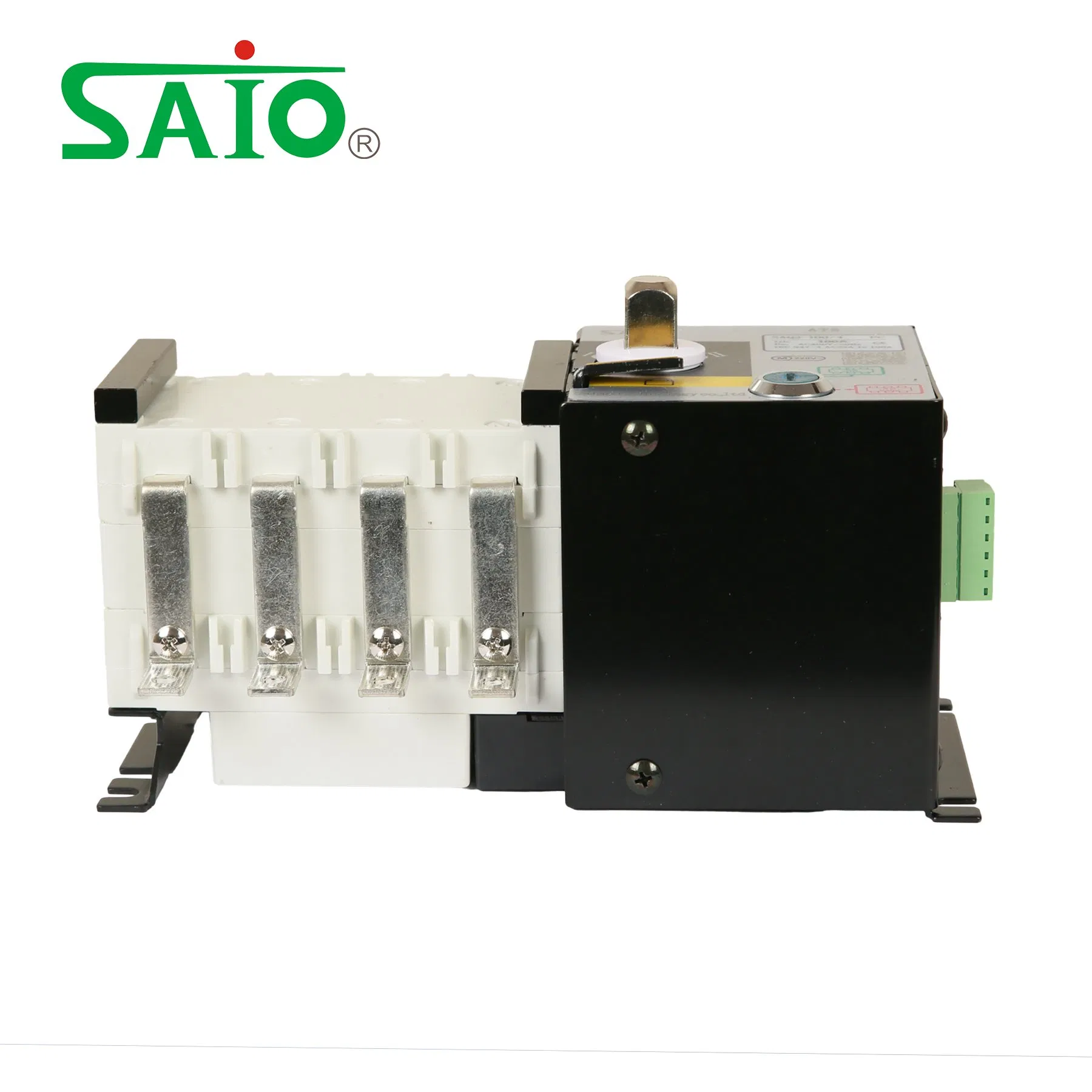

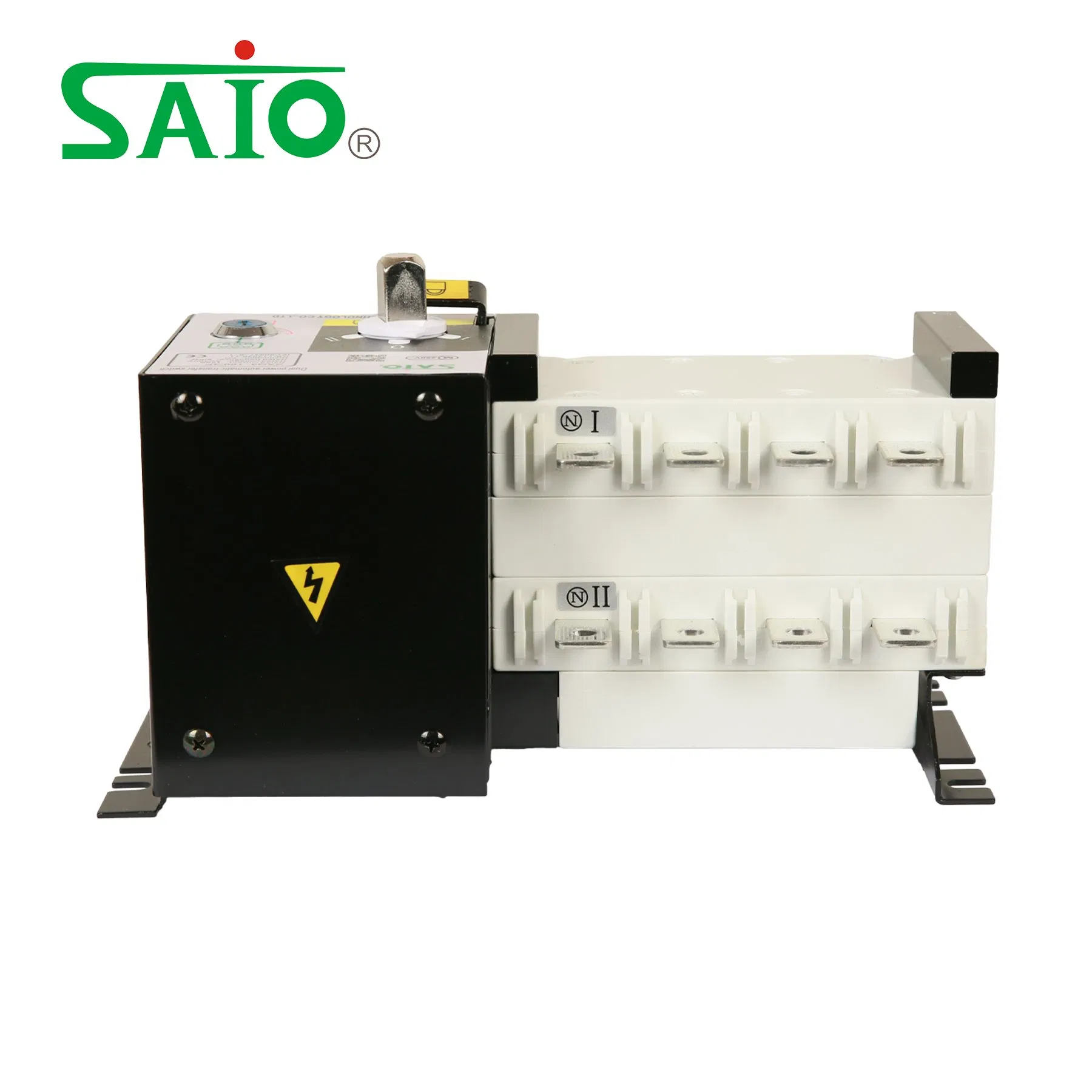

Dual Power Automatic Transfer Switch Front View

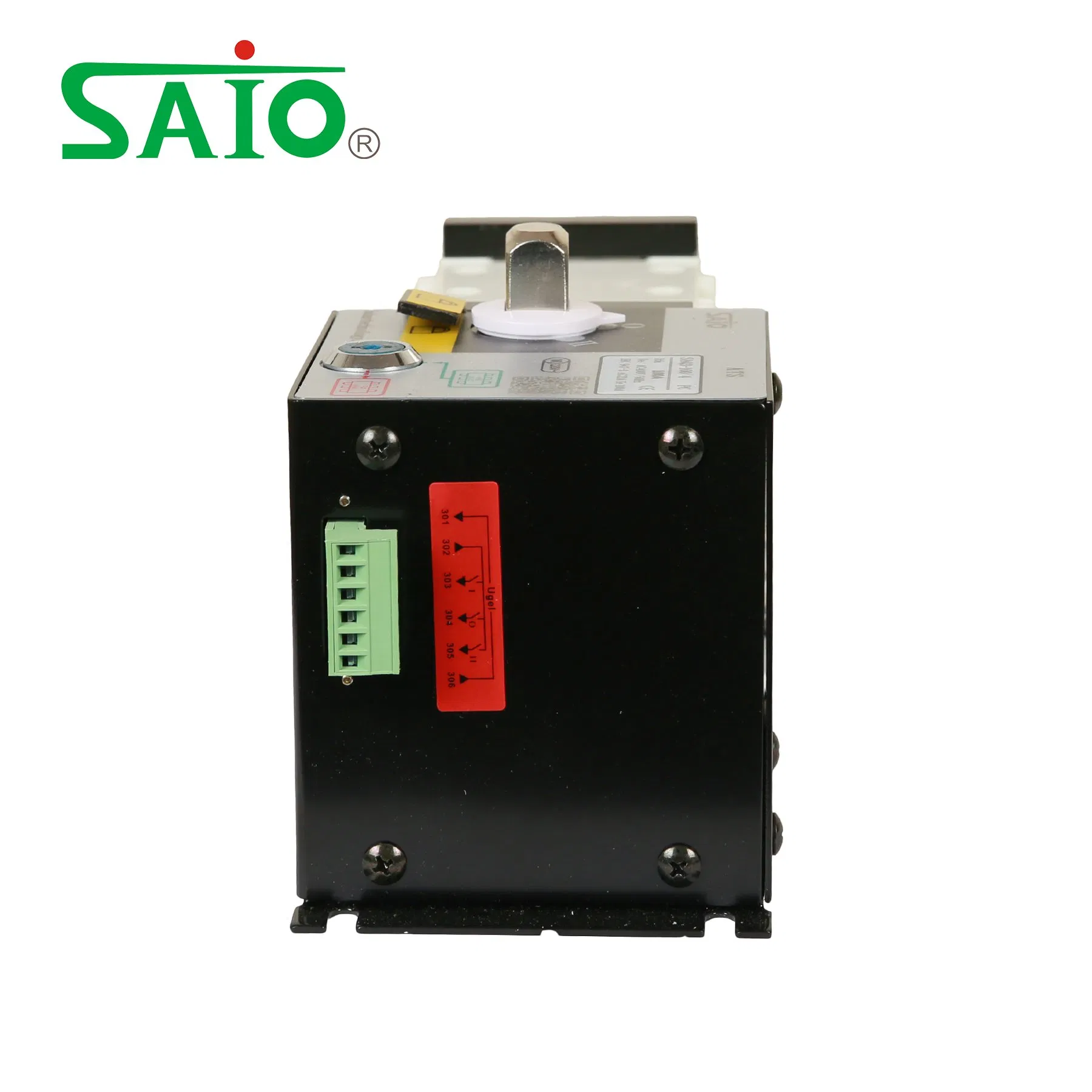

Dual Power Automatic Transfer Switch Side View

Dual Power Automatic Transfer Switch Inside Mechanism

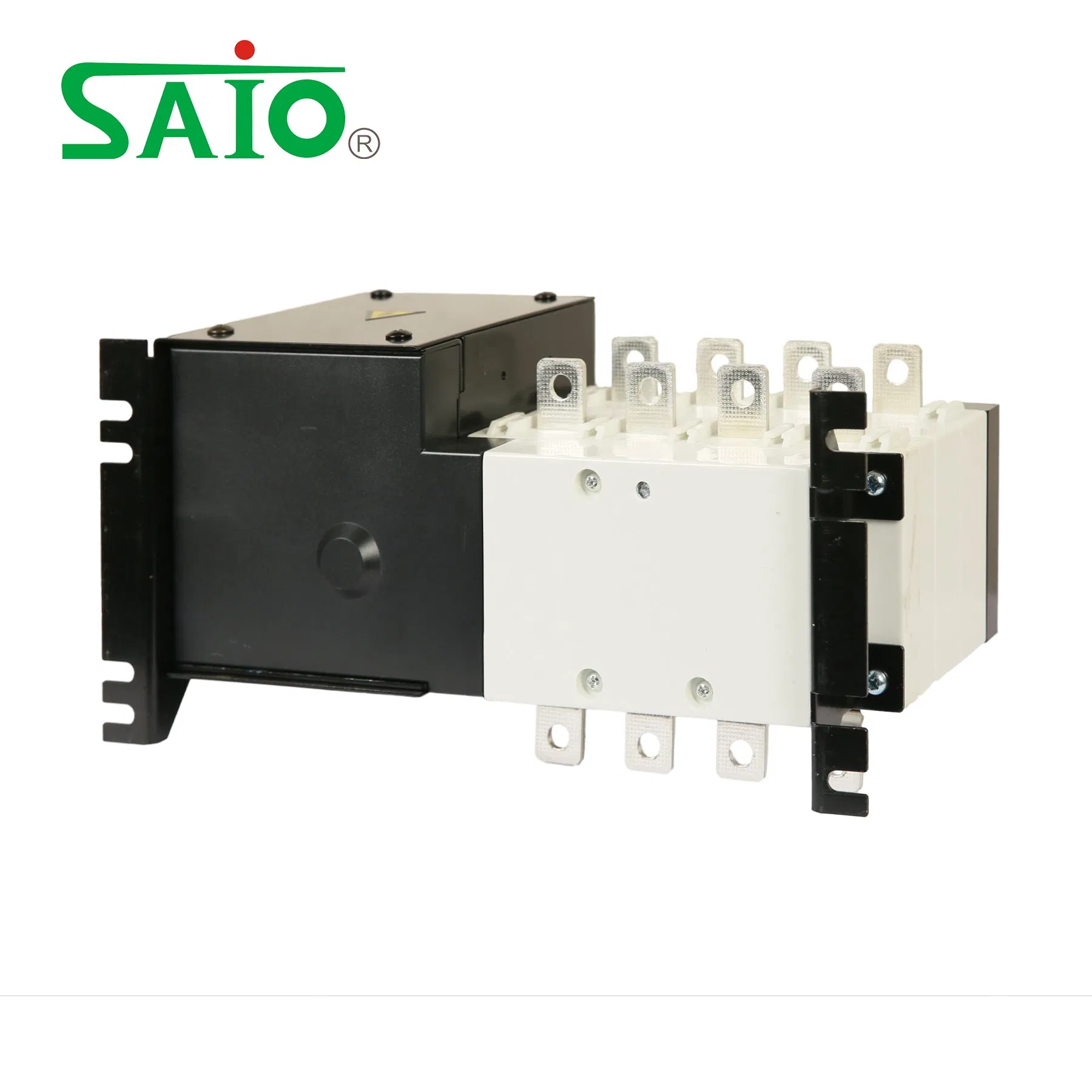

Dual Power Automatic Transfer Switch Terminals

■ Our Services

Specialized in the research and development, design, manufacturing and sales of high and low voltage electrical appliances and high and low voltage complete equipment. The products are used in all walks of life. Operating independently with advanced production and testing equipment, establishing an in-factory test station to provide reliable guarantee for the production of high-quality products.

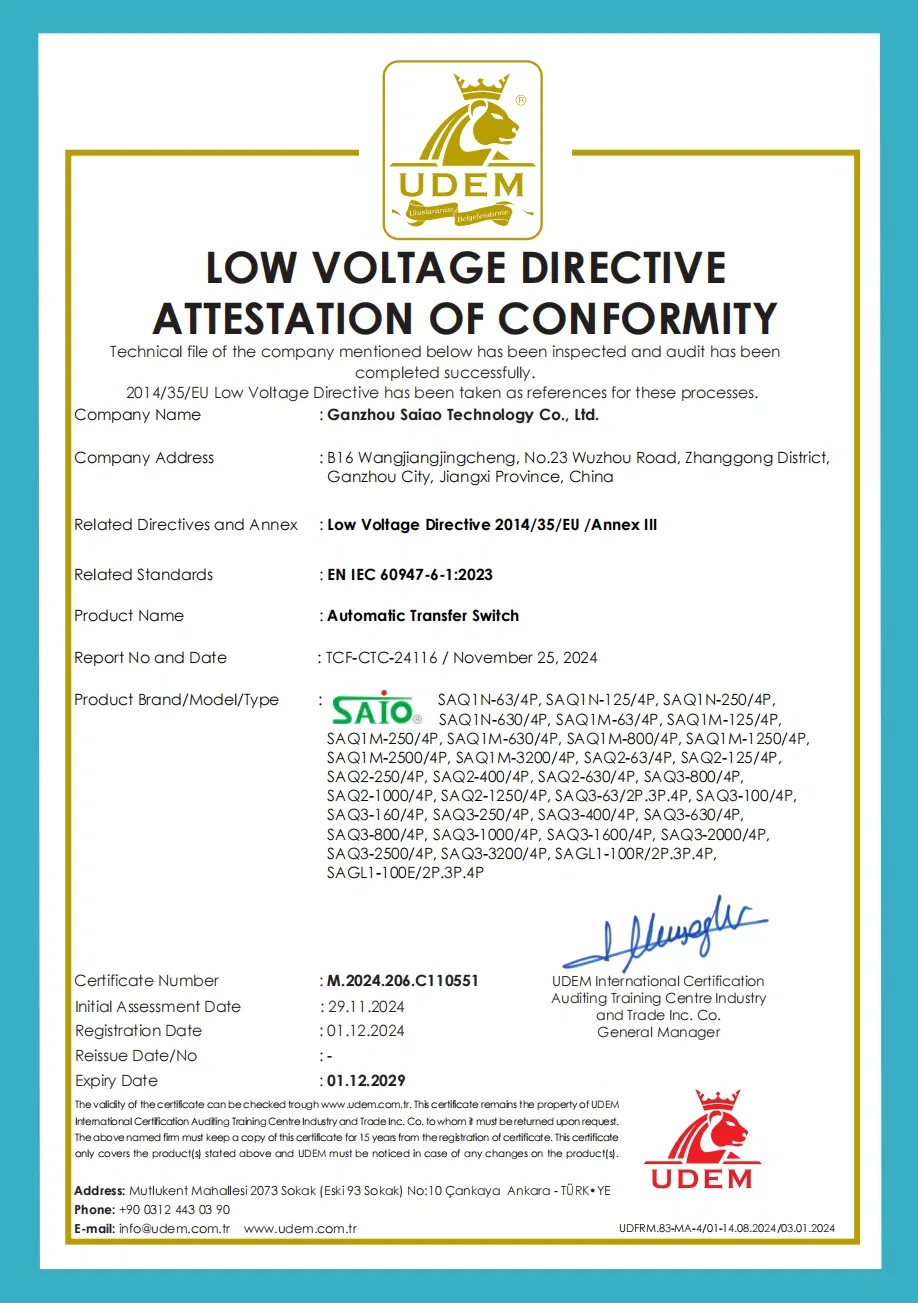

Production Standards and Certifications Flow

■ Production Gallery

Frequently Asked Questions (FAQ)

What is a Dual Power Automatic Transfer Switch (ATS)?

A Dual Power Automatic Transfer Switch (ATS) is an electrical device designed to automatically transfer a load supply between two independent power sources (primary and backup power) to ensure continuous operation of critical electrical installations in case of power outages.

What protection functions are built into this ATS?

This dual power automatic transfer switch is equipped with advanced protection capabilities including short circuit protection, overload protection, under-voltage protection, and voltage loss protection. It also features fire protection integration interfaces and output signal switching.

Where is the SAQ3-100 Dual Power Automatic Transfer Switch suitable for use?

It is highly recommended for locations requiring stringent fire safety measures, such as office buildings, commercial shopping malls, banks, train stations, hospitals, high-rise buildings, and public emergency fire lighting circuits.

What is the typical transfer time for this equipment?

The transfer time varies by specification: for models 20A to 250A it is 0.45s; for 400A to 630A it is 0.6s; and for larger industrial specifications from 800A to 1600A, the transition is completed within 1.2s.

What control power supply voltages are supported?

The ATS control power systems support multiple voltage inputs depending on the application context, including DC24V, DC48V, DC110V, and standard AC220V power configurations.
