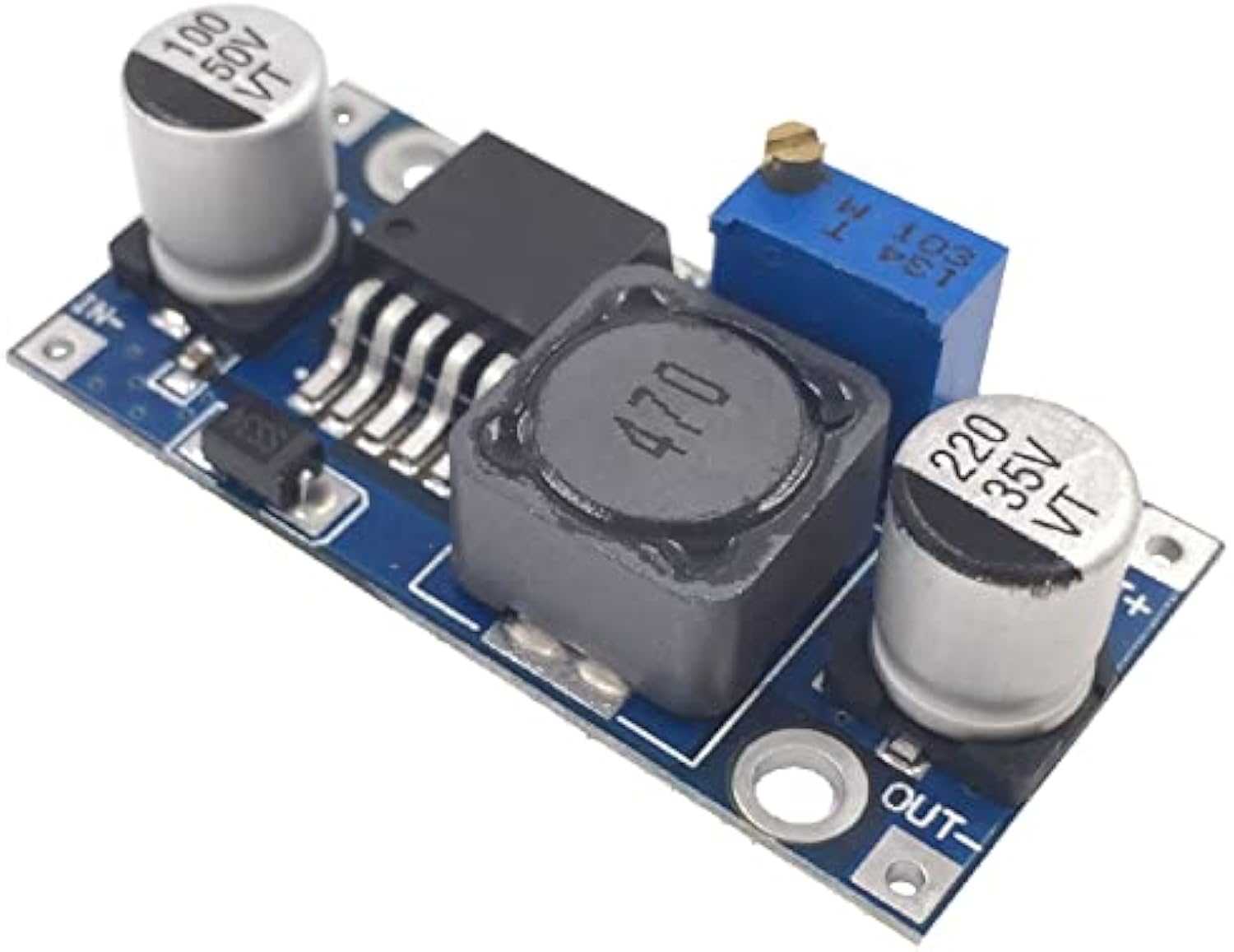

Aismartlink LM2596 DC To DC High Efficiency Voltage Regulator 3.2-35V To 1.25-30V Buck Converter Power Supply Step-Down Module
Aismartlink LM2596 DC To DC High Efficiency Voltage Regulator 3.2-35V To 1.25-30V Buck Converter Power Supply Step-Down Module
Aismartlink LM2596 DC To DC High Efficiency Voltage Regulator 3.2-35V To 1.25-30V Buck Converter Power Supply Step-Down Module
Aismartlink LM2596 DC To DC High Efficiency Voltage Regulator 3.2-35V To 1.25-30V Buck Converter Power Supply Step-Down Module
Aismartlink LM2596 DC To DC High Efficiency Voltage Regulator 3.2-35V To 1.25-30V Buck Converter Power Supply Step-Down Module
1 / 5
Aismartlink LM2596 DC To DC High Efficiency Voltage Regulator 3.2-35V To 1.25-30V Buck Converter Power Supply Step-Down Module
Aismartlink LM2596 DC To DC High Efficiency Voltage Regulator 3.2-35V To 1.25-30V Buck Converter Power Supply Step-Down Module
Aismartlink LM2596 DC To DC High Efficiency Voltage Regulator 3.2-35V To 1.25-30V Buck Converter Power Supply Step-Down Module
Aismartlink LM2596 DC To DC High Efficiency Voltage Regulator 3.2-35V To 1.25-30V Buck Converter Power Supply Step-Down Module
Aismartlink LM2596 DC To DC High Efficiency Voltage Regulator 3.2-35V To 1.25-30V Buck Converter Power Supply Step-Down Module

Aismartlink LM2596 DC To DC High Efficiency Voltage Regulator 3.2-35V To 1.25-30V Buck Converter Power Supply Step-Down Module

Send Inquiry

Product Description

Power Supply Step-Down Module

Product Specifications
Brand SMARTLINK
Model number Power Supply Step-Down Module
Key Features
  • High Precision: The buck converter consists of 36u thickened circuit boards, high-Q inductance with output LED indicator, and superior solid-state capacitors that can effectively filter out high frequency noise. Suitable for various electronic projects.
  • Input Voltage: DC 3.2V to 35V (input voltage must be 1.5V higher than the output voltage, no boost).
  • Output Voltage: DC 1.25V to 30V voltage is continuously adjustable, maximum output current is 3A.

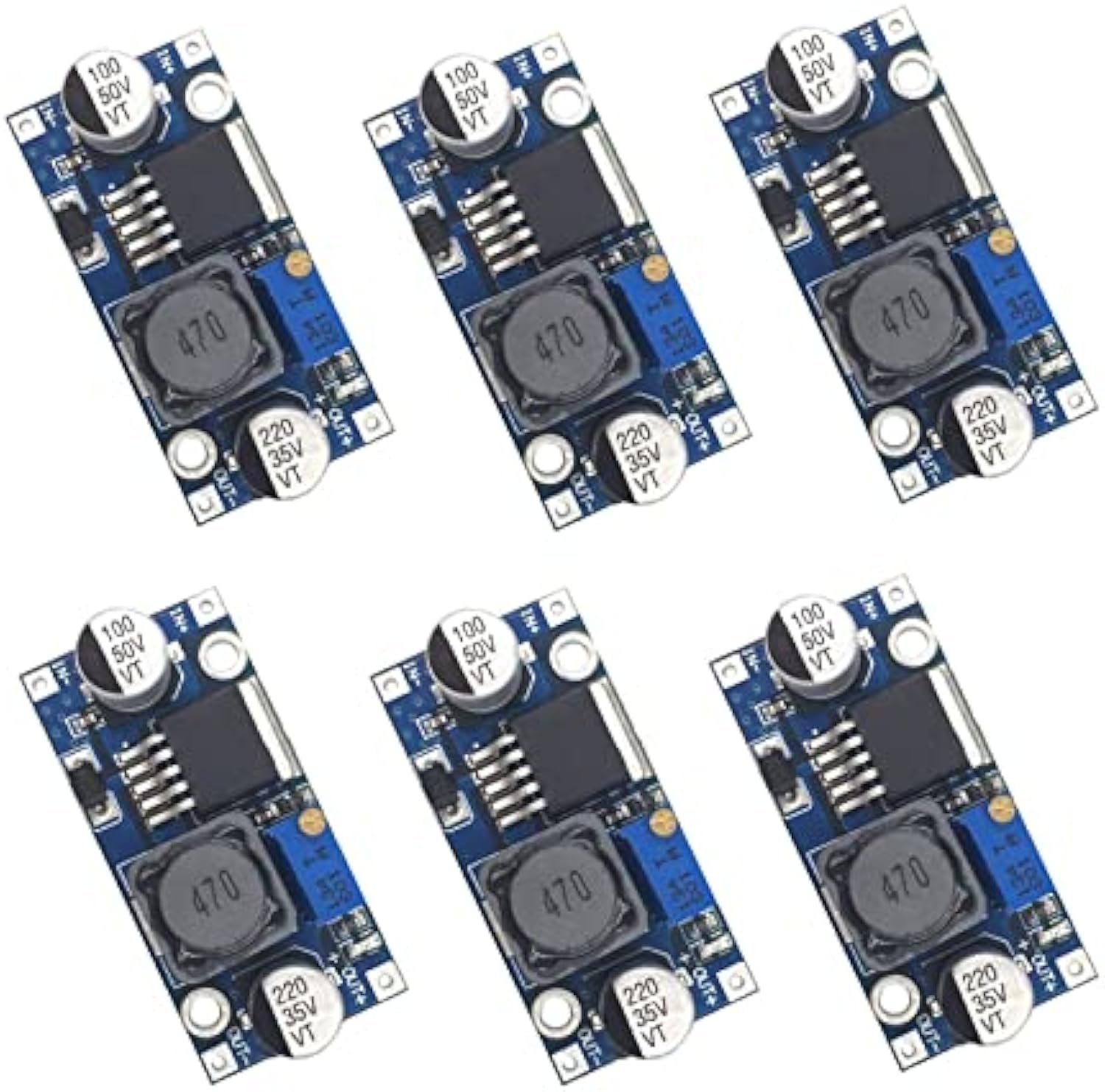

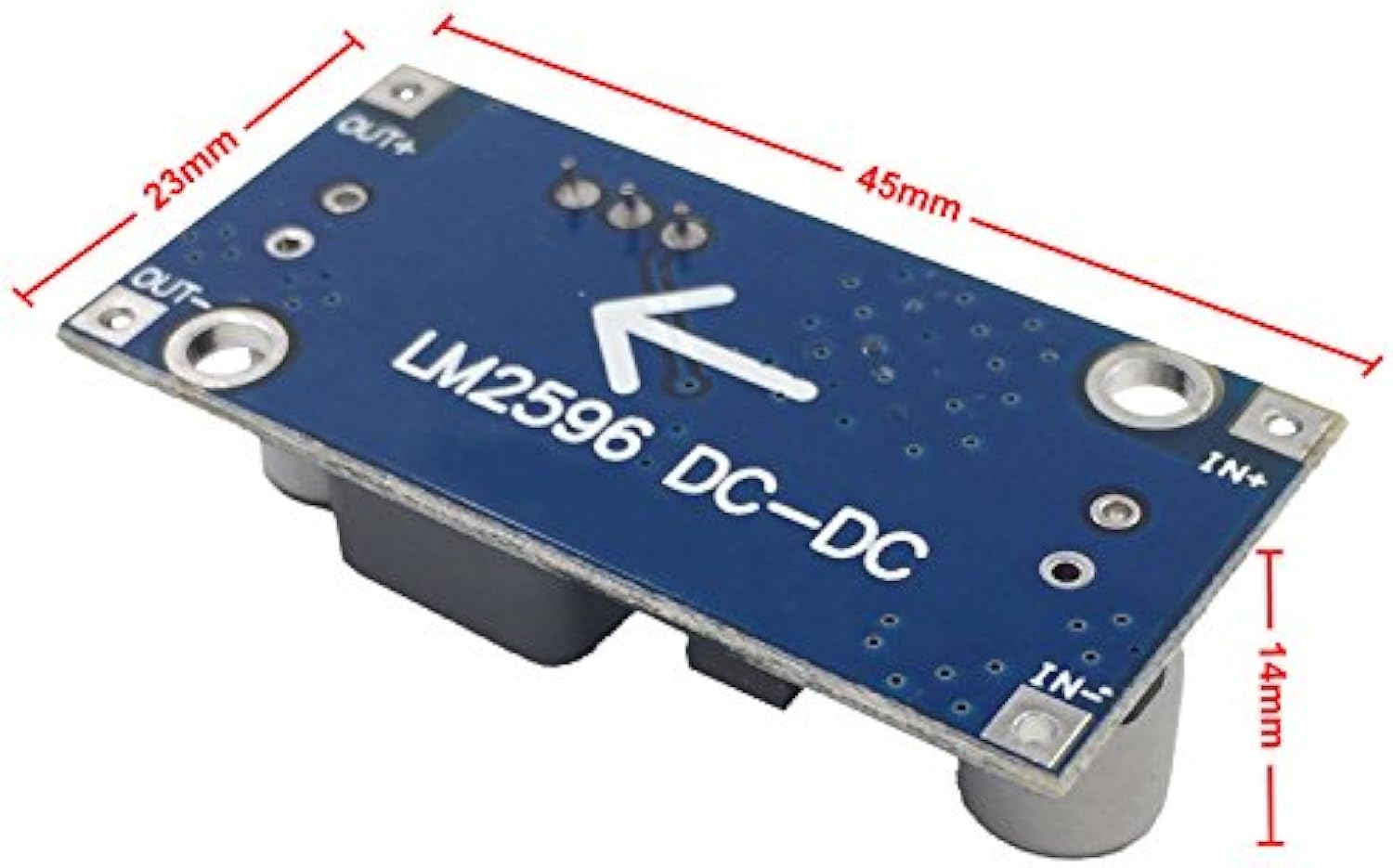

  • Mini Size: 45 * 23 * 14 mm (with potentiometer). 6pcs included.

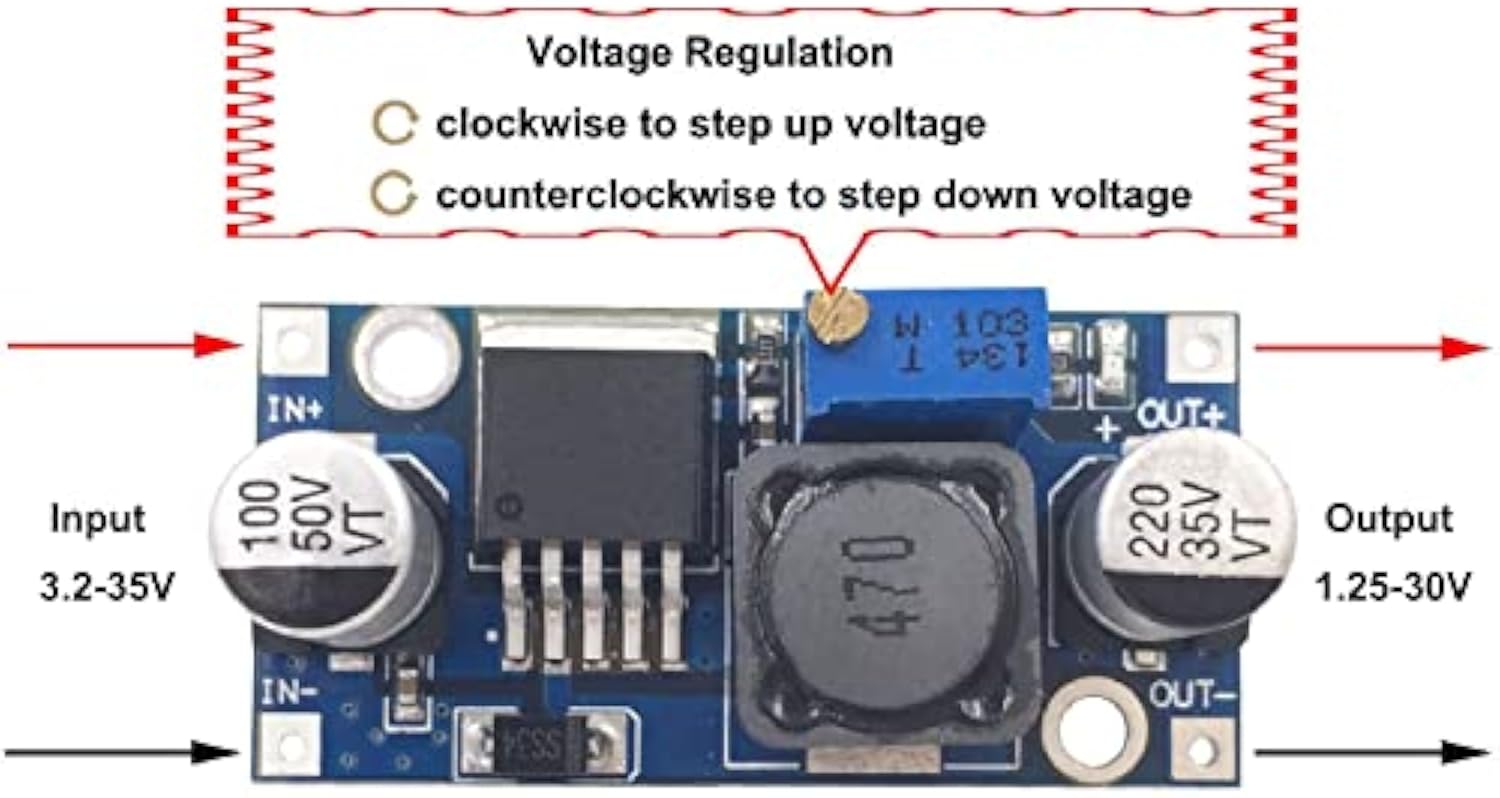

  • Easy to DIY: Connect to power source, using a mini screwdriver to increase or decrease output voltage by adjusting the screw on the blue potentiometer and monitor voltage with multimeter to get the needed voltage. Clockwise to step up voltage and counterclockwise to step-down voltage.
Product Gallery
Product View 1
Product View 2

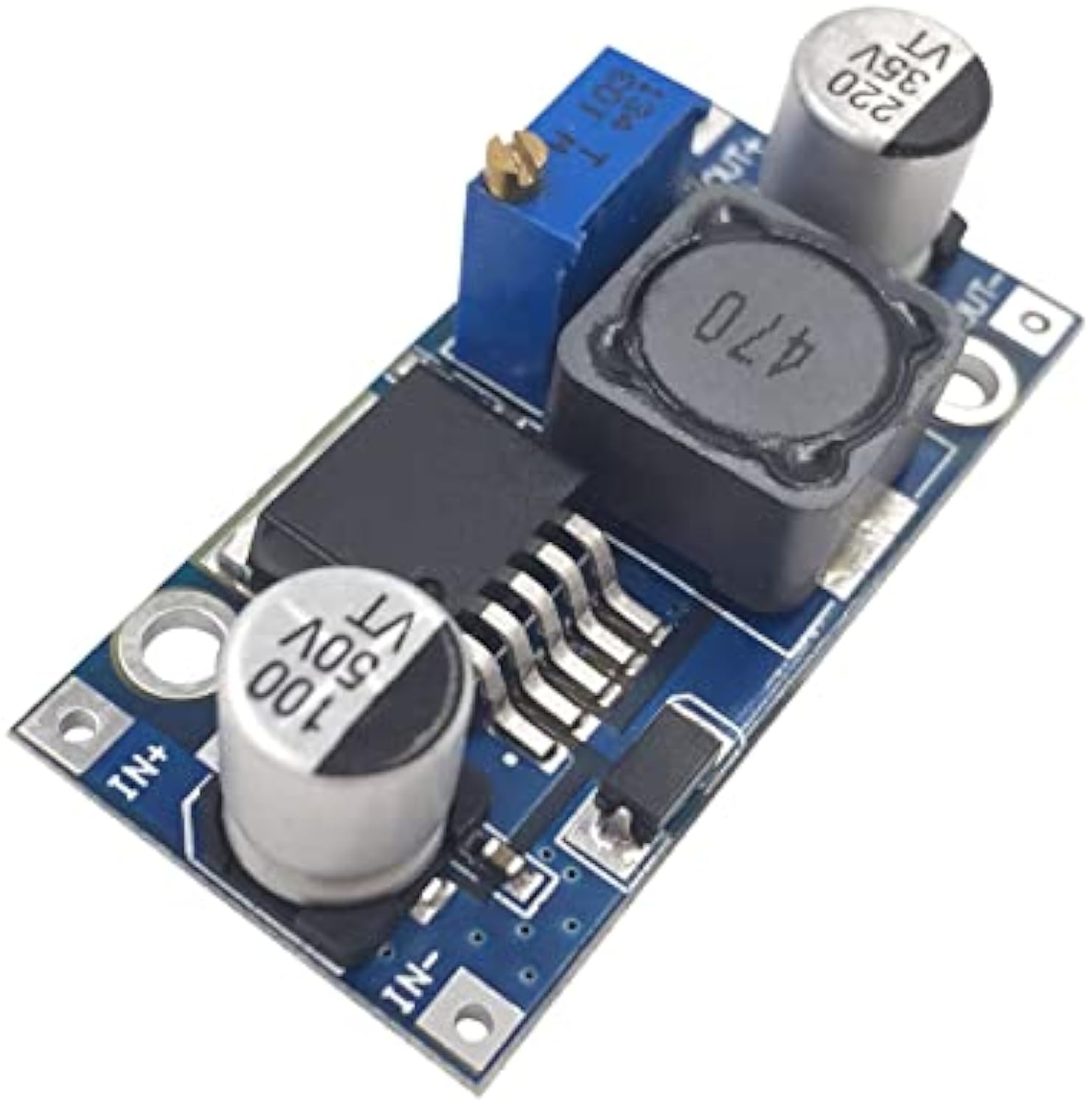

Product View 3
Product View 4

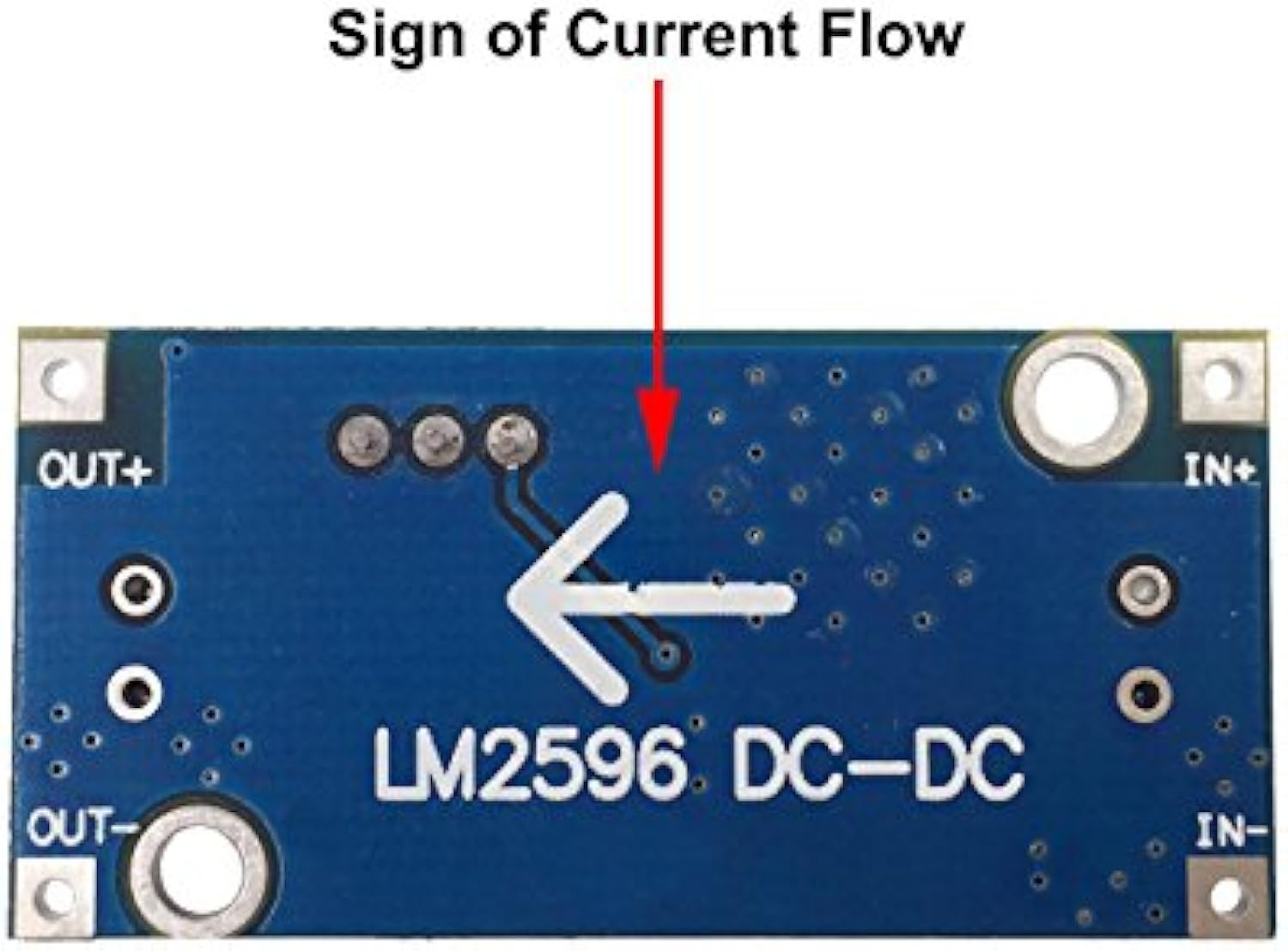

Product View 5
Product View 6
Product View 7
Product View 8
Product View 9
Product View 10
Product View 11
Product View 12
Product View 13
Product View 14
Product View 15
Frequently Asked Questions
1. What is the input voltage range for this module?
The input voltage range is DC 3.2V to 35V. Note that the input voltage must be at least 1.5V higher than the desired output voltage.
2. Can this module be used to boost voltage?
No, this is a buck converter (step-down module), which means it can only lower the voltage, not boost it.
3. What is the maximum output current?
The maximum output current is 3A, making it suitable for various small electronic projects.
4. How do I adjust the output voltage?
You can adjust the voltage using the blue potentiometer on the module with a mini screwdriver. Turn clockwise to increase voltage and counterclockwise to decrease it.
5. Why doesn't the voltage decrease immediately when I turn the screw?
Factory default settings usually set a high voltage. You may need to rotate the potentiometer counterclockwise about 7-15 circles before the voltage starts to ramp down.
6. What is the size of the module?
The module is compact with dimensions of 45 * 23 * 14 mm, making it ideal for space-constrained DIY electronic projects.
