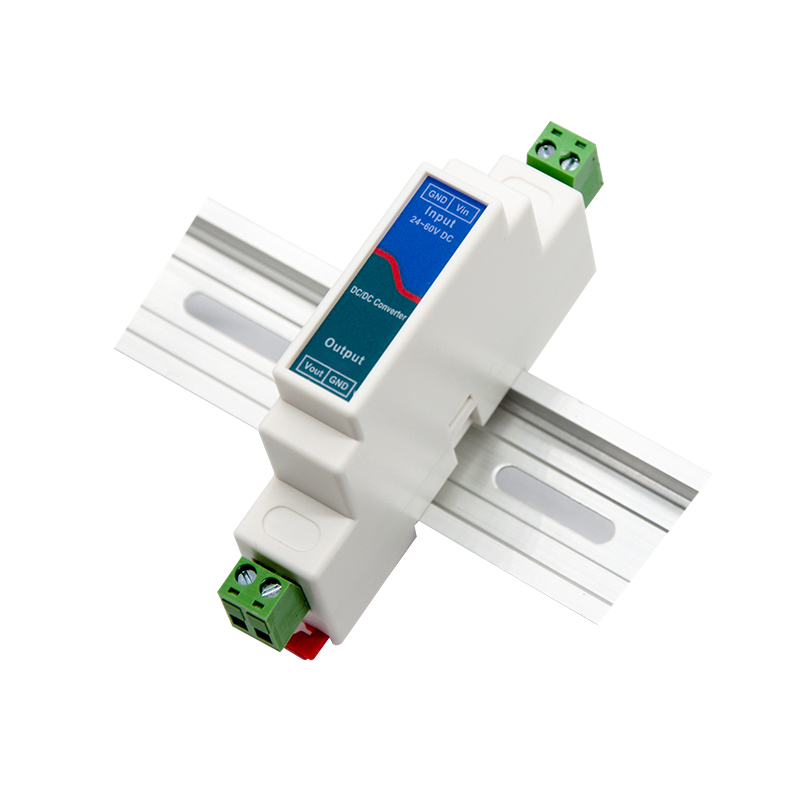

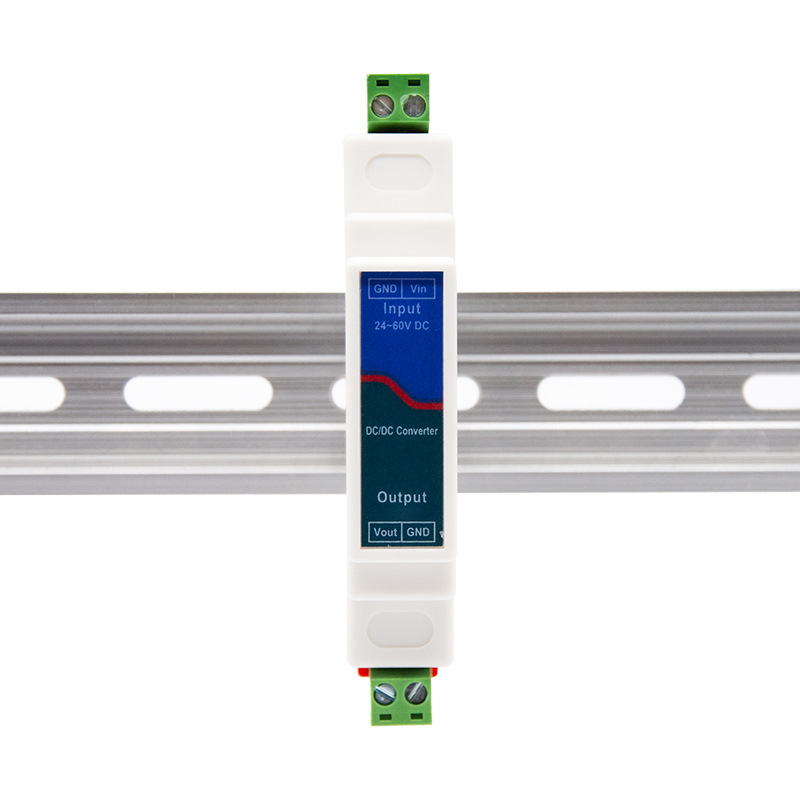

Rail-mounted DC-DC Transformer Module 48V, 36V, 24V to 12V, 9V, 5V Step-down Converter ZLAN4101
Rail-mounted DC-DC Transformer Module 48V, 36V, 24V to 12V, 9V, 5V Step-down Converter ZLAN4101
Rail-mounted DC-DC Transformer Module 48V, 36V, 24V to 12V, 9V, 5V Step-down Converter ZLAN4101
Rail-mounted DC-DC Transformer Module 48V, 36V, 24V to 12V, 9V, 5V Step-down Converter ZLAN4101
1 / 4
Rail-mounted DC-DC Transformer Module 48V, 36V, 24V to 12V, 9V, 5V Step-down Converter ZLAN4101
Rail-mounted DC-DC Transformer Module 48V, 36V, 24V to 12V, 9V, 5V Step-down Converter ZLAN4101
Rail-mounted DC-DC Transformer Module 48V, 36V, 24V to 12V, 9V, 5V Step-down Converter ZLAN4101
Rail-mounted DC-DC Transformer Module 48V, 36V, 24V to 12V, 9V, 5V Step-down Converter ZLAN4101

Rail-mounted DC-DC Transformer Module 48V, 36V, 24V to 12V, 9V, 5V Step-down Converter ZLAN4101

Send Inquiry

Product Description

Rail type DC power converter ZLAN4101 supports DC voltage inputs ranging from 24V to 60V, providing outputs of 3.3V, 5V, 9V, or 12V. Designed for efficiency and long-term industrial use, it features a non-isolated step-down architecture and built-in rail clips for seamless DIN-rail installation.

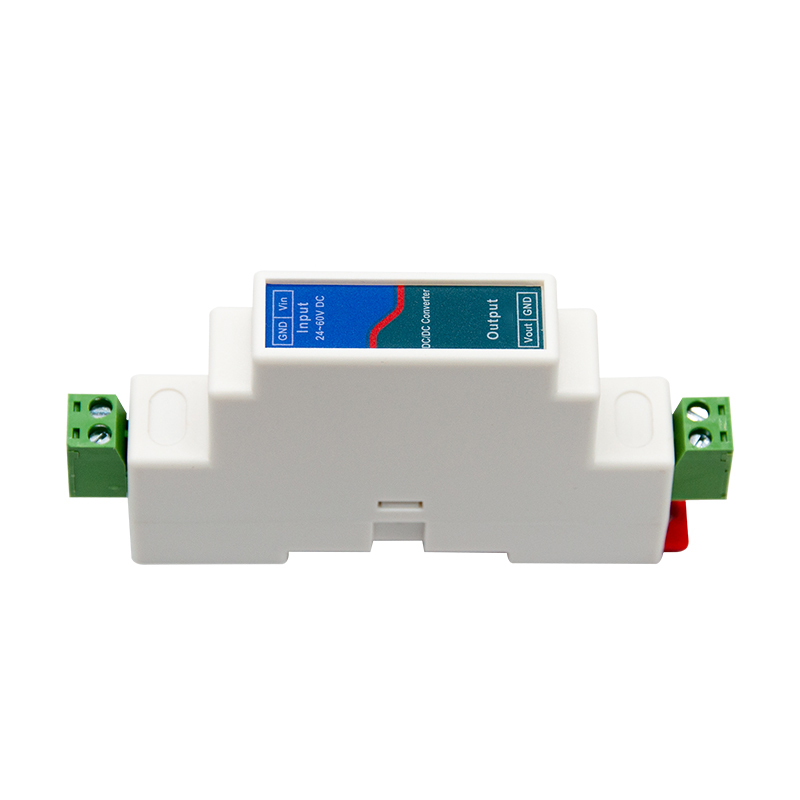

ZLAN4101 Product View
ZLAN4101 Detail
⚡ Core Features
●
Wide Input Range: Supports 24-60VDC input (VIN+ / GND-).
●
Multiple Outputs: DC outputs of 3.3/5/9/12VDC available.
●
Safety Protection: Built-in overcurrent and reverse polarity protection.
●
Easy Mounting: Integrated rail clips for quick industrial rail installation.

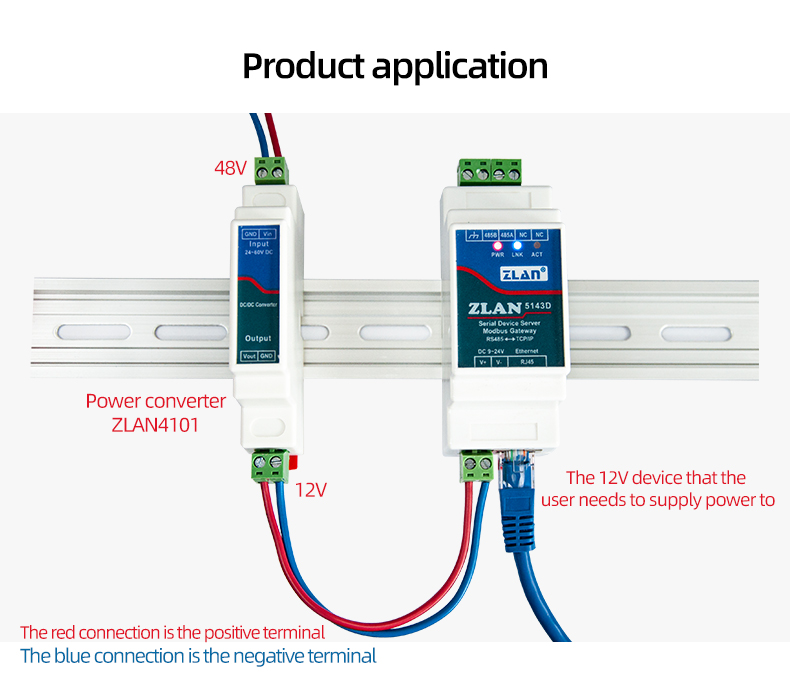

Feature Graphic 1
Feature Graphic 2

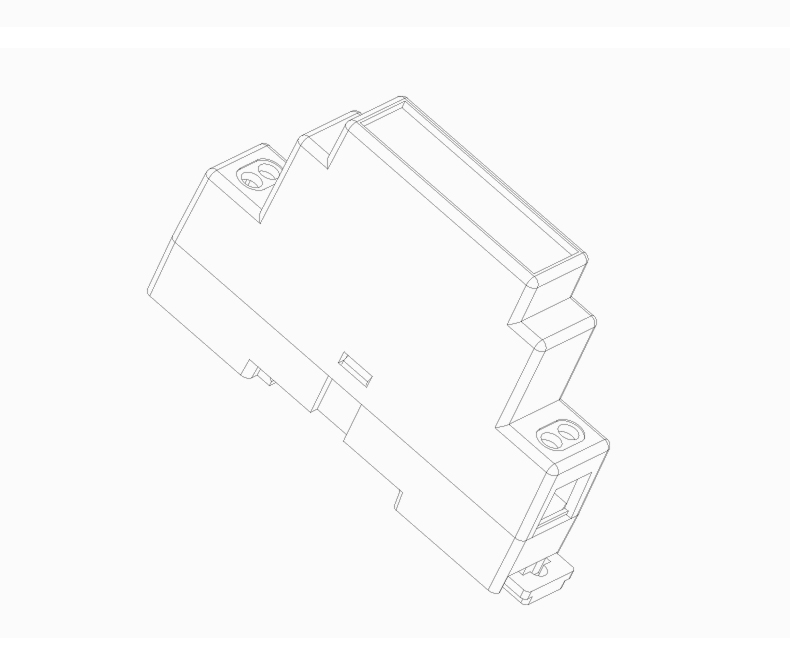

Feature Graphic 3
🔧 Main Applications
➤
Sensors: Temperature, humidity, gas, and infrared sensors.
➤
Communication: WiFi serial servers, IO controllers, and Ethernet converters.
➤
Network Equipment: 4G gateways, routers, and industrial switches.
➤
Industrial Automation: Any 12V or low-voltage DC devices in control cabinets.

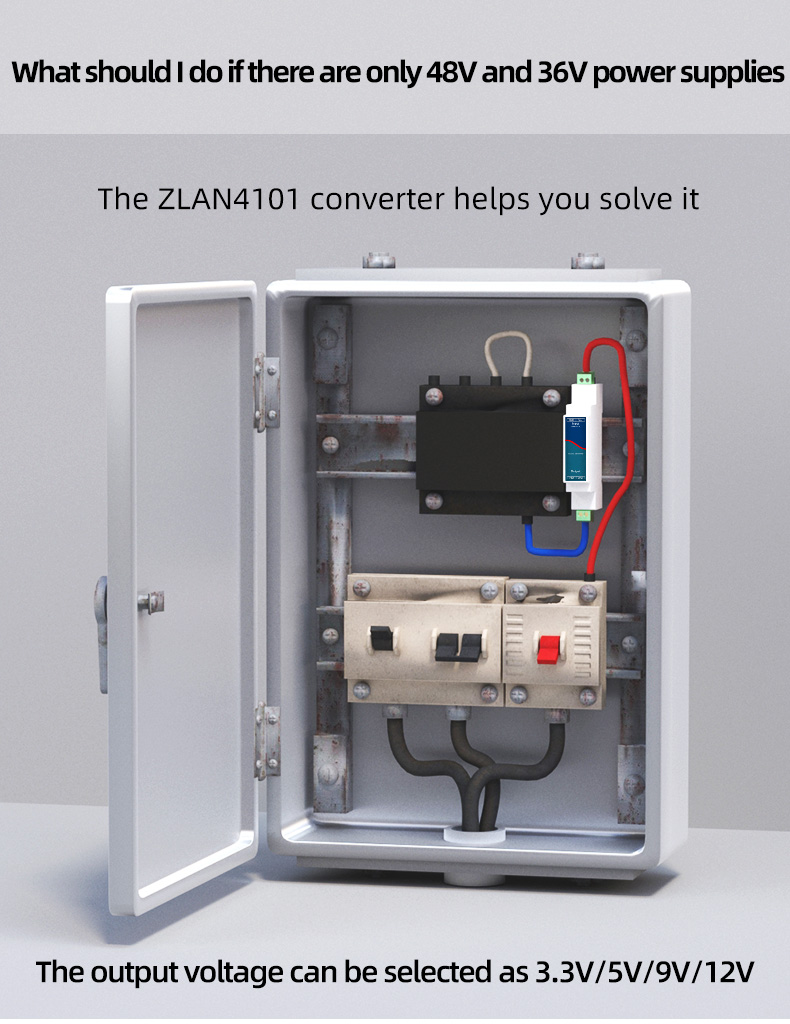

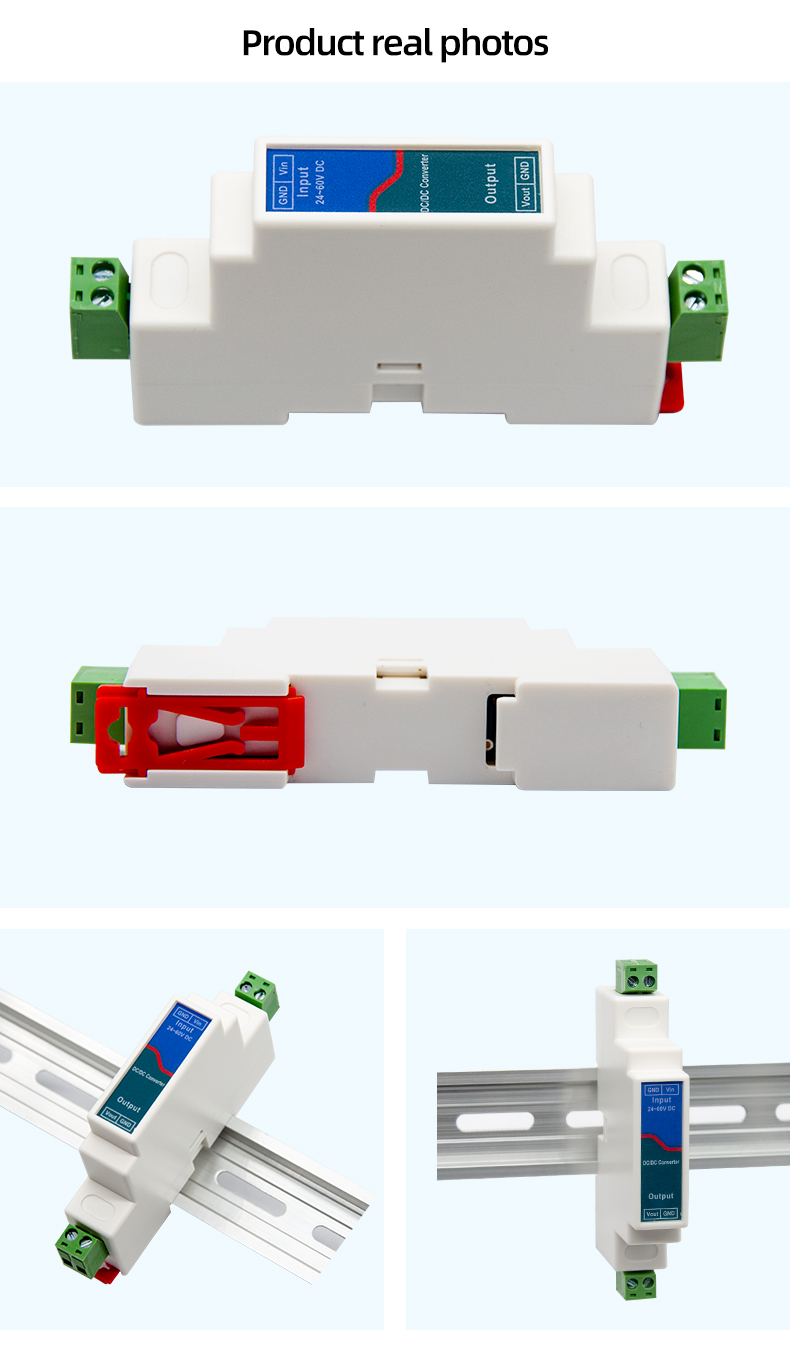

Application Scenario
📊 Technical Parameters
Appearance & Interface
Interface Power Input: VIN/GND | Power Output: Vout/GND

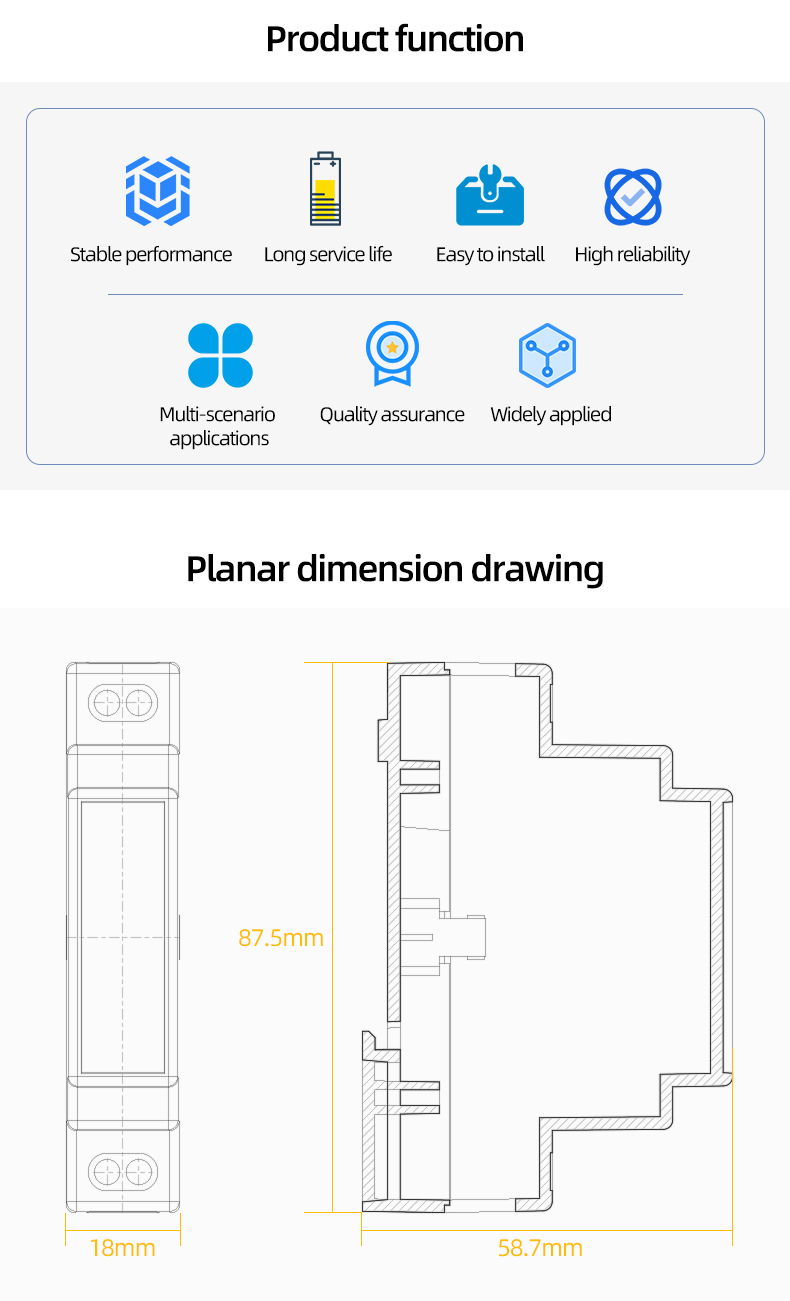

Dimensions L x W x H = 87.5mm × 18mm × 58.7mm
Electrical Parameters
Input Voltage 24-60Vdc
Output Voltage 3.3 / 5 / 9 / 12Vdc
Efficiency ≈ 85%
Environmental Requirements
Operating Temperature -40 ~ 80℃
Storage Temperature -45 ~ 80℃
Humidity 5 ~ 93% Relative humidity (non-condensing)

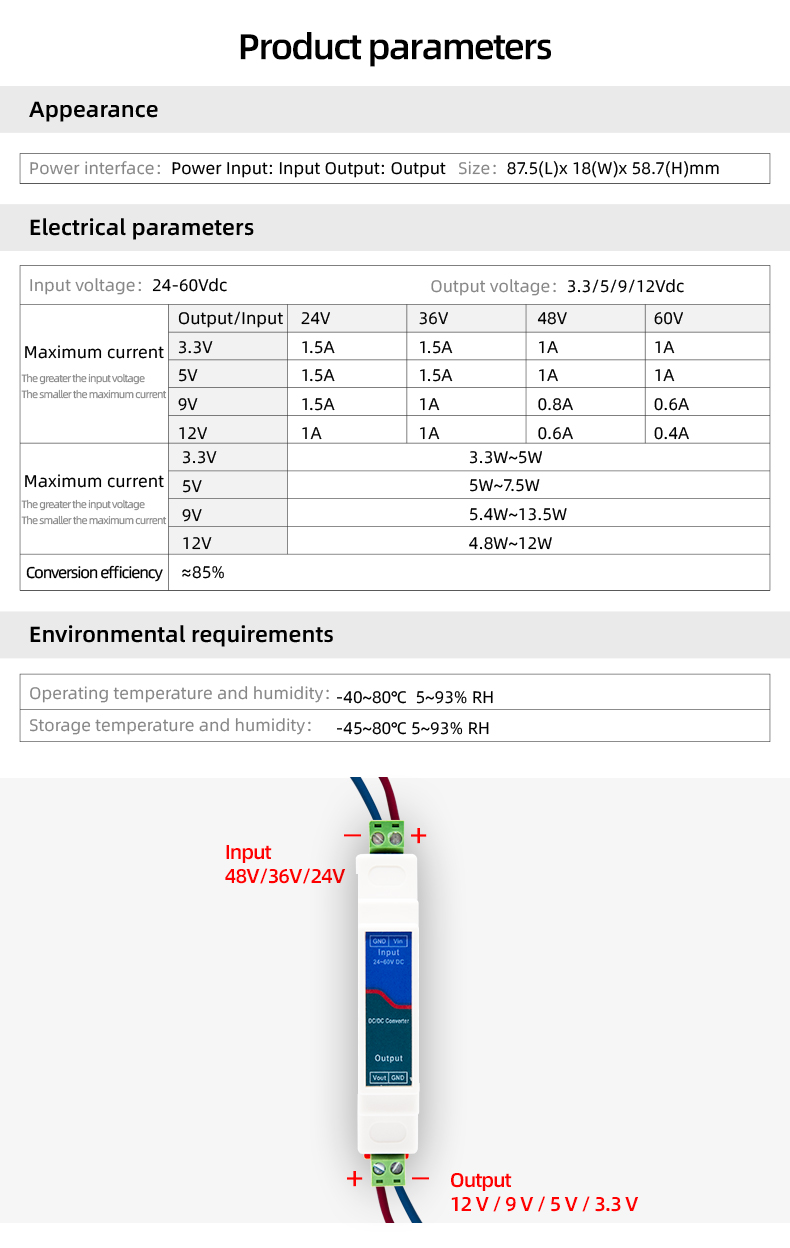

Detailed Specs
🏭 Manufacturing & Quality
Production Facility

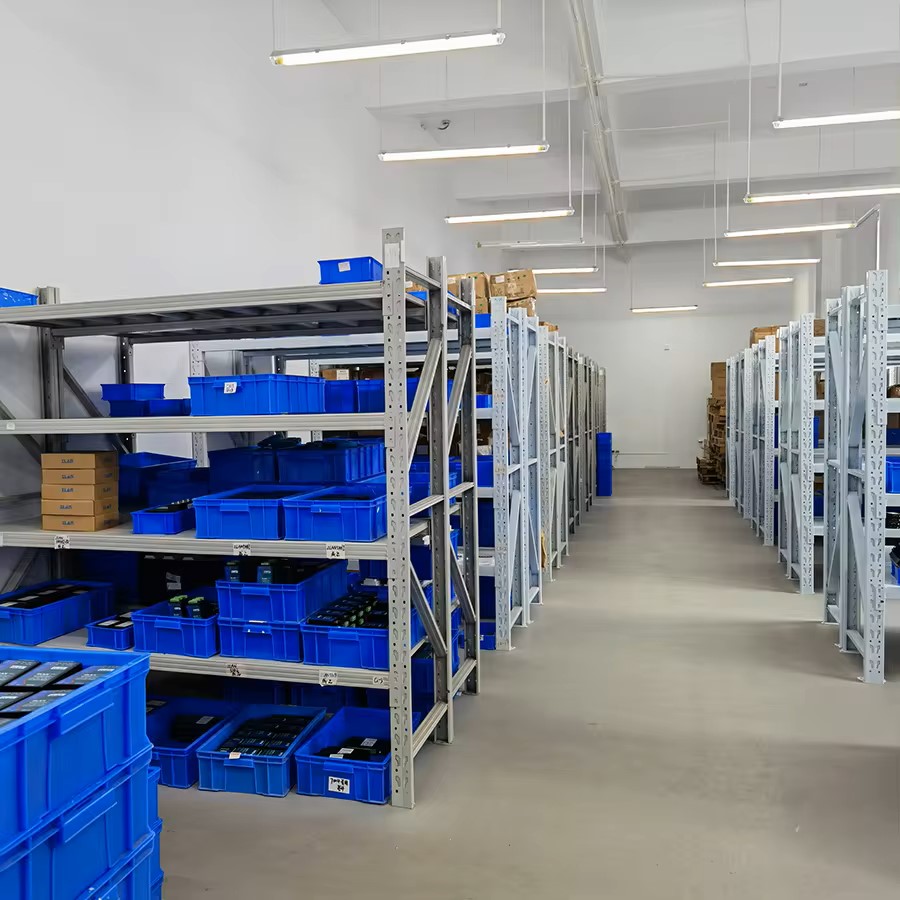

Warehouse

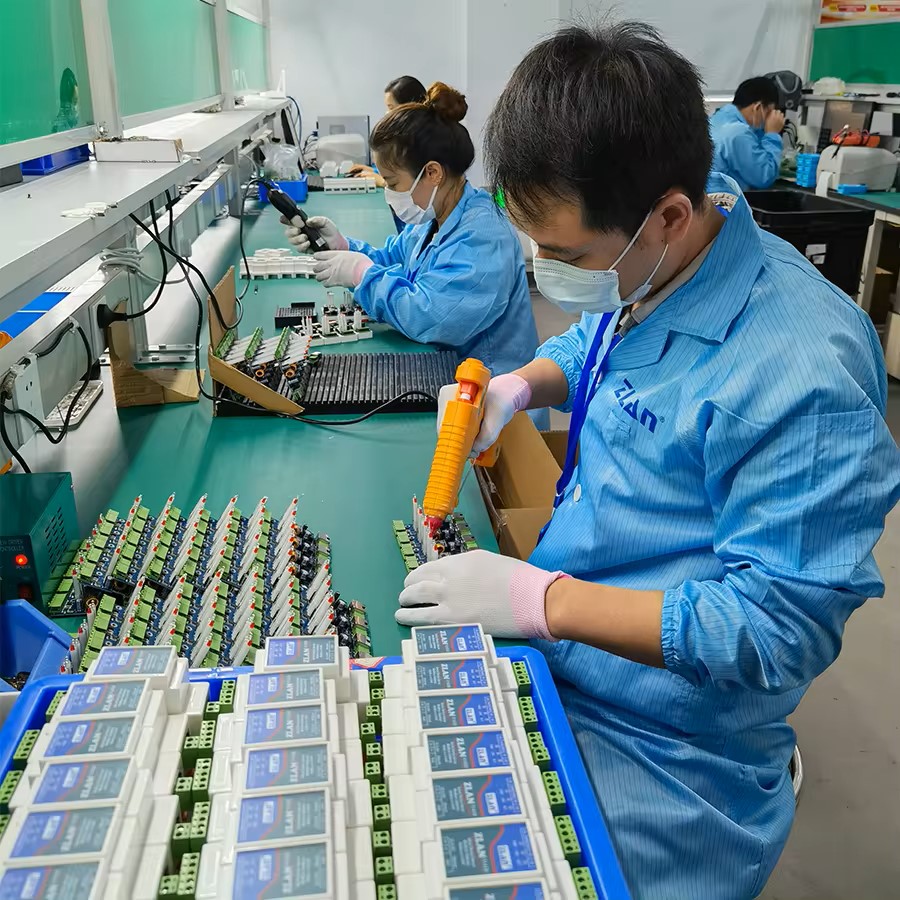

Production Line
Certifications
Global Market Coverage
Support
❓ Frequently Asked Questions
What is the input voltage range for the ZLAN4101?
The device supports a wide DC input range from 24V to 60V, making it suitable for various industrial power systems.
Is this power converter isolated?
No, the ZLAN4101 is a non-isolated step-down DC-DC converter designed for cost-effective voltage regulation.
What safety protections are included?
It features automatic power-off protection for overcurrent and reverse polarity protection for the input power.
Can I mount this on a standard industrial rail?

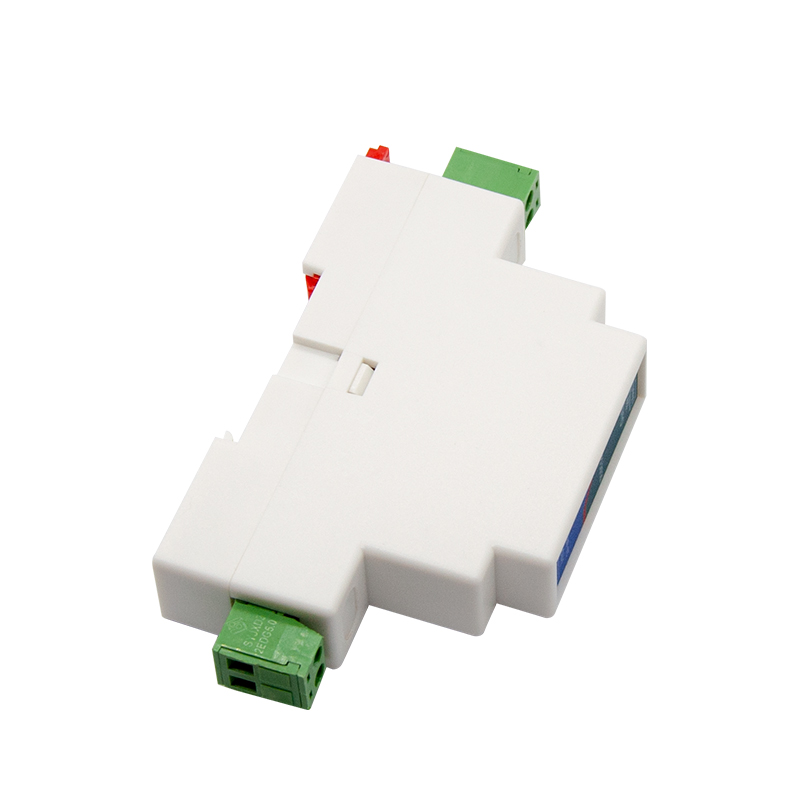

Yes, the device comes with built-in rail clips on the back for easy and secure DIN-rail mounting.
What is the typical conversion efficiency?
The ZLAN4101 operates with a high conversion efficiency of approximately 85%.
Does the output current change with different voltages?
Yes, the maximum current varies based on the input and output voltage. Generally, the higher the input voltage, the smaller the maximum available output current.
