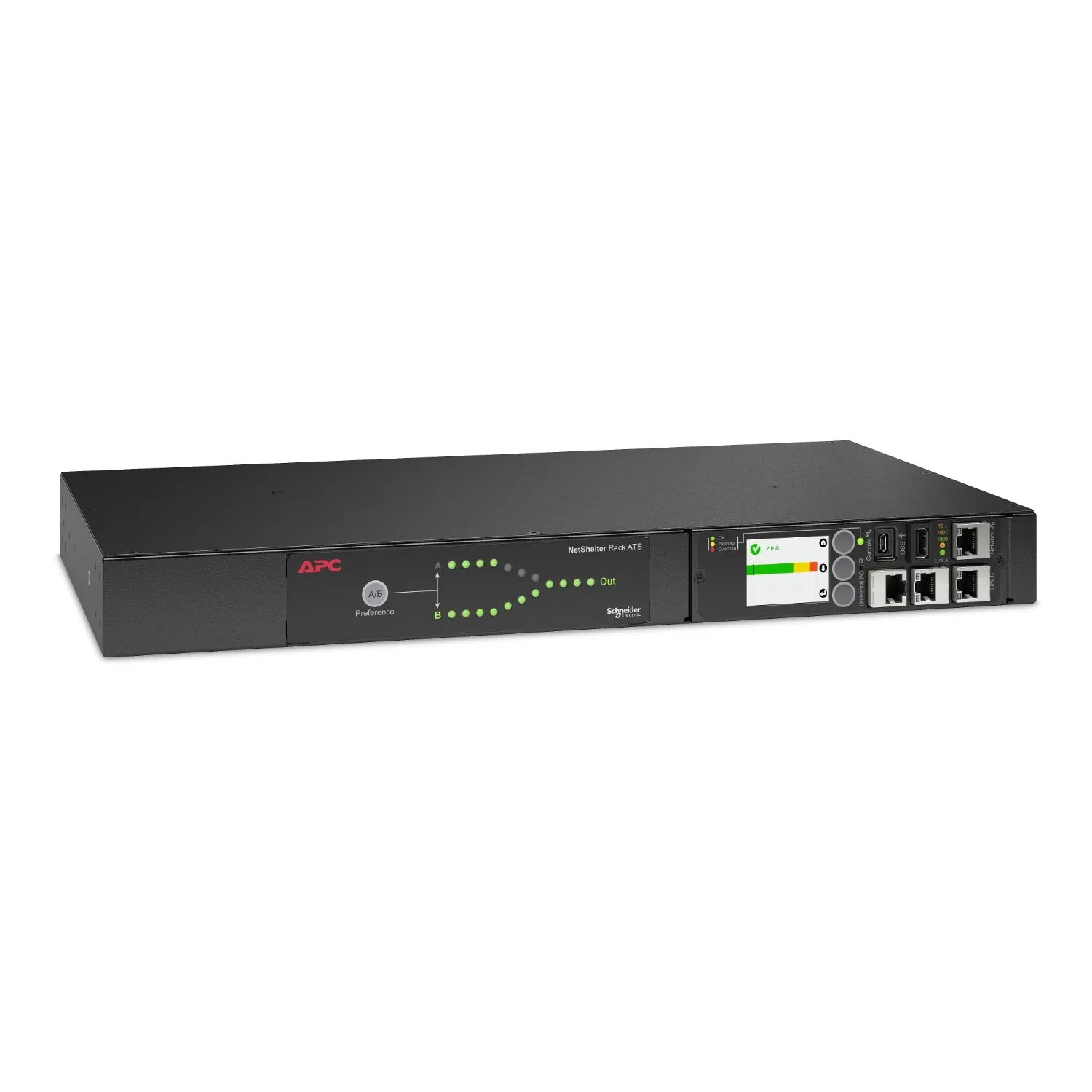

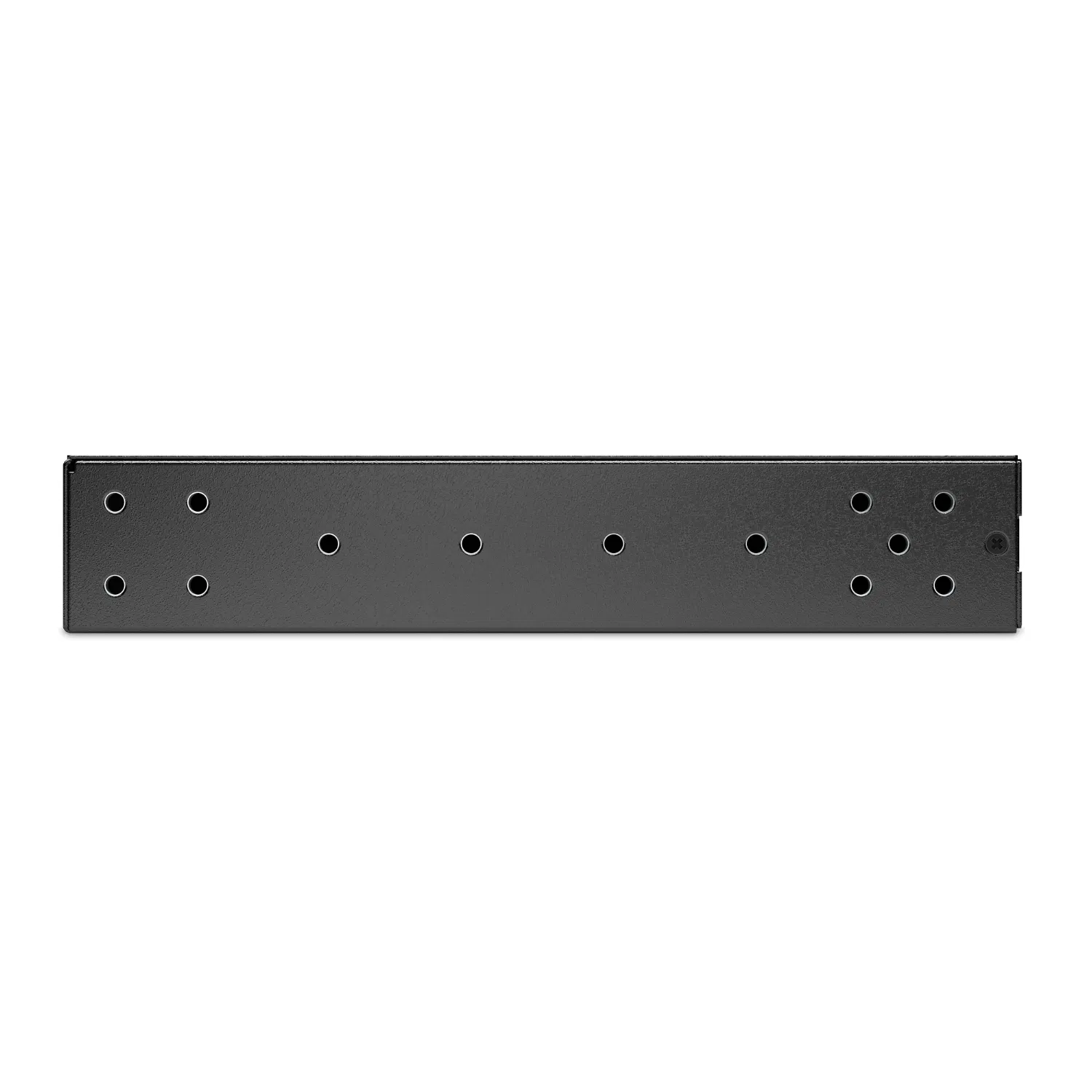

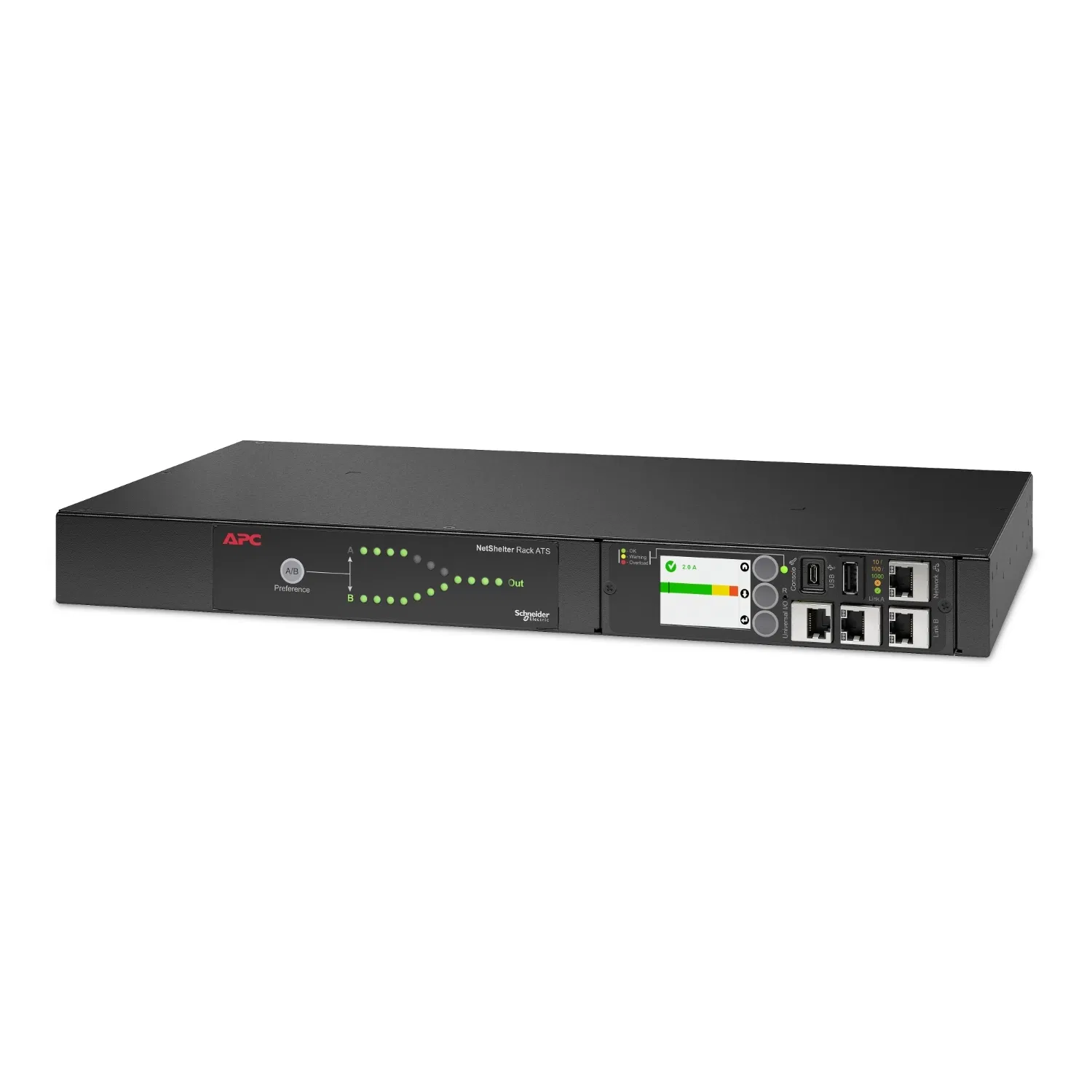

APC Ap4422 Cabinet PDU Socket ATS PDU Dual-Way Switching 1u Rack-Mounted Automatic Transfer Switch Ap4422 PDU

1 / 3

APC Ap4422 Cabinet PDU Socket ATS PDU Dual-Way Switching 1u Rack-Mounted Automatic Transfer Switch Ap4422 PDU

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview Specification Product Description Company Profile Certifications Packaging & Shipping FAQ

Basic Info

Model NO.

AP4422

Certification

Type

Integrated automatic transfer switch

Poles

Output type

Single

Main Input Voltage

230 V AC 1 Phase

Product or Component Type

Automatic Transfer Switch

Main Output Voltage

230 V AC 1 Phase

Input Connection Type

IEC 60309 16 a 2p + E

Number of Rack Unit

Colour

Black

Dimension(H*W*D mm)

44*432*236

Net Weight

4.21 Kg

Mounting Mode

Rack-Mounted

Network Frequency

50/60 Hz

[in] Rated Current

16 a

Permissible Voltage

207...253 V

Max Line Current

16 a

Load Capacity

3840 Va

Number of Power Socket Outlets

1 IEC 60309 16 a 2p + E

Transport Package

Carton

Specification

115*350*600mm

Trademark

APC

Origin

China

HS Code

8415812090

Production Capacity

1000

Product Packaging & Delivery: Size: 12.00cm * 35.00cm * 60.00cm | Gross Weight: 6.000kg | Securely wrapped inside carton transit boxes.

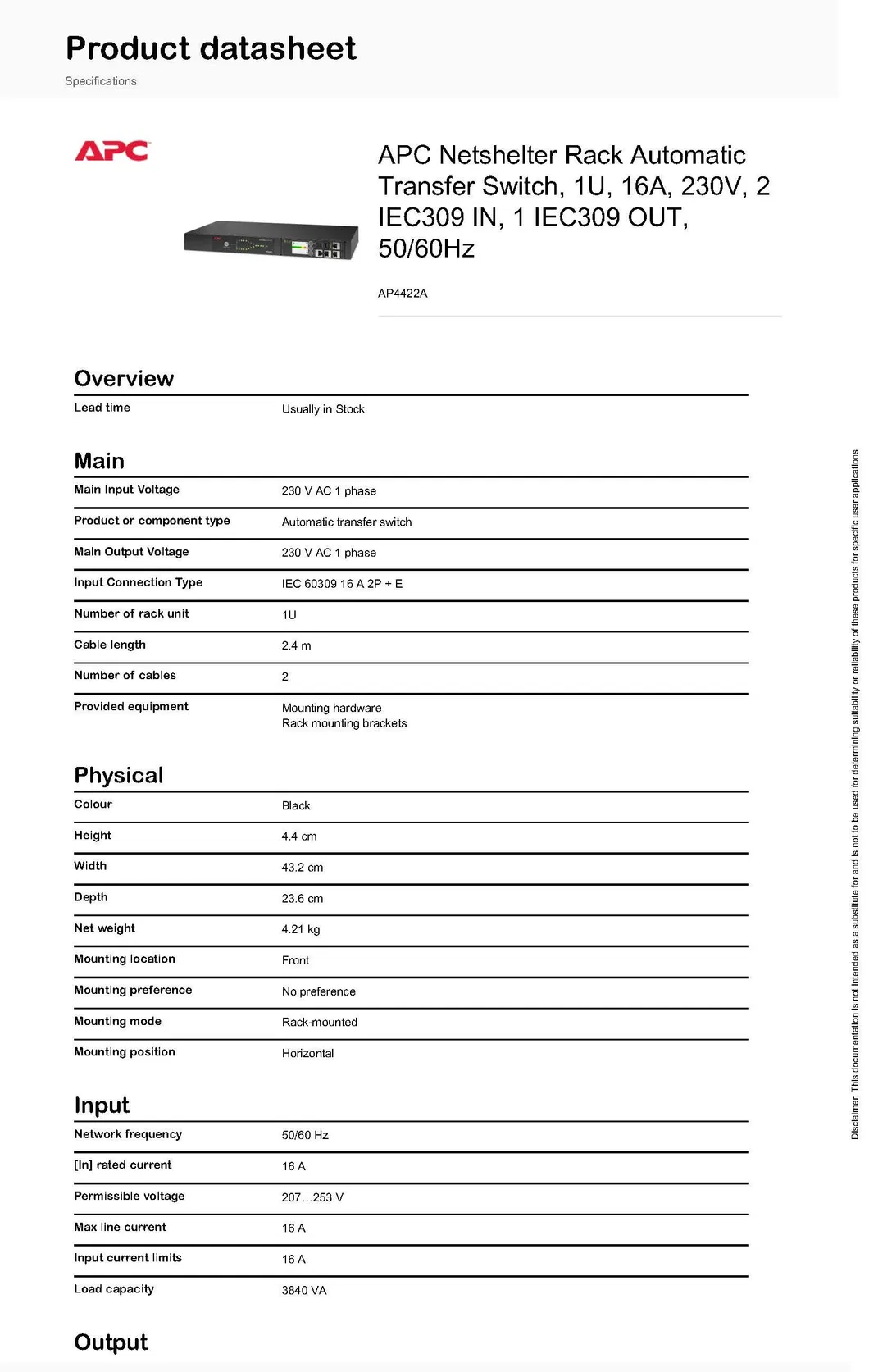

AP4422A Product datasheet
Main	Main Input Voltage	230 V AC 1 phase
	Product or component type	Automatic transfer switch
	Main Output Voltage	230 V AC 1 phase
	Input Connection Type	IEC 60309 16 A 2P + E
	Number of rack unit	1U
	Cable length	2.4 m
	Number of cables	2
	Provided equipment	Mounting hardware
	Provided equipment	Rack mounting brackets

Physical	Colour	Black
	Height	4.4 cm
	Width	43.2 cm
	Depth	23.6 cm
	Net weight	4.21 kg
	Mounting location	Front
	Mounting preference	No preference
	Mounting mode	Rack-mounted
	Mounting position	Horizontal

Input	Network frequency	50/60 HZ
	[In] rated current	16 A
	Permissible voltage	207...253 V
	Max line current	16 A
	Input current limits	16 A
	Load capacity	3840 VA

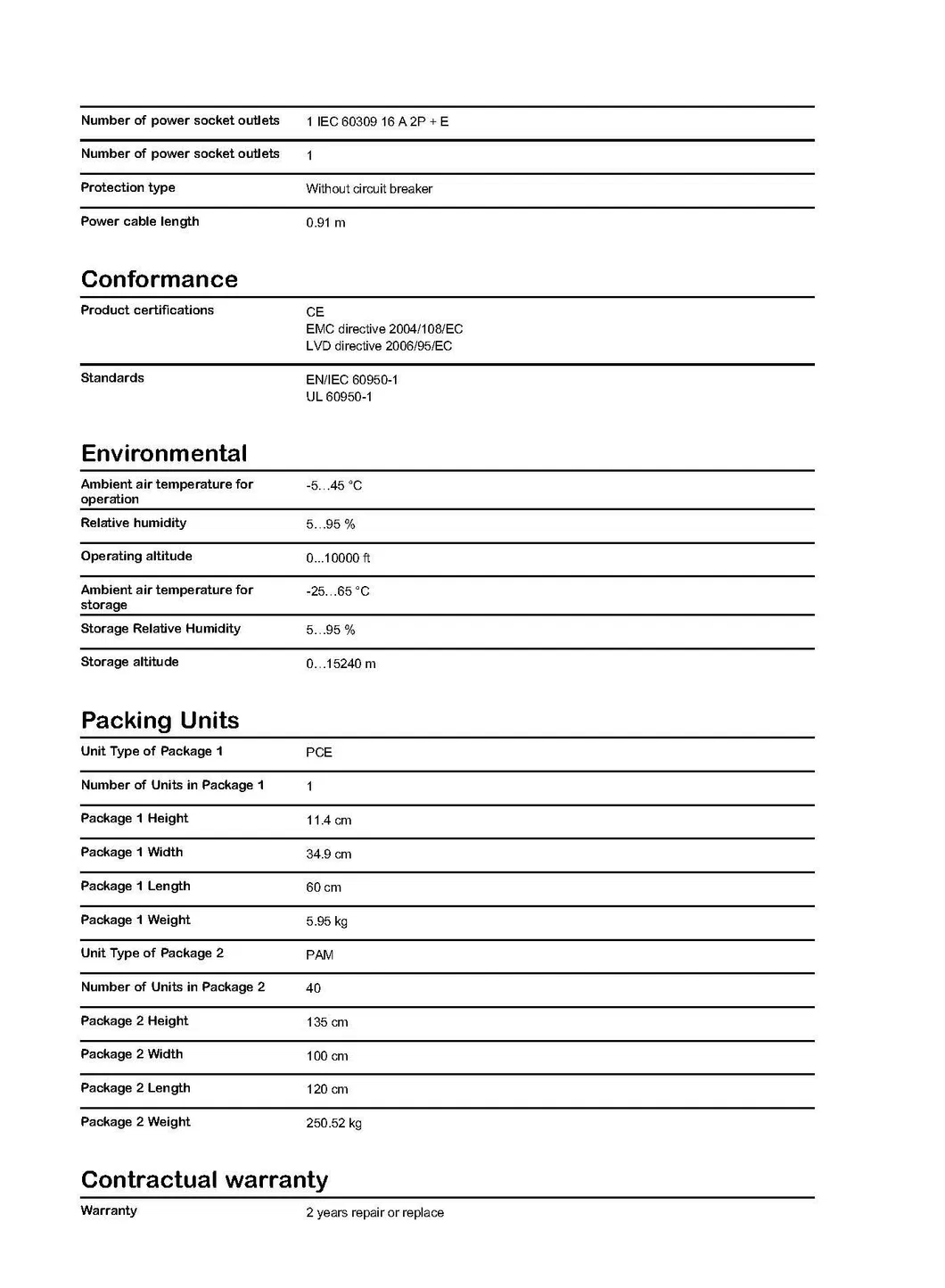

Output	Number of power socket outlets	1 IEC 60309 16 A 2P + E
	Number of power socket outlets	1
	Protection type	Without circuit breaker
	Power cable length	0.91 m
