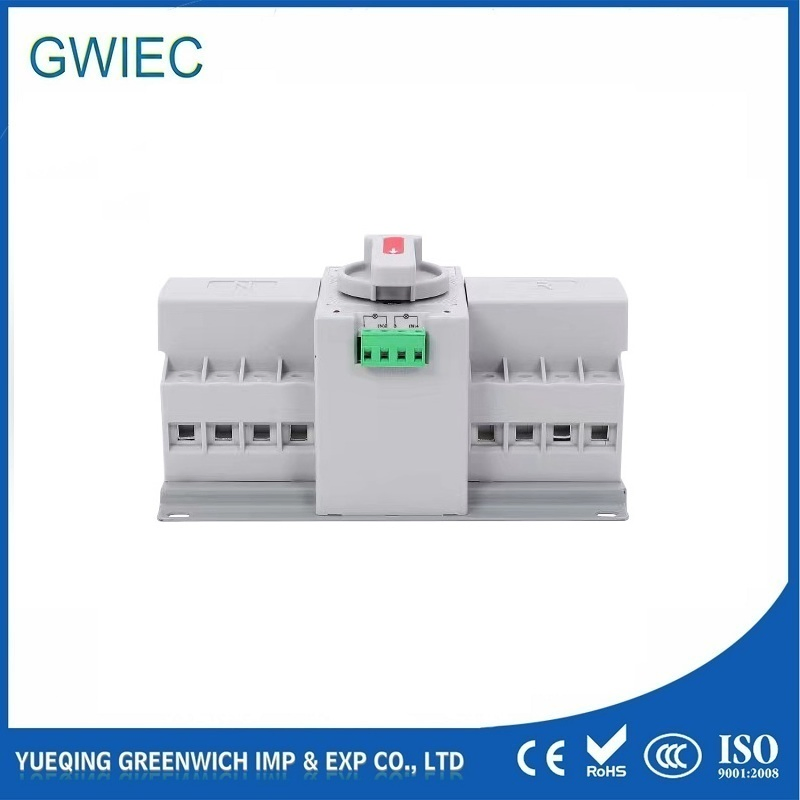

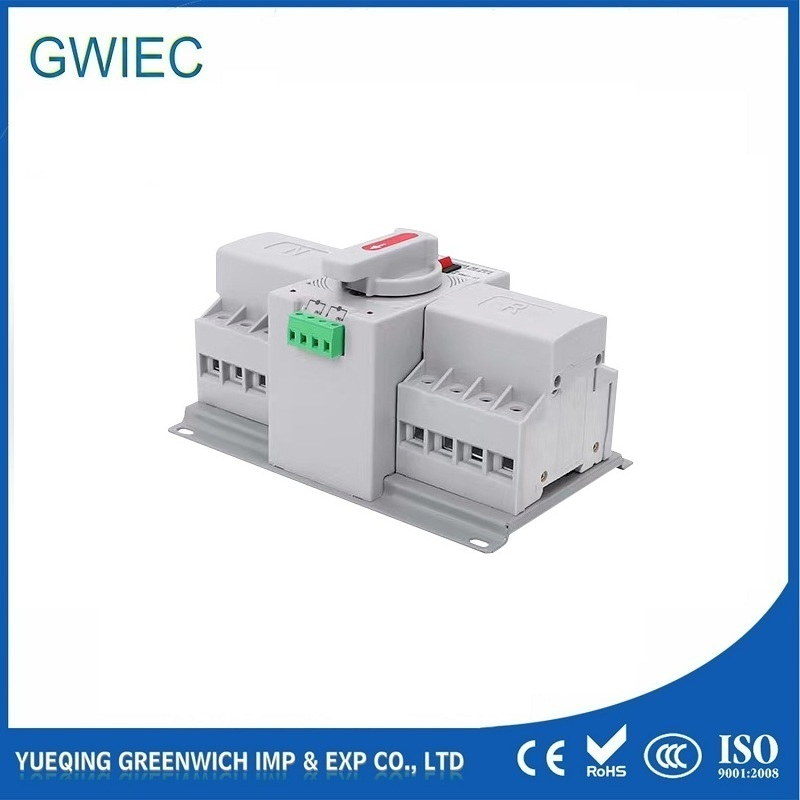

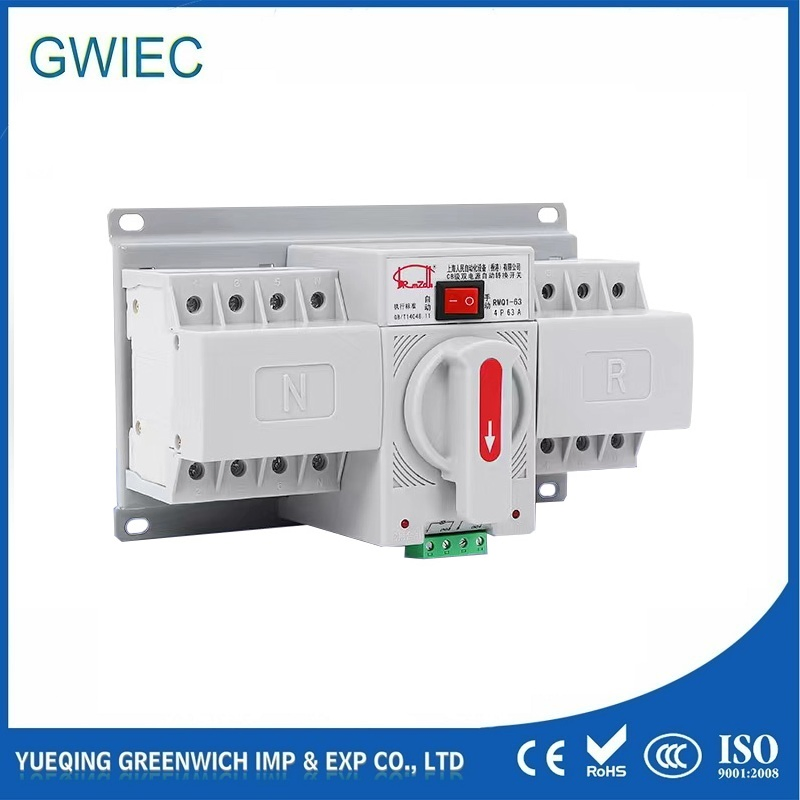

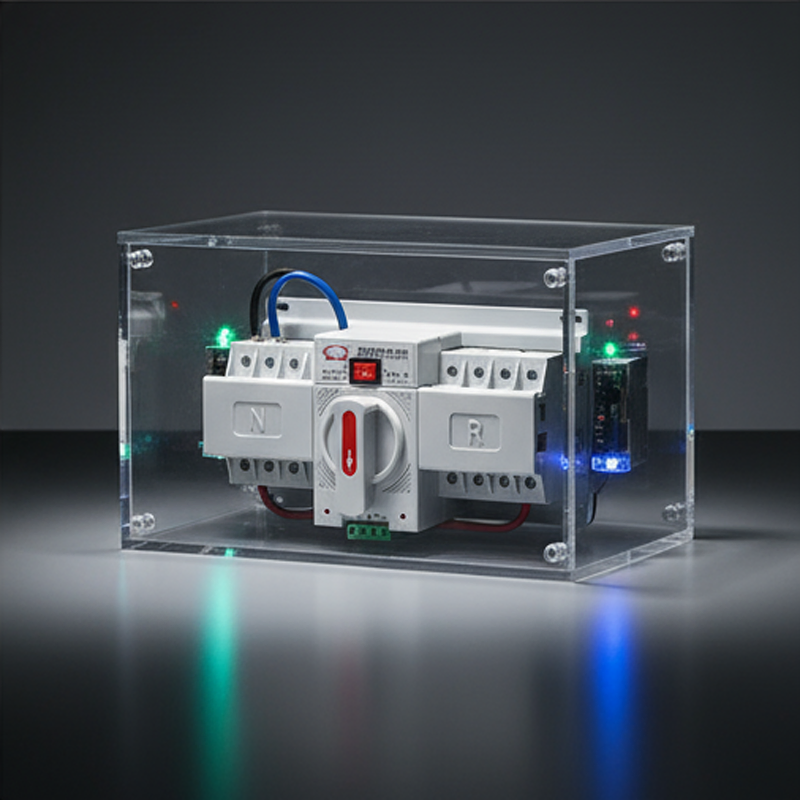

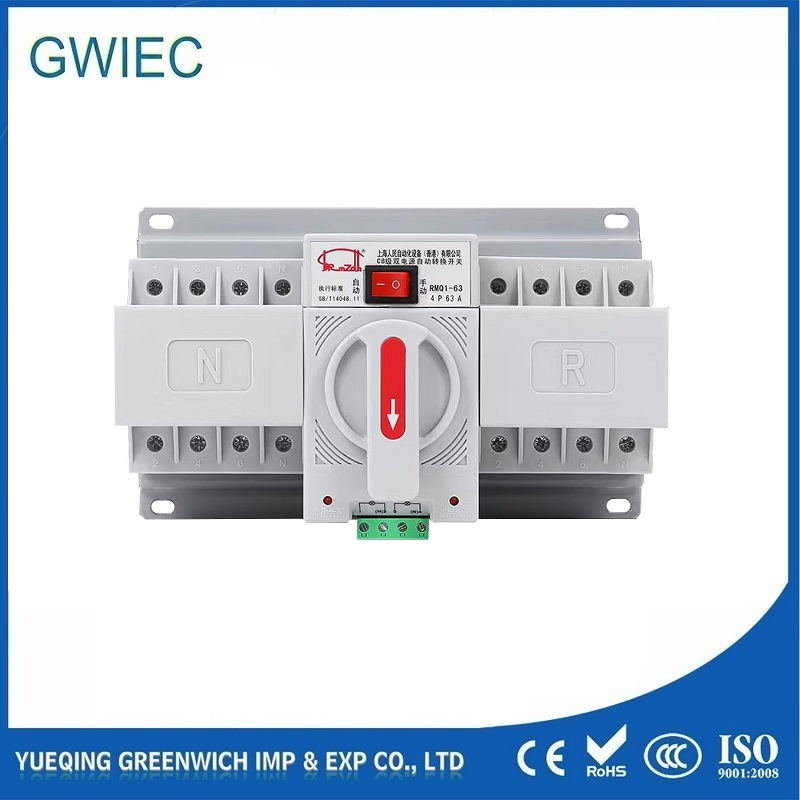

50A 32A Automatic Change Over Changeover Power ATS Transfer Switch Hot Sale
50A 32A Automatic Change Over Changeover Power ATS Transfer Switch Hot Sale
50A 32A Automatic Change Over Changeover Power ATS Transfer Switch Hot Sale
50A 32A Automatic Change Over Changeover Power ATS Transfer Switch Hot Sale
50A 32A Automatic Change Over Changeover Power ATS Transfer Switch Hot Sale
1 / 5
50A 32A Automatic Change Over Changeover Power ATS Transfer Switch Hot Sale
50A 32A Automatic Change Over Changeover Power ATS Transfer Switch Hot Sale
50A 32A Automatic Change Over Changeover Power ATS Transfer Switch Hot Sale
50A 32A Automatic Change Over Changeover Power ATS Transfer Switch Hot Sale
50A 32A Automatic Change Over Changeover Power ATS Transfer Switch Hot Sale

50A 32A Automatic Change Over Changeover Power ATS Transfer Switch Hot Sale

Customization: Available
Warranty: 1 Year
Brand: Gwiec
Send Inquiry

Product Description

Basic Info.
Model NO.
RMQ1-63
Operation
Electric
Poles
4P
Output type
Dual
Product Name
Automatic Transfer Switch
OEM
Available
Price
Negotiable
Quality
Good
Company Feature
Manufacturer
Max Voltage
690V
Product Description
Product Information
Item ATS
Rated Working Current 10A 16A 20A 25A 32A 40A 50A 63A
Rated Working Voltage AC400V
Controling Voltage AC230V
Pole 2P/3P/4P
Rated Short Circuit Breaking Capacity 3KA
Rated Short Circuit Making Capacity 3KA
Rated Insulation Voltage AC500V
Transfer Time ≤3S
Frequency 50/60HZ
ATS Level CB Class
Standard IEC60947-1

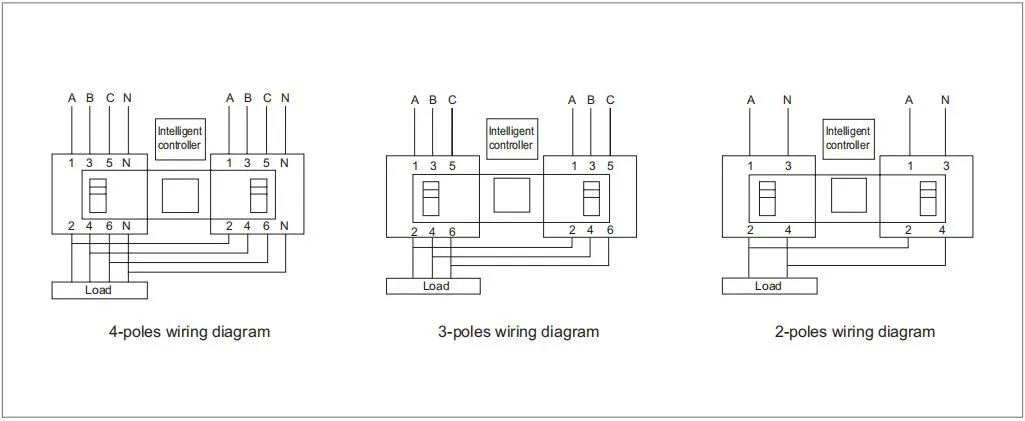

Wiring Diagram
Automatic Change Over Power ATS Transfer Switch Wiring Diagram
Dimensions & Product Displays

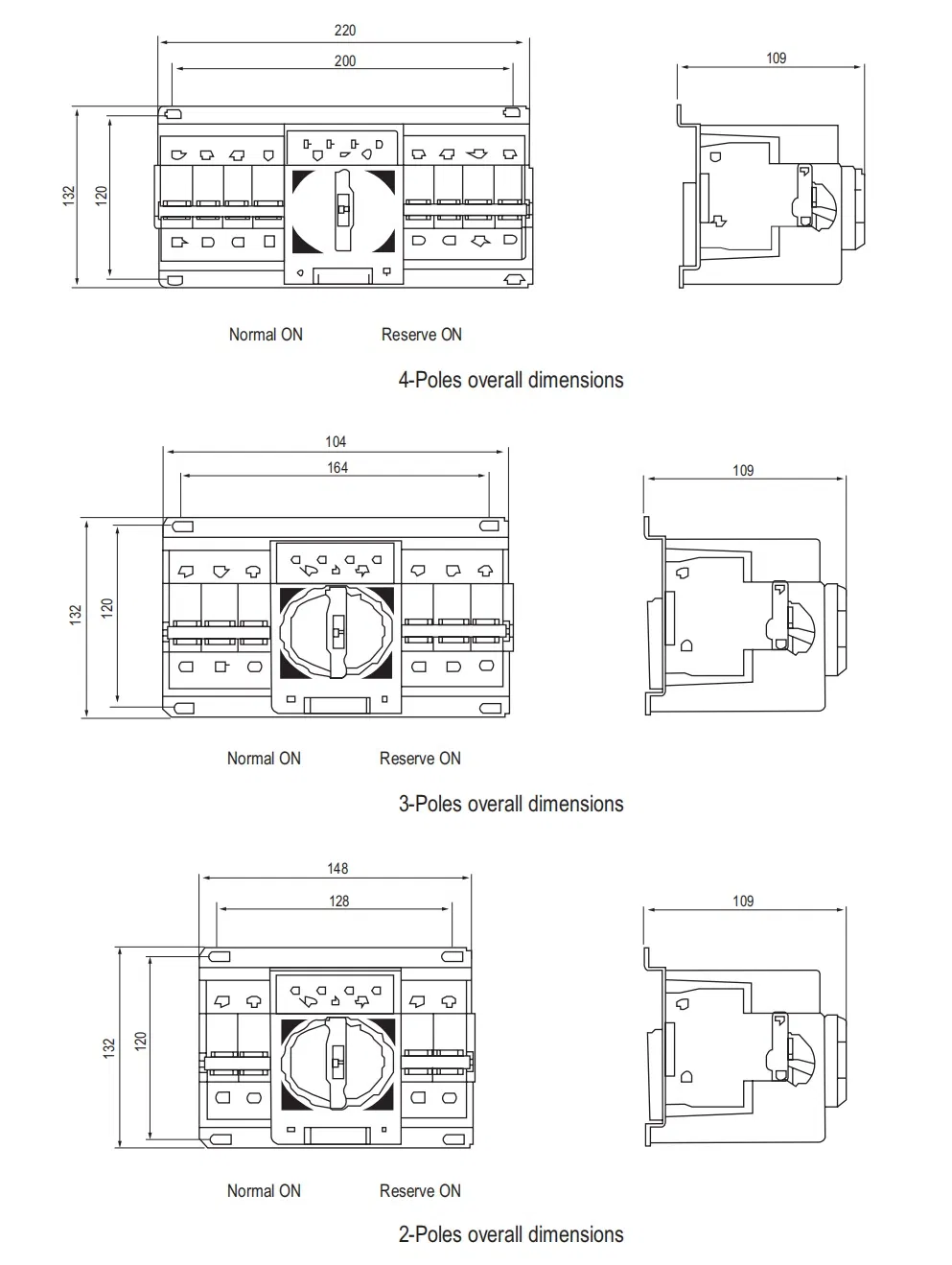

Automatic Transfer Switch Dimensions
Automatic Transfer Switch Feature Detail 1
Automatic Transfer Switch Feature Detail 2
Automatic Transfer Switch Feature Detail 3
Automatic Transfer Switch Feature Detail 4
Automatic Transfer Switch Feature Detail 5
Automatic Transfer Switch Feature Detail 6
Automatic Transfer Switch Feature Detail 7
Frequently Asked Questions (FAQ)
What is the main function of the RMQ1-63 Automatic Transfer Switch?
The RMQ1-63 ATS automatically switches power supply circuits from a primary source to a backup source in the event of power outages or voltage drops, ensuring uninterrupted electrical service.
What is the difference between CB Class and PC Class ATS?
This RMQ1-63 is a CB Class ATS, meaning it is equipped with overcurrent releases and is capable of connecting, bearing, and breaking short-circuit currents. PC Class switches only connect and bear, but do not break short-circuit currents.
What is the typical transfer time of this switch?
The switch provides safe and fast transfer transitions, featuring a dual-power transfer response time of less than or equal to 3 seconds (≤3S).
Does the RMQ1-63 support dual-power supply operation?
Yes, it features a dual output/input structure, allowing automatic switching between two distinct power sources like main grid power and generator backup power.
What pole options and rated currents are available?
We supply 2P, 3P, and 4P configurations. The rated working currents range widely from 10A, 16A, 20A, 25A, 32A, 40A, 50A, up to 63A to accommodate different load requirements.
Is OEM customization available for this product?
Yes, OEM service is fully available. We support custom branding, labeling, and variations based on your project specification requirements.
