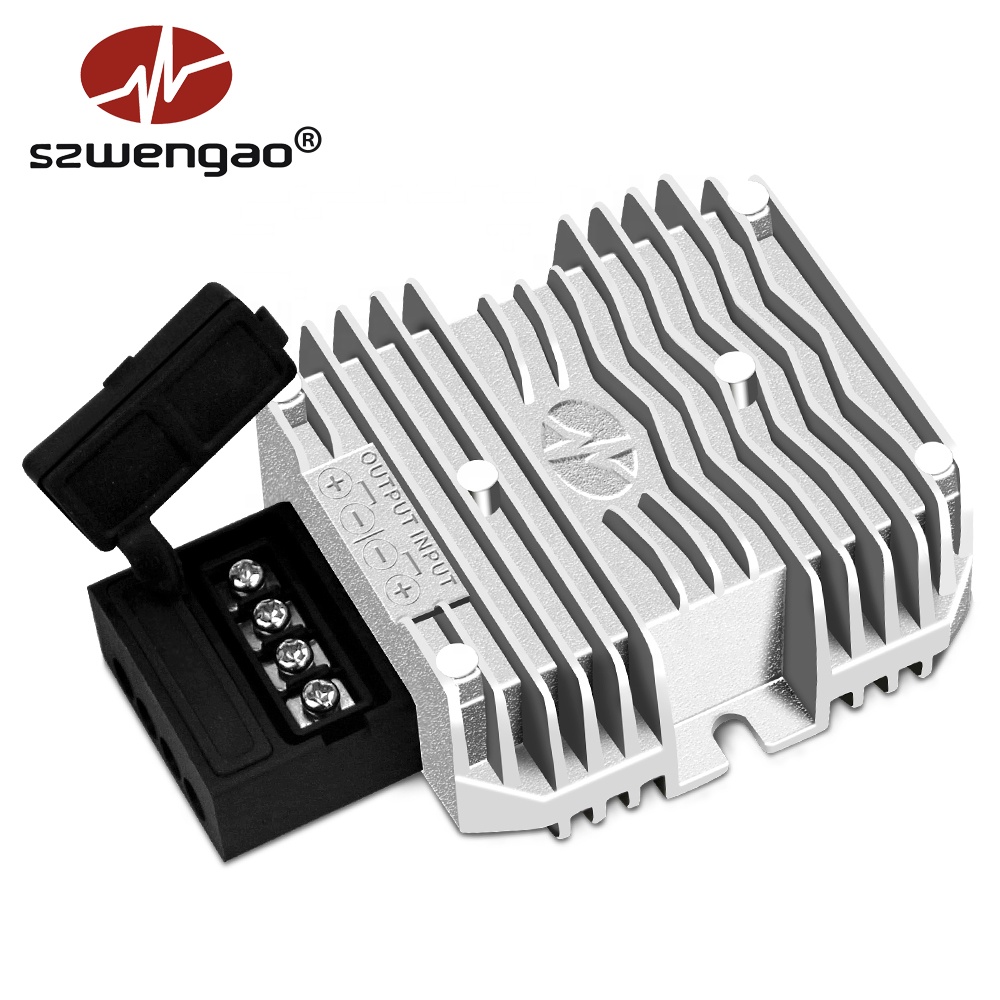

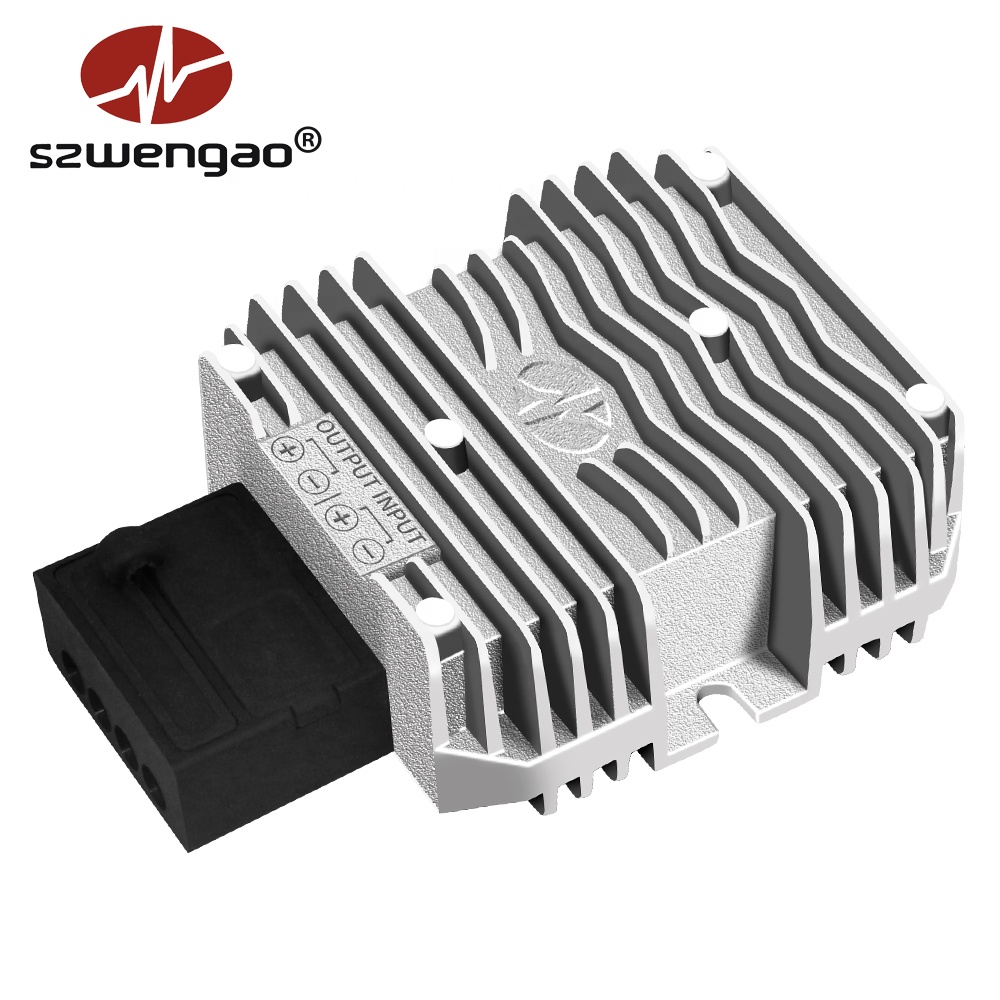

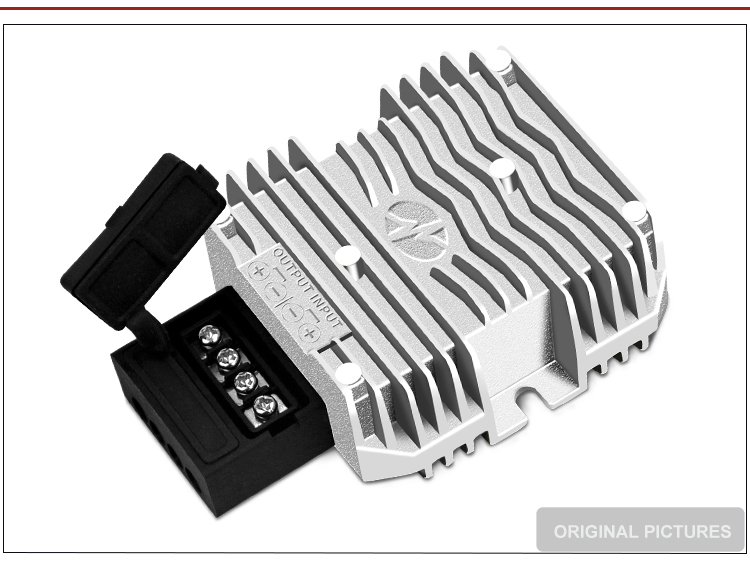

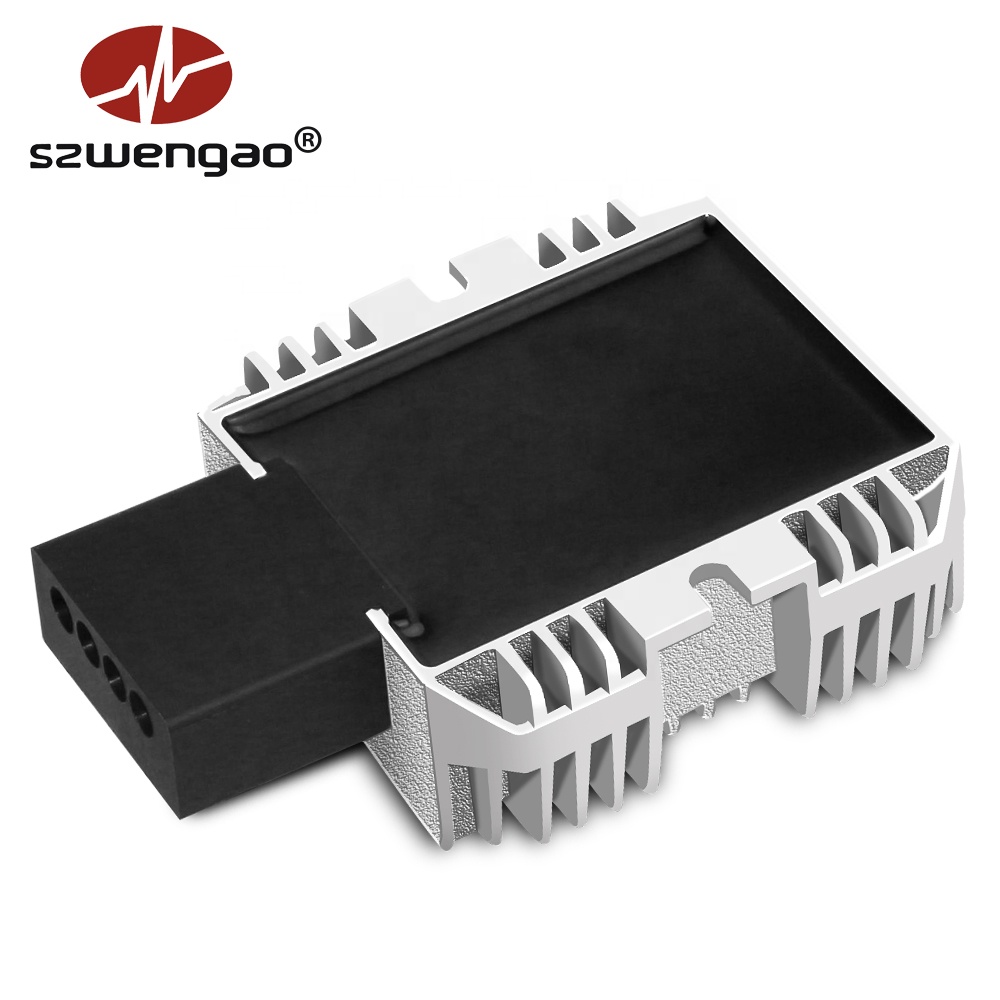

| Product name | 8-40V to 12V 6A 10A 20A DC/DC Boost-Buck Converter |
| Model no. | WG8-40S1206M / WG8-40S1210M / WG8-40S1220M |
| Input rated voltage | 12V/24V DC |
| Input voltage range | 8-40V DC |
| Efficiency | 90.8% / 90.8% / 96% ( @ 24V input ) |
| Output voltage | 12V DC |
| Output max. rated current | 6A / 10A / 20A |
| Output max. rated power | 72W / 120W / 240W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| No load loss | 44mA / 53mA / 40mA |
| Ripple & noise | 110mVp-p / 200mVp-p / 230mVp-p |
| Working temperature | -40 ~ +80°c |
| Working humidity | 10% ~ 90%RH |
| Storage temperature | -40 ~ +85°c |
| Weight | ≤ 290g |

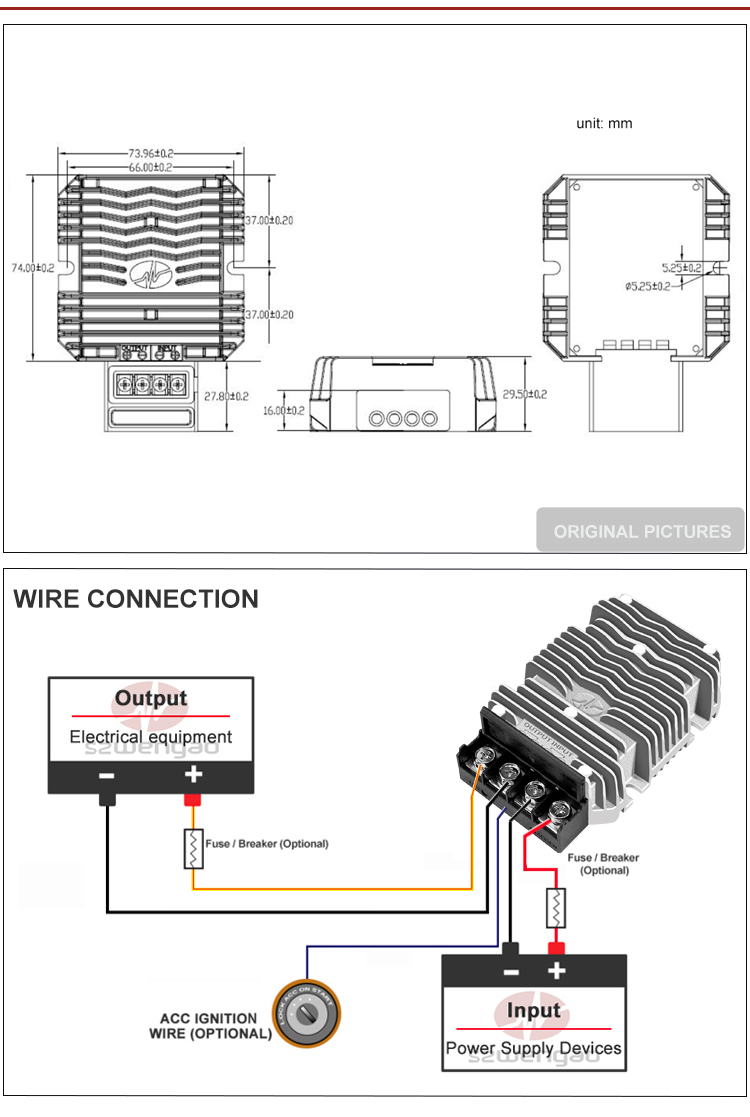

| Dimension | 74*74*29.5mm |
| Input connect type | Terminals |
| Output connect type | Terminals |
| Packing type | Box |
| Cooling | Cooling by free air convection |
A. Be sure to make the correct connection according to the product nameplate and the wire marking. The wrong connection will cause the damage of the product, and even result in the danger of fire and so on.
B. To ensure safety, a fuse should be connected to the input terminal to prevent the permanent damage caused by wrong connection of positive and negative pole and over-voltage. Some products have been installed the fuse before leaving the factory, and due to the current reason, you’d better match fuse for those products with no fuse.
