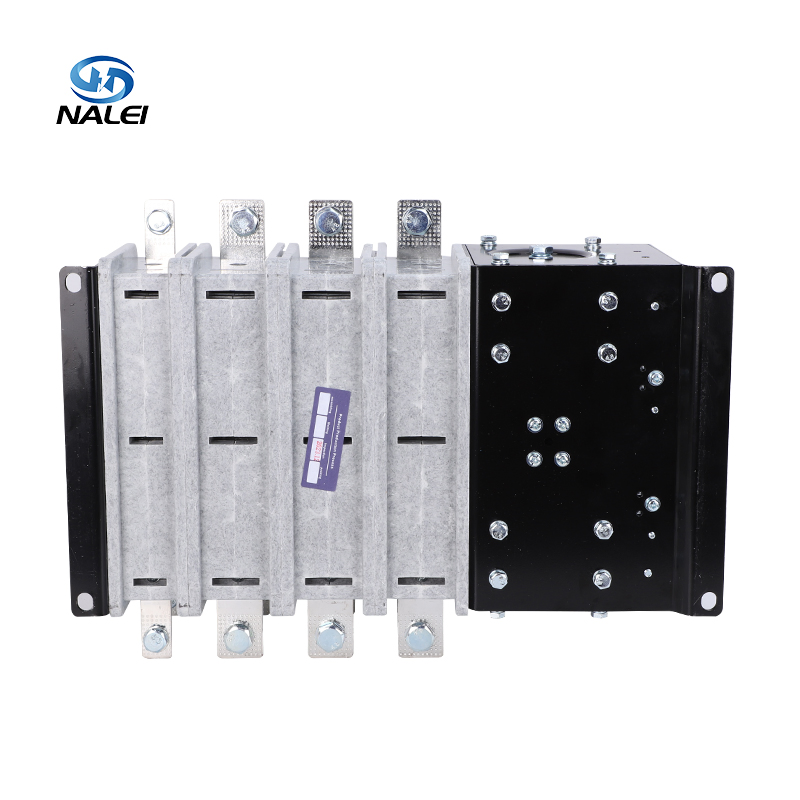

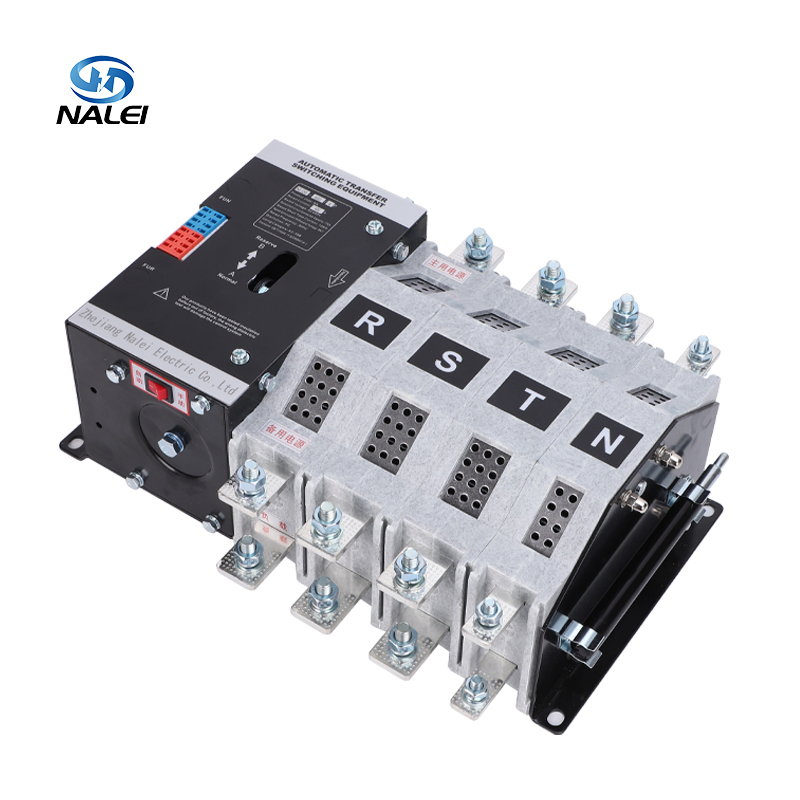

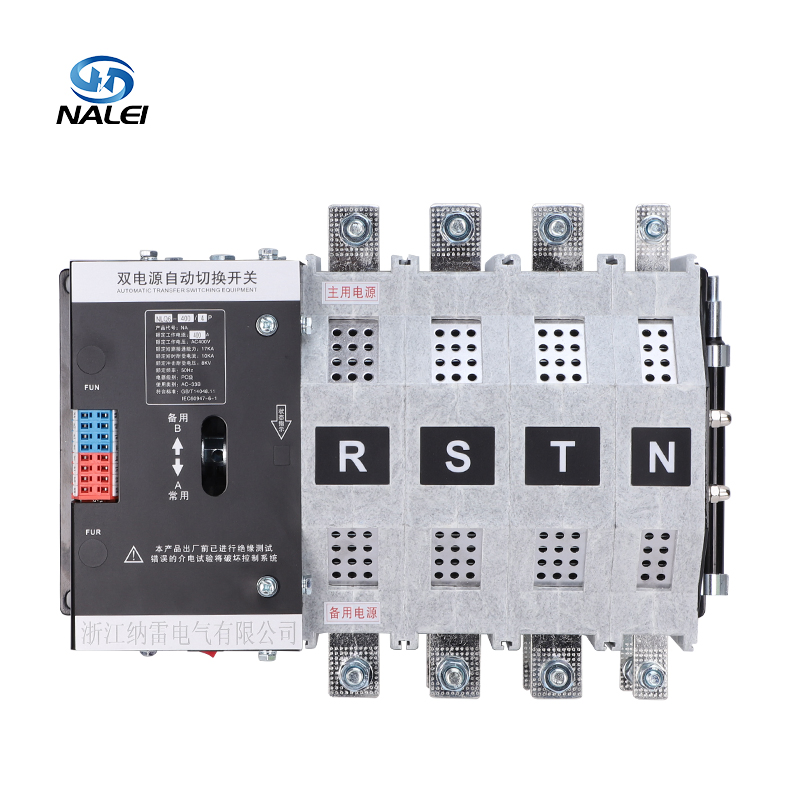

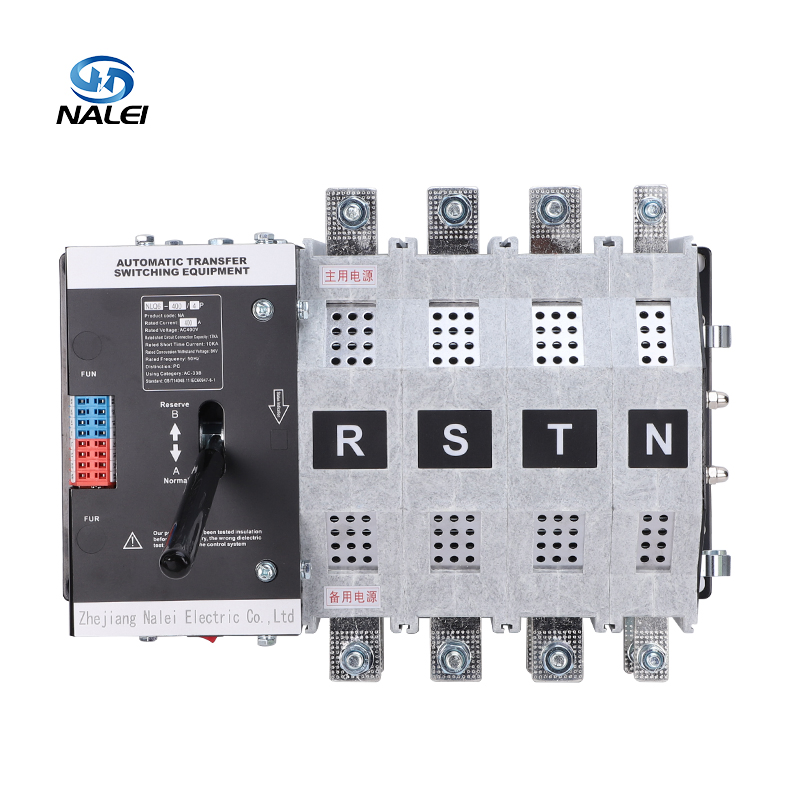

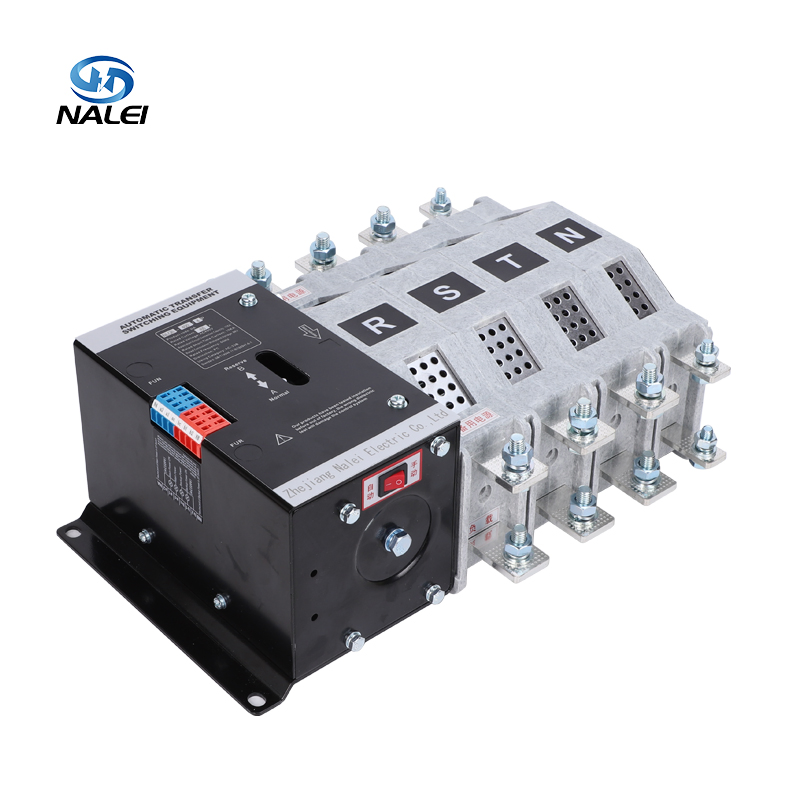

4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
1 / 5
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS

4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS

Customization: Available
Warranty: 2 Year
Brand: Nalei
Send Inquiry

Product Description

Basic Info
Model NO.
NLQ6-400/4P
Operation
Electric
Certification
CCC, CE, ISO9001
Type
PC
Poles
4P
Output type
Single
Number of Pole
4
Keywords
Automatic Transfer Switch Generator
Frame Current
400
Model Number
Nlq6-400/4p
Function
Transfer 2 Power
Product Name
Dual Power Automatic Transfer Switch
Rated Voltage
220V AC380V/660V
Operation Type
2 Position I-II
Rated Current
400A
Pole
2p/3p/4p
Certificate
CCC CE
Transport Package
Carton+Pearl Cotton

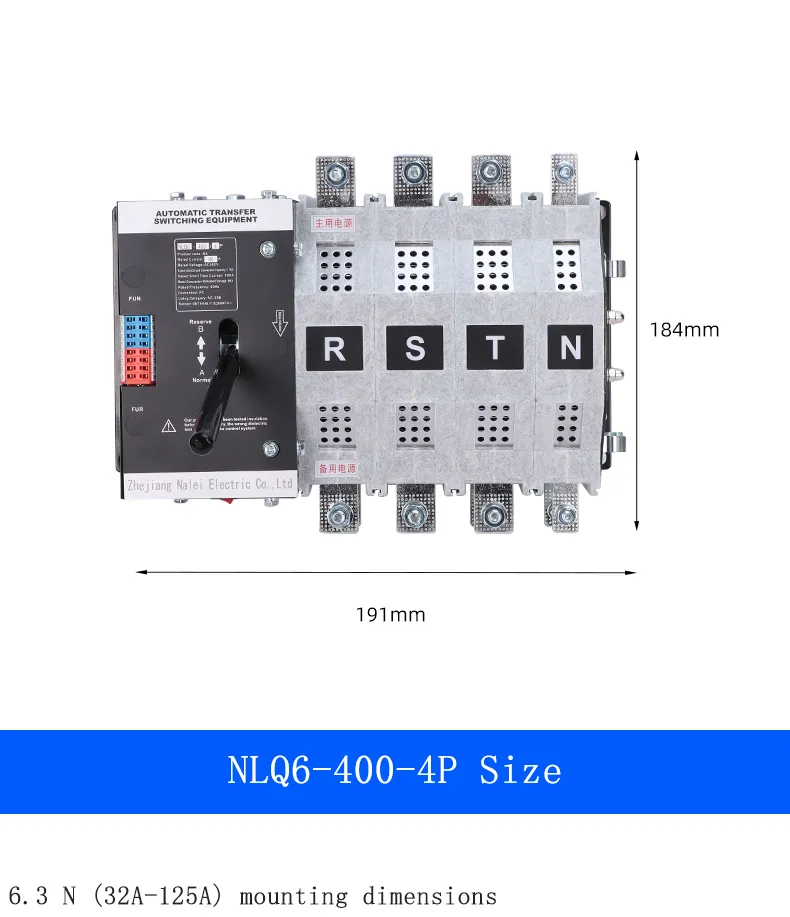

Specification
470*355*220 MM
HS Code
8536500090
Production Capacity
50000

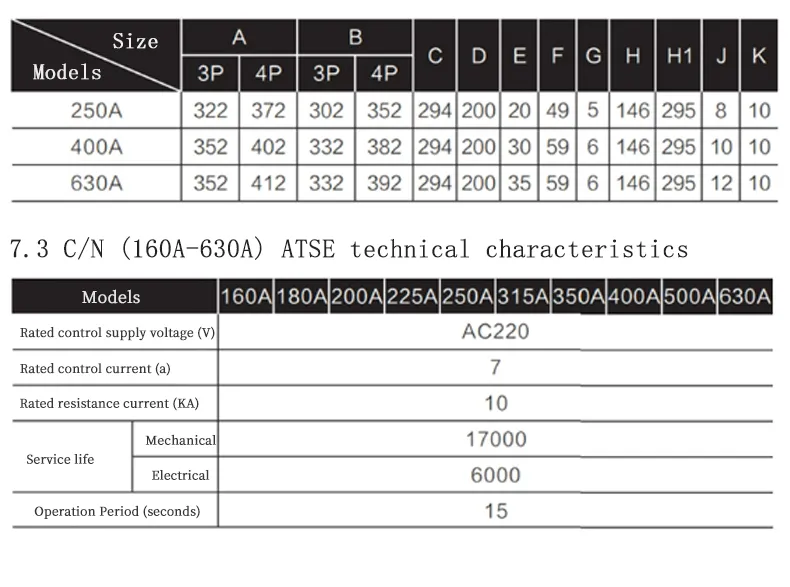

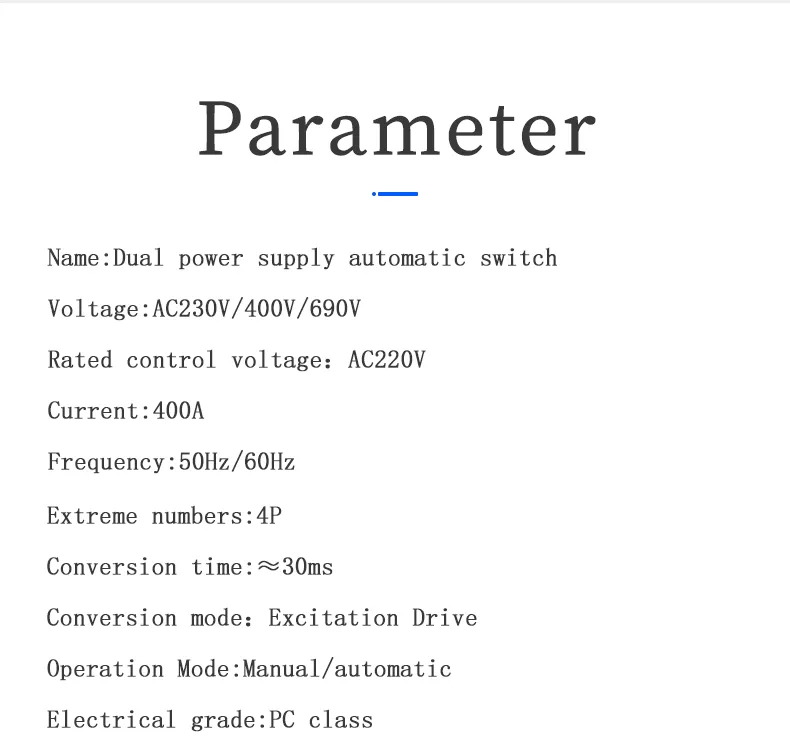

Product Parameters
Item Value
Model Number NLQ6-400/4P
Type PC
Number of Pole 4
Rated Current 400A
Frame current 220
Product name Dual Power Automatic Transfer Switch
Type I-O-II. Auto
Operation type 2 Position I-II
Function Transfer 2 Power
Pole 2P/3P/4P
Rated voltage 220V AC380V/660V
Certificate CCC CE
Current 63A/100A/160A/250A/400A/630A/1000A/1250A/1600A/2500A/3150A
Keywords Automatic Transfer Switch Generator
Name ATS Dual Power Switches

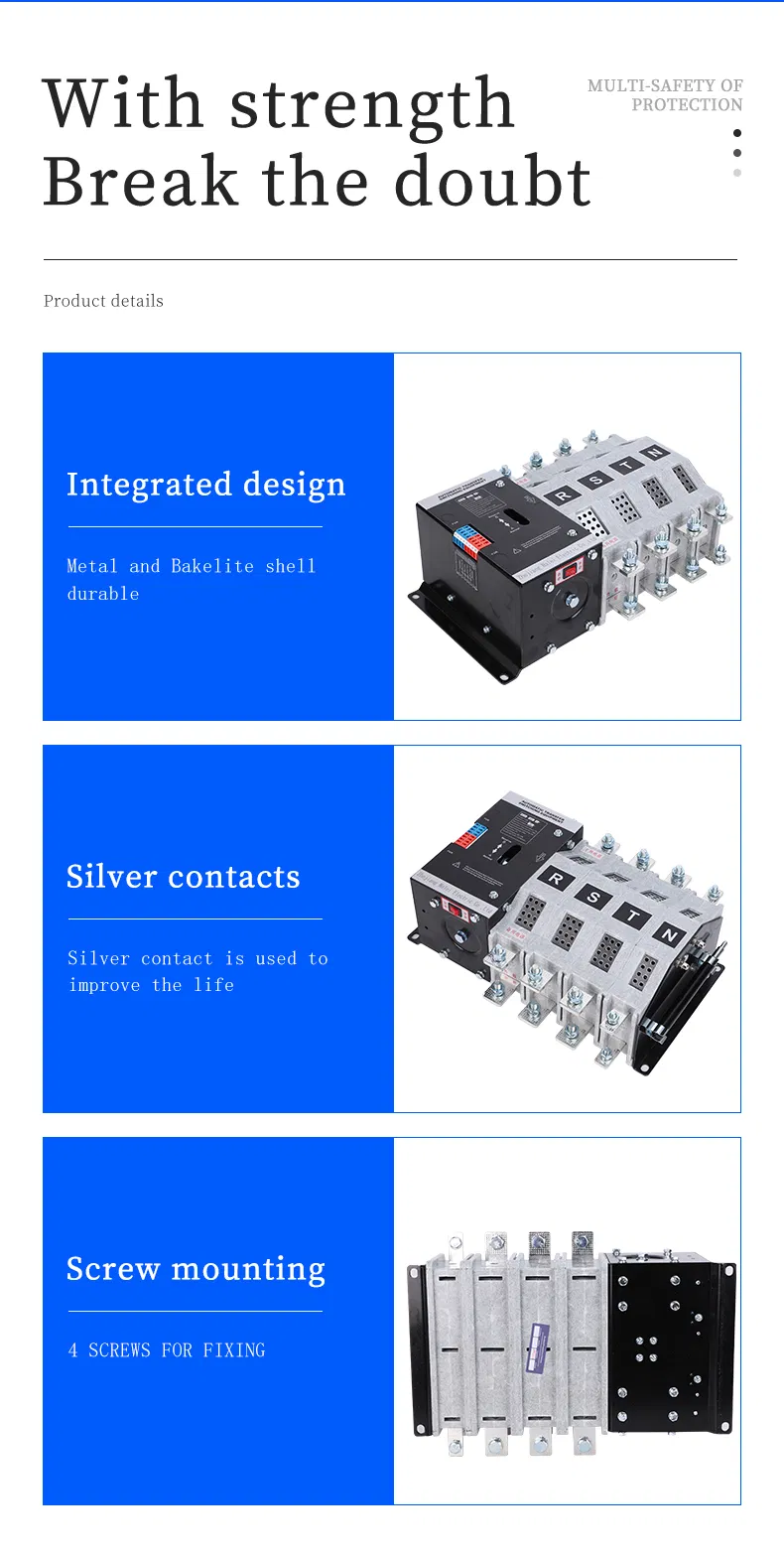

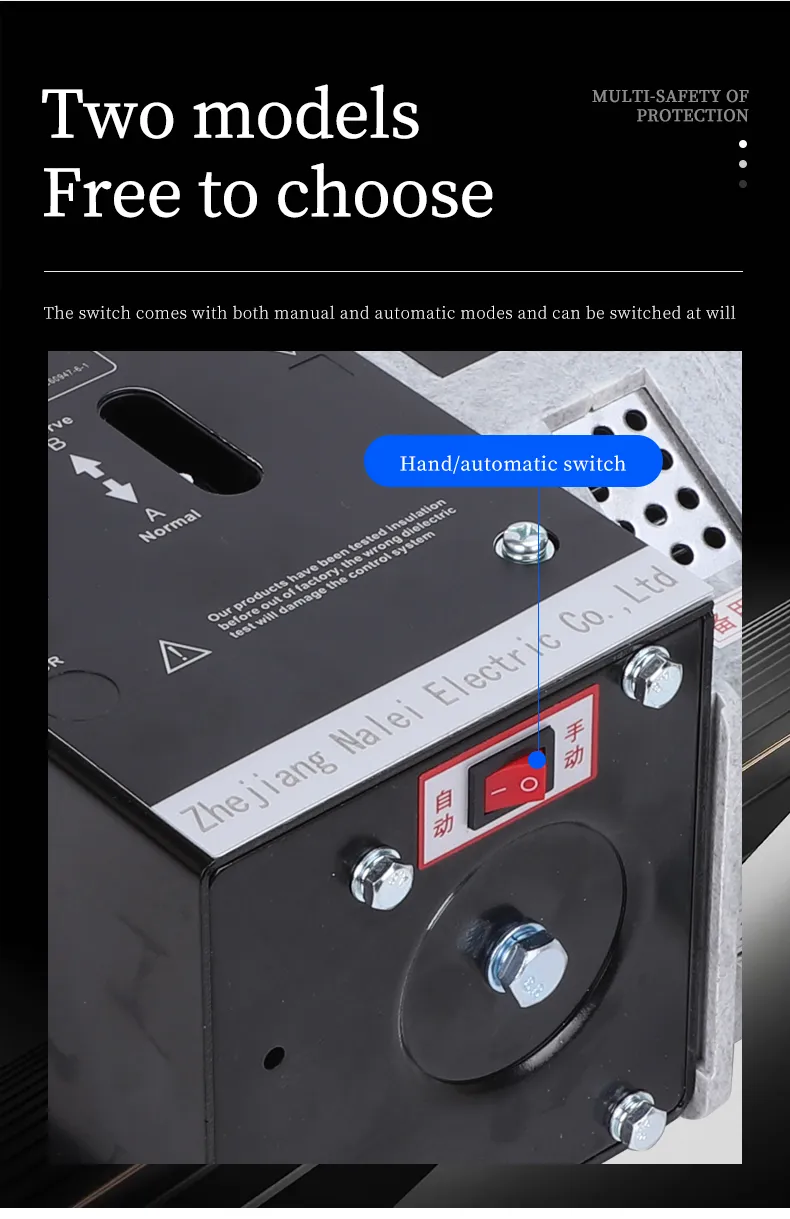

Product Showcase
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
4p 400A 50/60Hz AC380V Control Voltage 220V 30ms Fast Switching Uninterruptible Dual Power Automatic Transfer Switch ATS
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly packaging services that are both convenient and efficient are offered. The commitment to preserving the environment is matched by the dedication to quality and reliability in every package.
Frequently Asked Questions
Q: How can product quality be guaranteed?
A: A pre-production sample is always evaluated before mass production, followed by a final inspection prior to shipment.
Q: What types of electrical products can I purchase here?
A: The range of products includes ATSE, FUSE, Disconnectors, Circuit Breakers, and Contactors.
Q: What are the primary functions of the Automatic Transfer Switch?

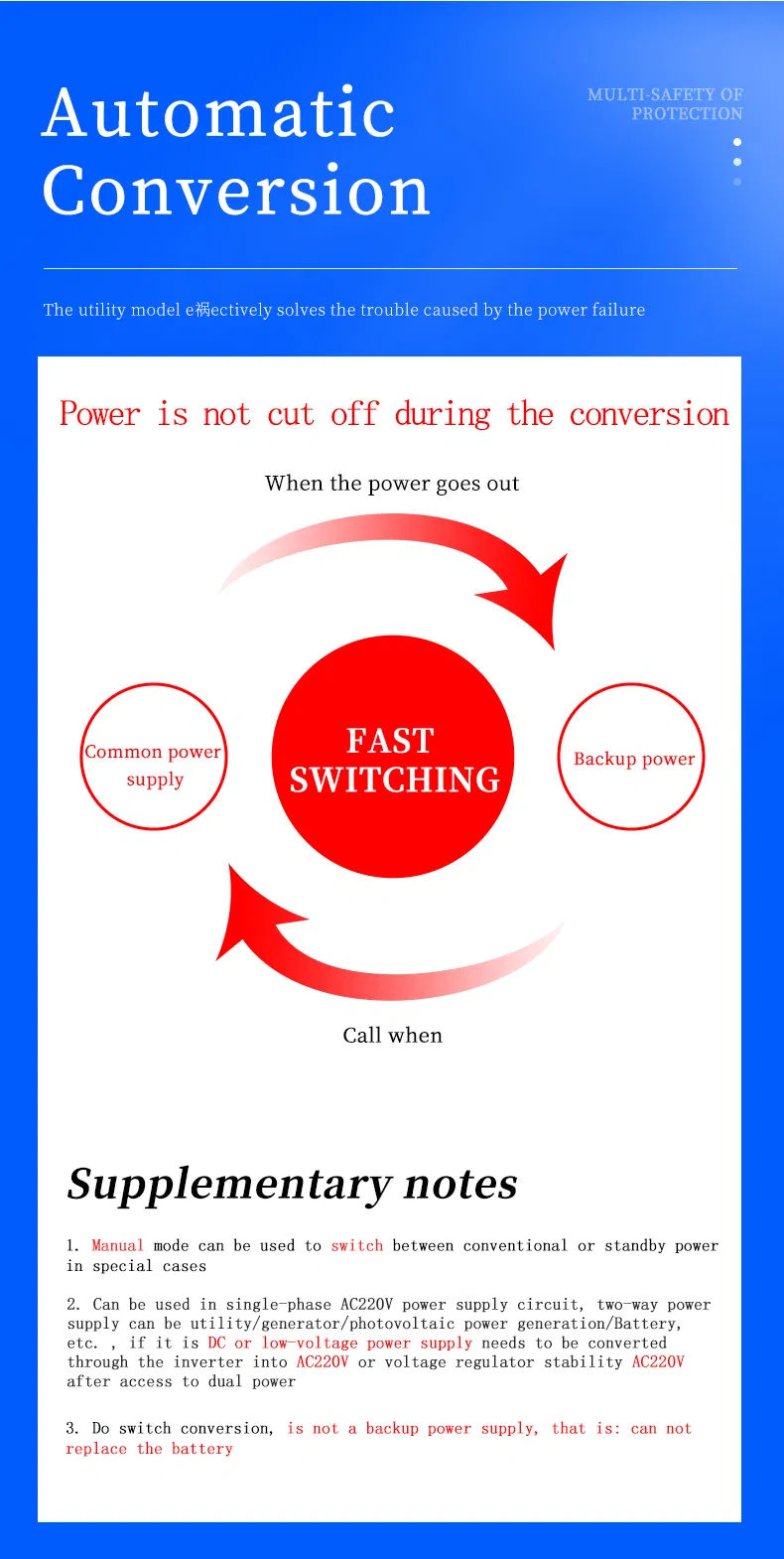

A: The dual power automatic transfer switch is designed to handle fast switching between two distinct power sources with a fast transfer time, ensuring an uninterruptible power supply.
Q: What certificates do these transfer switches comply with?
A: The devices are fully certified with CCC and CE standards, conforming to key international safety and performance criteria.
Q: What current ratings are available for the ATS series?
A: The products are available in multiple current ratings including 63A, 100A, 160A, 250A, 400A, 630A, 1000A, 1250A, 1600A, 2500A, and 3150A to fit various application scales.
