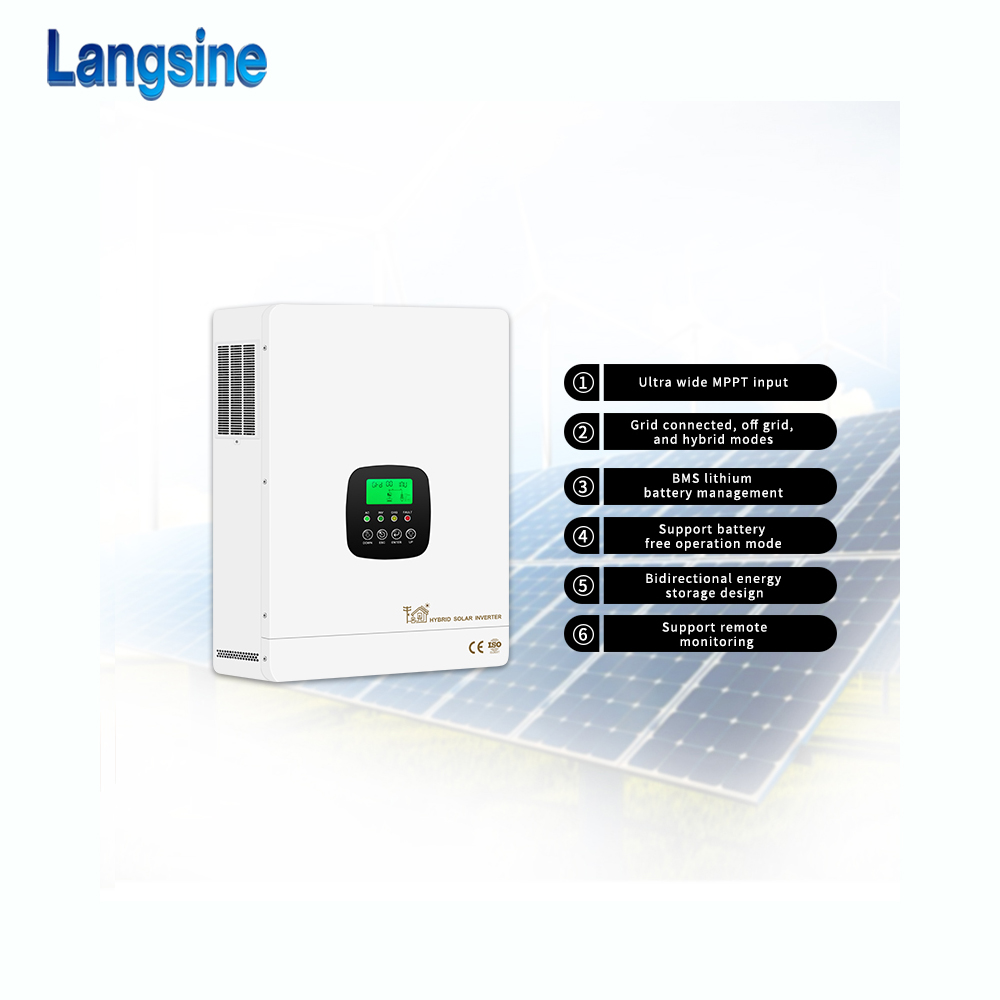

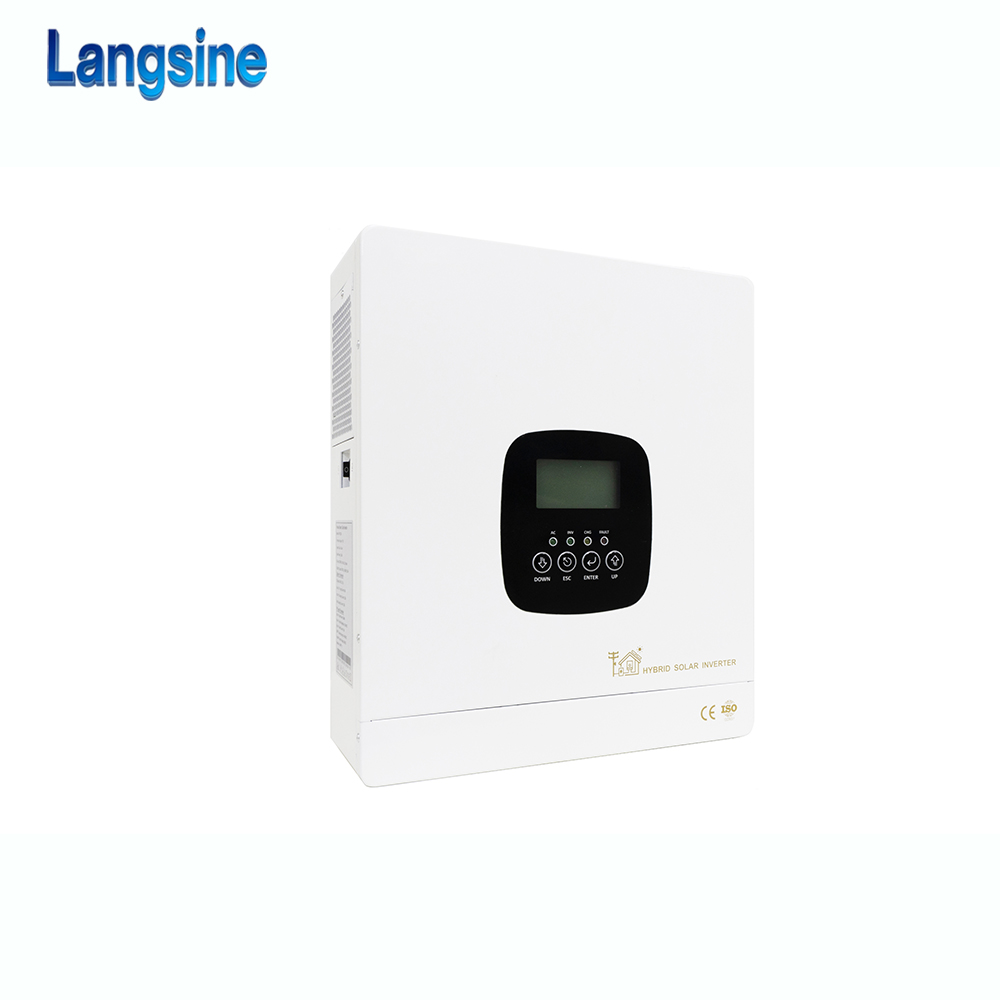

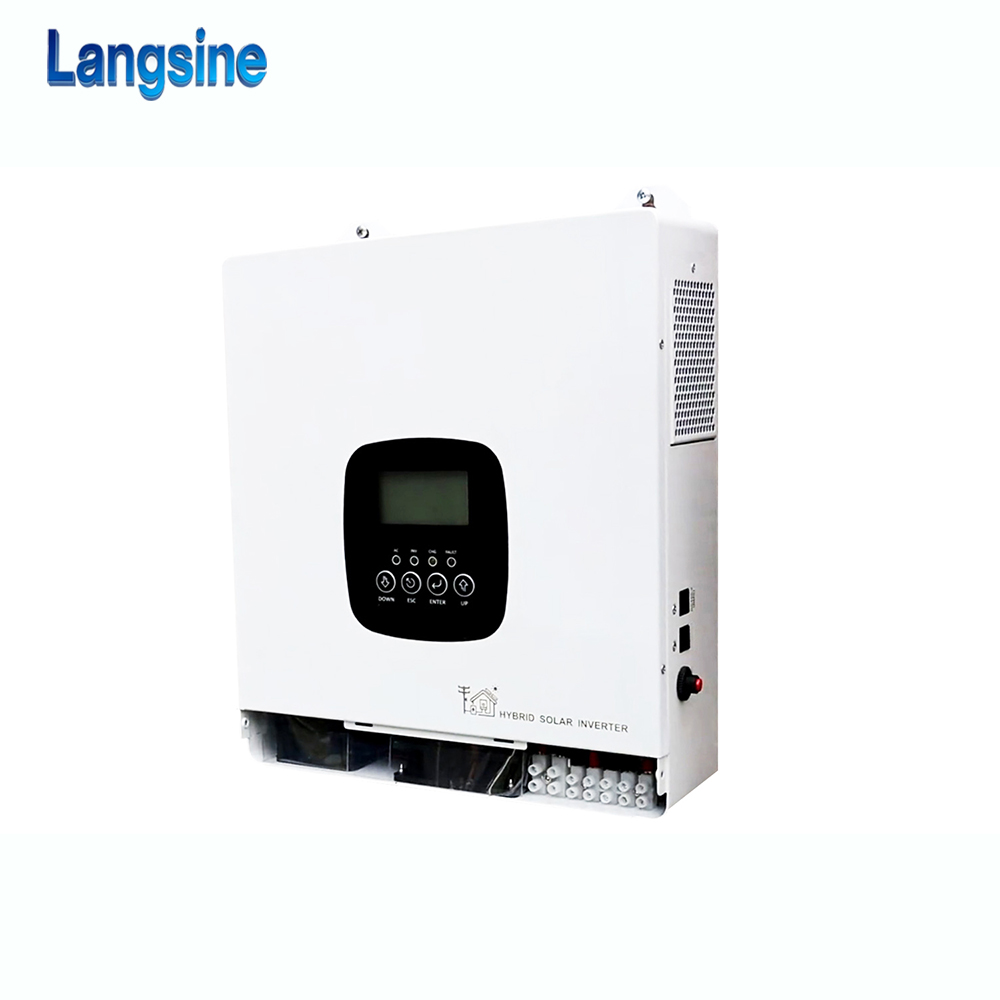

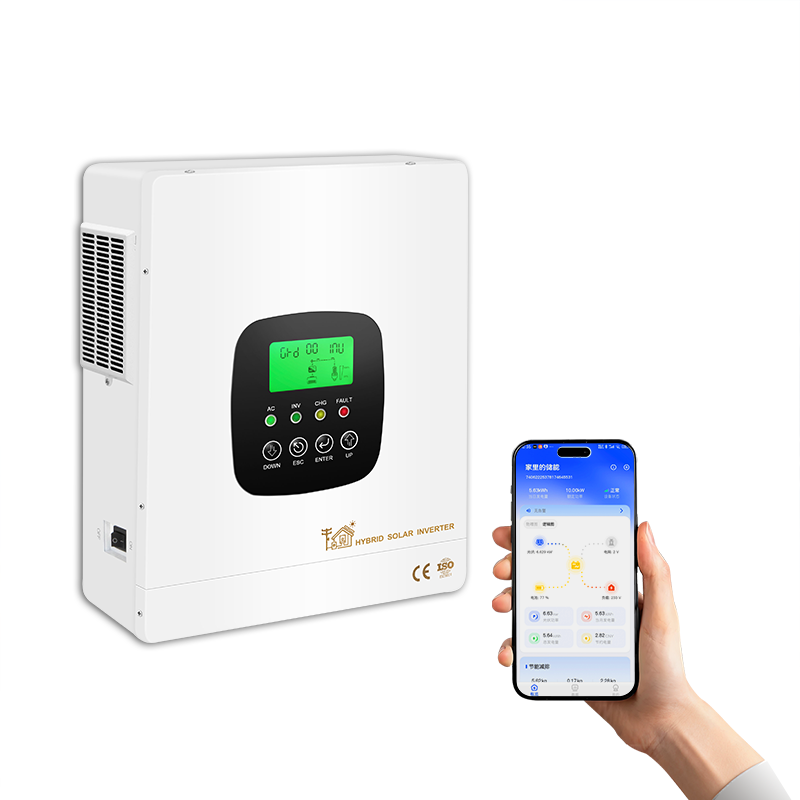

Factory Supply Solar Inverter Charger 1.8KW Pure Sine Wave 12V 24VDC Single Phase Solar Hybrid Inverter With MPPT
Factory Supply Solar Inverter Charger 1.8KW Pure Sine Wave 12V 24VDC Single Phase Solar Hybrid Inverter With MPPT
Factory Supply Solar Inverter Charger 1.8KW Pure Sine Wave 12V 24VDC Single Phase Solar Hybrid Inverter With MPPT
Factory Supply Solar Inverter Charger 1.8KW Pure Sine Wave 12V 24VDC Single Phase Solar Hybrid Inverter With MPPT
Factory Supply Solar Inverter Charger 1.8KW Pure Sine Wave 12V 24VDC Single Phase Solar Hybrid Inverter With MPPT
1 / 5
Factory Supply Solar Inverter Charger 1.8KW Pure Sine Wave 12V 24VDC Single Phase Solar Hybrid Inverter With MPPT
Factory Supply Solar Inverter Charger 1.8KW Pure Sine Wave 12V 24VDC Single Phase Solar Hybrid Inverter With MPPT
Factory Supply Solar Inverter Charger 1.8KW Pure Sine Wave 12V 24VDC Single Phase Solar Hybrid Inverter With MPPT
Factory Supply Solar Inverter Charger 1.8KW Pure Sine Wave 12V 24VDC Single Phase Solar Hybrid Inverter With MPPT
Factory Supply Solar Inverter Charger 1.8KW Pure Sine Wave 12V 24VDC Single Phase Solar Hybrid Inverter With MPPT

Factory Supply Solar Inverter Charger 1.8KW Pure Sine Wave 12V 24VDC Single Phase Solar Hybrid Inverter With MPPT

Send Inquiry

Product Description

Product Description
Item NO.LXN02
BrandLangsine
Rate power1800W
Max PV input power2500W
MPPT Tracking Voltage Range30Vdc-240Vdc
Rated voltage1800Vdc
Max PV Input voltage300Vdc
Max PV input Current13A
MPPT Tracking Channels1 Routed
Battery typeLead acid battery/lithium Battery
Rated Battery voltageCustom battery
Battery voltage Range10.5-15Vdc(default)
Max PV Charging Current100A
Max AC Charging Current65A
Max Charging current100A
Max conversion efficiency94% (peak value)
No load loss1% rate power
MPPT Tracking efficiency>99.9%
Transfer time10ms
DisplayLCD+LED
Cooling methodCooling fan intelligent control
CommunicationRS485/Mobile App
Protection DegreeIP20
Protection FeaturesBattery low voltage alarm/protection, Anti-islanding, Overload, Short circuit, Temperature protection
Operating Temperature-10°C - 50°C
Output frequency50Hz/60Hz
Output wavePure sine wave
Detailed Images

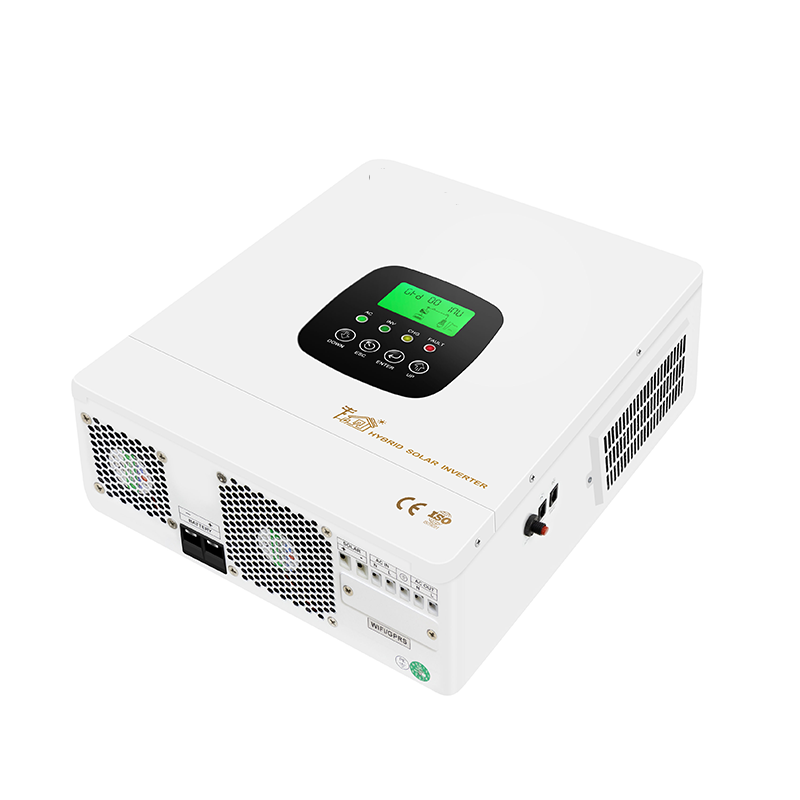

Solar Inverter 1
Solar Inverter 2

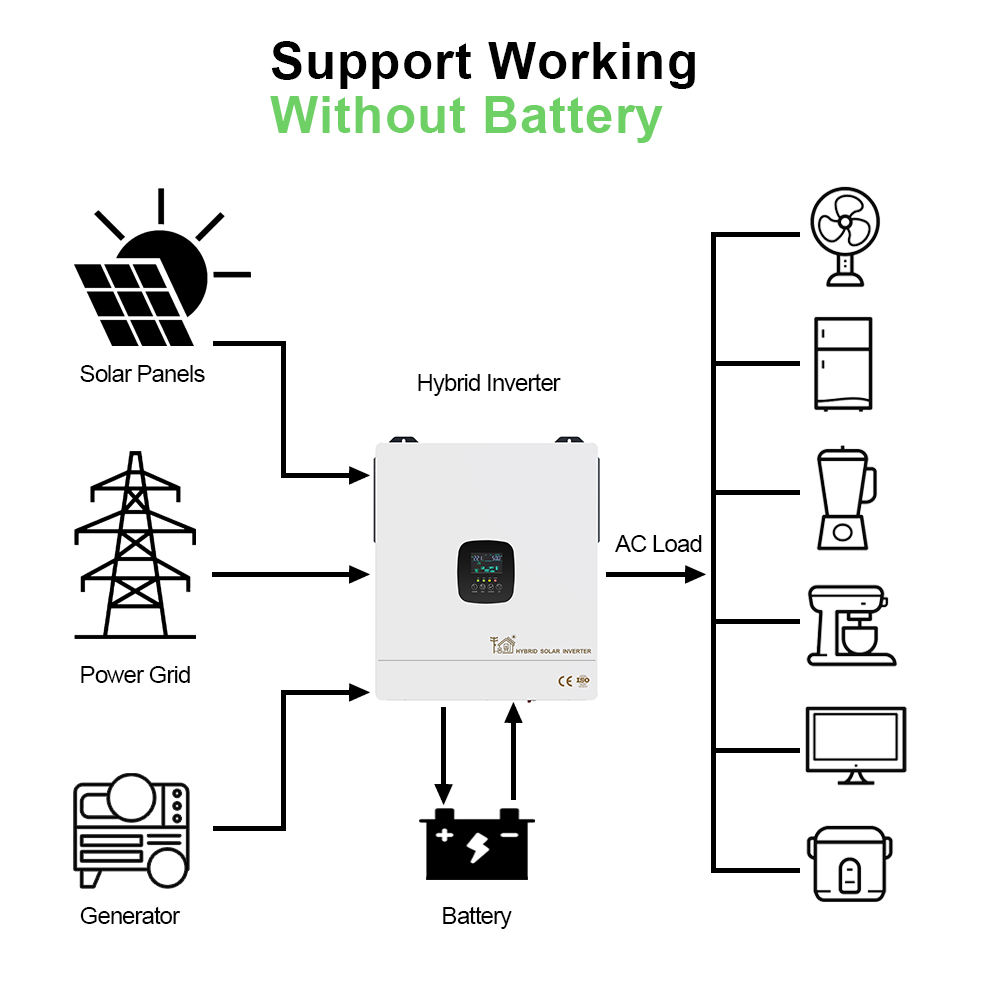

Solar Inverter 3
Certifications
Certifications
Packaging & Shipping
Packaging
Our Services
Services
Frequently Asked Questions
Q: What type of batteries is this inverter compatible with?
A: The inverter supports both Lead-acid and Lithium batteries, with customizable parameters via the operation board.
Q: Does this inverter provide pure sine wave output?
A: Yes, it outputs a pure sine wave, ensuring safe and stable power for sensitive electronic equipment.
Q: Can I monitor the device remotely?
A: Yes, it supports RS485 communication and optional mobile App monitoring via Wi-Fi or GRS.
Q: What is the rated power of this model?
A: The rated power of the LXN02 model is 1800W.
Q: What protection features are included?
A: It features multiple protections including battery low voltage alarm/protection, anti-islanding, overload, output short circuit, and temperature protection.
Q: What is the operating temperature range?
A: The inverter is designed to operate efficiently within a temperature range of -10°C to 50°C.
