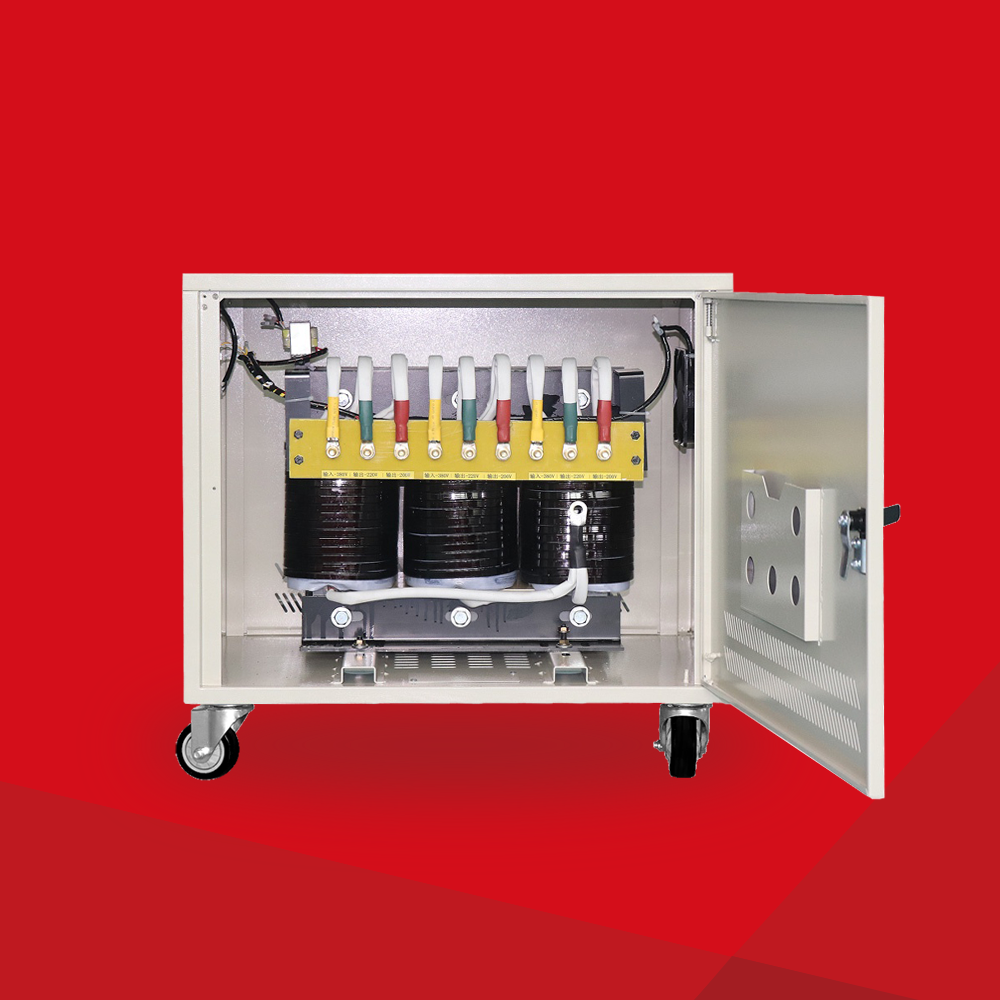

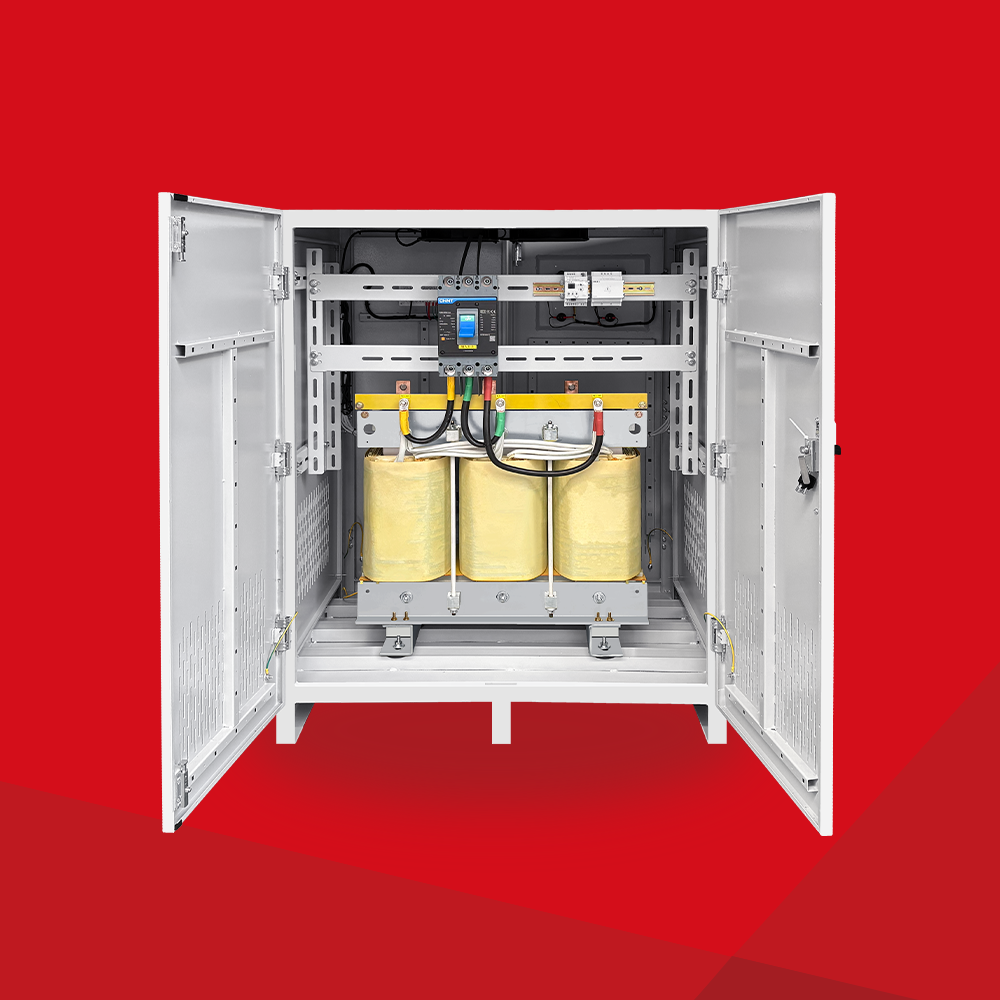

3KVA-50KVA 100KVA 200KVA 220V 380V 415V 480V Factory Directly CE Certificate 3 Phase Isolation Step Up Step Down Transformer
3KVA-50KVA 100KVA 200KVA 220V 380V 415V 480V Factory Directly CE Certificate 3 Phase Isolation Step Up Step Down Transformer
3KVA-50KVA 100KVA 200KVA 220V 380V 415V 480V Factory Directly CE Certificate 3 Phase Isolation Step Up Step Down Transformer
3KVA-50KVA 100KVA 200KVA 220V 380V 415V 480V Factory Directly CE Certificate 3 Phase Isolation Step Up Step Down Transformer
3KVA-50KVA 100KVA 200KVA 220V 380V 415V 480V Factory Directly CE Certificate 3 Phase Isolation Step Up Step Down Transformer
1 / 5
3KVA-50KVA 100KVA 200KVA 220V 380V 415V 480V Factory Directly CE Certificate 3 Phase Isolation Step Up Step Down Transformer
3KVA-50KVA 100KVA 200KVA 220V 380V 415V 480V Factory Directly CE Certificate 3 Phase Isolation Step Up Step Down Transformer
3KVA-50KVA 100KVA 200KVA 220V 380V 415V 480V Factory Directly CE Certificate 3 Phase Isolation Step Up Step Down Transformer
3KVA-50KVA 100KVA 200KVA 220V 380V 415V 480V Factory Directly CE Certificate 3 Phase Isolation Step Up Step Down Transformer
3KVA-50KVA 100KVA 200KVA 220V 380V 415V 480V Factory Directly CE Certificate 3 Phase Isolation Step Up Step Down Transformer

3KVA-50KVA 100KVA 200KVA 220V 380V 415V 480V Factory Directly CE Certificate 3 Phase Isolation Step Up Step Down Transformer

Send Inquiry

Product Description

3 Phase Isolation Step up Step Down Transformer

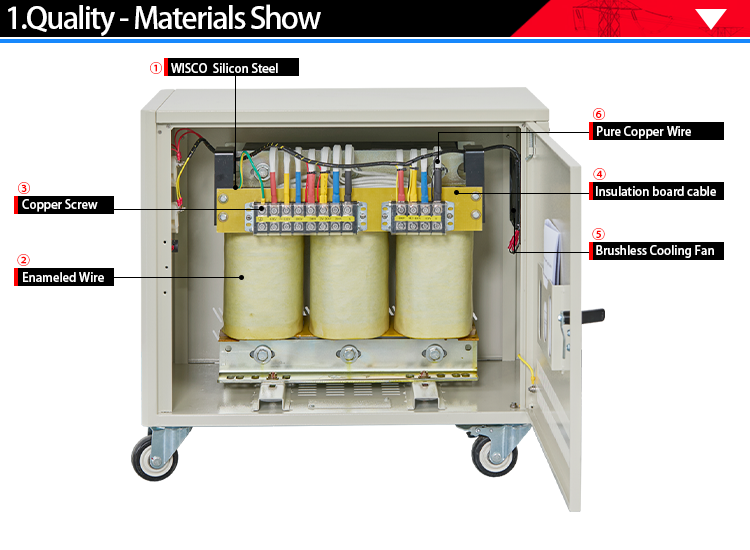

Transformer Details
Transformer Internal Detail 1
Transformer Internal Detail 2
1. WISCO Silicon Steel
Ensure: 100% Brand New
Advantage: Low core loss, High magnetic induction
2. Enameled Wire
Optional: Pure Copper | Pure aluminum
Advantage: Excellent Insulation
3. Copper Screw
Ensure: 100% Pure Copper
4. Insulation Board Cable
Insulation, Heat resistant, Moisture resistance
5. Brushless Cooling Fan
Long lifespan, Quieter Operation
6. Pure Copper Wire
Low resistivity, Excellent conductivity
Click Here To Get Price

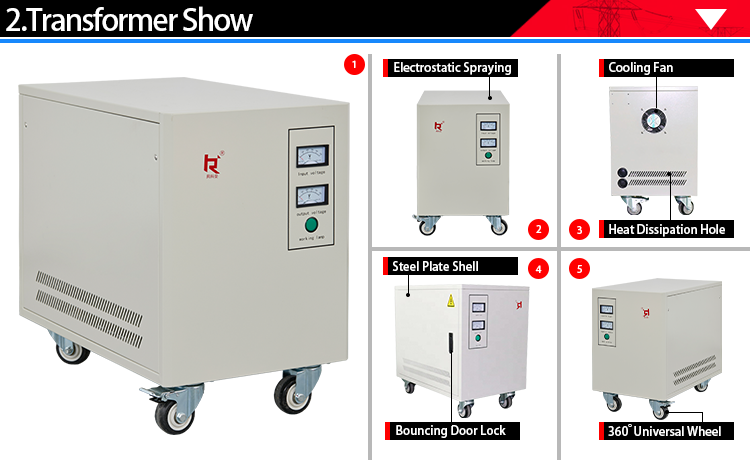

Dimensions
Parameters
Rated capacity
10KVA Customizable(3KVA-1000KVA)
Phase number
3Phase
Input voltage
380V AC Customizable
Output voltage
110/220V AC Customizable
Working frequency
50/60HZ
Short circuit Impedance
4%
Voltage Resistance
2500VAc/min (does not have the puncture, no break down)
Insulation Level
Level F
Insulation Resistance
> 100MΩ/ DC500V
Main material winding
Aluminum
Connection mode
Y (Can customized with your requirement)
Size(W*D*H)
430*320*400mm
Temperature rise limit
100K (Actual temperature minus ambient temperature)
Weight
50KG
Cooling mode
Natural cooling and wind cooling
Customizable Transformer (3KVA-4000KVA)
Customizable Transformer Specifications
Showcase 1
Showcase 2
Showcase 3
Detail 1
Detail 2

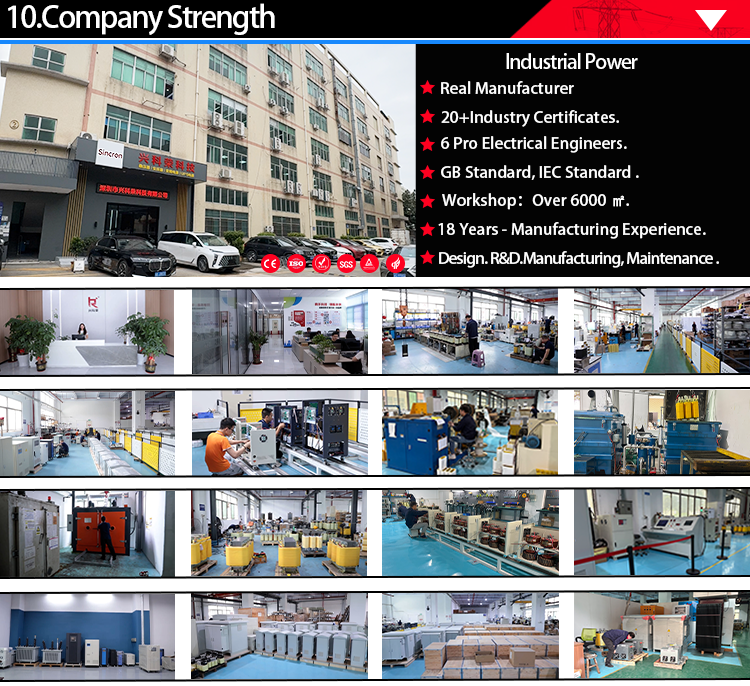

Detail 3
Detail 4
Detail 5
FAQ
Q1Are you a manufacturer?
Absolutely! Our factory is a true industrial power supply manufacturer. Welcome to verify our factory any time!
Q2How is the quality of your transformer?
Our factory uses internationally renowned brands of non oriented silicon steel or oriented silicon steel to achieve low iron loss and high magnetic induction.
Q3What is the delivery time?
The standard delivery time is 7-10 working days. For customized products, we need to confirm in advance whether it is more than 15 working days.
Q4Can we customize the logo?
Certainly. Our own factory supports ODM/OEM orders.
Q5What is the minimum order quantity?
Minimum order quantity for standard products is 1 unit.
Q6Why choose our products?
  • A. Material: We use international first-line brand raw materials and guarantee 100% brand new, allowing you to clearly understand where your cost consumption is.
  • B. Quality: With 19 years of production experience, our own professional electrical engineering team, selected production processes and management, and excellent raw materials, we ensure that our product quality is safer and more stable.
  • C. After sales: We promise 100% after-sales service for two years, and free replacement of parts for quality problems within two years.
  • D. Certification: SGS, CE, ROHS, TUV, ISO 9001, GB, IEC, Certification of electrical patents, etc.

Related Products

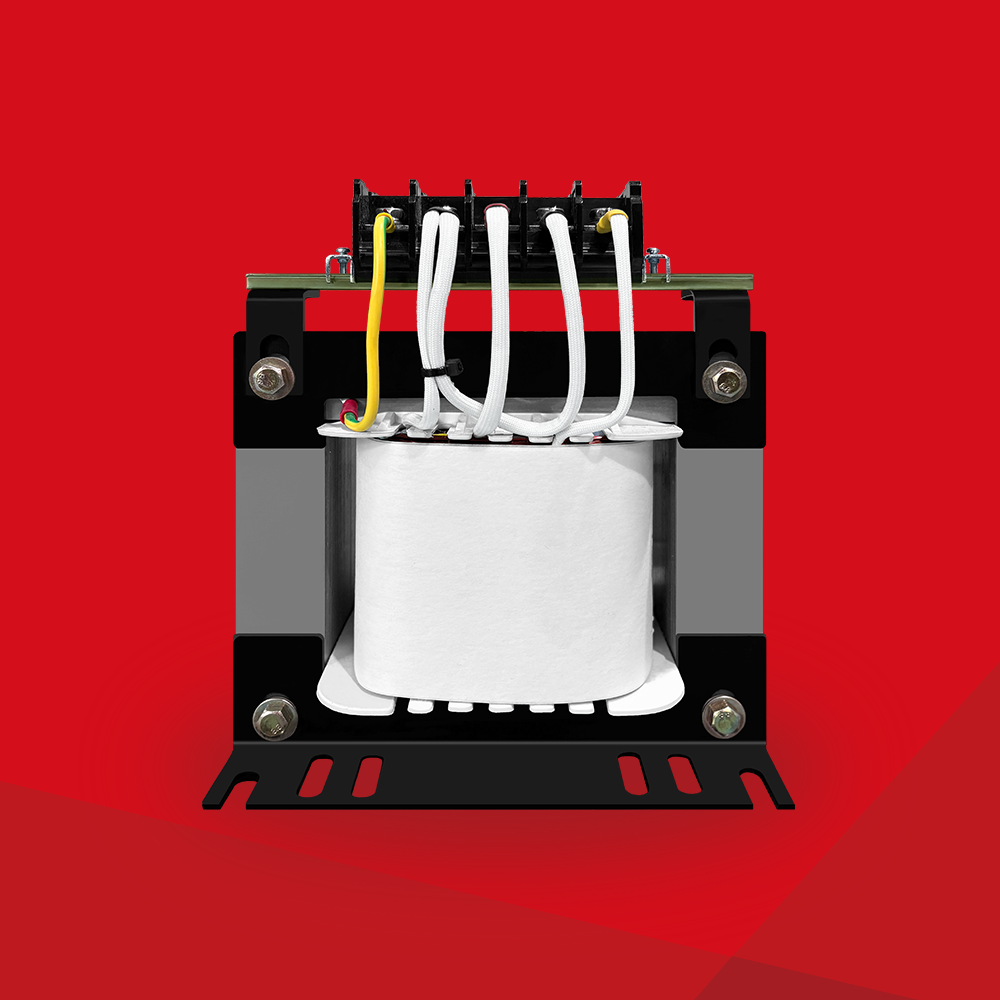

50va 200va 500va 1000VA 3000va Machine Tool Control Transformer 240v 220v to 12V 24V 36V Single Phase Isolation Transformer
