Overview
Product Description
Detailed Photos
Basic Info.
Model NO.SWQ2-32NS
OperationHandle Directly
CertificationPC
TypeIntegrated automatic transfer switch
Poles4P
Current10-400A
Package Size35.00cm * 19.00cm * 20.00cm
Package Weight40.000kg
Product Description
TWO SECTION PC TYPE AUTOMATIC TRANSFER SWITCH
SWQ series intelligent dual power automatic transfer switch is a kind of emergency power switch. The switch consists of circuit breaker and line controller. It is based on the latest control system and is stable and reliable for long-term continuous operation. It is an ideal electromechanical switch.
★
Application Scope:
Suitable for double power systems of AC power below 415V, frequency 50/60Hz, rated current up to 3200A. Ideal for hospitals, shopping malls, banks, fire control, telecommunications, and high-rise buildings where power off is not allowed.
Key Technical Features:
- High Performance: Adopt high-performance SCM control program with nixie tube voltage display.
- Protection Capabilities: Includes protections for overload, under-voltage, short circuit, phase loss, and intelligent alarm.
- Reliability: Strong anti-interference and high accuracy; features reliable mechanical and electric interlock protection to prevent simultaneous closing.
- Compact & Efficient: Small volume, compact structure, noise-free operation, energy-saving design, and high breaking capacity.
- Advanced Control: Features generator starting signal; when normal power is abnormal, the ATS controller automatically sends a starting signal to the generator.
- Fire Safety: Integrated with fire control circuit; when receiving a control signal, both MCCBs will be broken automatically.

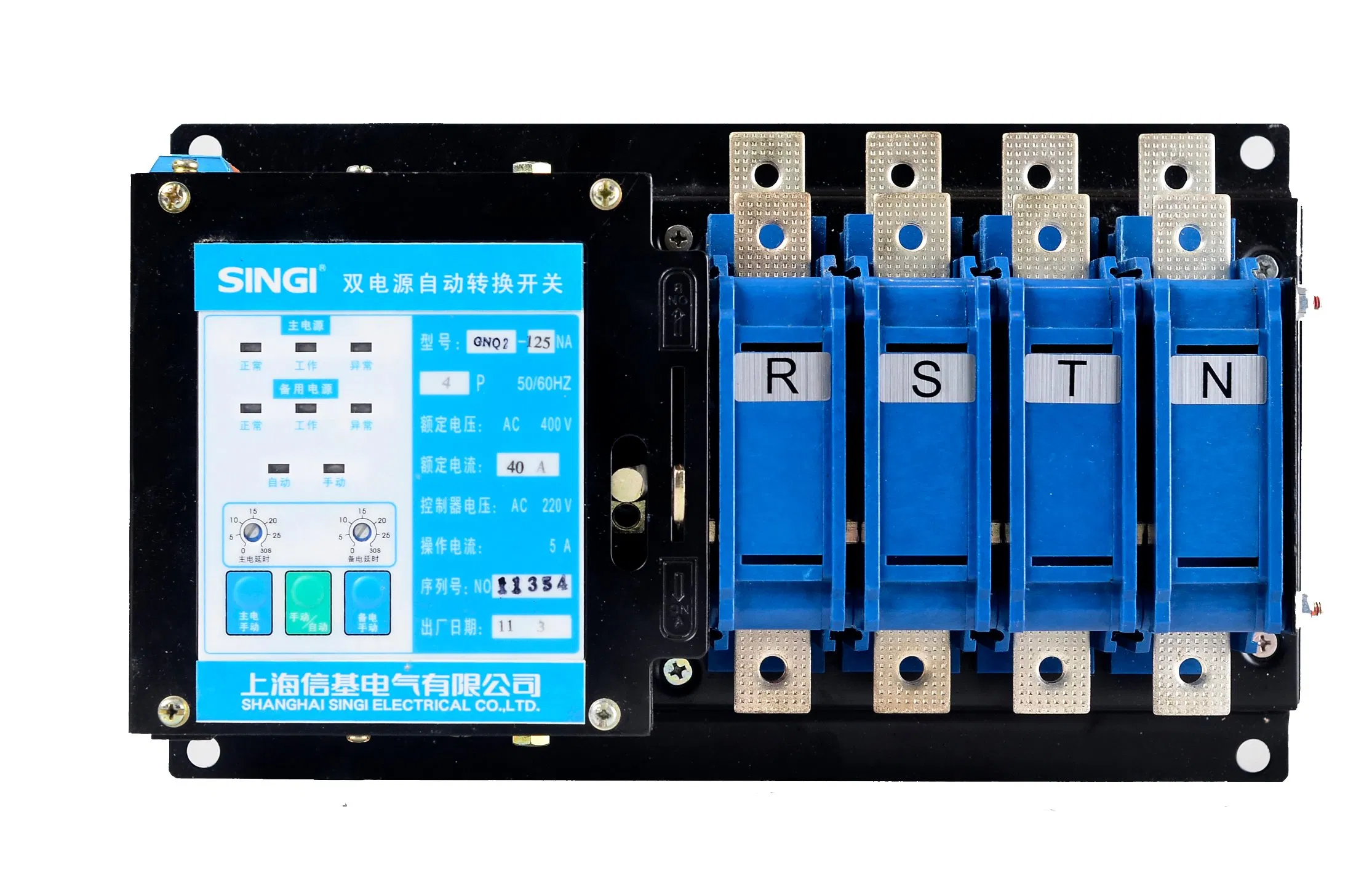

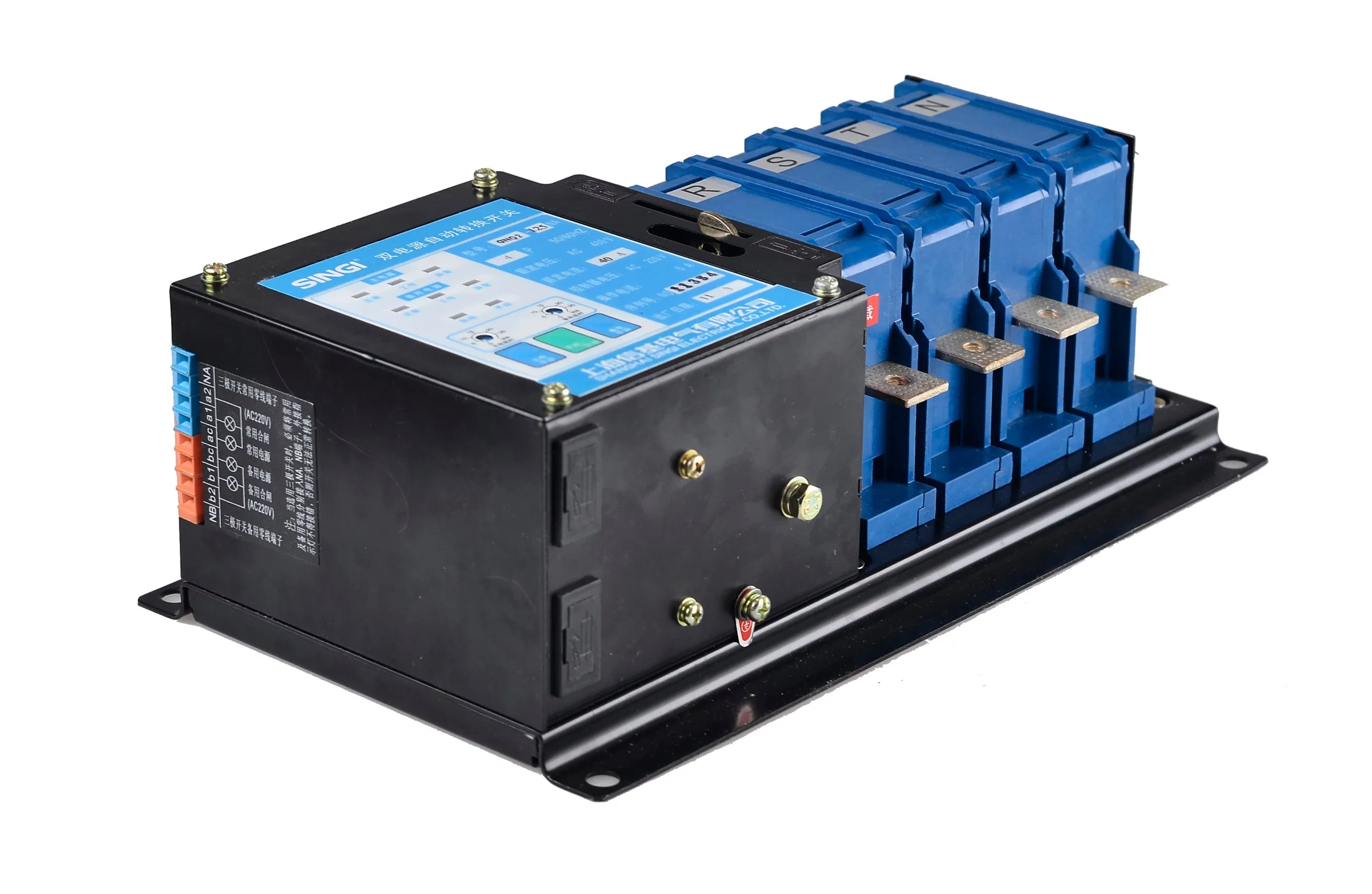

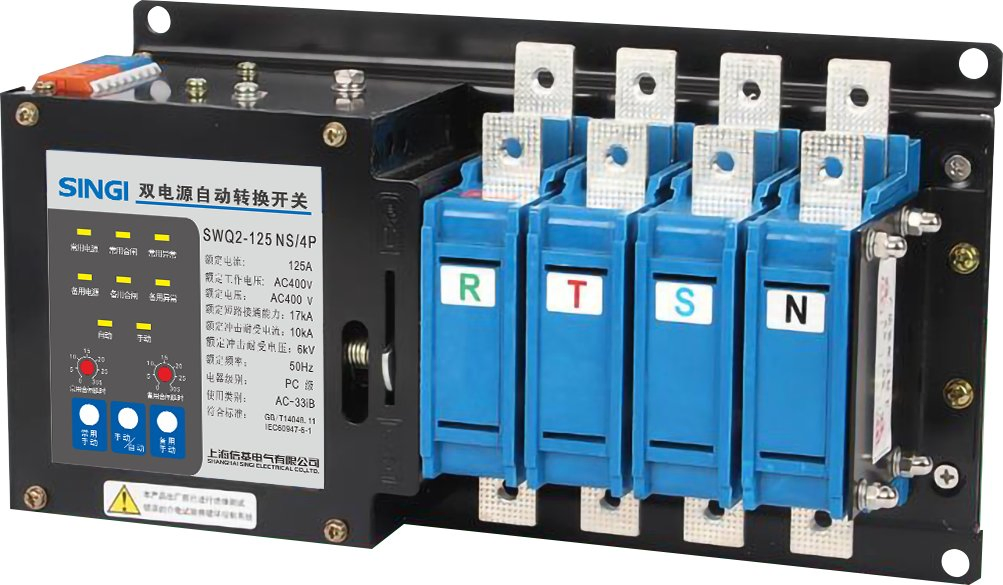

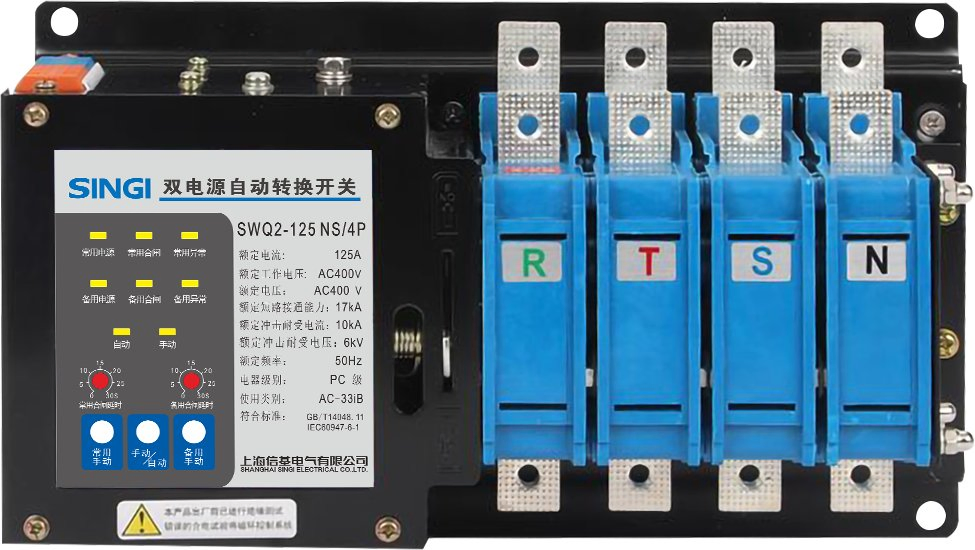

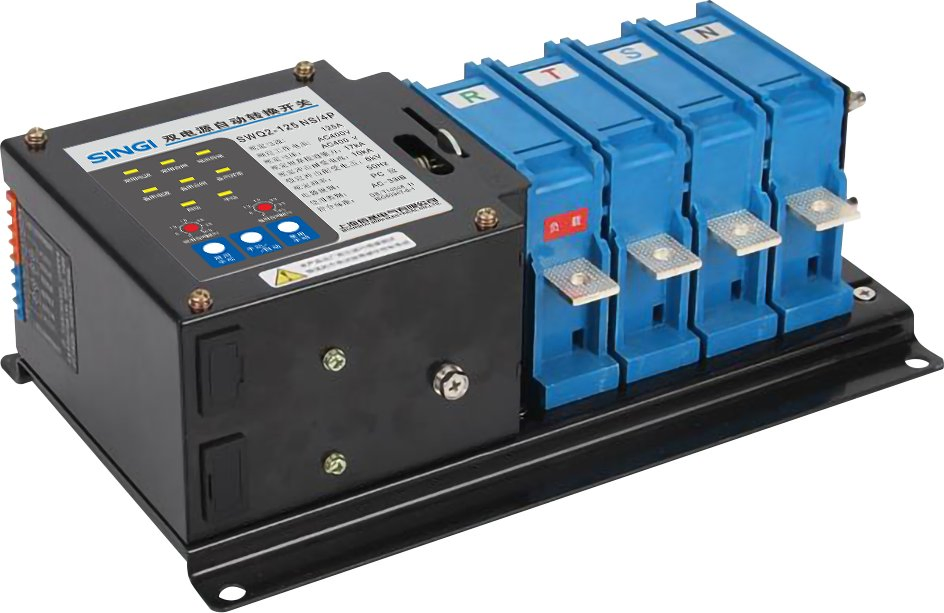

Detailed Photos
Frequently Asked Questions
1. What is the main function of the SWQ2 series Automatic Transfer Switch?
It is an emergency power switch designed to ensure continuous power supply by automatically switching between two power sources in critical applications.
2. Which environments are suitable for this ATS?
It is ideal for high-reliability environments such as hospitals, banks, fire control centers, telecommunications, and high-rise buildings.
3. Does the switch provide protection against electrical faults?
Yes, it includes built-in protections for overload, under-voltage, short circuits, and phase loss to ensure system safety.
4. How does the generator control work?
When the normal power supply is abnormal, the controller automatically sends a startup signal to the generator to ensure emergency power delivery.
5. Is the transfer switch safe regarding fire control?
Yes, it features a dedicated fire control circuit that disconnects both MCCBs automatically upon receiving a fire control signal.
