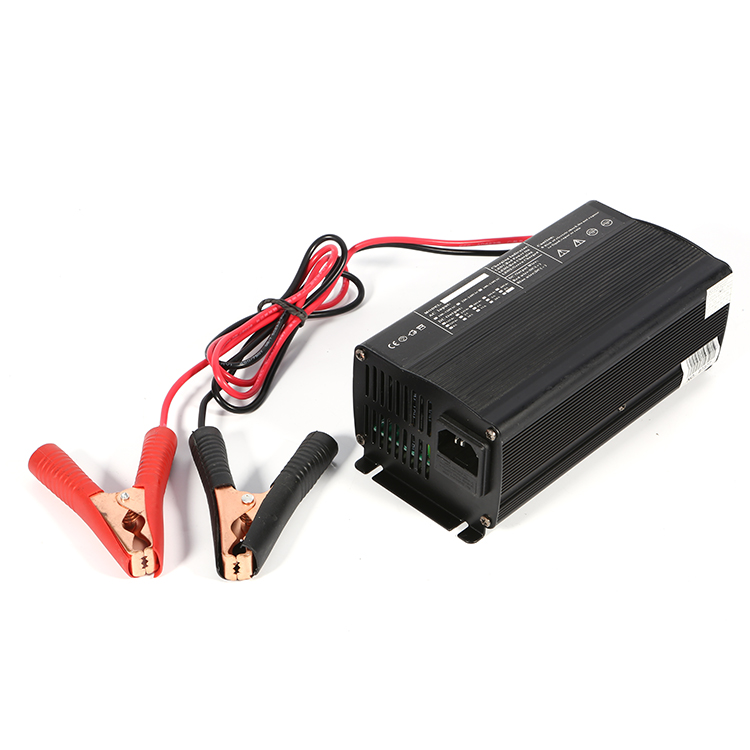

| Input | 110V/220Vac 50/60Hz | Input plug | EU US UK AUS JP Korea Italy Brazil India South Africa |
| Output | 12v/14.6v 18a 20a | Charge mode | CC--CV Mode(Automatic) |
| Standard Charge voltage |
1s 3.65v for 1 cell 3.2v lifepo4 battery; 2s 7.3v for 2 cells 6v lifepo4 battery; 3s 10.95v for 3 cells 9v lifepo4 battery; 4s 14.6v for 4 cells 12v lifepo4 battery; 5s 18.25v for 5 cells 15v lifepo4 battery; 7s 25.55v for 7 cells 21v lifepo4 battery; 8s 29.2v for 8 cells 24v lifepo4 battery; 12s 43.8v for 12 cells 36v lifepo4 battery; 15s 54.75v for 15 cells 45v/48v lifepo4 battery; 16s 58.4v for 16 cells 48v lifepo4 battery; 19s 69.35v for 19 cells 60v lifepo4 battery; 20s 73v for 20 cells 60v lifepo4 battery; 24s 87.6v for 24 cells 72v lifepo4 battery; 28s 102.2v for 28 cells 84v lifepo4 battery; |
||
| Led Indicator |
Red--charging; Green--full charged; |
Protection |
Over-current, Over-voltage, Short-circuit, Polarity reverse |
| Suitable Battery | Lifepo4 Battery Pack | Efficiency | >86% |

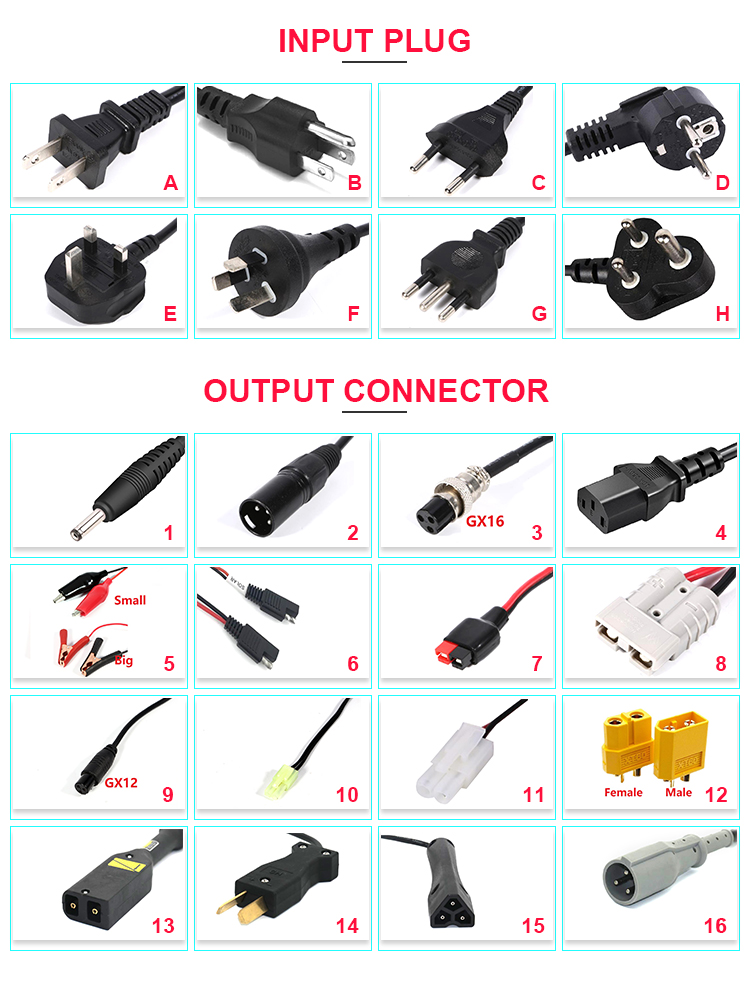

| Output connector | customized(as below) | Size & Weight | 170*90*63mm 1.2kg |
| Hi-Pot | 3000Vac/60S | MTBF | 50000hrs |
| Operating Temperature | -20℃~ +40℃ | Storage Temperature | -40℃~ +70℃ |
| Certification | CE FCC UL SAA GS KC PSE ROHS | Lead time |
sample time: 4-8 days order time: 14-18 days |
| Warranty | 2 Years | Package | 43*35*25cm 10pcs/ctn |
Power Supply: 0-150W with 3V 4.5V 5V 6V 7V 9V 10V 12V 15V 18V 19V 20V 24V 25V 30V 36V 48V 60V Outputs

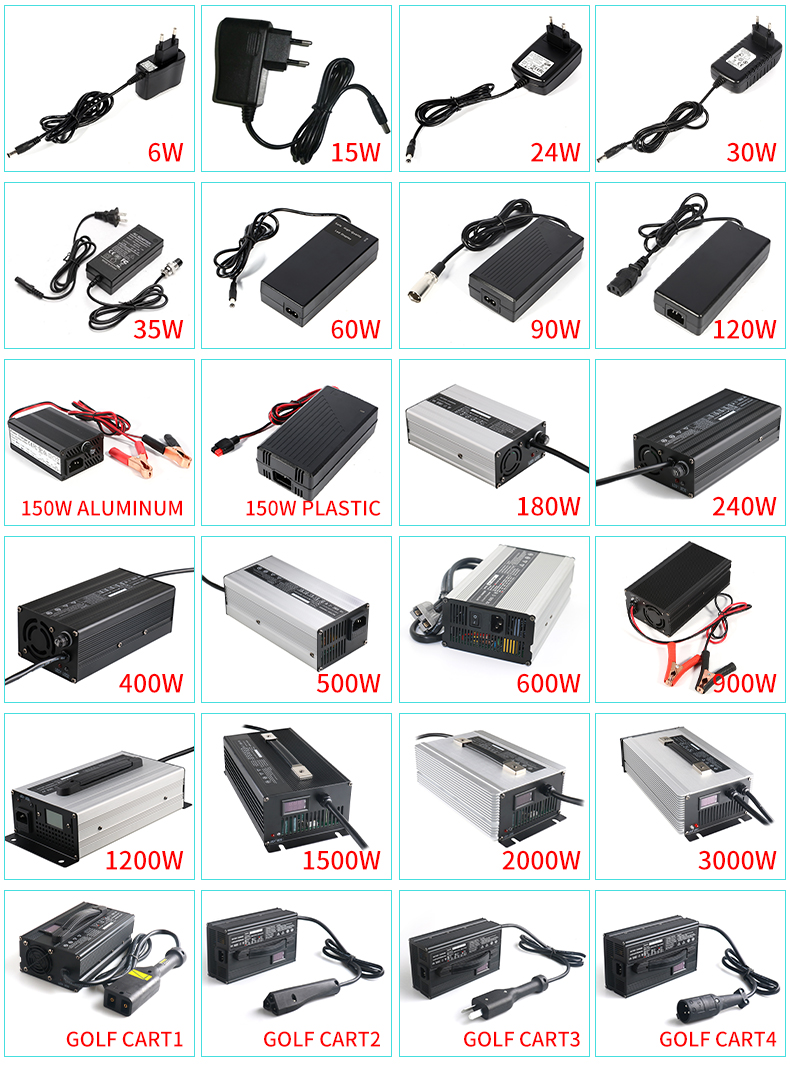

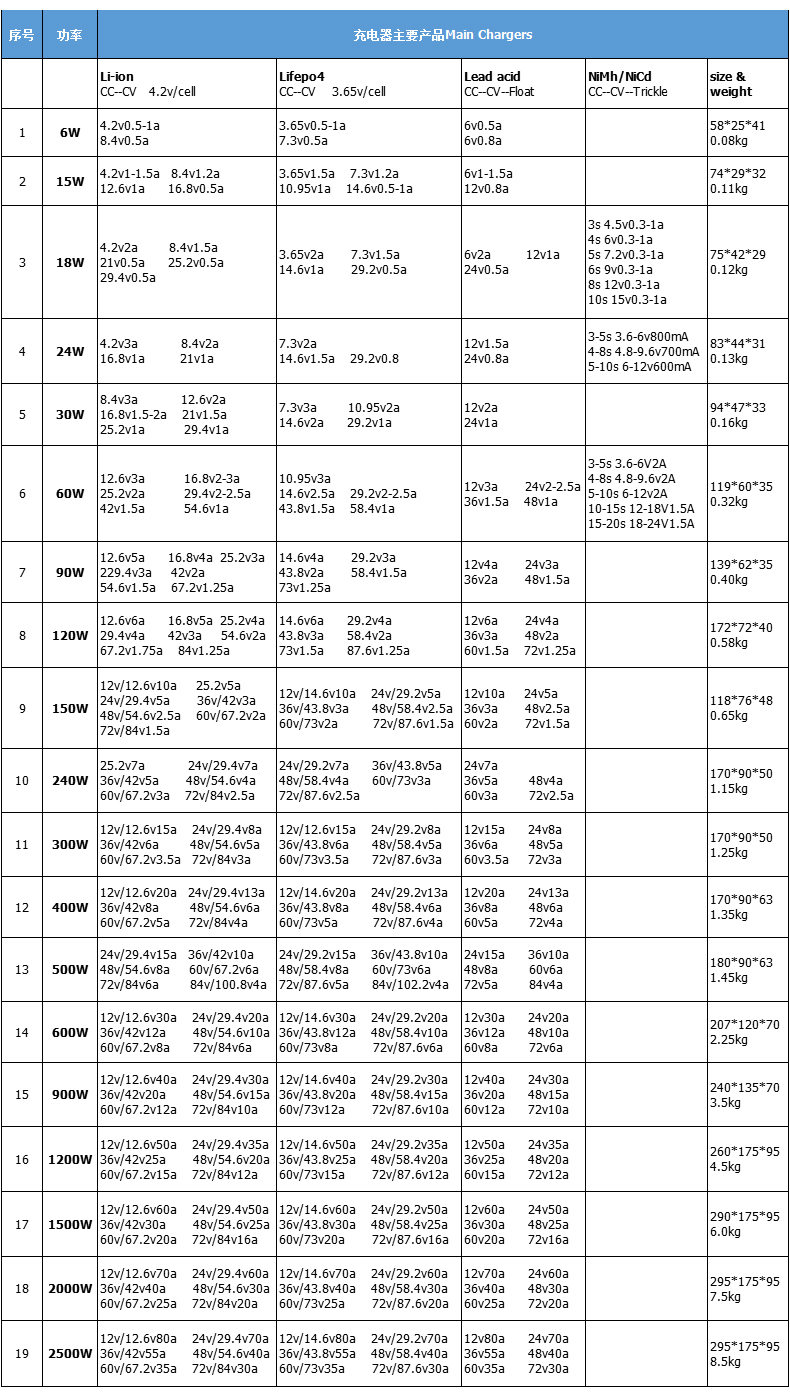

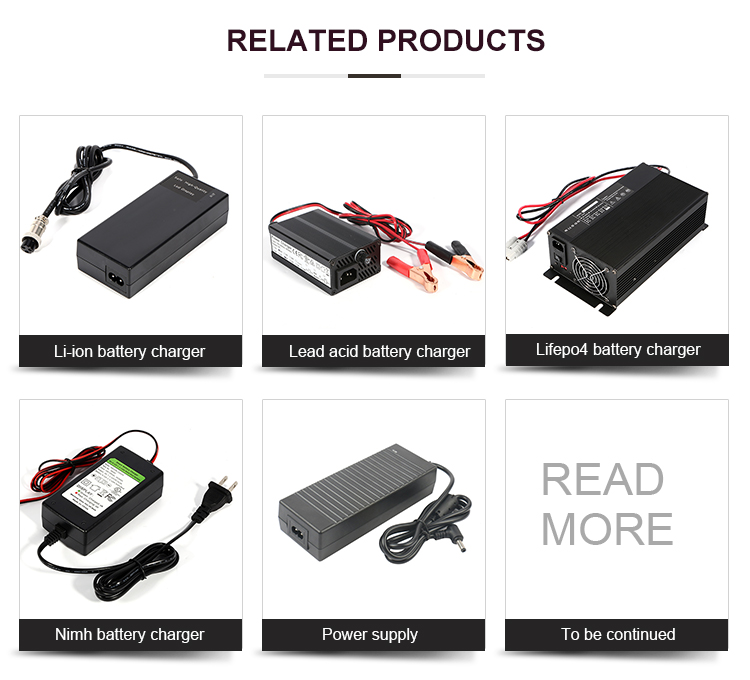

Battery Chargers within 1500W:
- Lithium/Lipo battery charger
- Lifepo4 battery charger
- Lead acid battery charger
- Nimh/Nicd battery charger
A: 2 years. we can offer the new ones to replace that defective products under warranty.
A: CE ROHS CB GS FCC UL SAA KC KCC PSE CCC for most of products
A: 2-5 days for samples, 12-15 days for mass order. 14 days for new designing.
A: samples by air, mass order by air or sea. air shipment always choose Fedex, TNT, UPS, DHL with 4-5 days arrival.

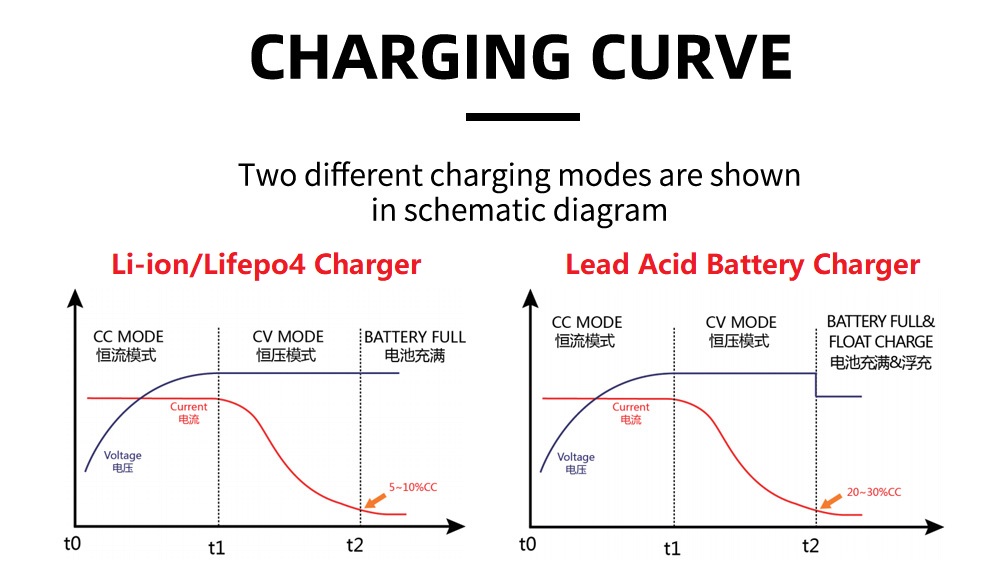

- CC--CV mode for Lithium ion/Lifepo4 Battery charger
- CC--CV--Float mode for lead acid battery
- CC--CV--Trickle mode for nimh battery
