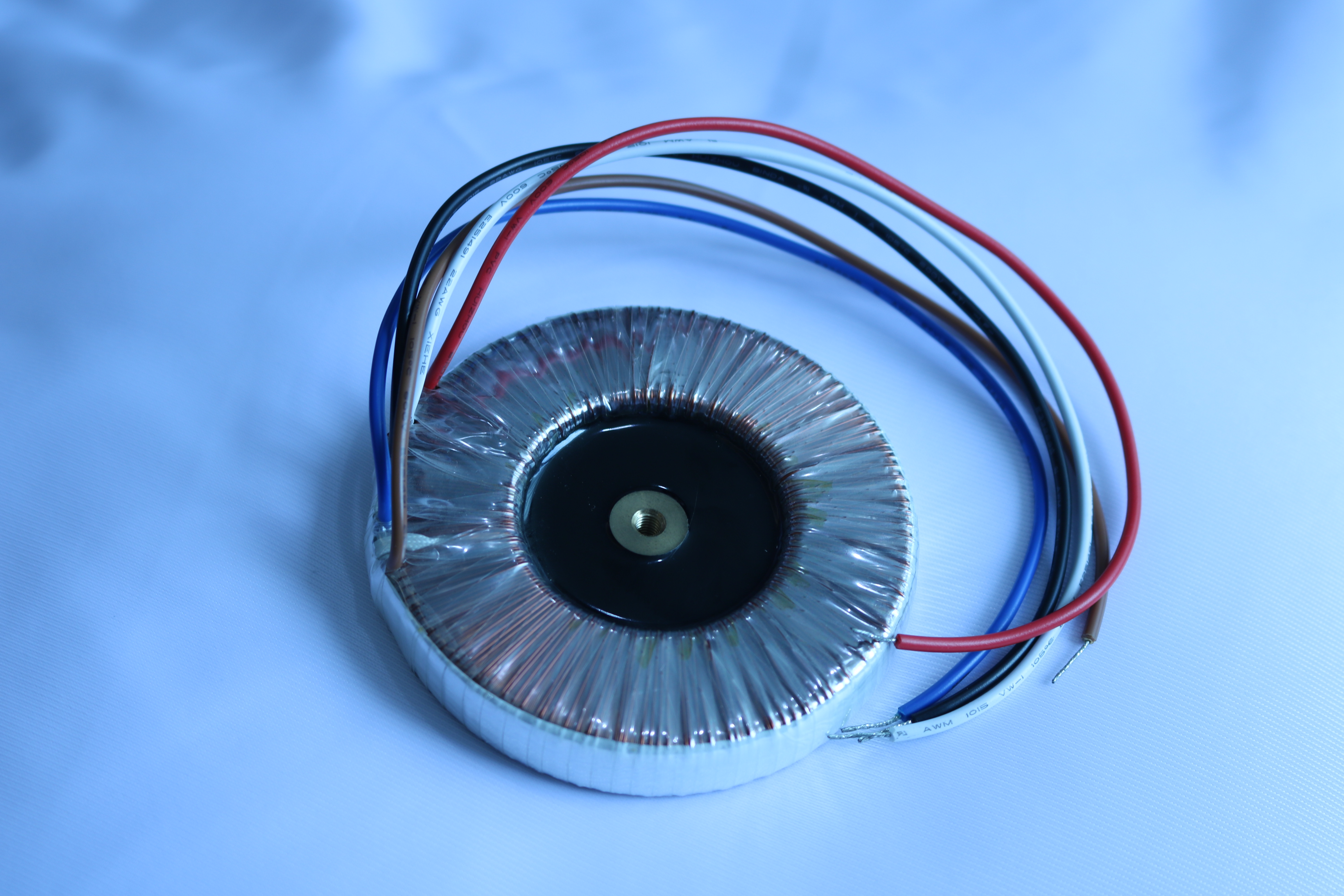

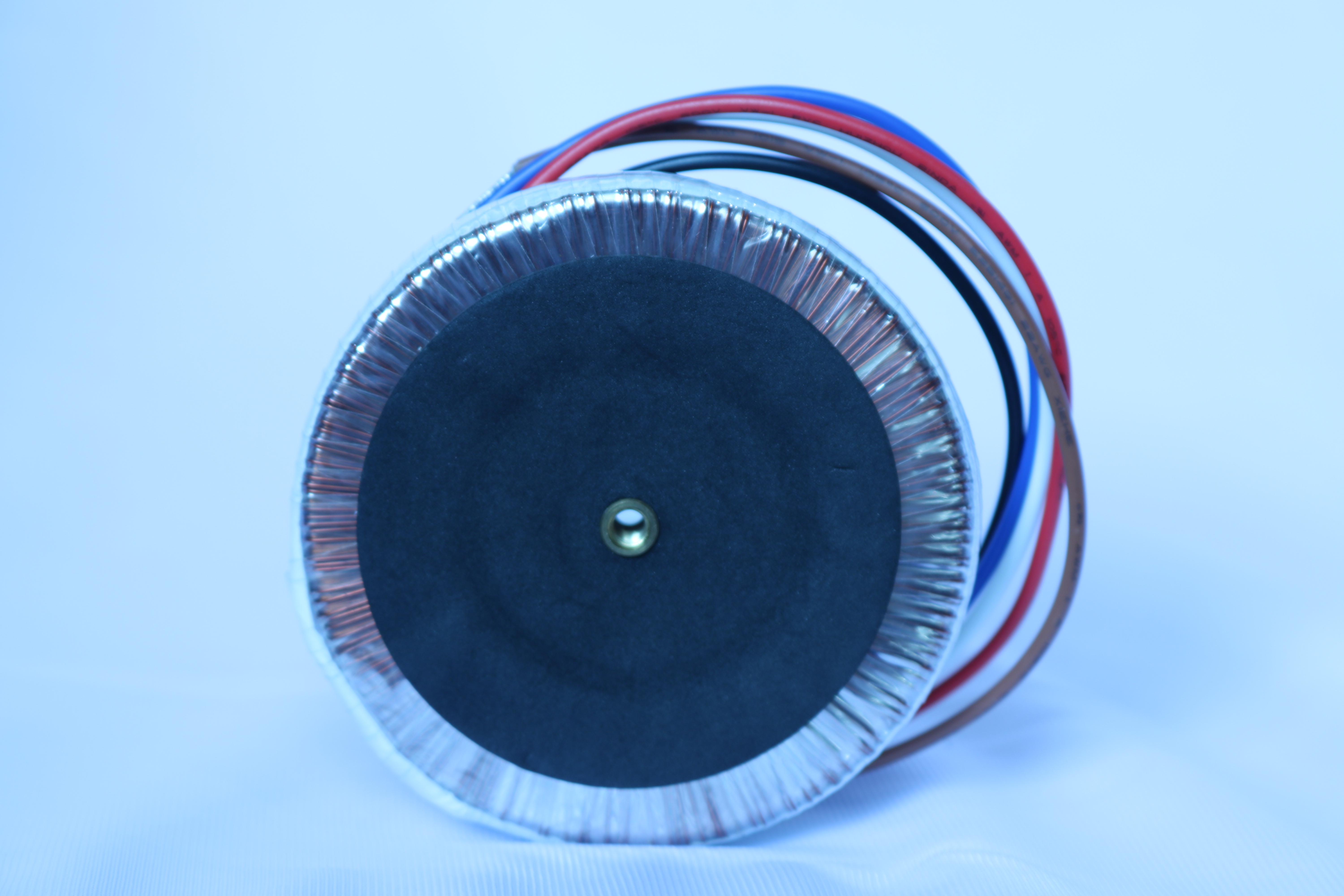

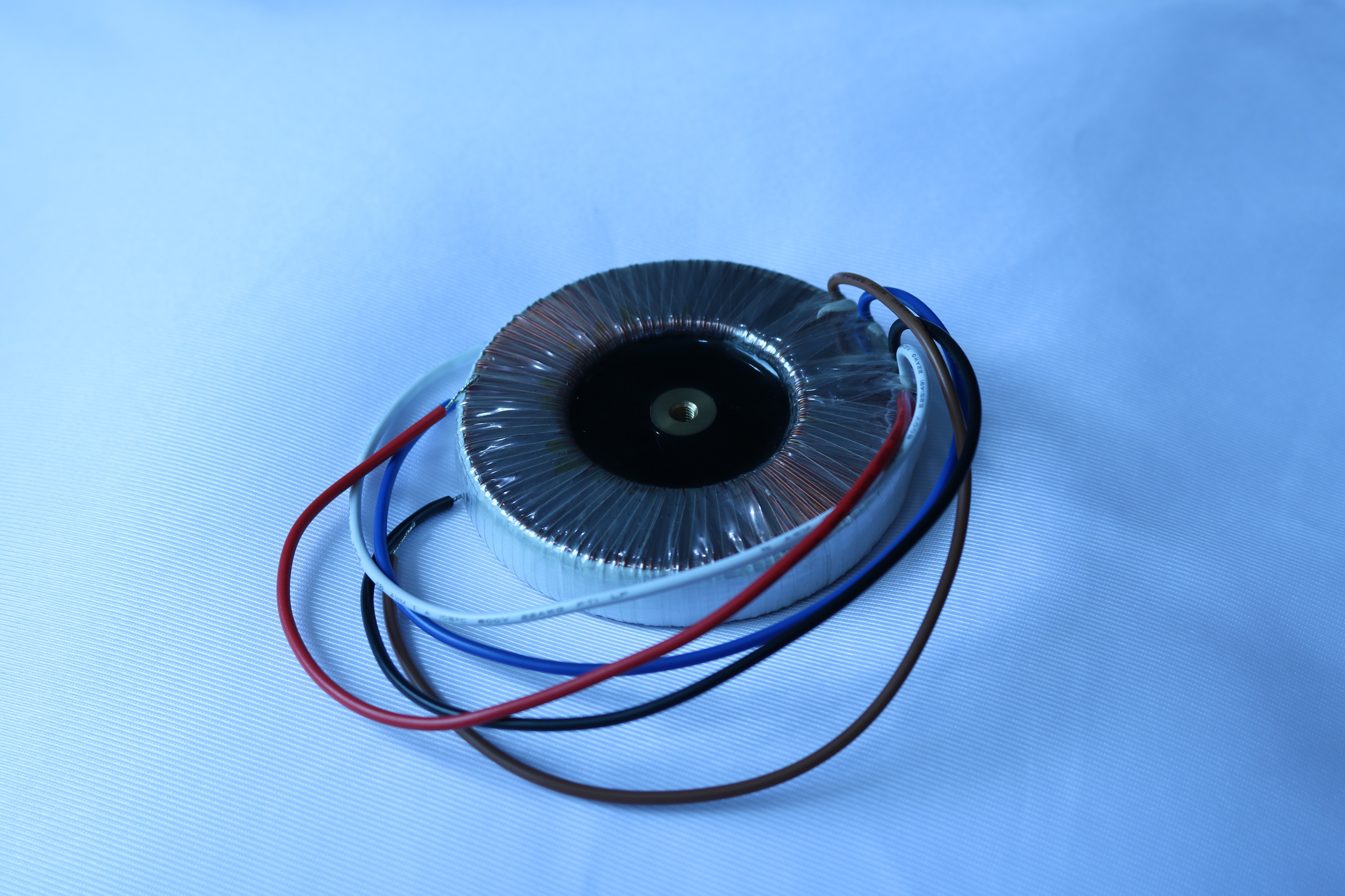

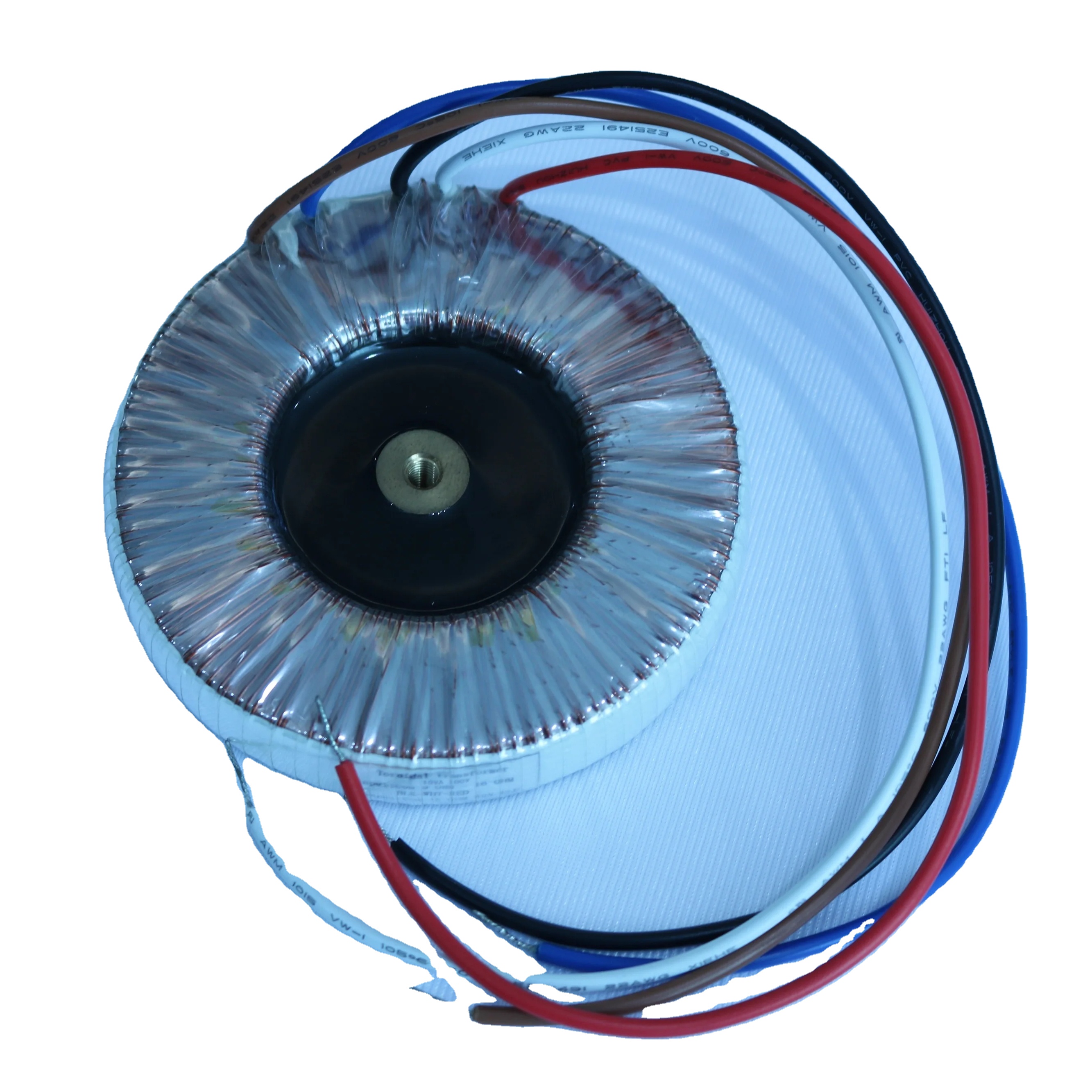

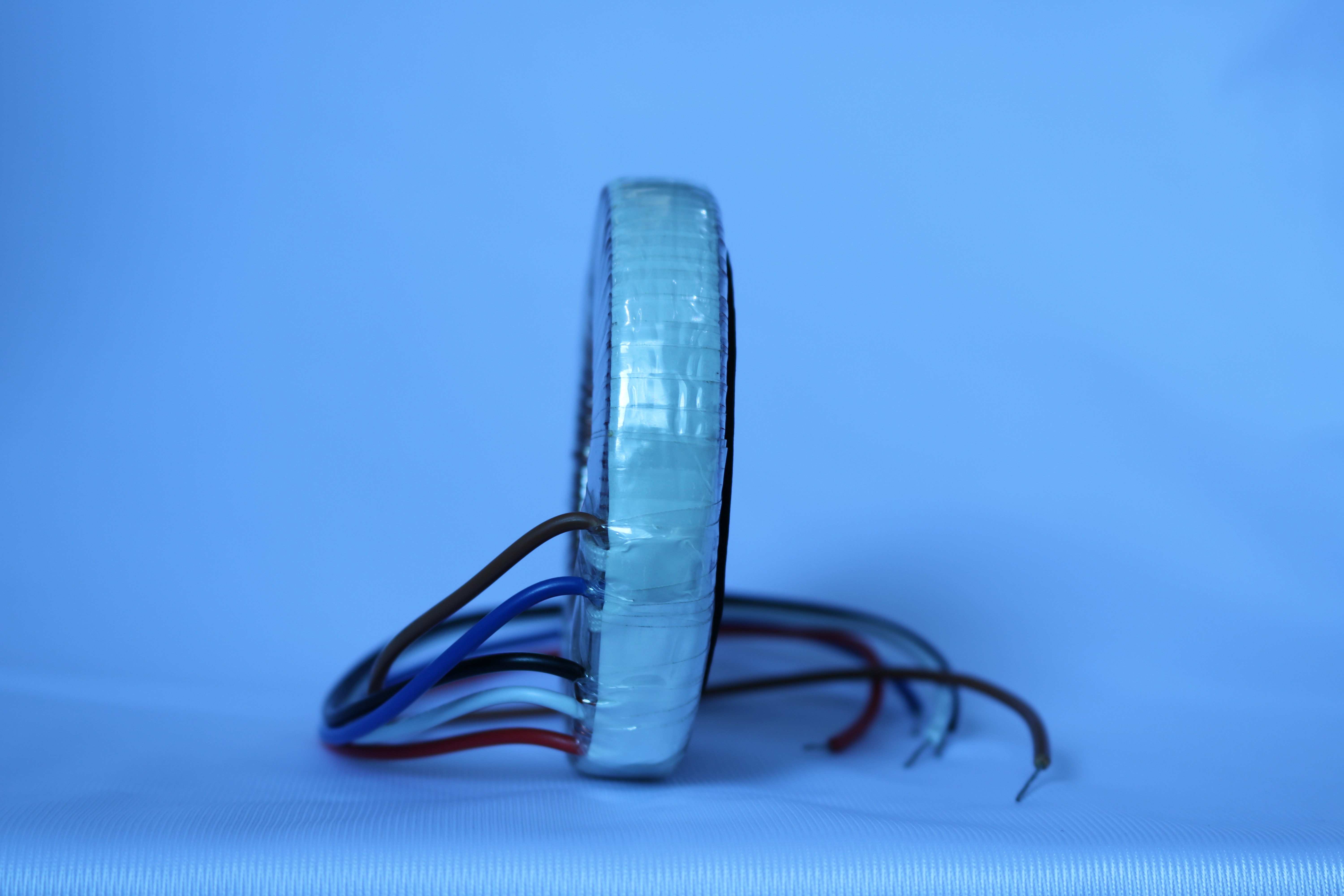

65v-0-65v Toroidal power audio isolation transformer
65v-0-65v Toroidal power audio isolation transformer
65v-0-65v Toroidal power audio isolation transformer
65v-0-65v Toroidal power audio isolation transformer
65v-0-65v Toroidal power audio isolation transformer
1 / 5
65v-0-65v Toroidal power audio isolation transformer
65v-0-65v Toroidal power audio isolation transformer
65v-0-65v Toroidal power audio isolation transformer
65v-0-65v Toroidal power audio isolation transformer
65v-0-65v Toroidal power audio isolation transformer

65v-0-65v Toroidal power audio isolation transformer

Send Inquiry

Product Description

Product Description
Product Name Toroidal Transformer
Phase Single
Power Range 50W--10kW
Application Power Supply Management
Toroidal power audio isolation transformer
65v-0-65v Toroidal power audio isolation transformer
Features
The auto transformer has the advantages of simple structure, high power efficiency, small work loss, small voltage drop, and small size. The transformer installation space can be designed according to specific requirements, providing excellent cost performance.
Details Images

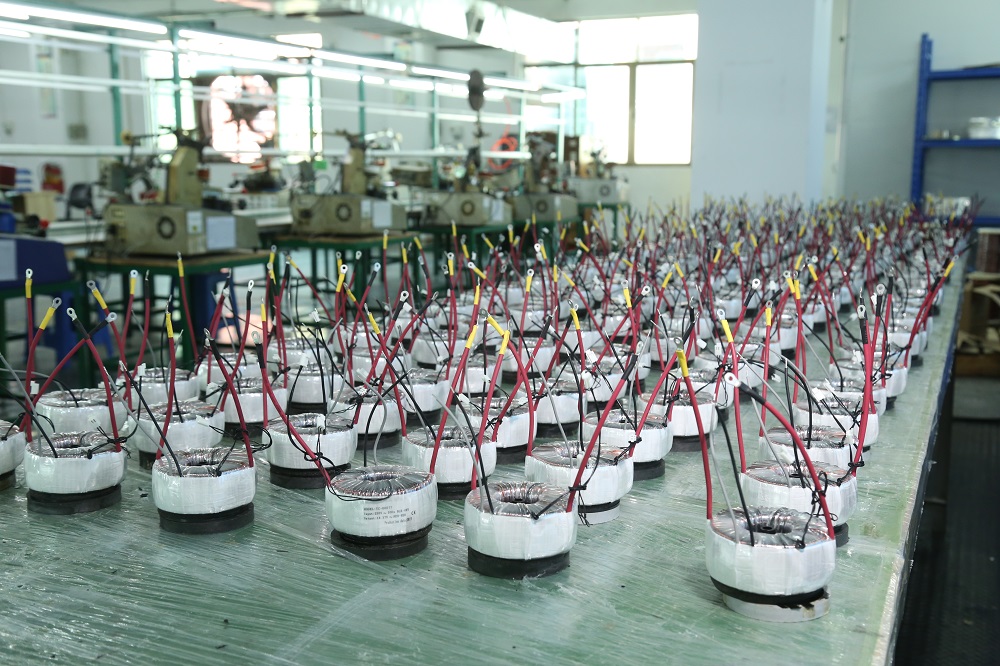

Epoxy Potting
Epoxy Potting

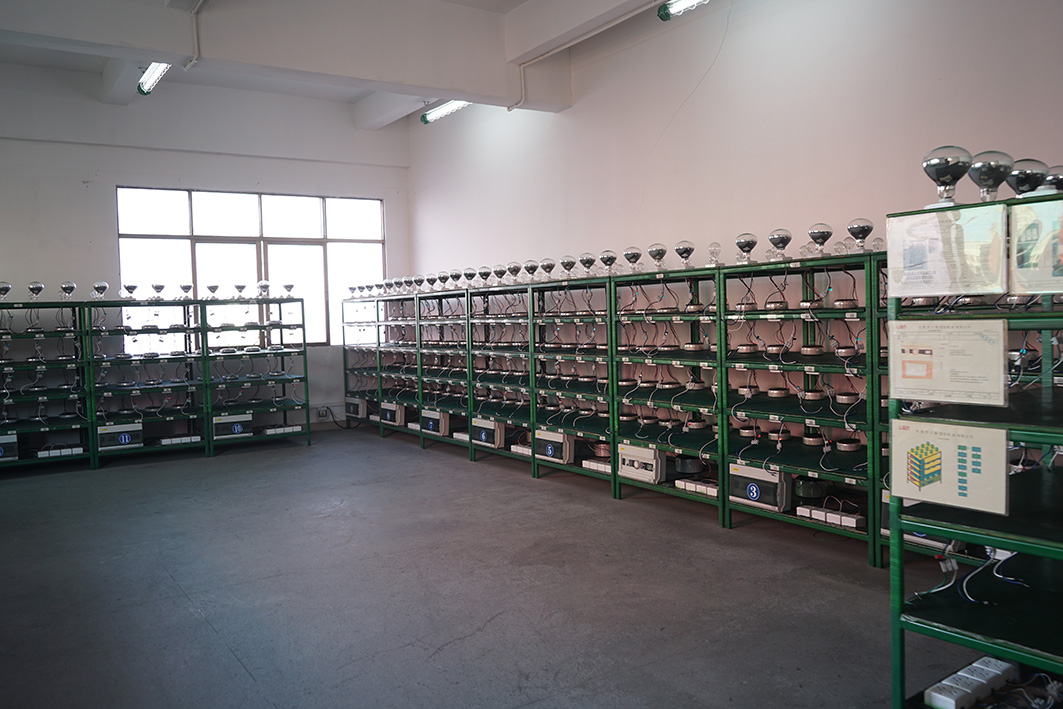

Aging Test
Aging Test

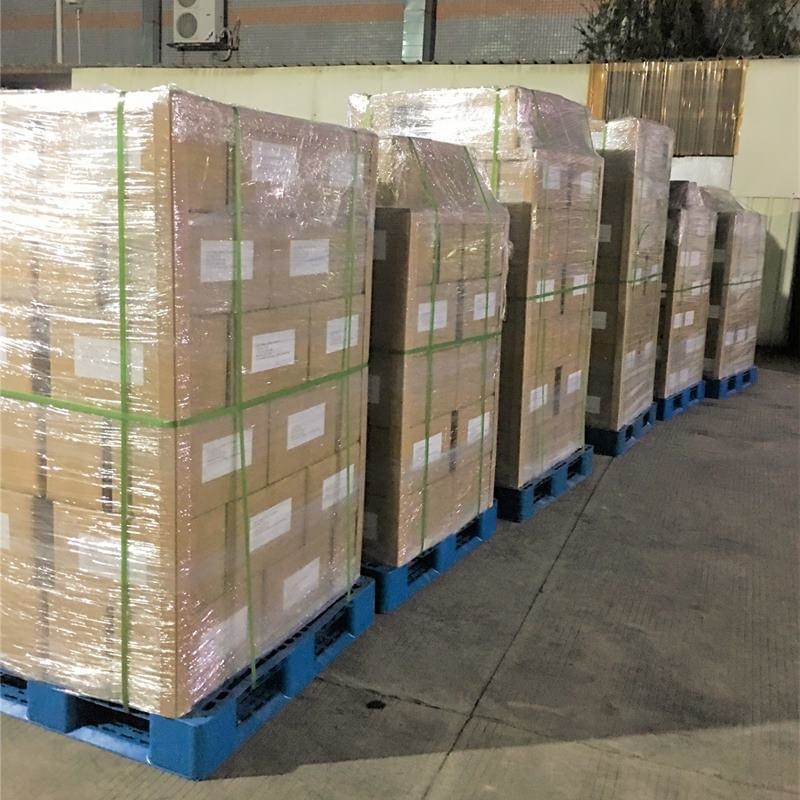

Pallet Packing
Pallet Packing
Product Usage

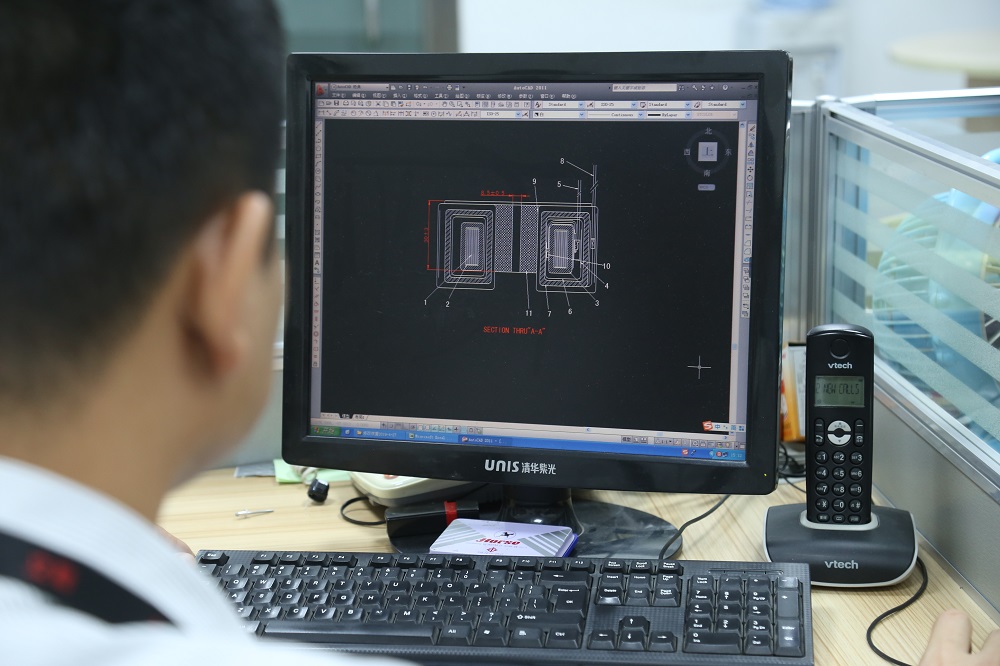

Design required parameters
Design Required Parameters
  • Input voltage (V)
  • Working frequency (Hz)
  • Output voltage (V)
  • Output current (A) or output power (W)
  • Transformer installation space
  • Transformer installation/connection method
  • Requirements of temperature resistance level, efficiency, power consumption
100% Full Test - High Quality Control
1 High Pot Test
2 No-Load Loss Test
3 Multi Frequency and Multi Voltage Test
4 Load Test
5 Appearance Inspection

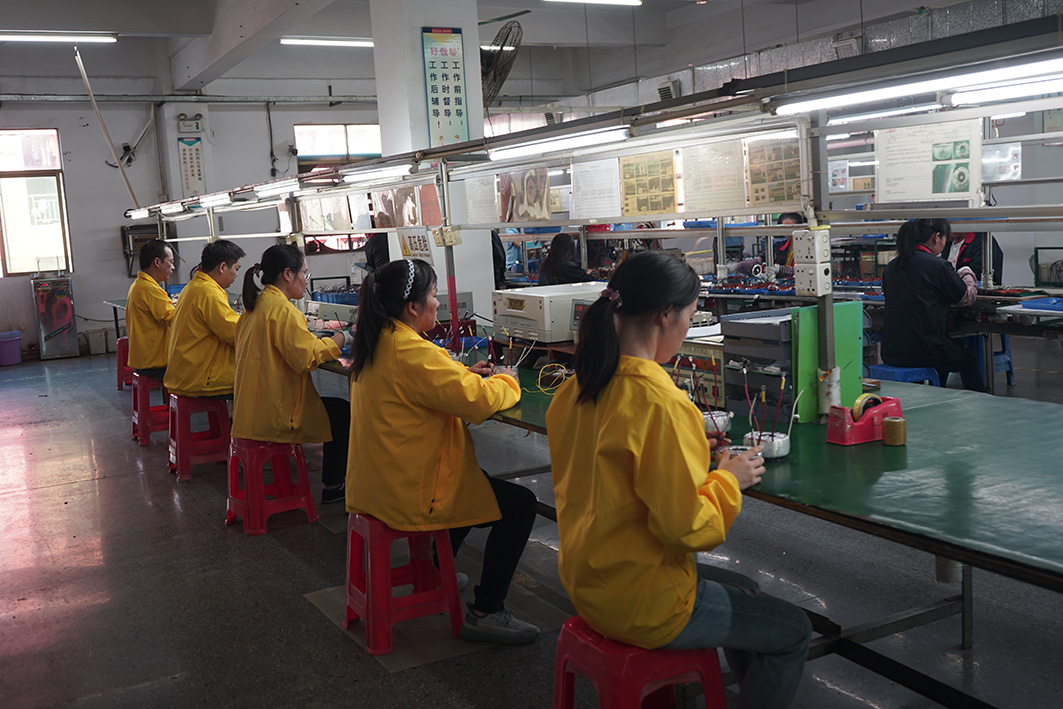

Quality Control Testing
Packing & Shipping
Packing Process 1
Packing Process 2
Packing Process 3
Shipping Pallets
FAQ
What are the main benefits of using a toroidal transformer?
Toroidal transformers offer higher efficiency, smaller size, lighter weight, lower stray magnetic fields, and quieter operation compared to traditional EI laminated transformers.
Can the input and output voltage be customized?
Yes. We support custom parameter designs including input voltage, working frequency, output voltage (e.g. 65v-0-65v), output current/power, and specific installation structures.
What is the available power range of your toroidal transformers?
We design and manufacture single-phase toroidal transformers with a power range spanning from 50W up to 10kW.
How is quality control managed for these products?
We run a 100% full quality control test on all products, including High Pot Test, No-Load Loss Test, Multi Frequency and Multi Voltage Test, Load Test, and a final Appearance Inspection.
What protection and packaging options are available?
We offer specialized finishes like Epoxy Potting to seal and protect the transformer. For logistics, we use reinforced carton packing and secure Pallet Packing to ensure safe transit.
