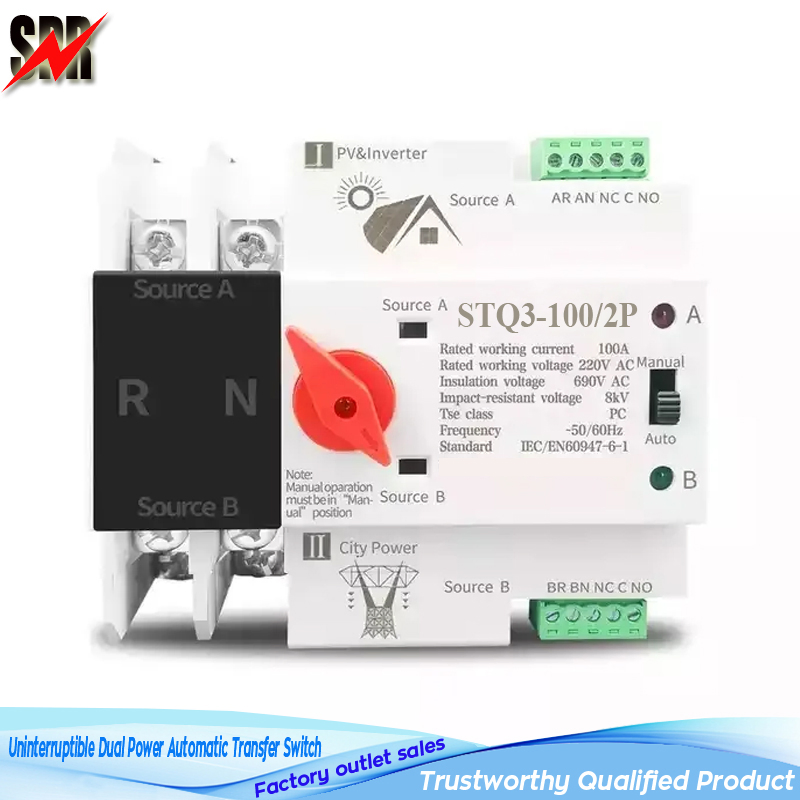

Model No. Stq3-100/2p 3p 4p Uninterruptible Dual Power Automatic Transfer Switch ATS for Solar Inverter
Model No. Stq3-100/2p 3p 4p Uninterruptible Dual Power Automatic Transfer Switch ATS for Solar Inverter
Model No. Stq3-100/2p 3p 4p Uninterruptible Dual Power Automatic Transfer Switch ATS for Solar Inverter
Model No. Stq3-100/2p 3p 4p Uninterruptible Dual Power Automatic Transfer Switch ATS for Solar Inverter
Model No. Stq3-100/2p 3p 4p Uninterruptible Dual Power Automatic Transfer Switch ATS for Solar Inverter
1 / 5
Model No. Stq3-100/2p 3p 4p Uninterruptible Dual Power Automatic Transfer Switch ATS for Solar Inverter
Model No. Stq3-100/2p 3p 4p Uninterruptible Dual Power Automatic Transfer Switch ATS for Solar Inverter
Model No. Stq3-100/2p 3p 4p Uninterruptible Dual Power Automatic Transfer Switch ATS for Solar Inverter
Model No. Stq3-100/2p 3p 4p Uninterruptible Dual Power Automatic Transfer Switch ATS for Solar Inverter
Model No. Stq3-100/2p 3p 4p Uninterruptible Dual Power Automatic Transfer Switch ATS for Solar Inverter

Model No. Stq3-100/2p 3p 4p Uninterruptible Dual Power Automatic Transfer Switch ATS for Solar Inverter

Send Inquiry

Product Description

◆Product Introduction

STQ3-100 series dual-power automatic transfer switches are newly developed micro household power transfer switch. The Switch is mainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensure the continuity, reliability, and safety of power supply.
The product is specifically designed for household orbit-type installation and specifically used in Din-Rail power distribution box. STQ3-100 Series automatic transfer switch is suitable for the emergency power supply system with 50 or 60Hz alternating current rated 400v, 100A.
It is compact in structure, reliable in transfer, convenient in installation and maintenance, and has long life expectancy. Widely used in various occasions where continuous power failure is not allowed, it can be operated both electrically and manually. STQ3-100 Series automatic transfer switch complies with requirements of Low-Voltage switch gear and control gear specified by IEC 60947-6-1.

★Product Features

  • Reasonable structure, small volume, nice appearance, provided with protective shield safer and more reliable power supply.
  • Complete protective functions, including open phase and loss-of-voltage protection.
  • Noiseless, energy saving, simple installation, easy operation, reliable and stable performance.

■Specifications

Product ModelSTQ3-100
Rated Current le: A32A, 40A, 50A, 63A, 100A, 125A
Insulation Voltage UiAC690V 50/60Hz
Rated Voltage UeAC220V 50/60Hz
GradePC Class
Pole2P, 3P, 4P
Electrical Life2000times
Mechanical Life5000times
Rated impulse withstand voltage8KV
Control Circuit Rated VoltageAC220V 50/60Hz
StandardIEC60947-6-1
OperationManual / Automatic

Product Gallery

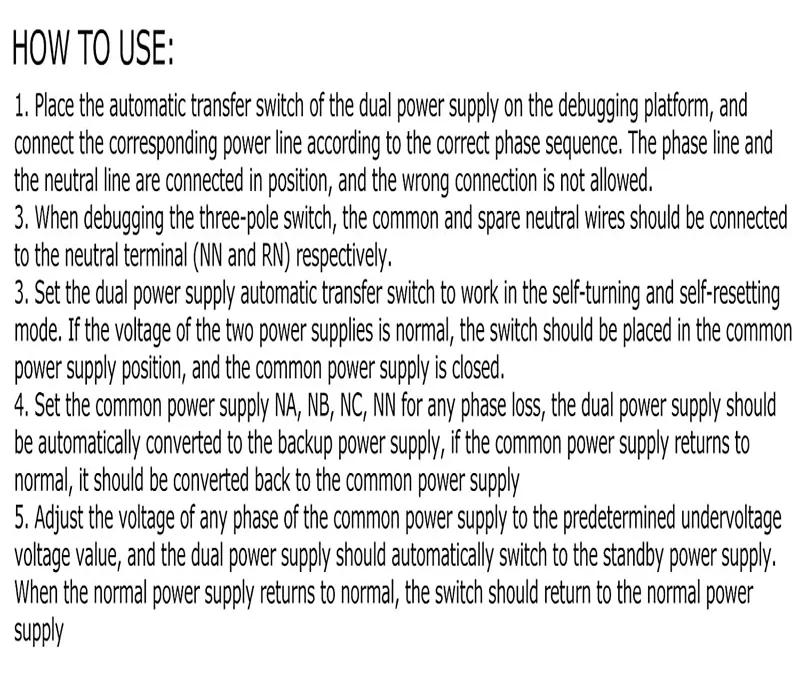

STQ3-100 ATS 1

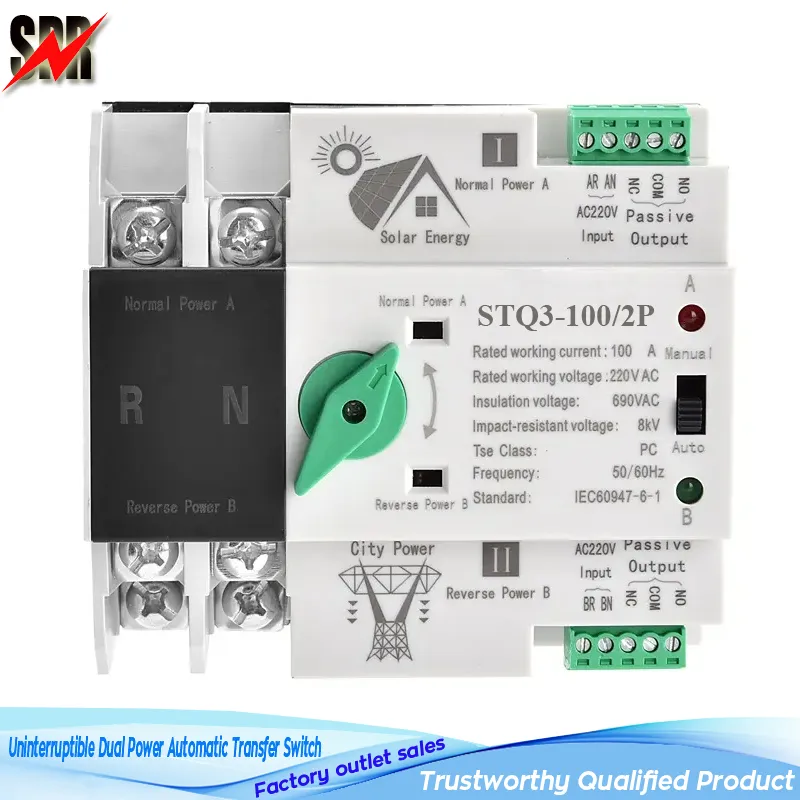

STQ3-100 ATS 2

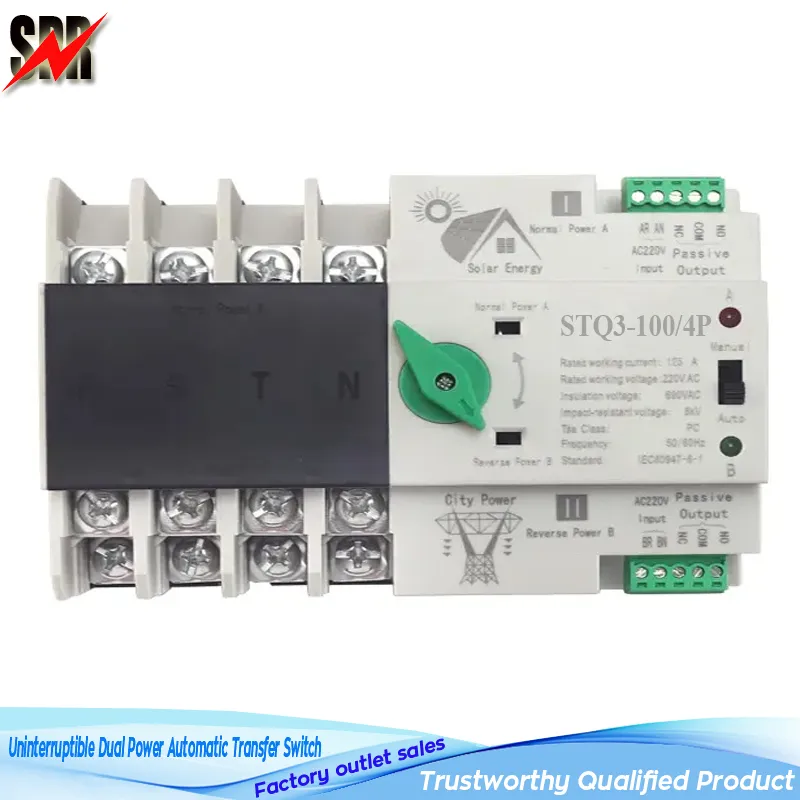

STQ3-100 ATS 3
STQ3-100 ATS 4

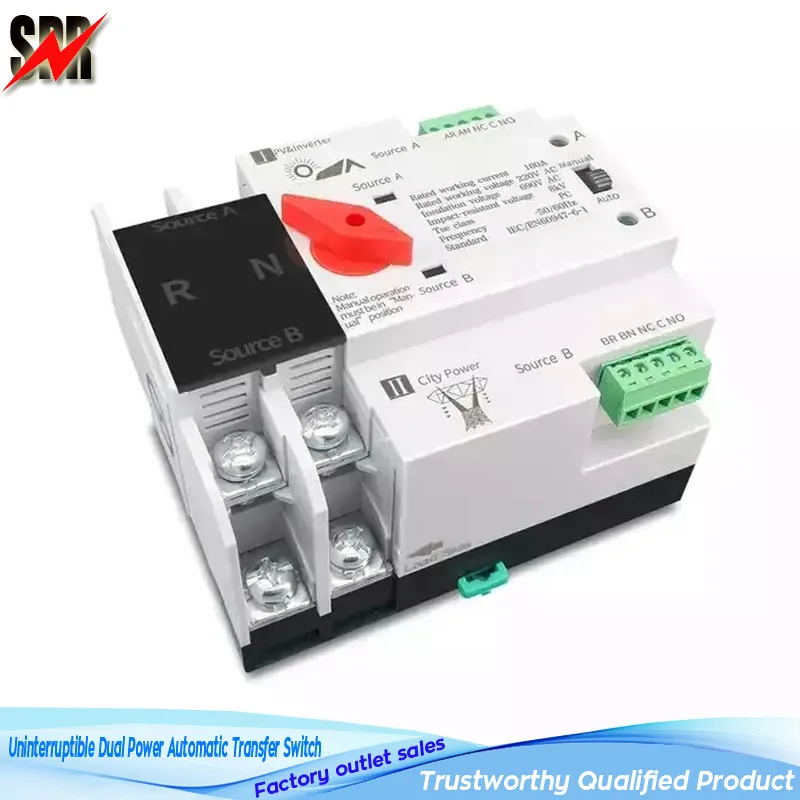

STQ3-100 ATS 5

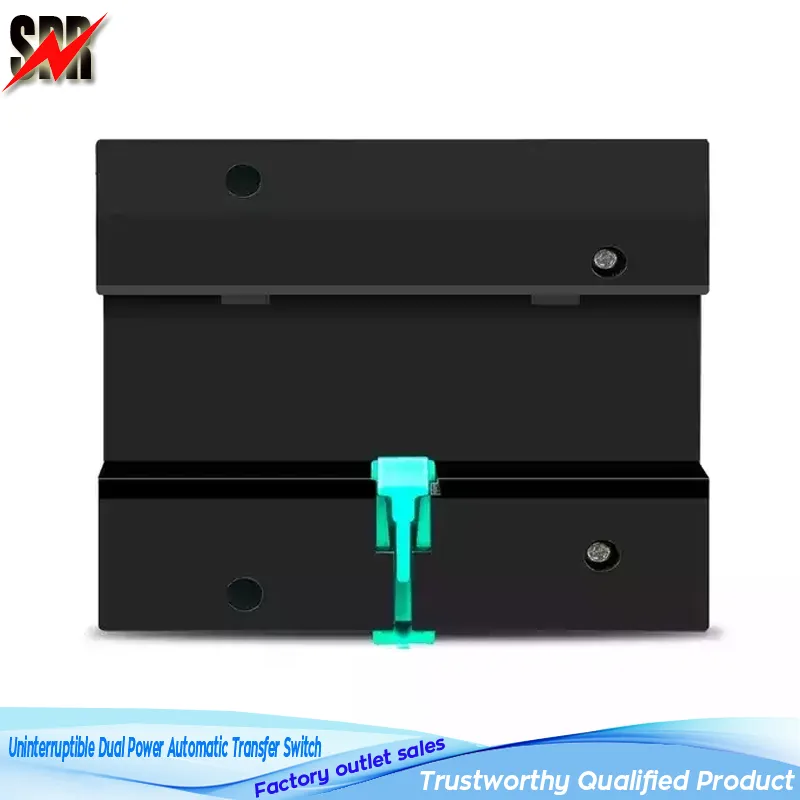

STQ3-100 ATS 6
STQ3-100 ATS 7

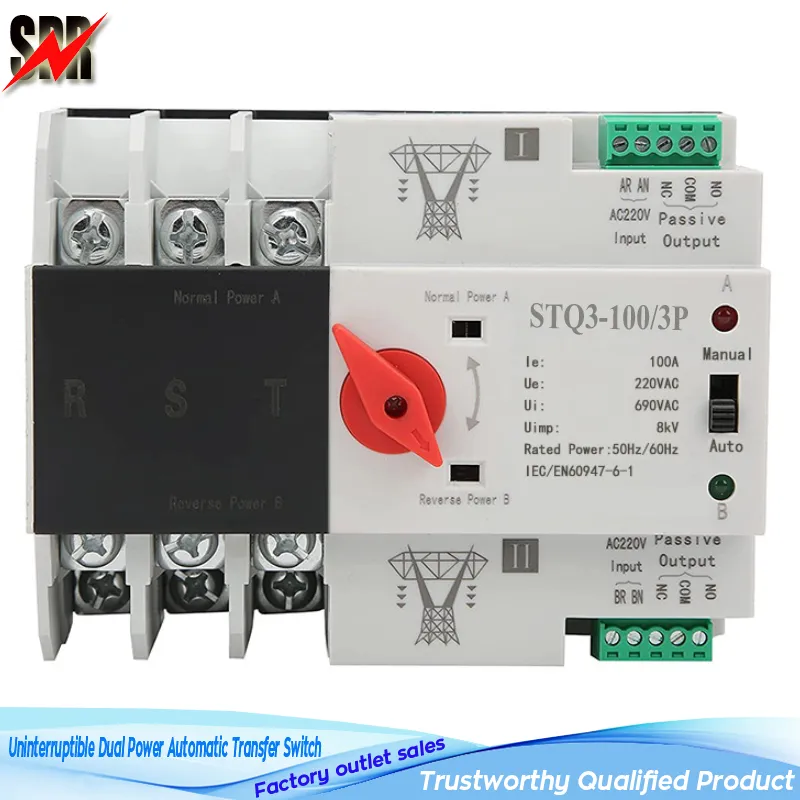

STQ3-100 ATS 8

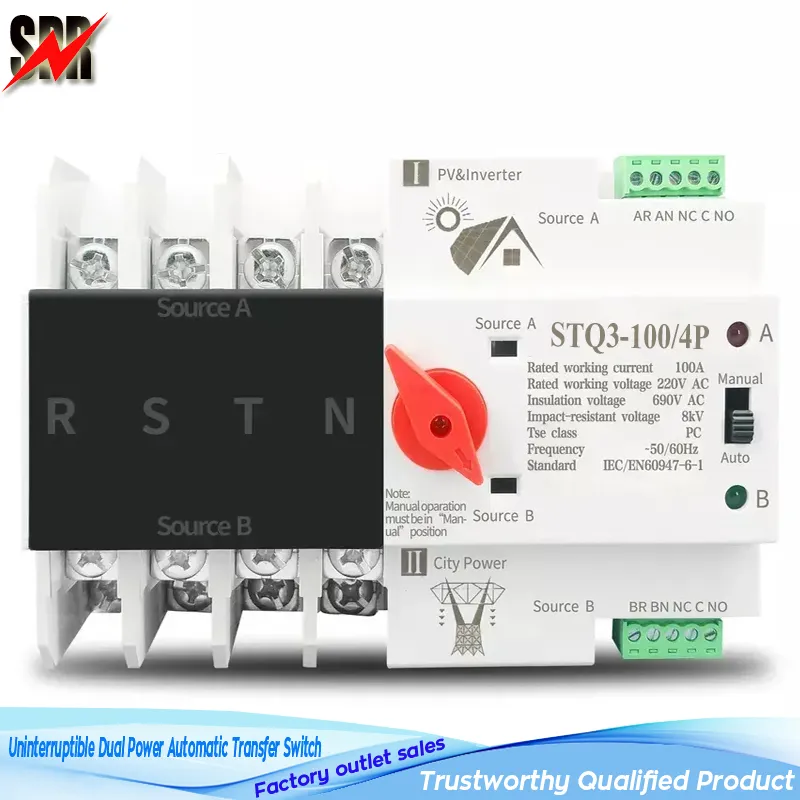

STQ3-100 ATS 9
STQ3-100 ATS 10

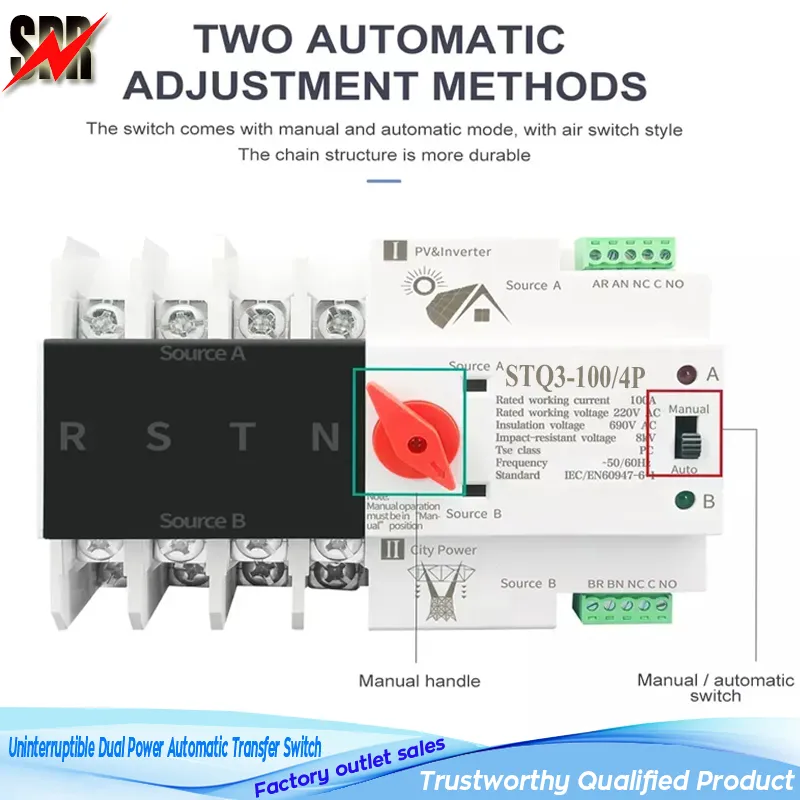

STQ3-100 ATS 11
STQ3-100 ATS 12

FAQ

Q1: What is the primary purpose of the STQ3-100 series ATS?

The STQ3-100 is designed to automatically transfer between normal and spare power sources, ensuring a continuous and reliable power supply, especially in scenarios where power failures are not permitted.

Q2: Can the STQ3-100 switch be operated manually?

Yes, this product supports both automatic and manual operation modes for added flexibility and safety during maintenance or emergency testing.

Q3: What kind of installation environment is this switch suitable for?

It is specifically designed for household use, featuring an orbit-type installation that is compatible with standard Din-Rail power distribution boxes.

Q4: What protective features does this device include?

The device provides comprehensive protection, including open-phase and loss-of-voltage protection, ensuring the safety of your electrical system.

Q5: Is this switch compliant with international standards?

Yes, the STQ3-100 series complies with the IEC 60947-6-1 requirements for low-voltage switchgear and control gear.
