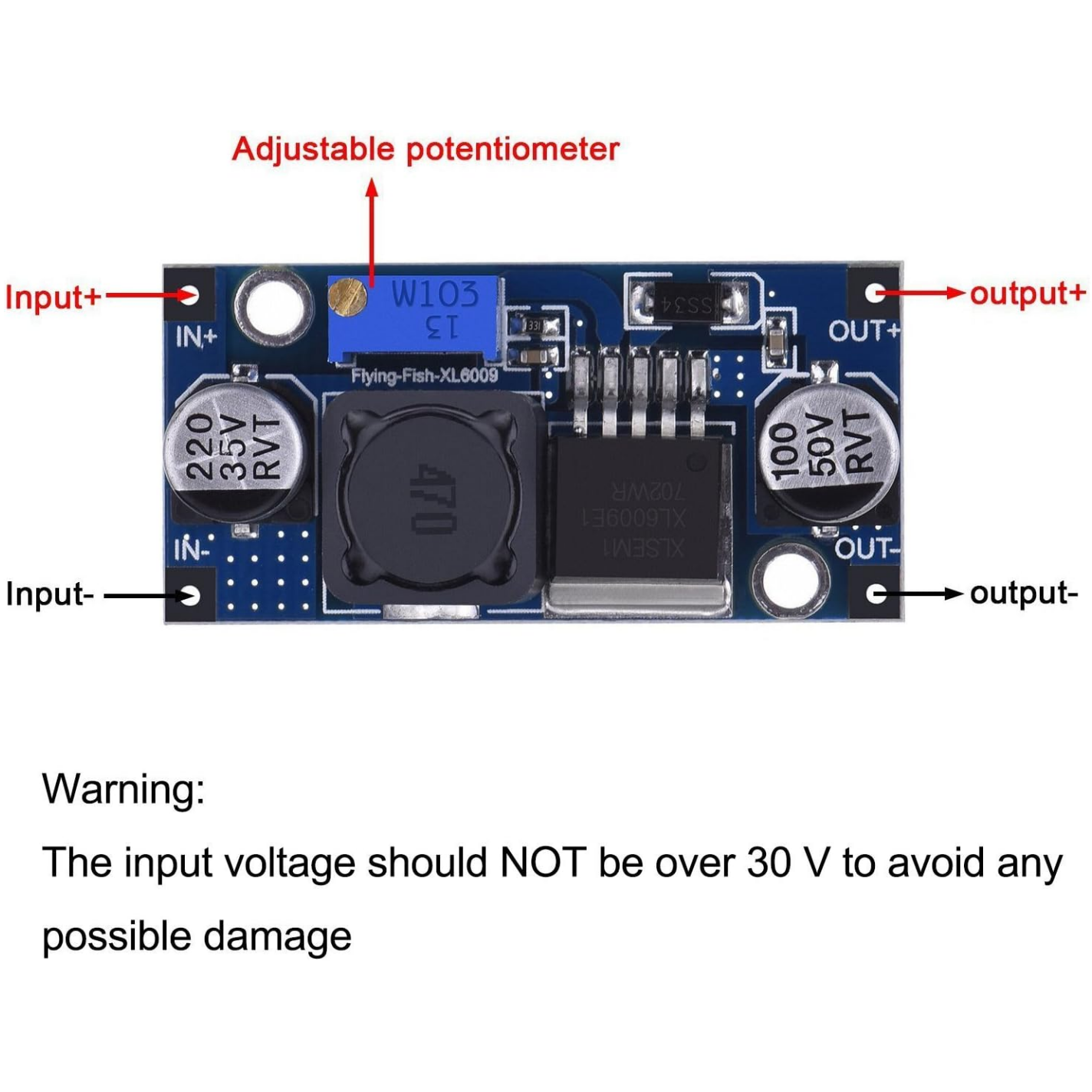

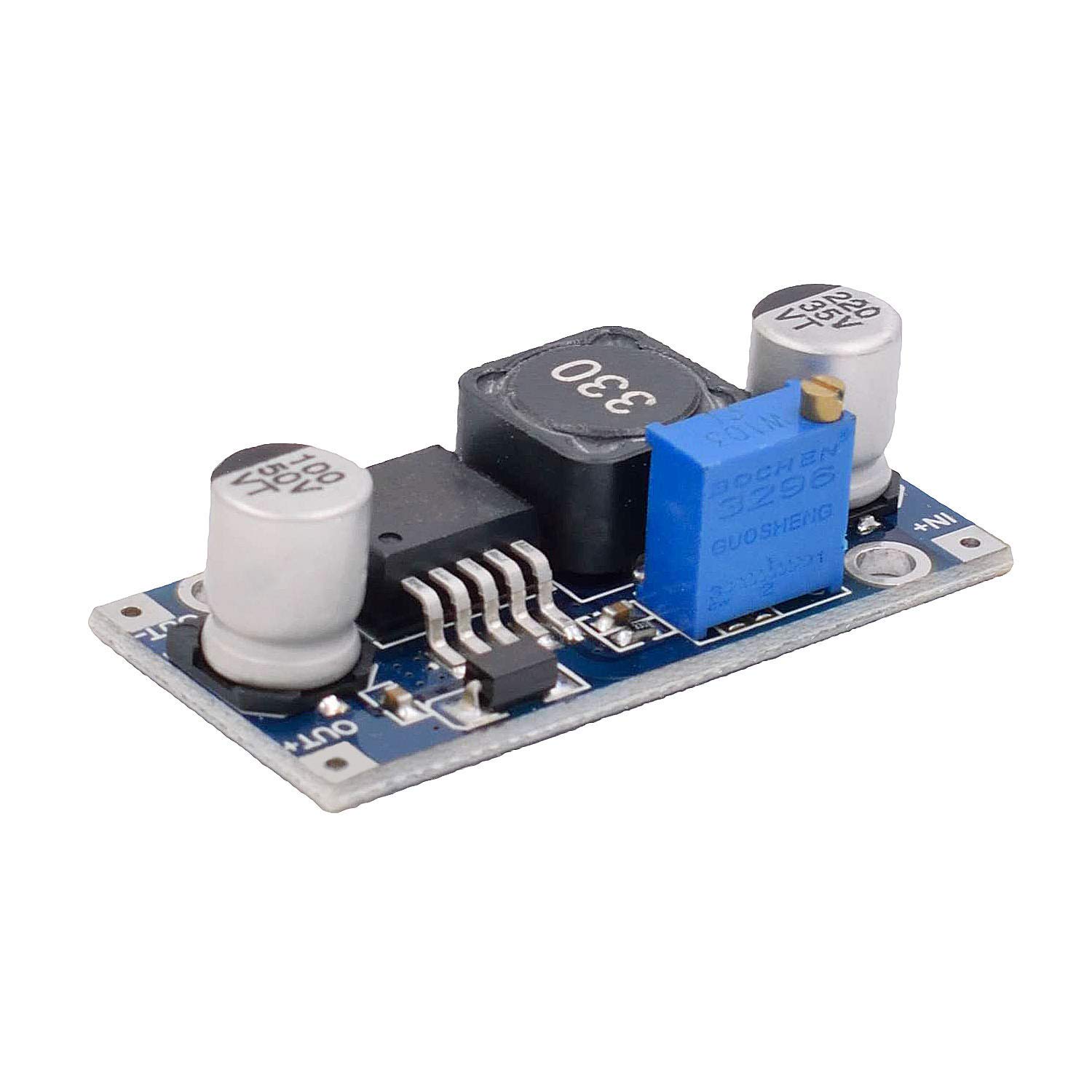

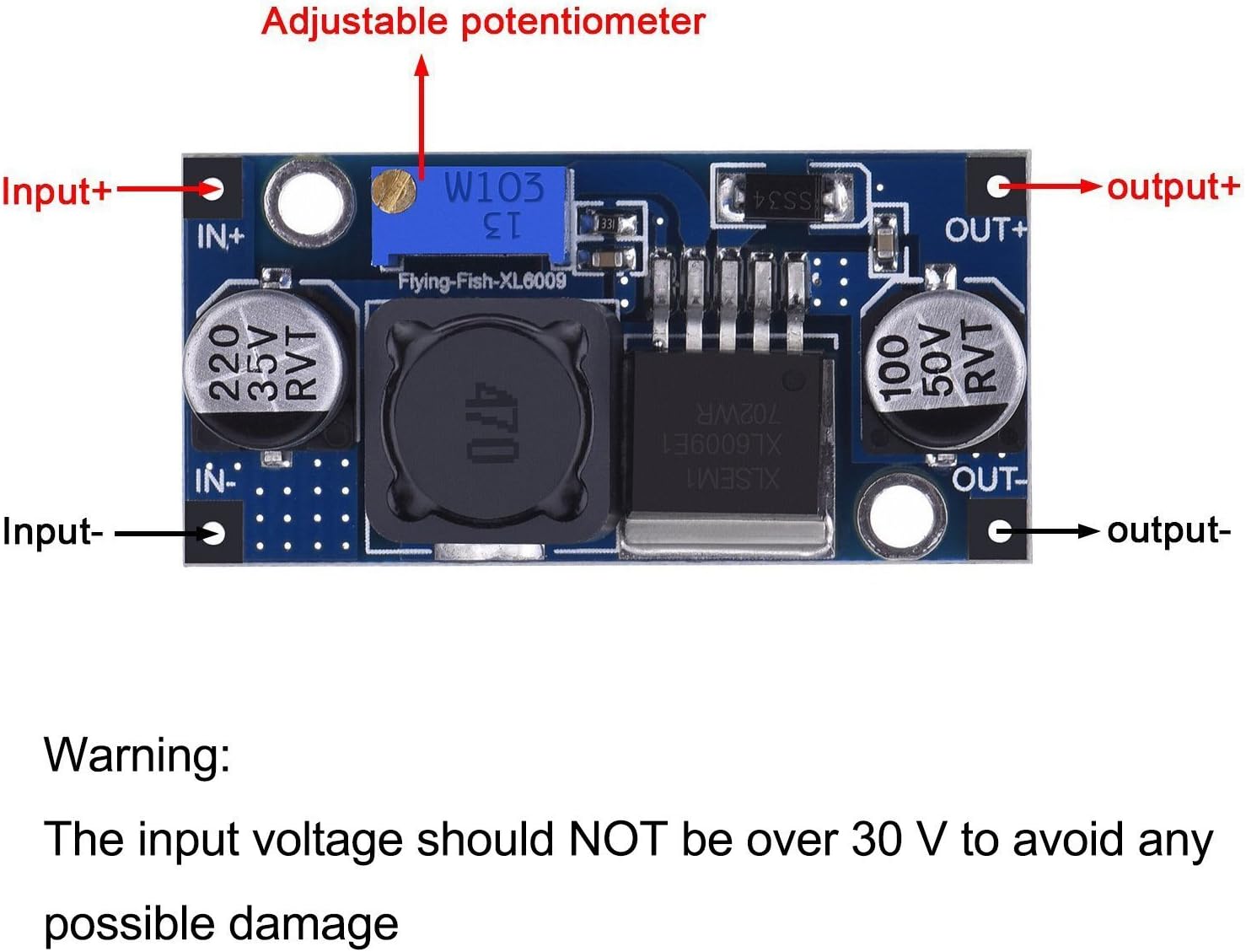

| Model: | XL6009/DSN6009/XL6009E1 |
| Input voltage: | DC 3V - 30V (optimum working voltage range is 5V to 30V) |
| Output Voltage: | DC 5V - 35V (adjustable) |
| Conversion Current: | <4A, no-load 18mA (5V input, 8V output, no-load current 18mA, the higher the voltage, the greater the no-load current.) |
| Conversion Efficiency: | <94% (the greater differential pressure, the lower the efficiency) |
| Switching Frequency: | 400KHz |
| Rectification: | non-synchronous rectification |
| Module property: | non-isolated boost module |
| Output ripple: | 50mV (the higher the voltage, the greater the current, the greater the ripple) |
| Operating Temperature: | -40℃ to +85℃ |
| Load Regulation: | ± 0.5% |
| Voltage Regulation: | ± 0.5% |

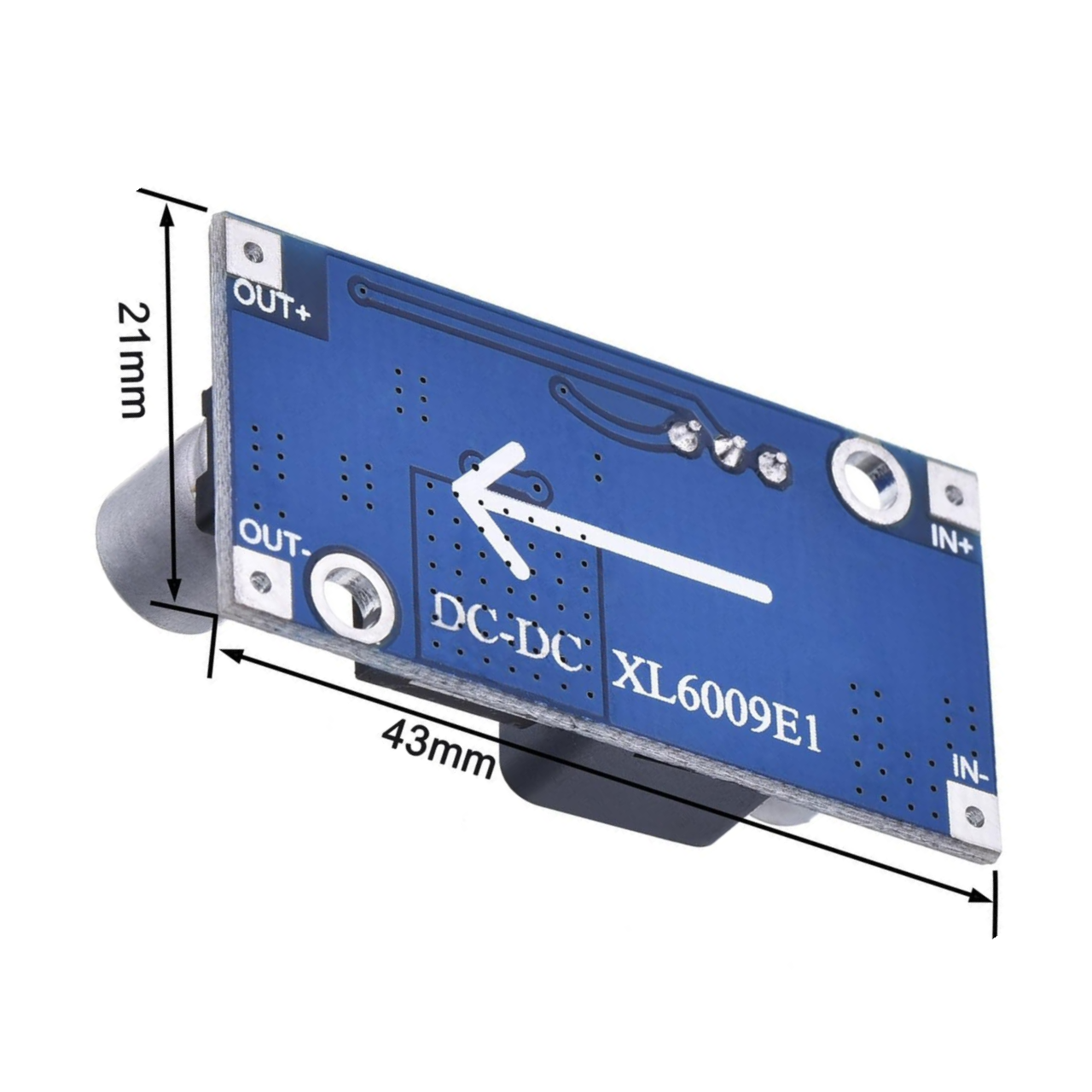

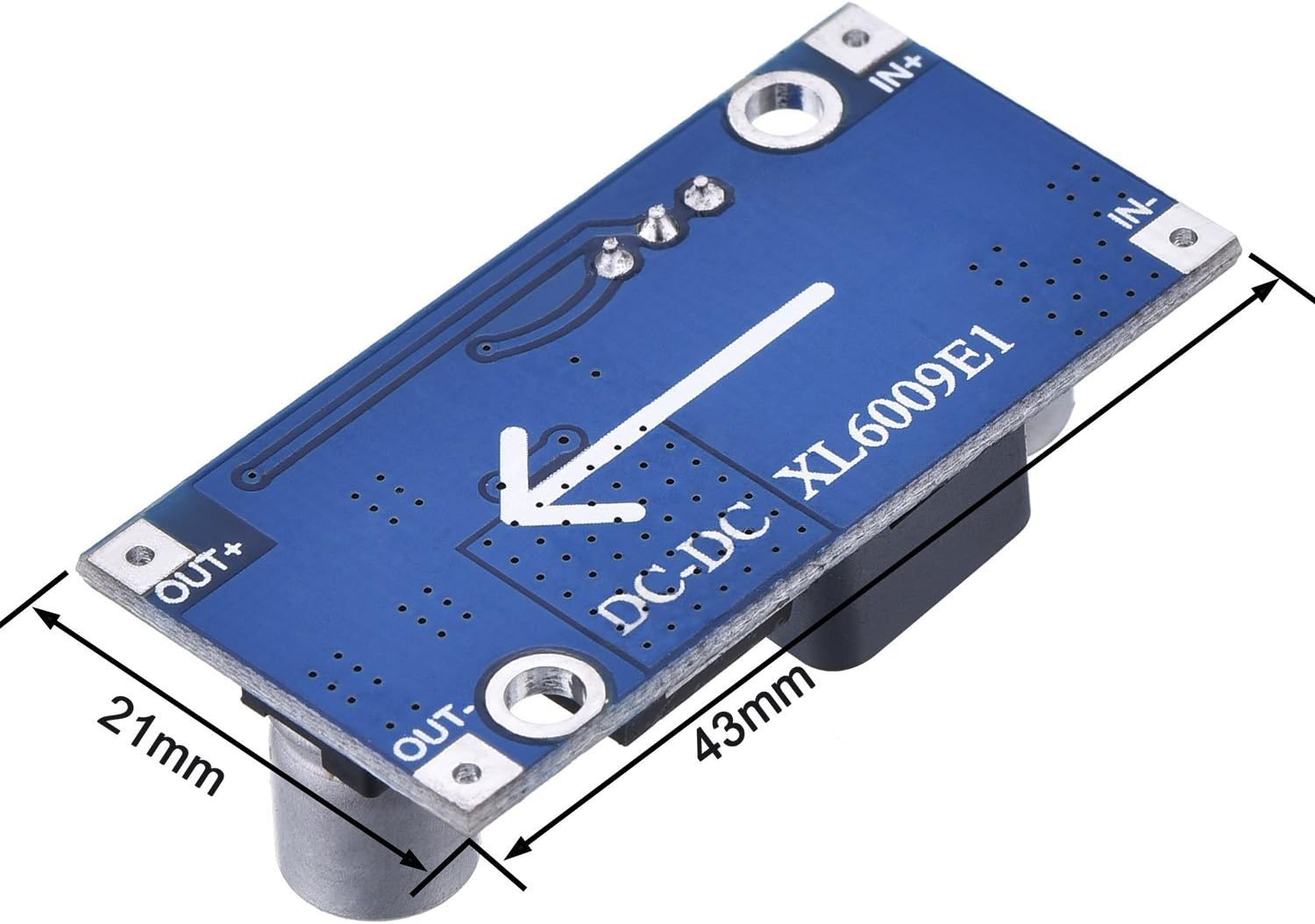

| Size(L x W x H): | 43*21*14mm / 1.69*0.83*0.55inch |
| Weight: | 12g |
