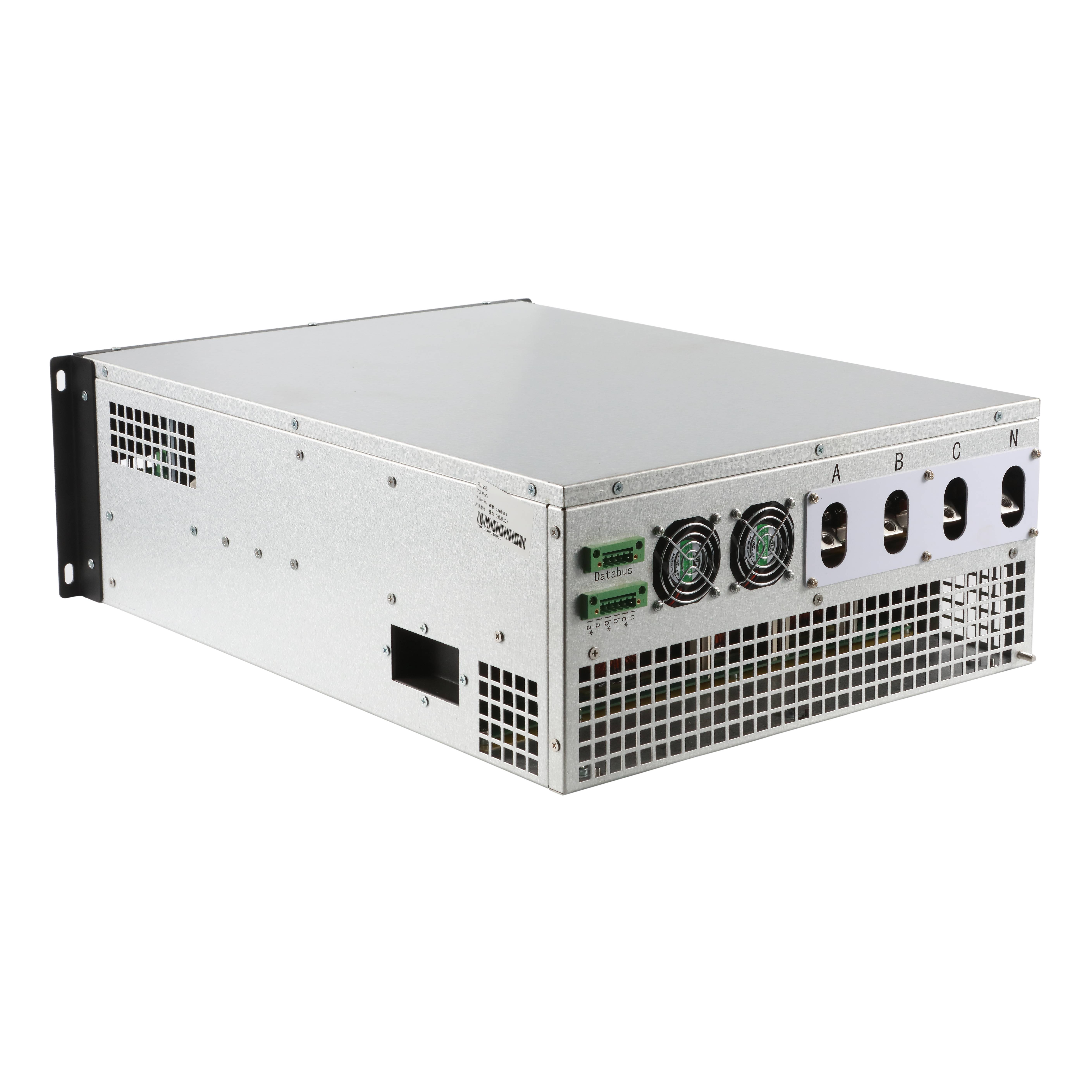

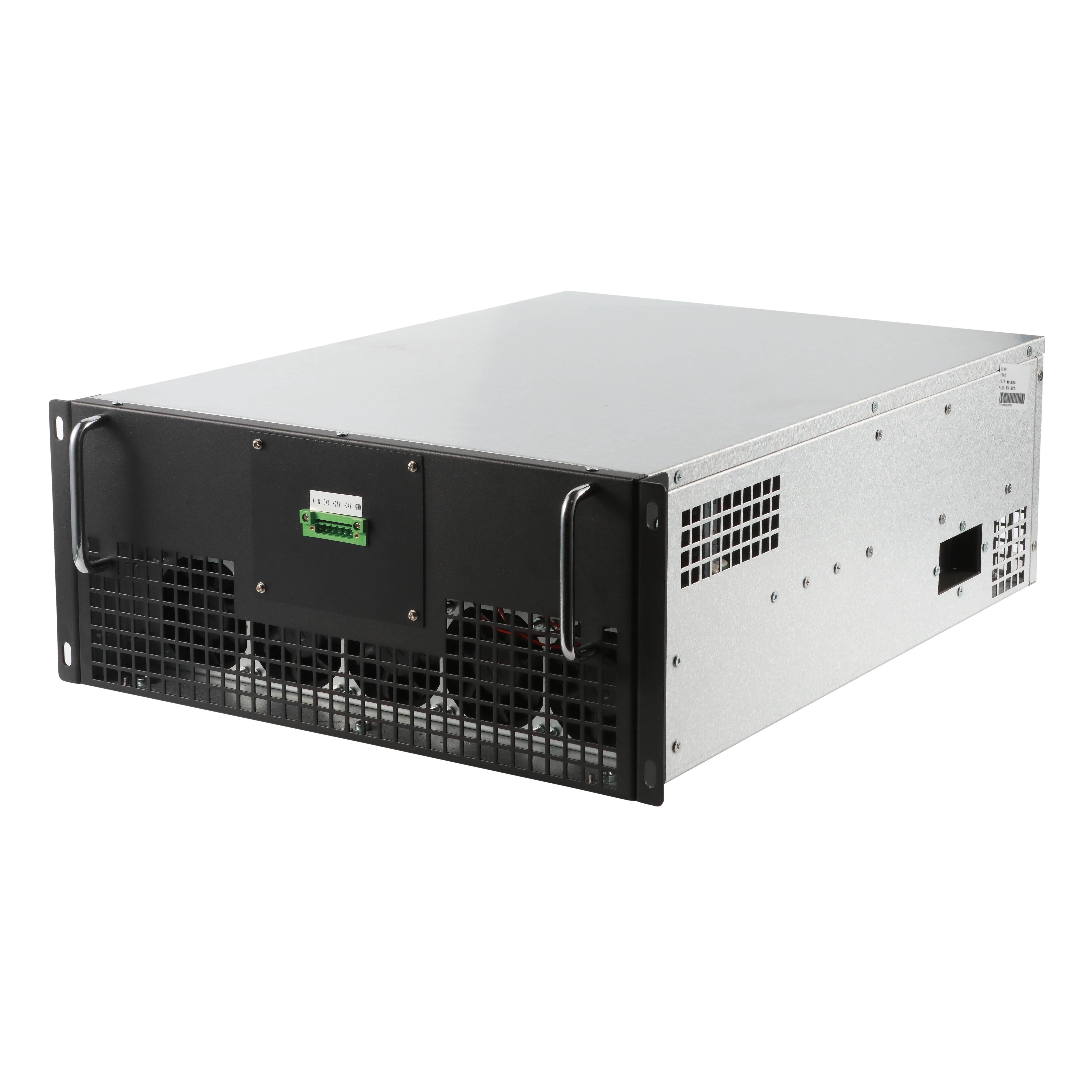

Acrel APF Series Active Power Filter Three Phase 380V Reduce Harmonic Current Drawer Type

Video Introduction

Active Power Filter (APF) is connected in parallel with the loads. A current generator (power unit) that converts the control signals generated by the filter controller into the filter compensation current. A filter controller that determines the anti-harmonic current to be injected based on the line current measurements and the user's requirements. The line current measurements are obtained from current transformers (CTs). The user enters his requirements by means of the user interface.

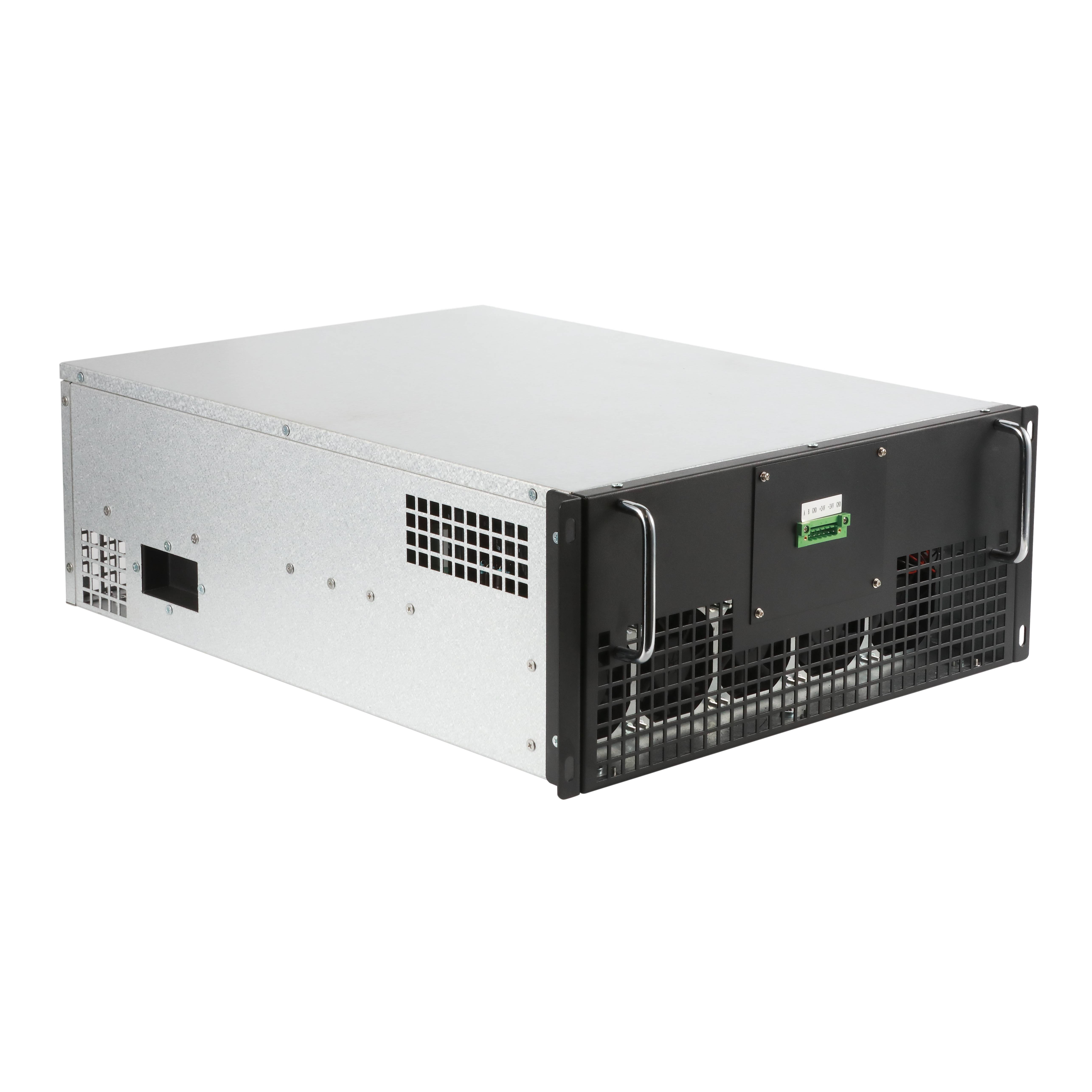

Specification

1
Flexible compensation method: Compensate for harmonics only, compensate for reactive power only, compensate for both harmonics and reactive power, could compensate for 2th-25th harmonics or compensate for specific harmonics.
2
Ability of managing three-phase imbalance.
3
Linear compensation, Response time ≤ 5ms.
4
Humanized human-computer interaction interface, which displays real-time power quality information of the system and the ontology. This interface has the ability to control the device remotely and easy to operate.
5
Adopt imported IGBT which has high power density and high reliability.
6
Using DSP digital control system for high speed detection and calculation.
7
With remote communication interface, real-time monitoring through PC.
8
Standard modular design which reduces lead times and increases reliability and maintainability.

Technical Parameter

Rated Voltage	380V±15%	Efficiency	≥97.5%	Protection Level	IP20
Rated Frequency	50Hz±2%	Total Harmonic Compensation	≥95%	Communication	RS485/Ethernet
Active Loss	≤2.5%	Average Switching Frequency	20kHz	Compensation Mode	Linear Compensation
Harmonic Filtering Range	2th~50th harmonics (the number of compensation can be selected)
Module Capacity	30A, 50A, 75A, 100A
Protective Function	Over 20 kinds of protections such as over-voltage, under-voltage, overheating, over-current, short circuit, etc.
Cooling Method	Intelligent air cooling

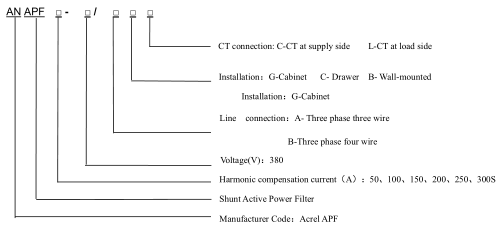

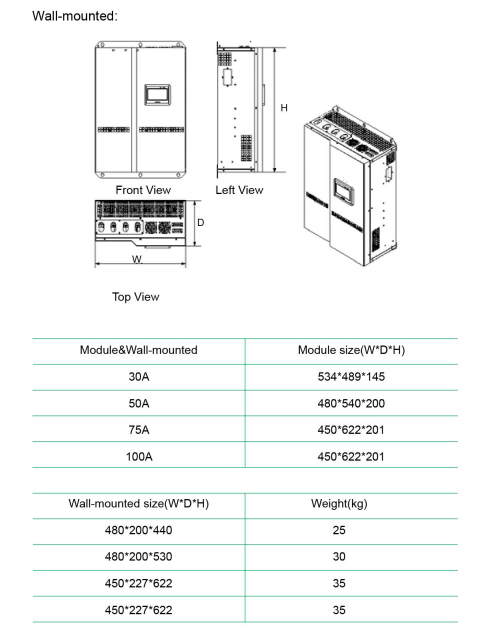

Model Selection

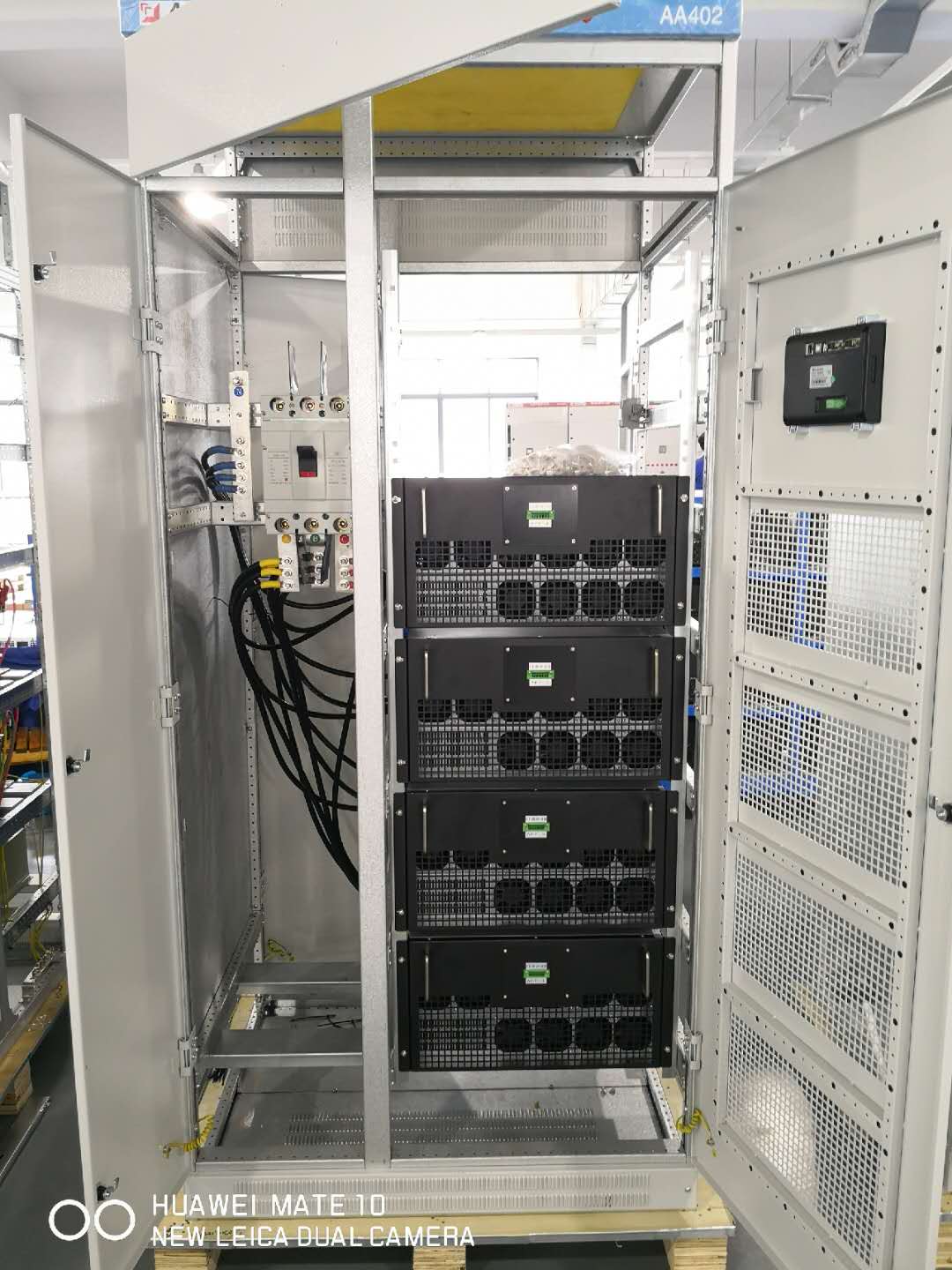

Work Site Application

Company Profile

We are a high-tech enterprise that integrates R&D, production, sales, and service. Since establishment, we are committed to providing users with energy efficiency management and power security system solutions. We have a complete production line from cloud platform software to sensors. At present, more than 8,000 sets of various solutions are running all over the country, helping users to realize the visual management of energy consumption, providing users with energy data services, and securing efficient and safe energy consumption.

Our energy efficiency management system includes substation operations and maintenance cloud platform, electricity safety management cloud platform, environmental equipment power consumption monitoring cloud platform, prepaid management cloud platform, intelligent power distribution monitoring system, power quality management system, building energy consumption management system, industrial energy control platform, leakage power monitor and control system, fire-fighting device power monitoring system, fire-proof door monitoring system, emergency lighting and evacuation indicating system, EV charger management system, data center power & environment monitoring system, smart lighting control system, IT isolation power supply system, and related products.

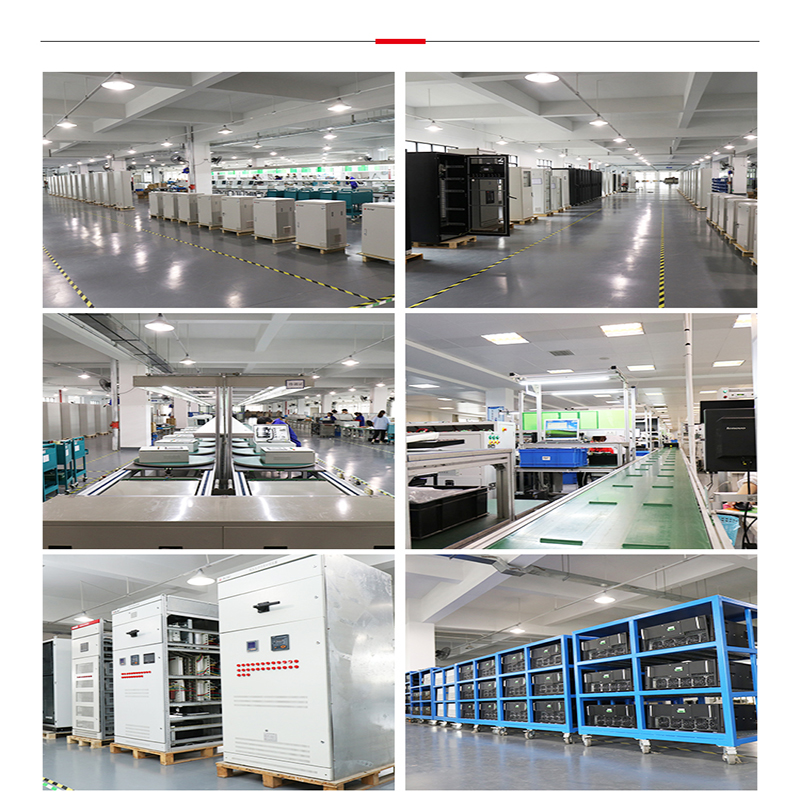

Work Shop

Exhibition

Certification

Package & Delivery

Frequently Asked Questions

Q1 How does the Active Power Filter (APF) work in a power system?

The APF is connected in parallel with the loads. A built-in current generator converts control signals generated by the filter controller into filter compensation currents. Based on real-time line current measurements obtained from current transformers (CTs), the controller injects anti-harmonic currents to filter out system harmonics according to user requirements.

Q2 What kinds of harmonic compensation capabilities does this APF offer?

It features a highly flexible compensation method. It can compensate for harmonics only, reactive power only, or both harmonics and reactive power simultaneously. It covers the 2nd to 50th harmonics, and specific harmonics can be selected for targeted compensation.

Q3 What are the main technical benefits of this APF system?

Key benefits include linear compensation with a fast response time of ≤ 5ms, the ability to manage three-phase power imbalances, high reliability through imported IGBT components, and a DSP digital control system for fast, real-time calculation and detection.

Q4 What capacity modules are available and what is the system efficiency?

Modules are designed using a standard modular structure to ensure high reliability. The available module capacities are 30A, 50A, 75A, and 100A. The overall operating efficiency of the system is ≥97.5% with active losses kept ≤2.5%.

Q5 What protection functions and remote communication capabilities are built-in?

The system comes with over 20 types of built-in protections, including over-voltage, under-voltage, overheating, over-current, and short circuit protection. It also features RS485 and Ethernet interfaces, enabling remote communication and real-time system monitoring through a PC.
