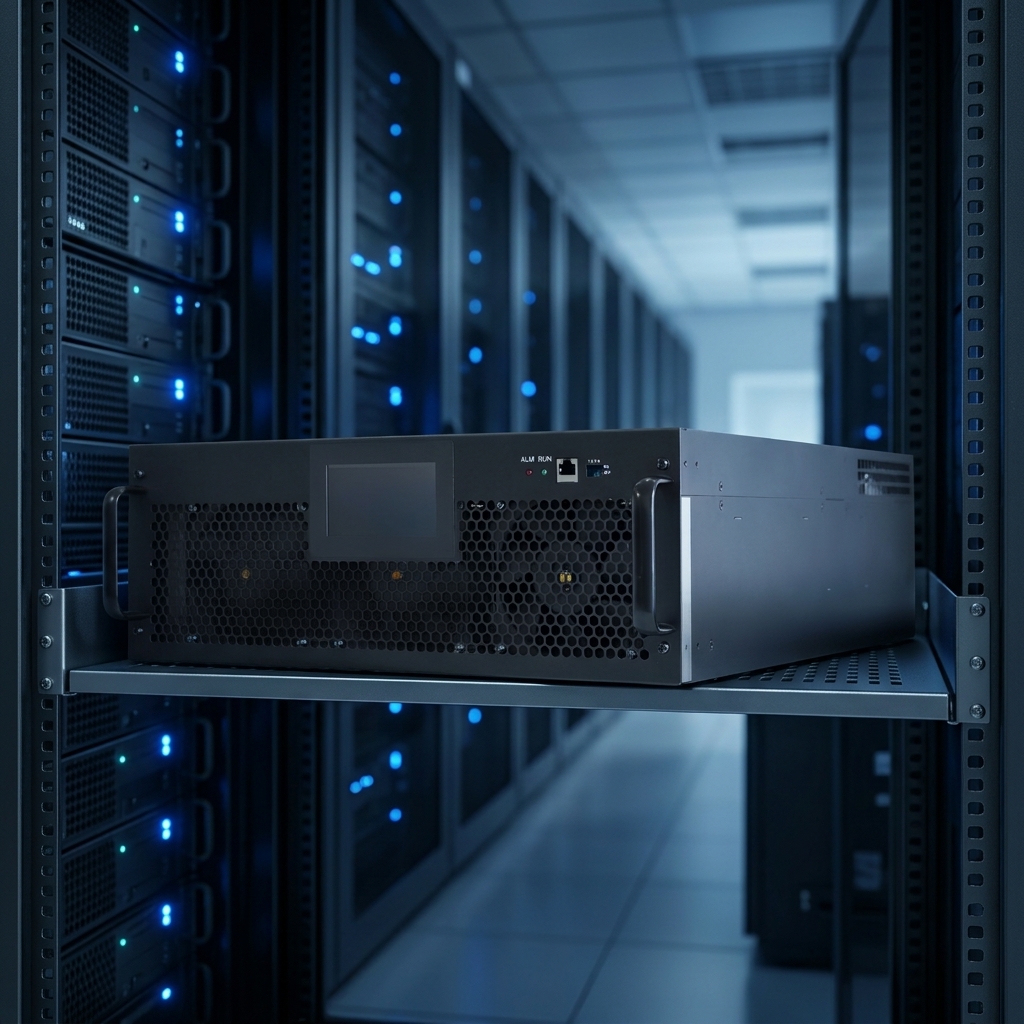

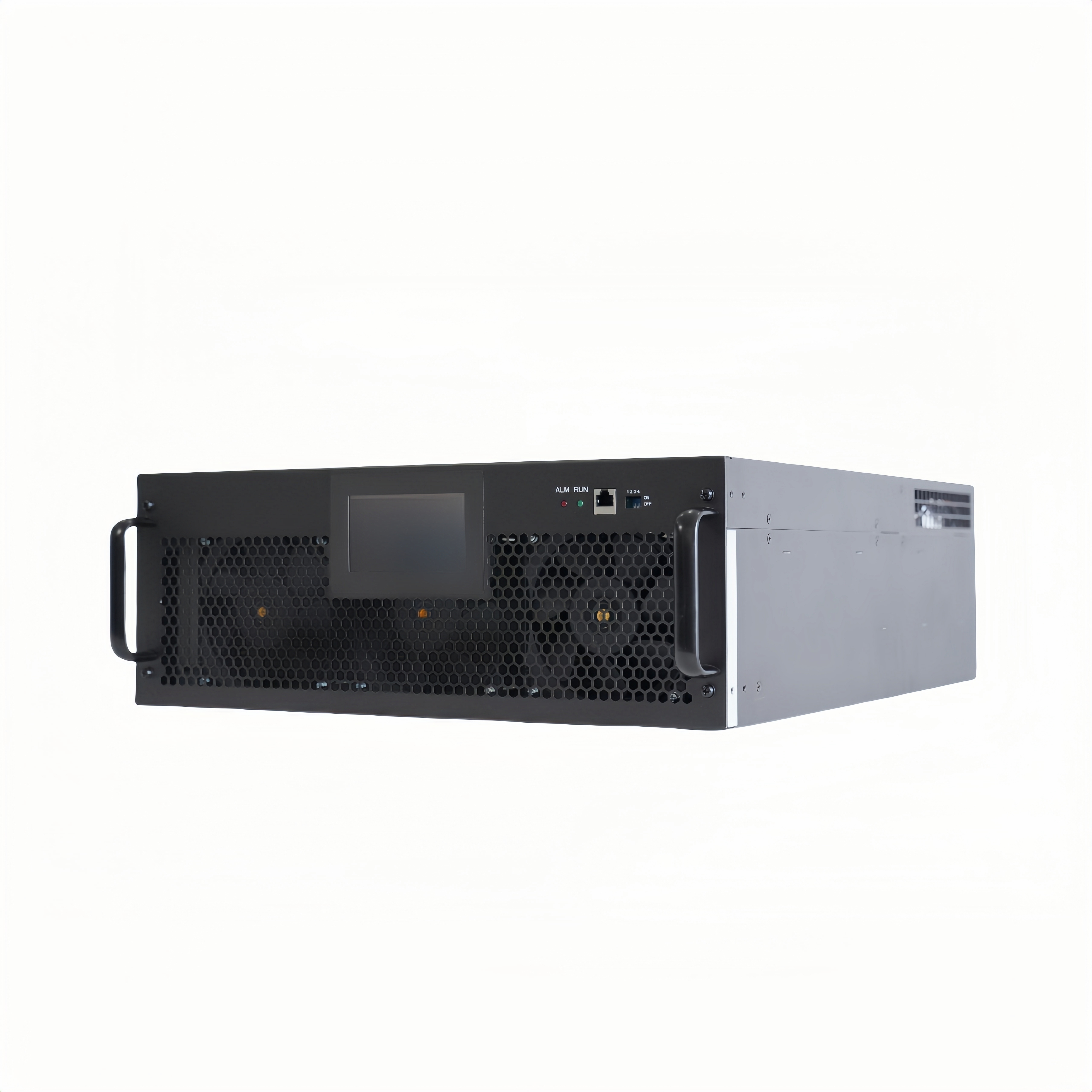

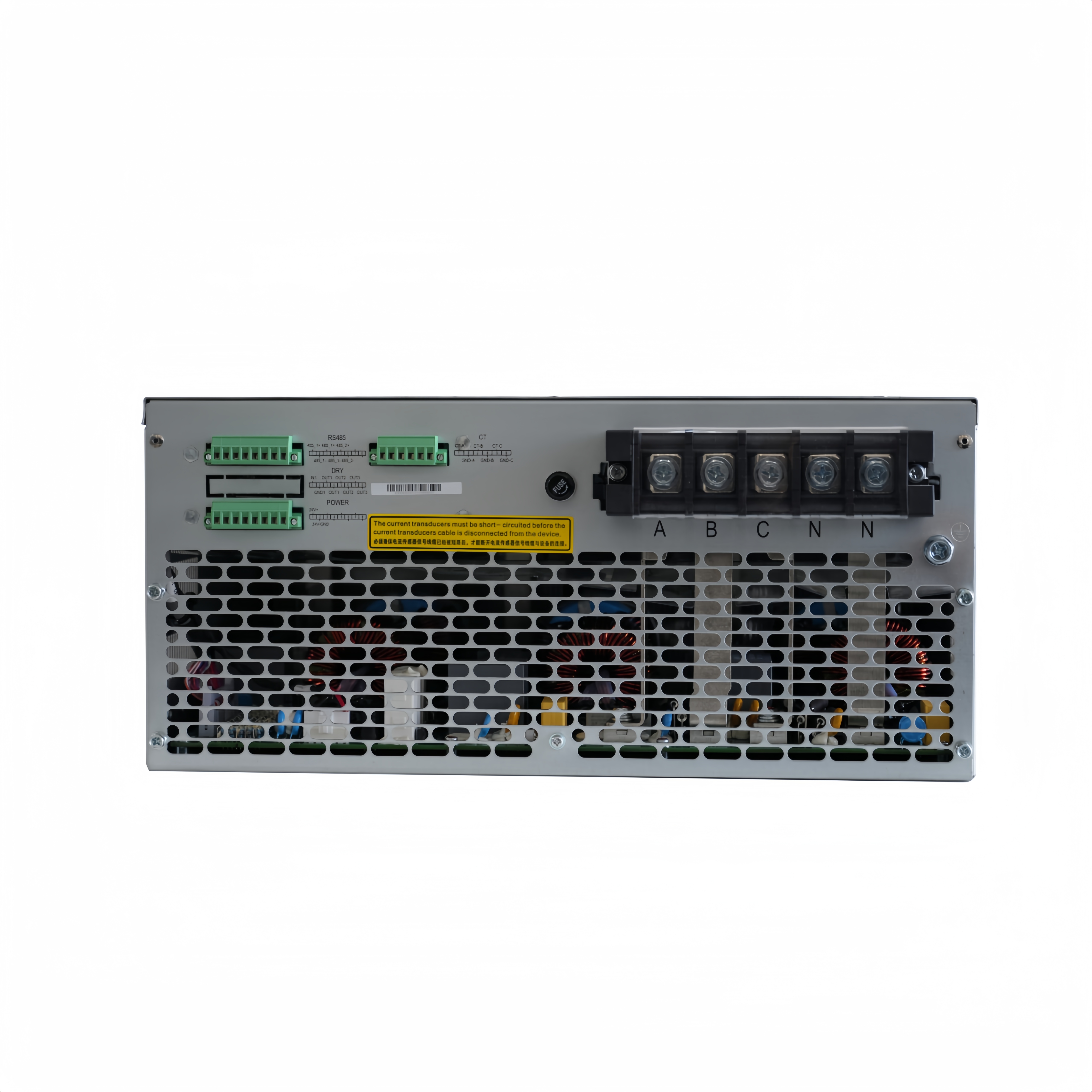

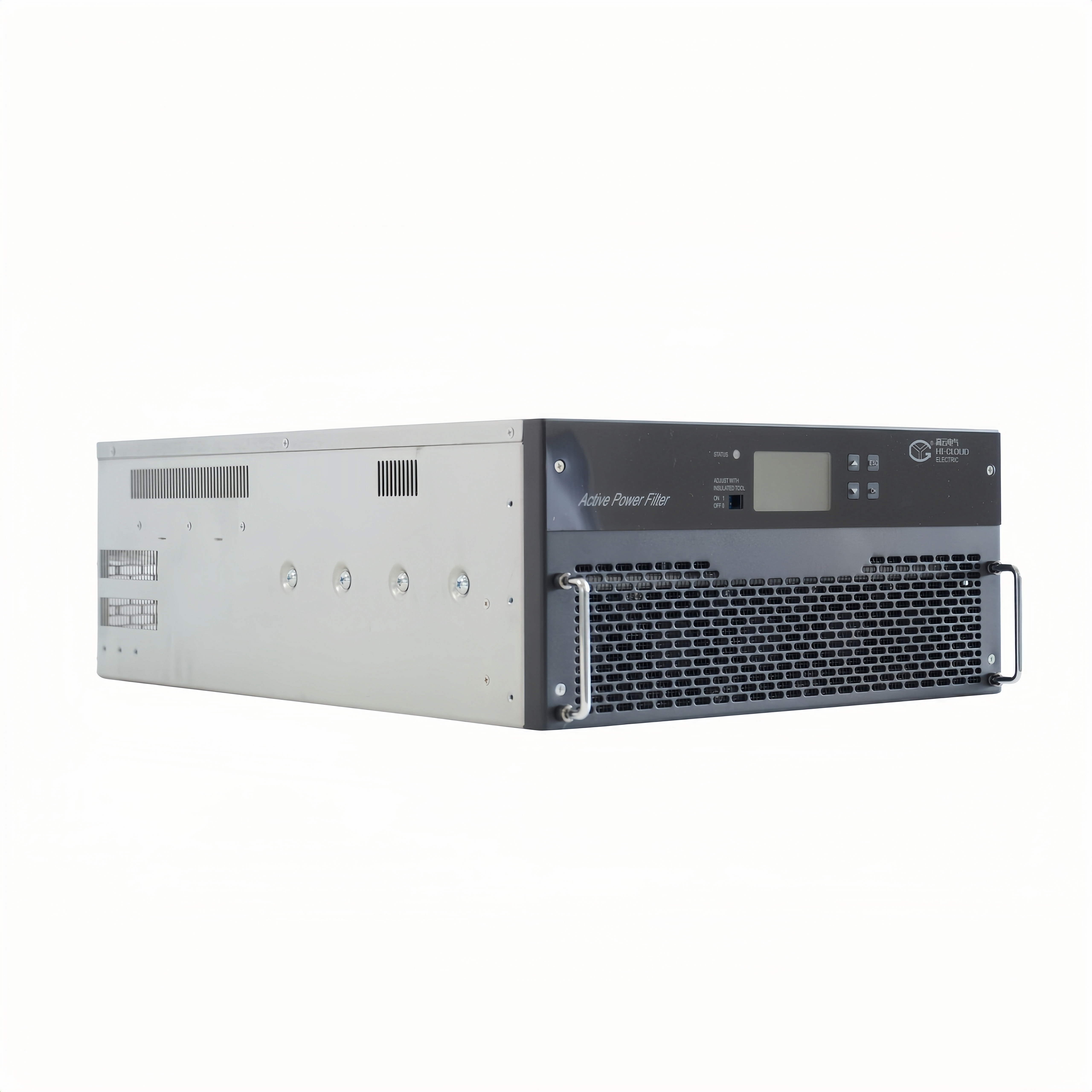

Active Harmonic Filter Panel 400V 50/75/100/150 APF for Industrial Power Quality Improvement

Product Description

Product Highlights
  • The GY-APF Series Active Power Filters (APF) are connected in parallel with the power grid to continuously detect harmonic currents and reactive power components generated by non-linear loads, including VFDs, rectifiers, and switching power supplies. By leveraging advanced PWM (Pulse Width Modulation) technology, the APF injects equal-but-opposite compensation currents into the distribution system, achieving three core objectives:
    • Suppression of Harmonics (up to the 50th order)
    • Dynamic Reactive Power Compensation
    • Three-Phase Load Balancing
  • APF Active Power Filters: A rugged, high-performance variant engineered for demanding environments. Capacity Range: 50–150 A. Applications: Heavy industry, commercial buildings, sites with high single-phase loads, and harsh operating conditions. Advanced Features: Dual DSP controller architecture for ultra-fast, stable response. Real-time temperature monitoring and fan alarm functions. Precise fault feedback for simplified maintenance.
  • Improved Power Quality: Reduces harmonic distortion and corrects power factor.
  • Enhanced Equipment Reliability: Protects motors, transformers, and sensitive electronics from harmonic damage.
  • Energy Savings: Lowers energy consumption and reduces utility penalties for poor power factor.
  • Easy Integration: Rack-mount design for simple installation in standard cabinets.
  • Proactive Monitoring: Industrial models offer comprehensive diagnostics and protection features.
Specifications

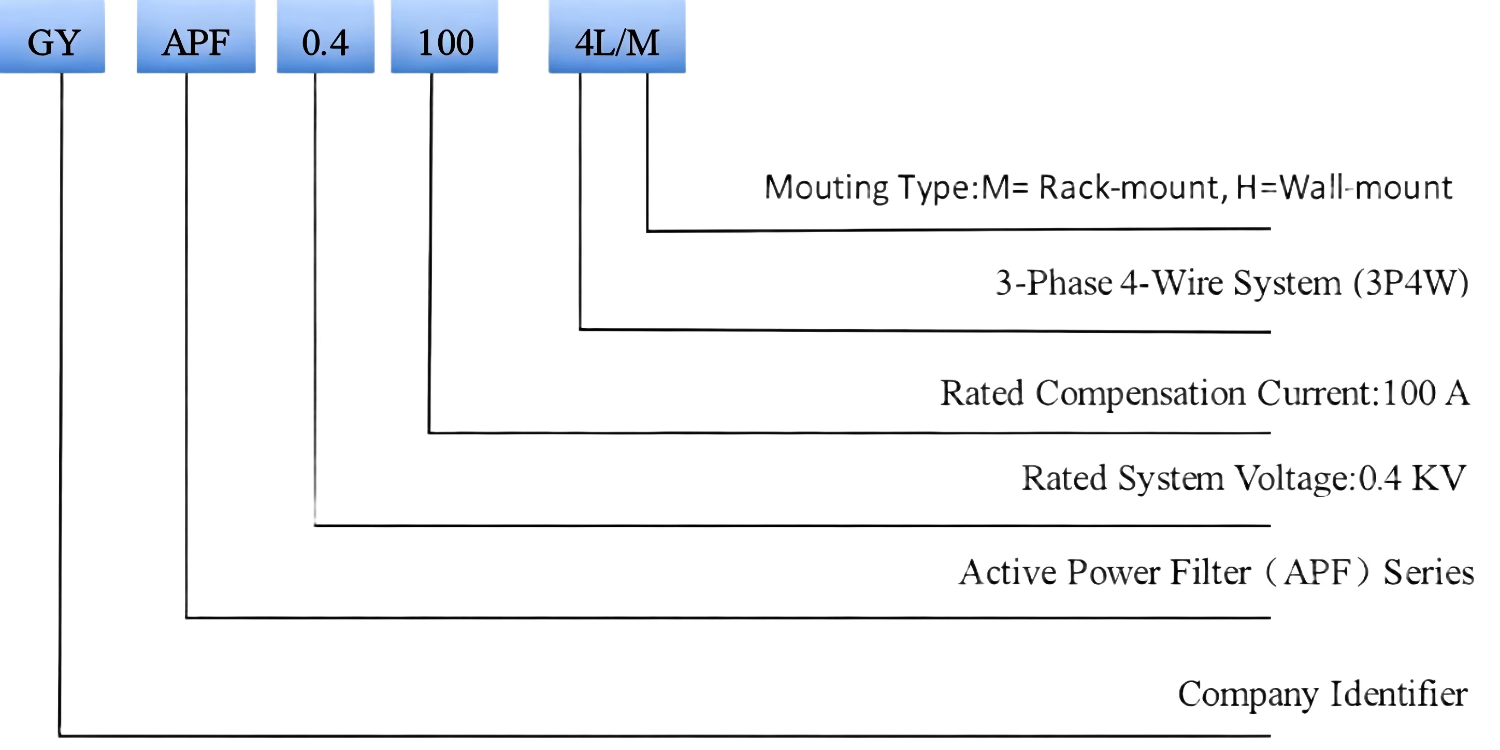

Model GY-APF
Spec. 0.4/1004L/SM
Standard DL/T 1216-2019
Un (kV) 0.4 (-20% ~ +20%)
Qn (kVar) 100
Product Size (L*W*H) (mm) 440 * 180 * 666
Maximum Number of Parallel Connection 10 Pieces
Active-Power Loss <2%
CT 100/5-10000/5
Filter Capacity Low-Order Filtering (5, 7, 11, 13)
Response Time (ms) <5
Noise Label <60dB
Monitoring Screen 2.8-inch LCD screen
Communication Protocol Modbus Protocol, TCP/IP
Communication Interface RS485
Temperature Category -25°C ~ +55°C
Altitude (m) <2000
Humidness 5% ~ 95%RH, without condensation

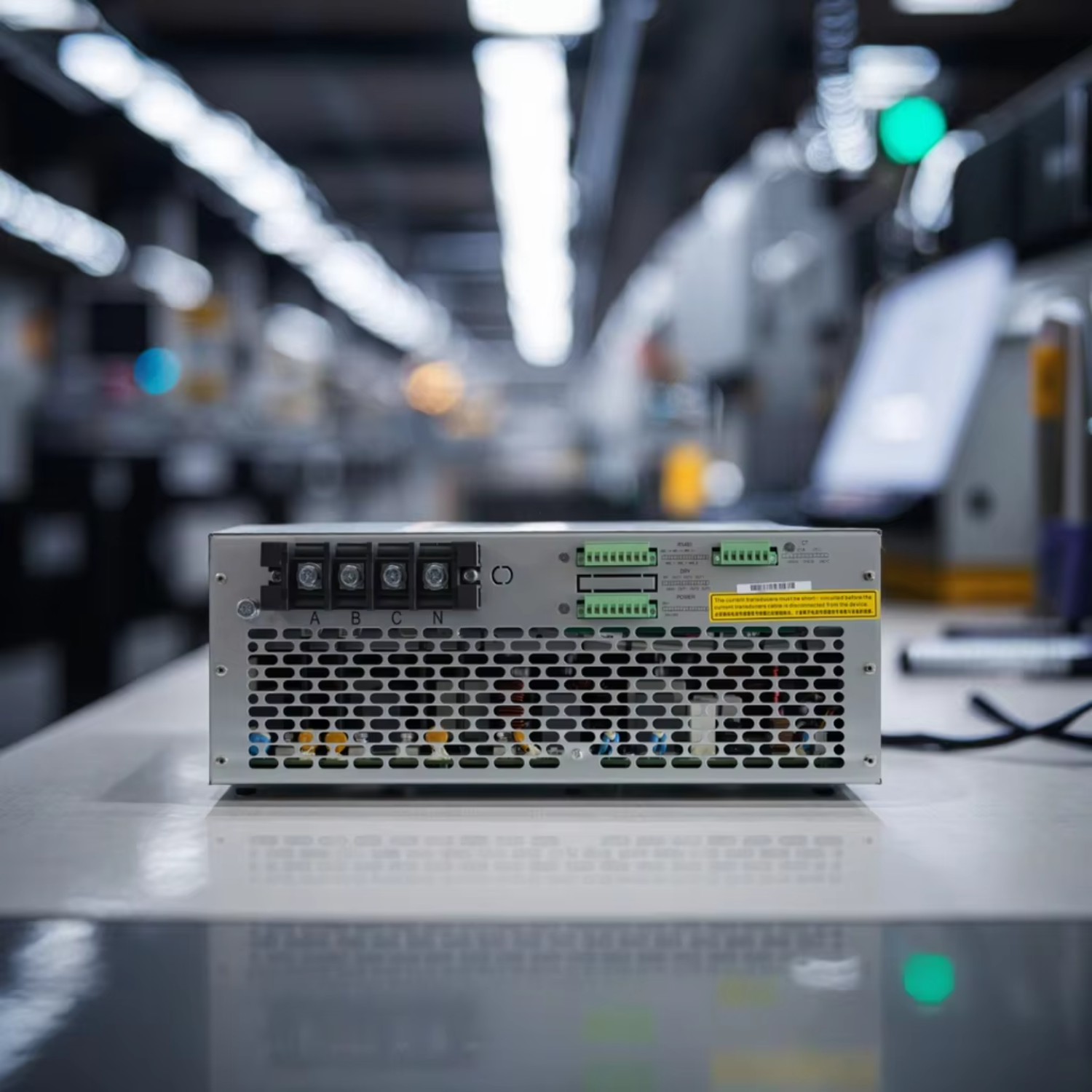

Scene Image
Active Harmonic Filter Panel 400V 50/75/100/150 APF for Industrial Power Quality Improvement
Detail Shot
Active Harmonic Filter Panel Details

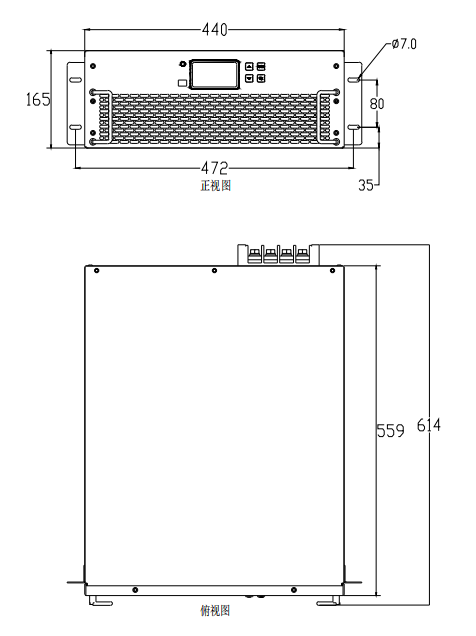

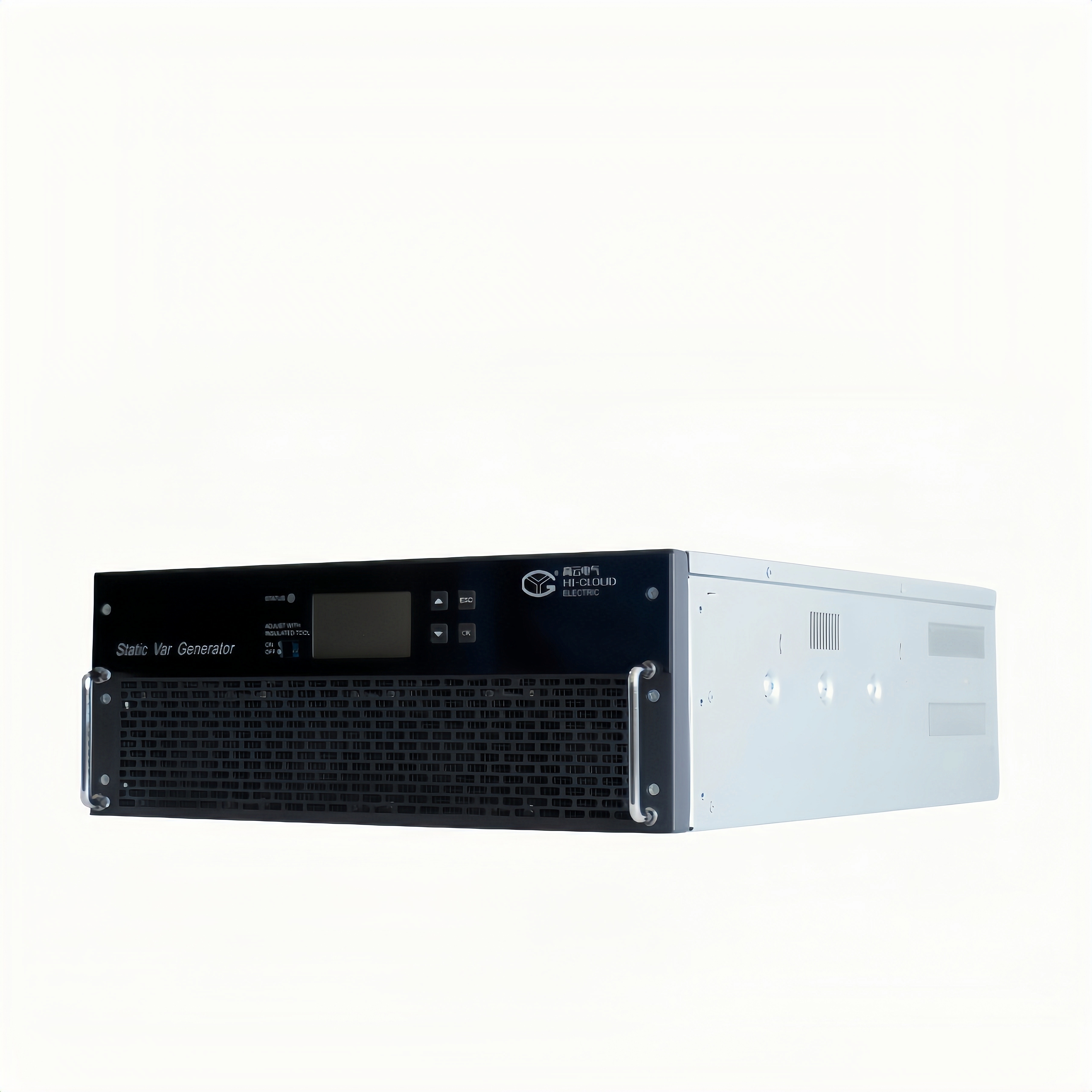

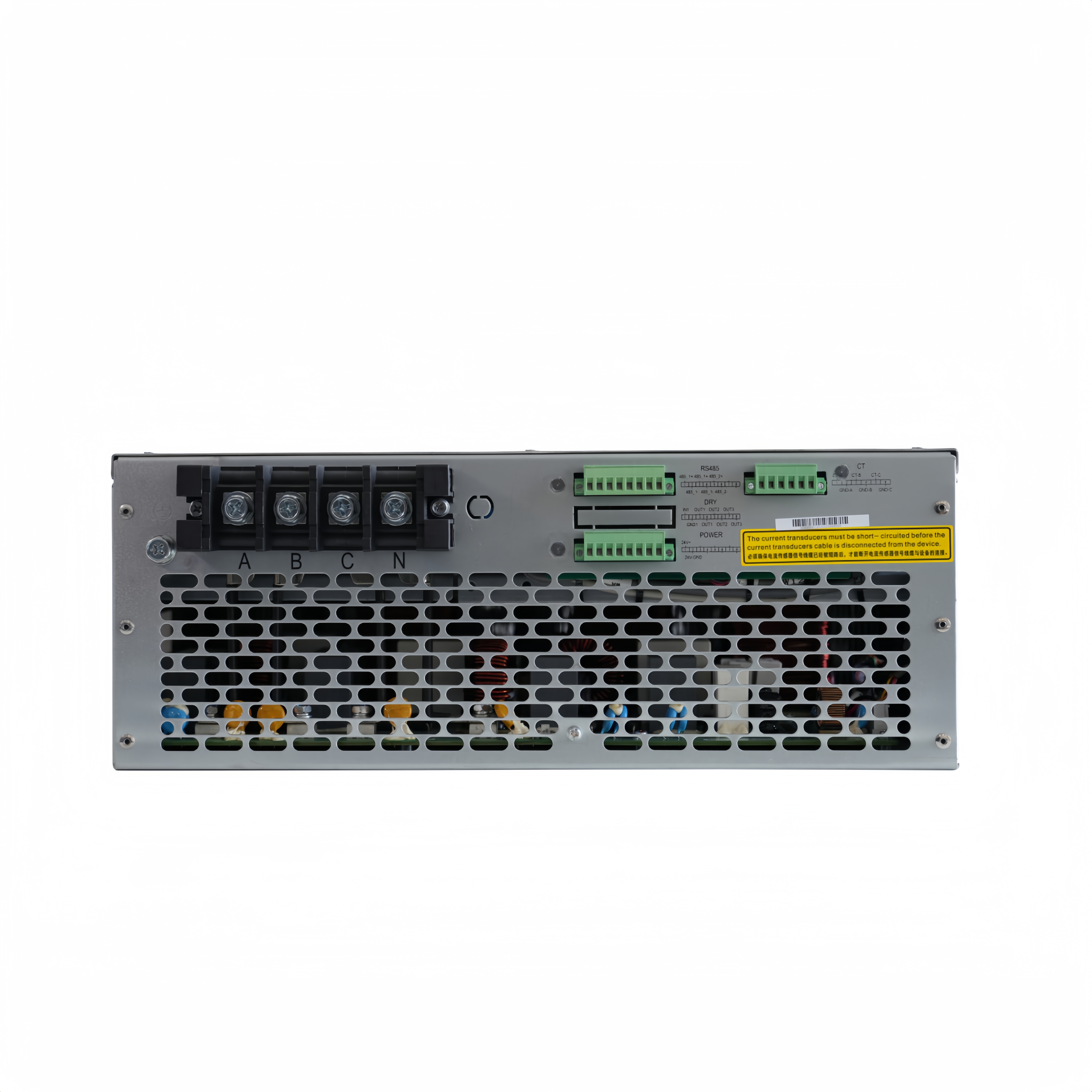

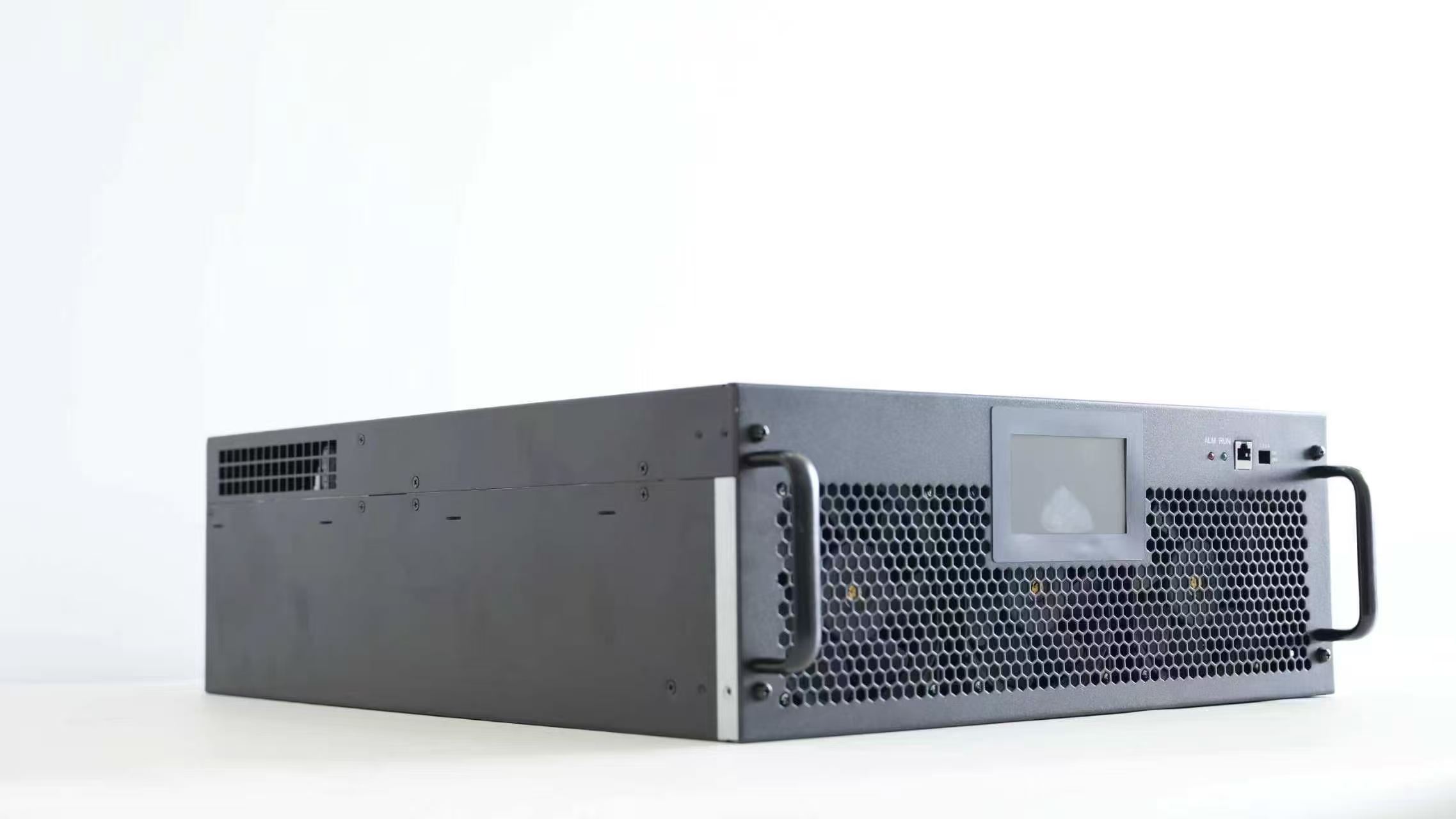

Detail Panel View Internal Component View Detail Module Connection

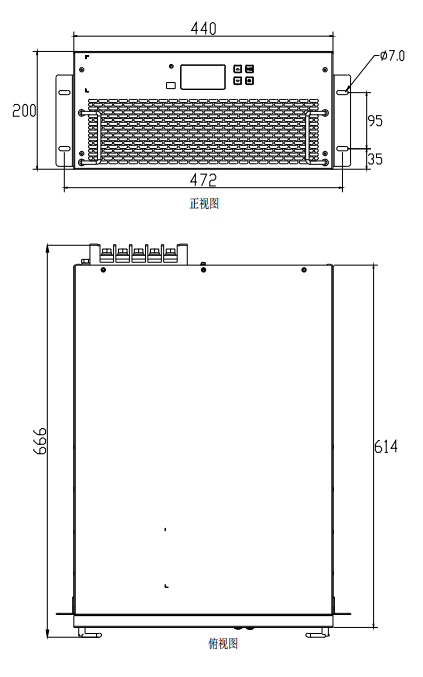

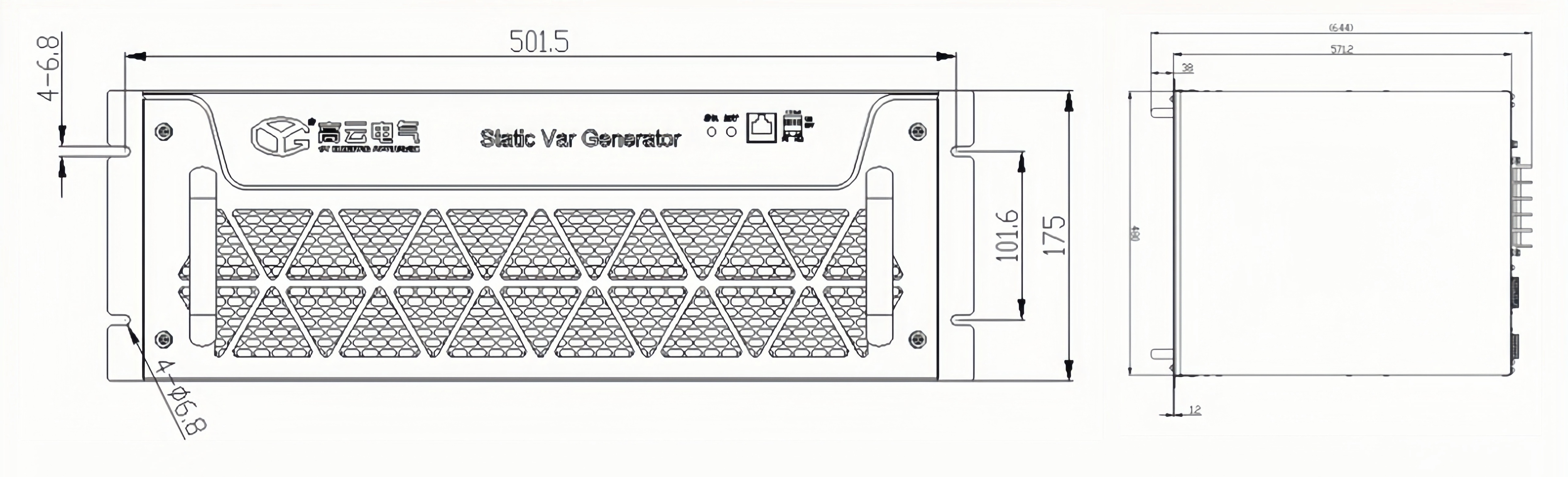

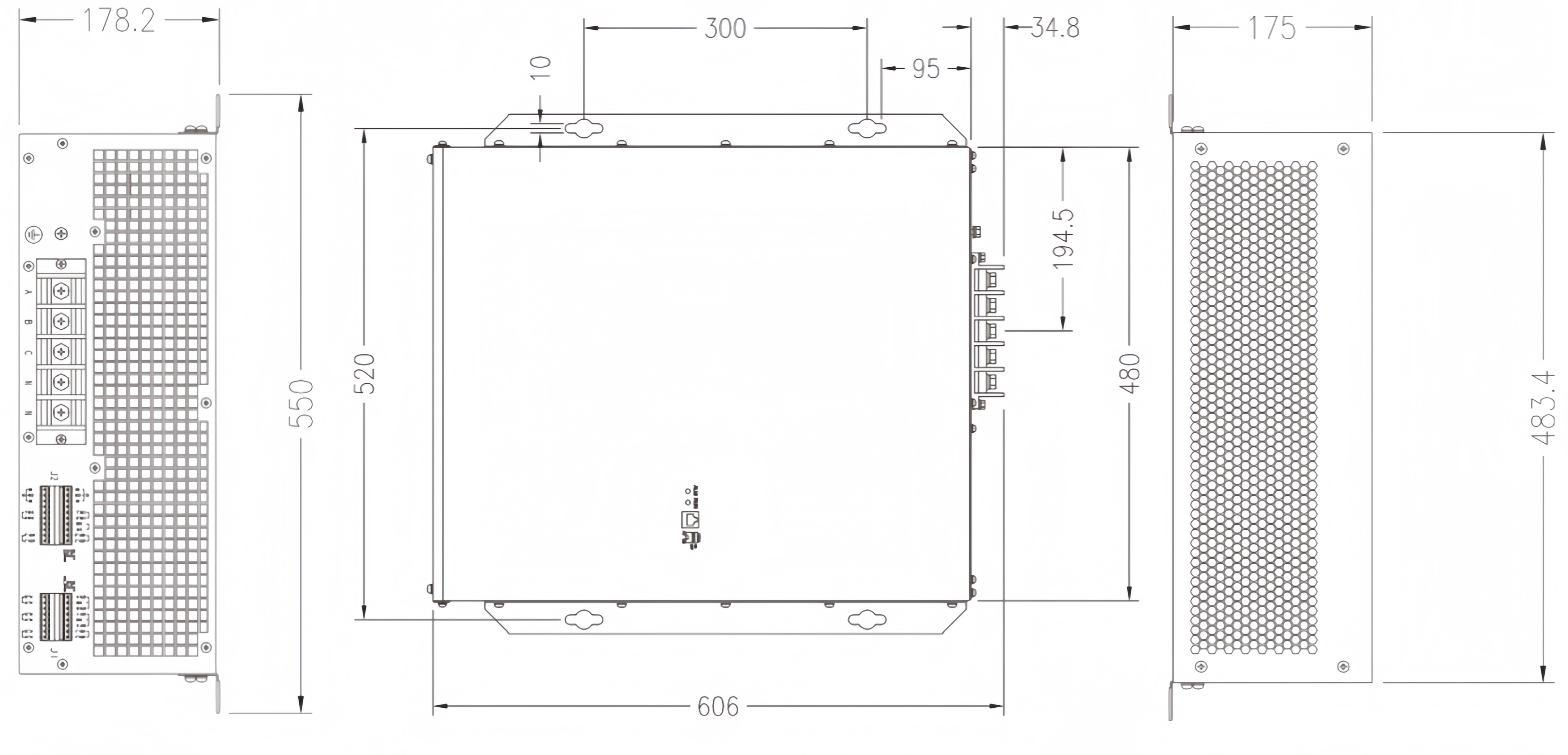

Active Harmonic Filter Installation Structure Cabinet Wiring System Operational Waveform Graph
